MB-350 Mandrel Tube Bender Ø76.2 x 3mm Round Tube Capacity, 50.8 x 50.8 x 3mm Square Tube Capacity

BAILEIGH MB-350 Mandrel Tube Bender Ø76.2 x 3mm Round Tube Capacity, 50.8 x 50.8 x 3mm Square Tube Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B9070

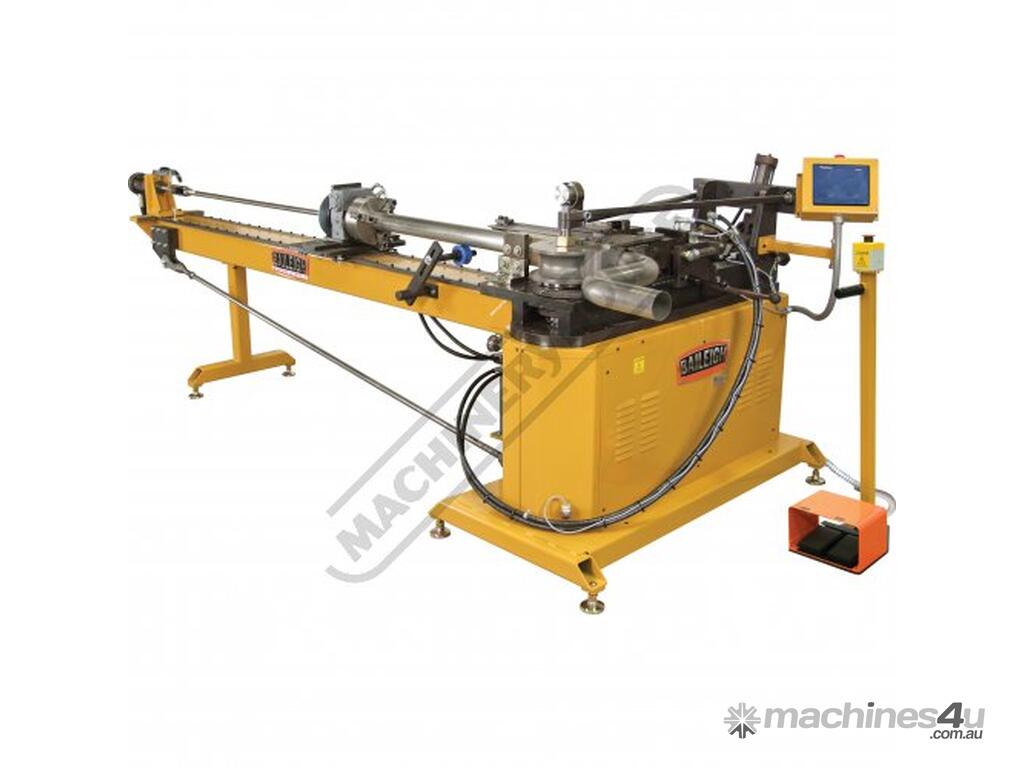

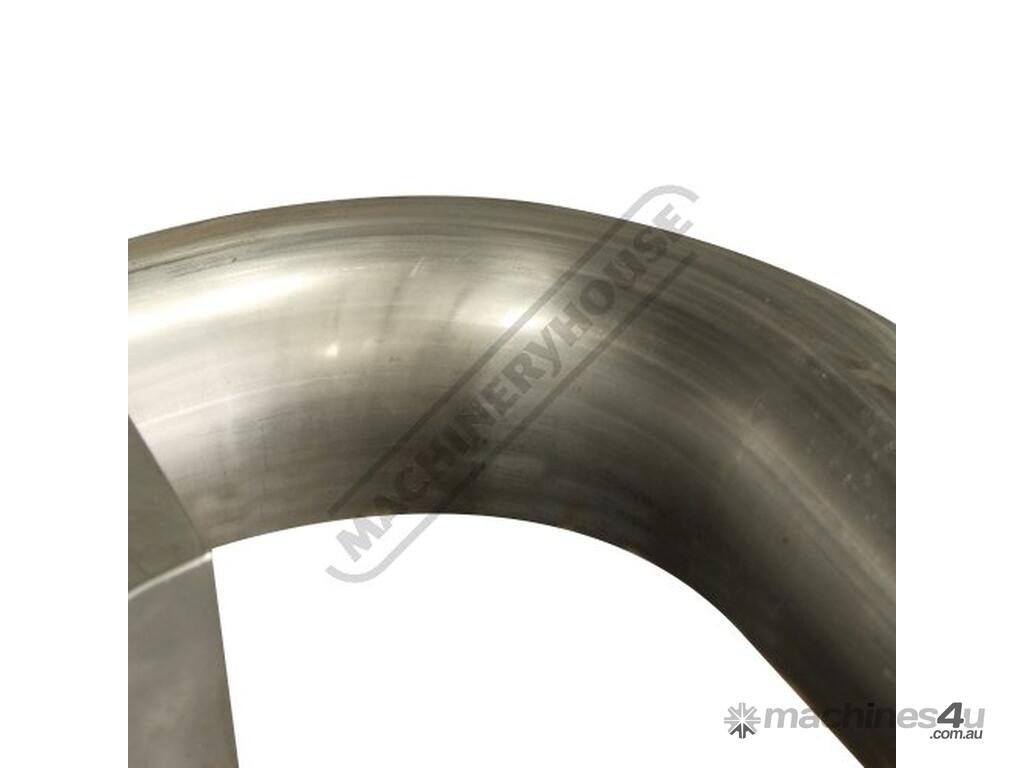

The MB-350 mandrel bender from Baileigh Industrial is the perfect machine for small to medium fabricators looking to either increase productivity or bend to small radii like 1.5 times the outside diameter of the material. Bending stainless steel exhaust is another great application for the MB-350. This machine has a capacity of 76.2mm OD x 1.65mm wall thickness on stainless steel.

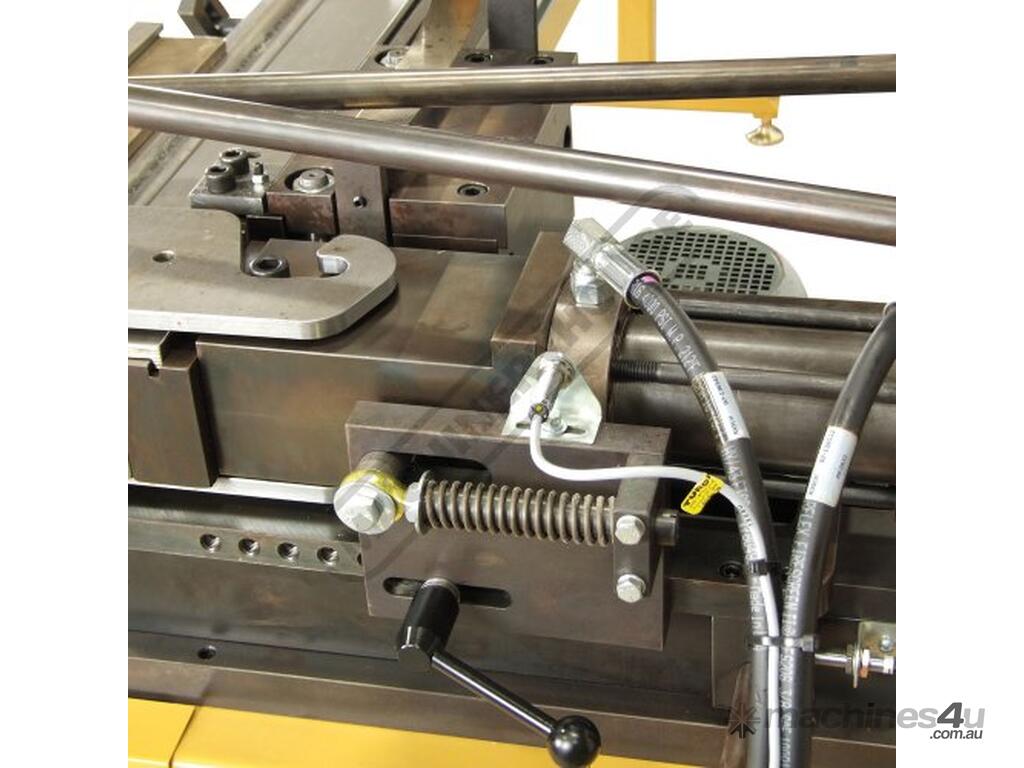

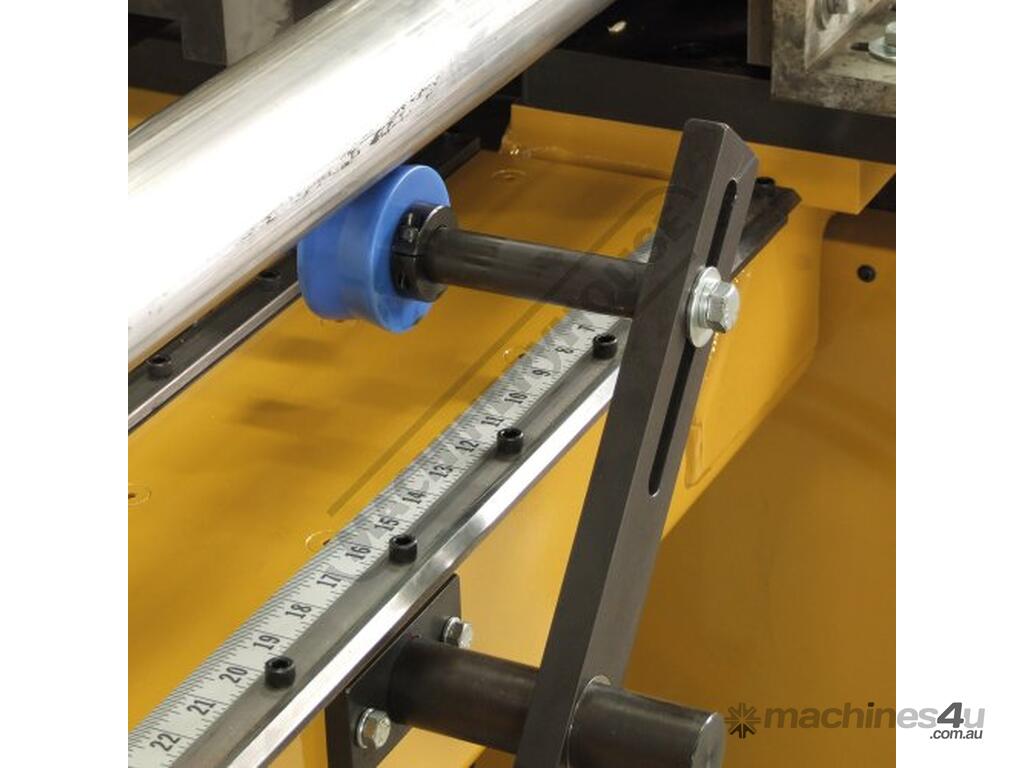

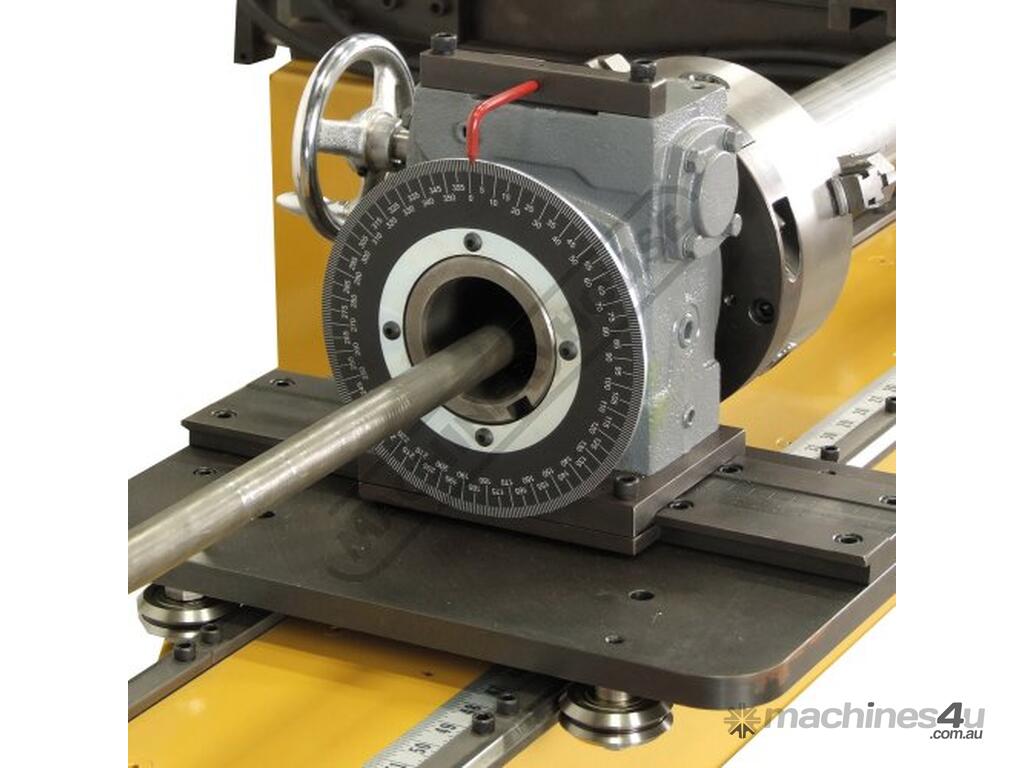

The MB-350 is made in the USA and is packed with great features. Operation is controlled by a touch screen programmer that is capable of having 170 programs with 10 bends per program with the included memory, but is unlimited with the use of an SD card. A 3048mm mandrel extraction table with rotary chuck is also included. This table along with the four manual carriage stops, allows the operator to “program” where the next bend is.

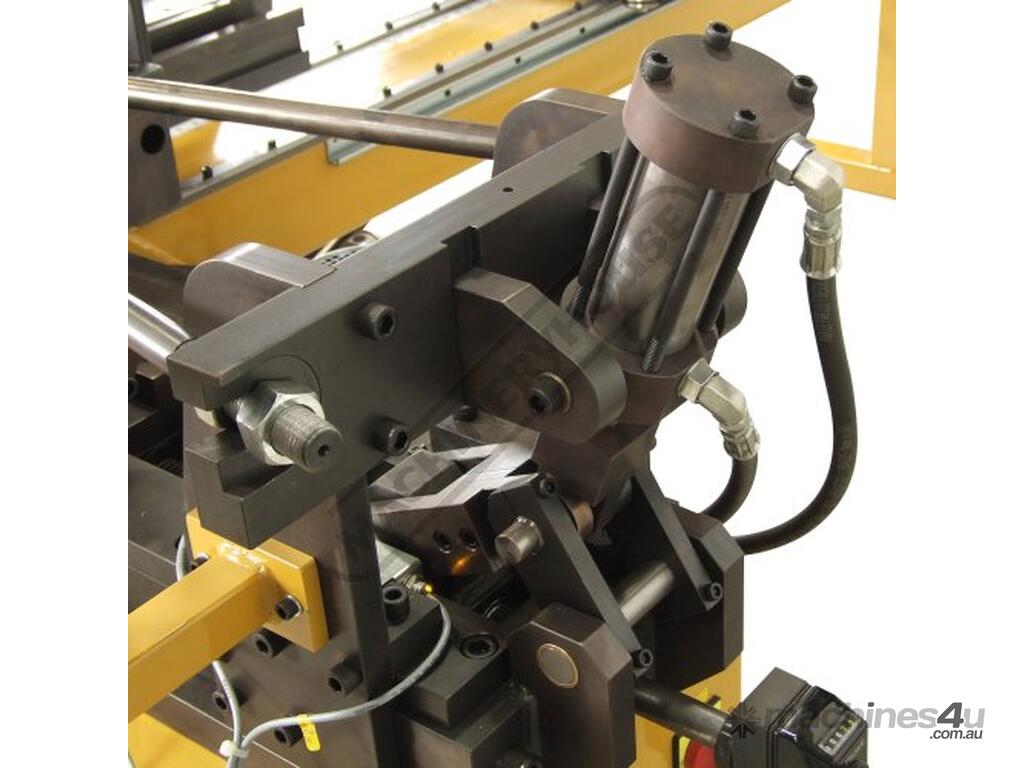

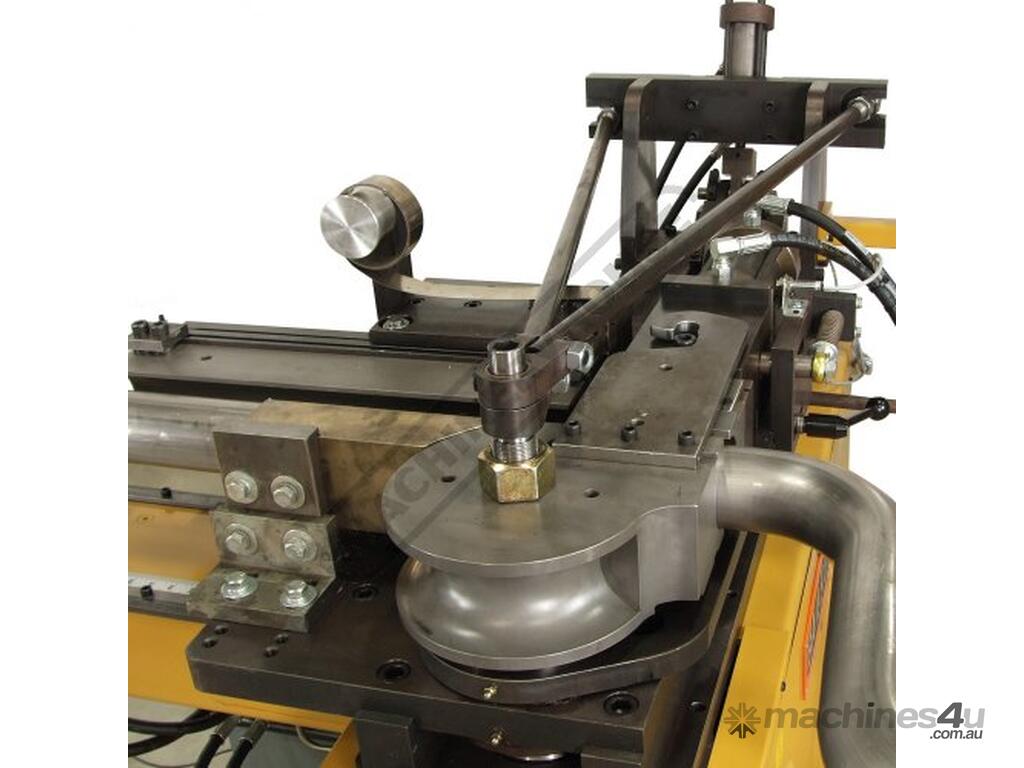

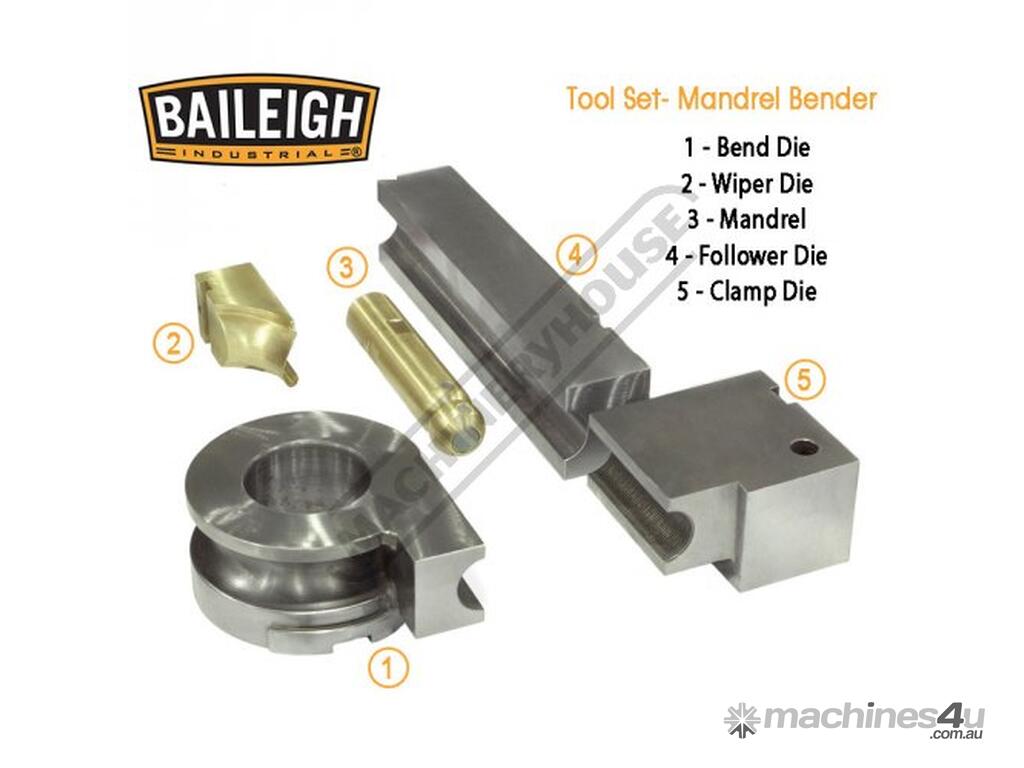

This is a right handed mandrel bender with single stack tooling which makes operation a lot less confusing for first time operators. Of course, tooling on the MB-350 like all mandrel benders is application specific and must be verified to work by Baileigh Industrial. Tooling consists of five parts: 1 - Rotary Bending Die; 2 - Clamp Die; 3- Pressure Die; 4 - Mandrel; 5 - Wiper Die.

Features:
Bending Direction: Clockwise
Material Feed: 25.4mm
Index Chuck Thru Hole: 60.96mm
Index Table Length: 3048mm
Bending Hp: 5hp
Tooling not included contact you nearest branch for correct sizing.

Includes:
- 3048mm (10ft) mandrel extraction table
- Rotary chuck



Specifications:
ORDER CODE: B9070
MODEL: MB-350
Material (Type): Tube
Material Section (Type): Round, Square & Rectangle
Machine (Type): Electric Hydraulic - Mandrel
Hydraulic Jack Size (Tonne): ~
Round Pipe Range (NB) - Mild Steel (inch / mm): ~
Round Tube Range (OD) - Mild Steel (inch / mm): ~
Square Tube Range (inch / mm): ~
Tube Wall Thickness - Mild Steel (inch / mm): ~
Round Pipe (NB) x Wall Capacity - Mild Steel (inch): ~
Round Pipe (NB) x Wall Capacity - Aluminium (inch / mm): ~
Round Pipe (NB) x Wall Capacity - Stainless Steel (inch / mm): ~
Round Tube (OD) x Wall Capacity - Mild Steel (inch / mm): Ø76.2 x 3
Round Tube (OD) x Wall Capacity - Aluminium (inch / mm): ~
Round Tube (OD) x Wall Capacity - Copper, Brass (inch / mm): ~
Round Tube (OD) x Wall Capacity - Stainless Steel (inch / mm): Ø76.2 x 1.6
Round Tube (OD) x Wall Capacity - Chromoly (inch / mm): ~
Solid Rod - Mild Steel (inch / mm): ~
Square Tube x Wall Capacity - Mild Steel (inch / mm): 50.8 x 50.8 x 3mm
Rectangle Tube x Wall Capacity - Mild Steel (inch / mm): ~
Bend Speed - Maximum (Deg / Sec): 180° / 16
Bend Direction: Clockwise
Centre Line Radius - Maximum (CLR) (inch / mm): 9" / 228.6mm
Centre Line Radius - Minimum (CLR) (inch / mm): 1.5 x dia
Tube Formers Included (inch / mm): ~
Tube Formers Included (inch / mm): ~
Tube Formers Included (inch / mm): ~
Pipe Formers Included (inch / mm): ~
Pipe Formers Included (inch / mm): ~
Spigot Size on Ram (inch / mm): ~
Angle Capacity (deg): 200º
Hydraulic Pressure - Maximum (psi): 3000

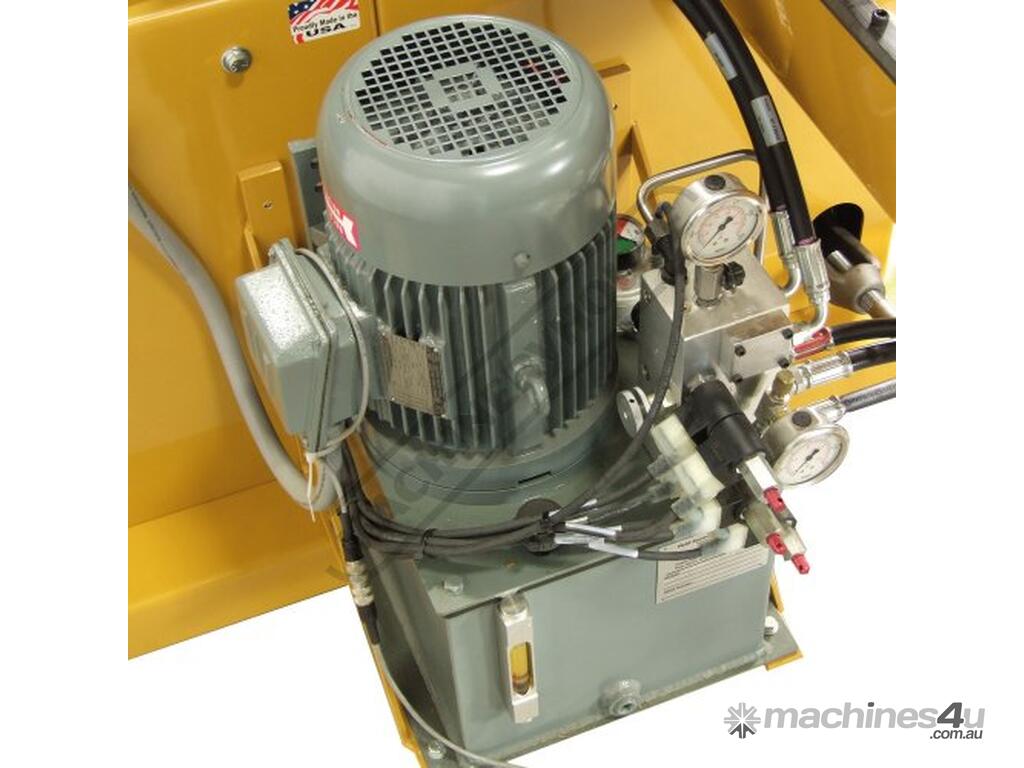

Motor Power (kW / hp): 3.75 / 5
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 1819
