MBR-3HR Hem Bead Roller Sets Suits MBR-610 & MBR-1070 Bead Rollers

METALMASTER MBR-3HR Hem Bead Roller Sets Suits MBR-610 & MBR-1070 Bead Rollers
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S6337

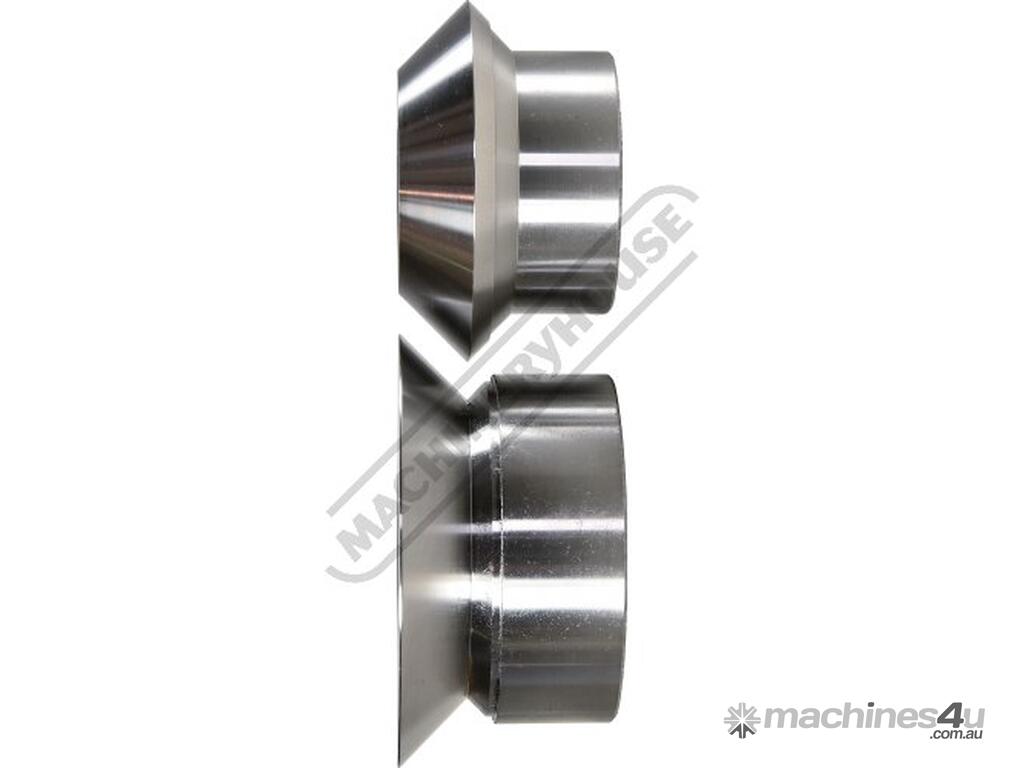

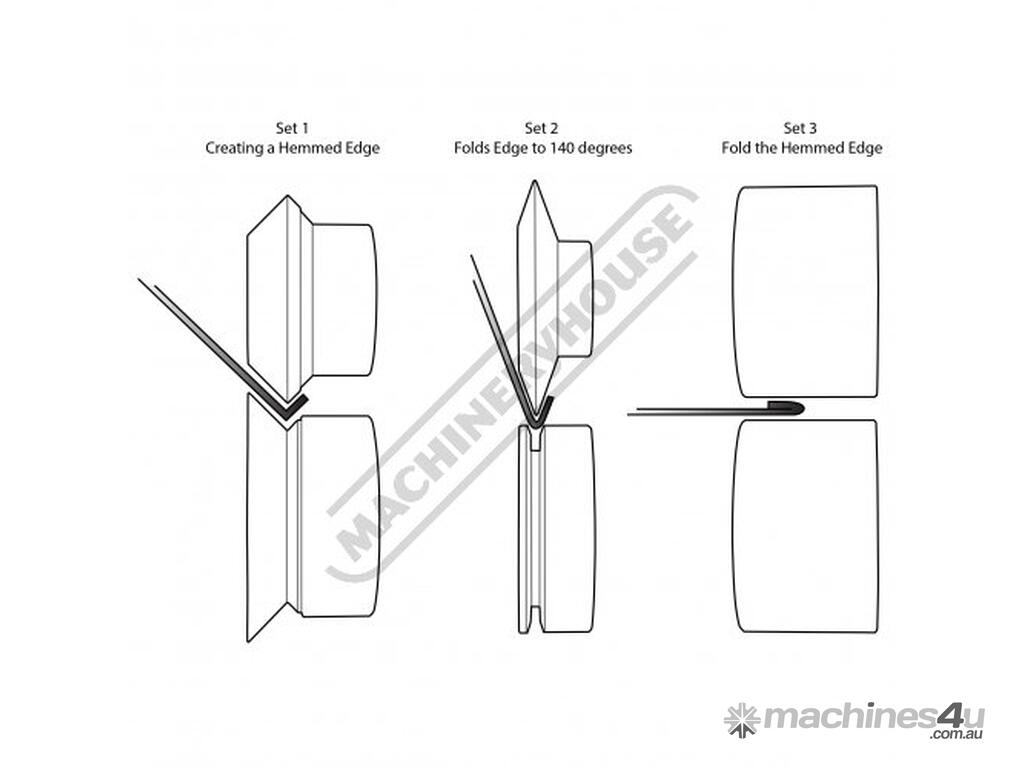

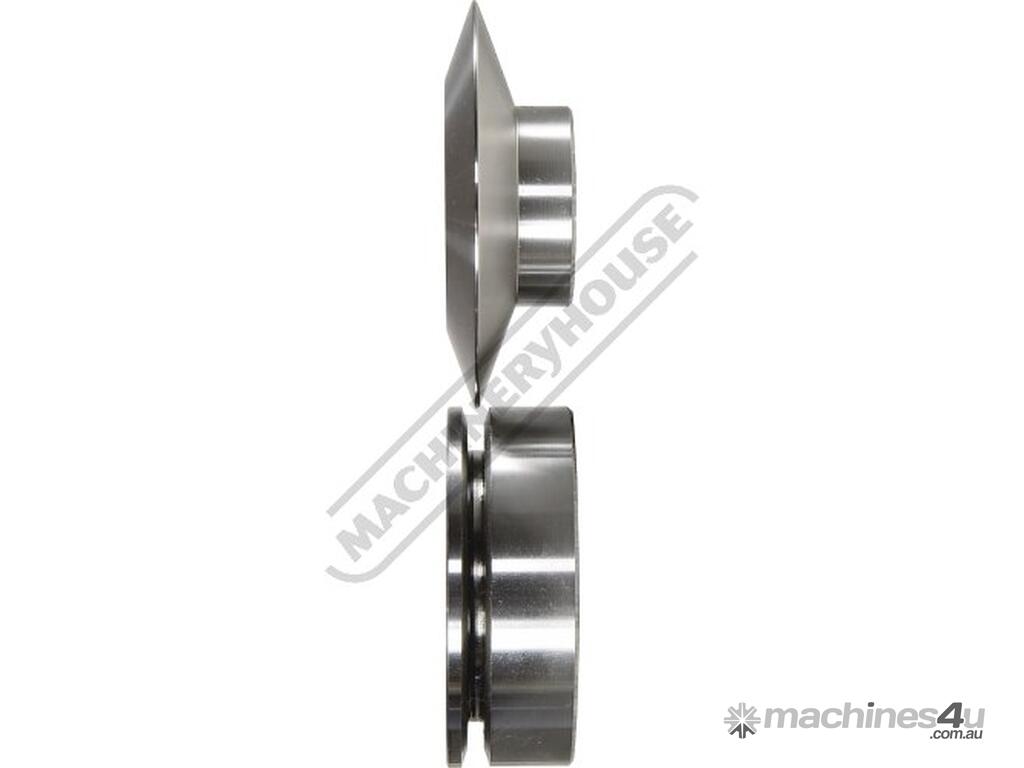

First Step: Use Set 1 to start to creating a hemmed edge.
Dies have a integrated guide to keep a consistent edge

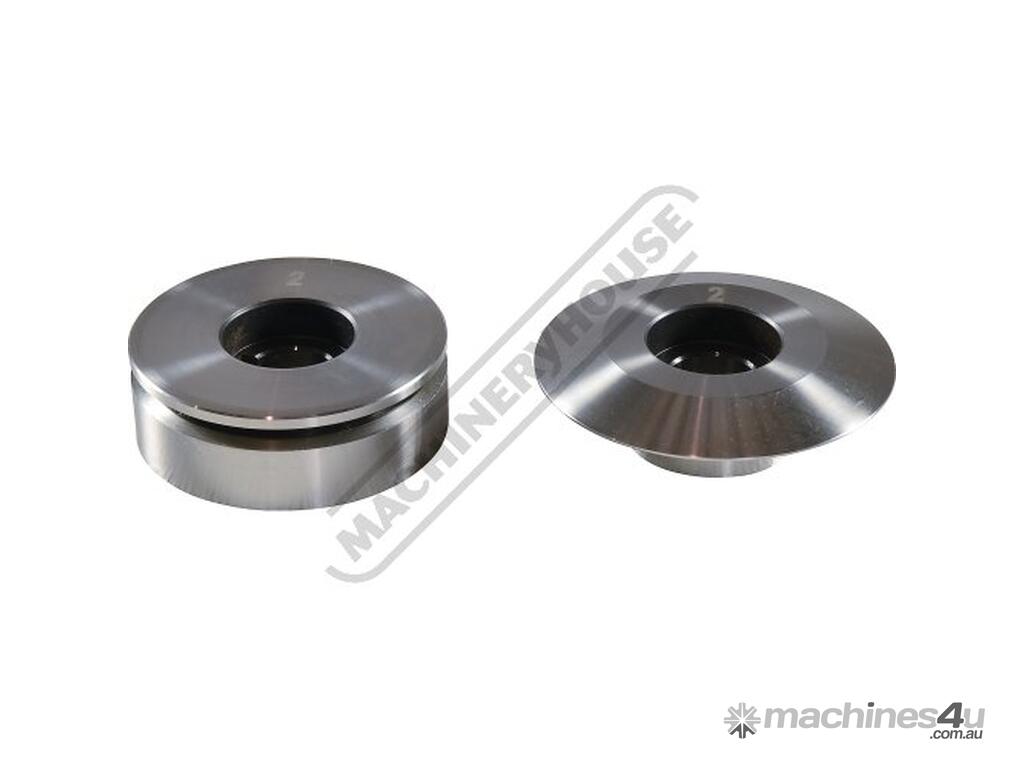

Second step: Use Set 2 to continue creating a hemmed edge.
These dies takes the tipped edge made from the step 1 die and folds the edge to 140 degrees

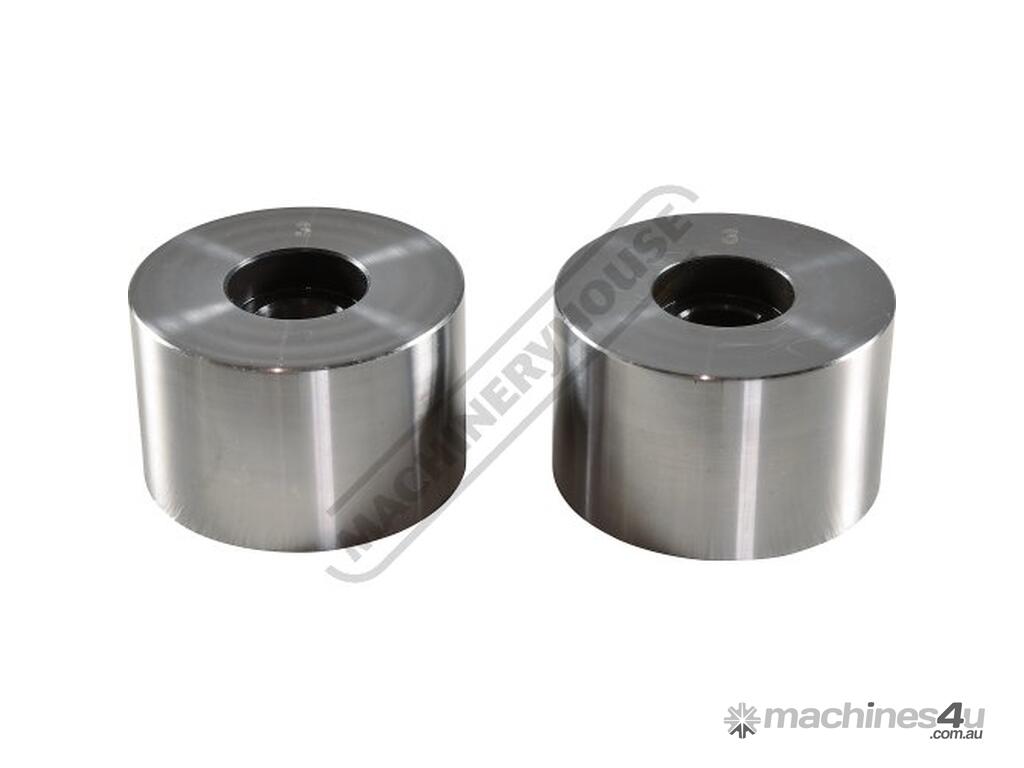

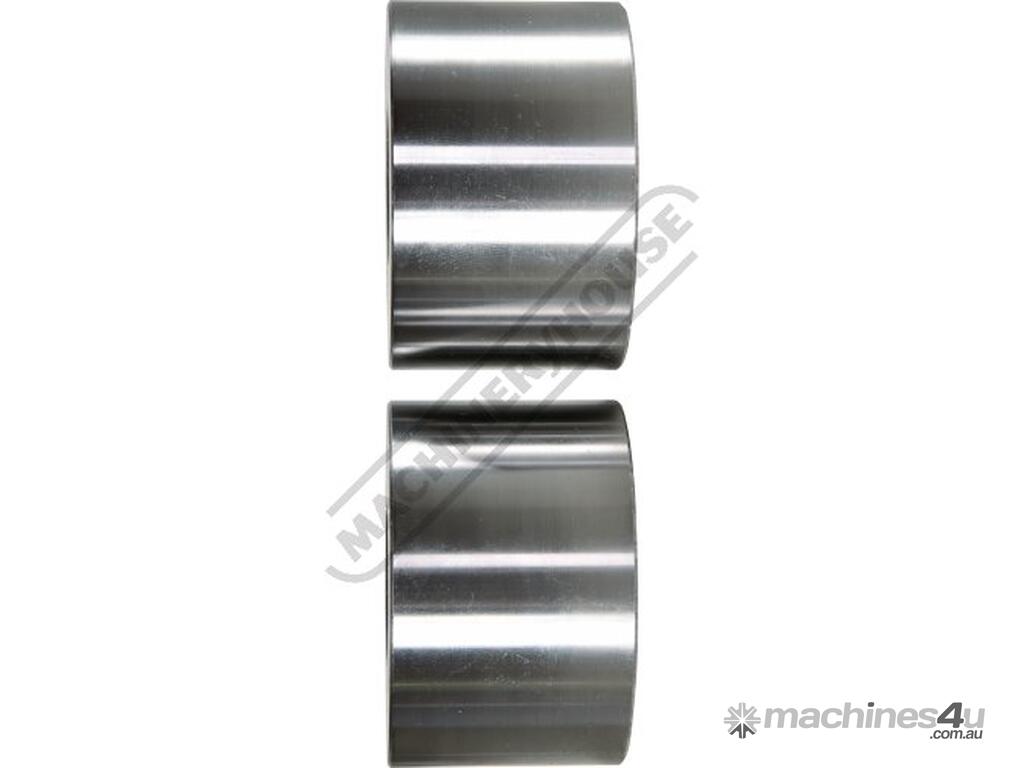

Third step: Use Set 3 to fold the edge flat to create a nice even finish.

Features:

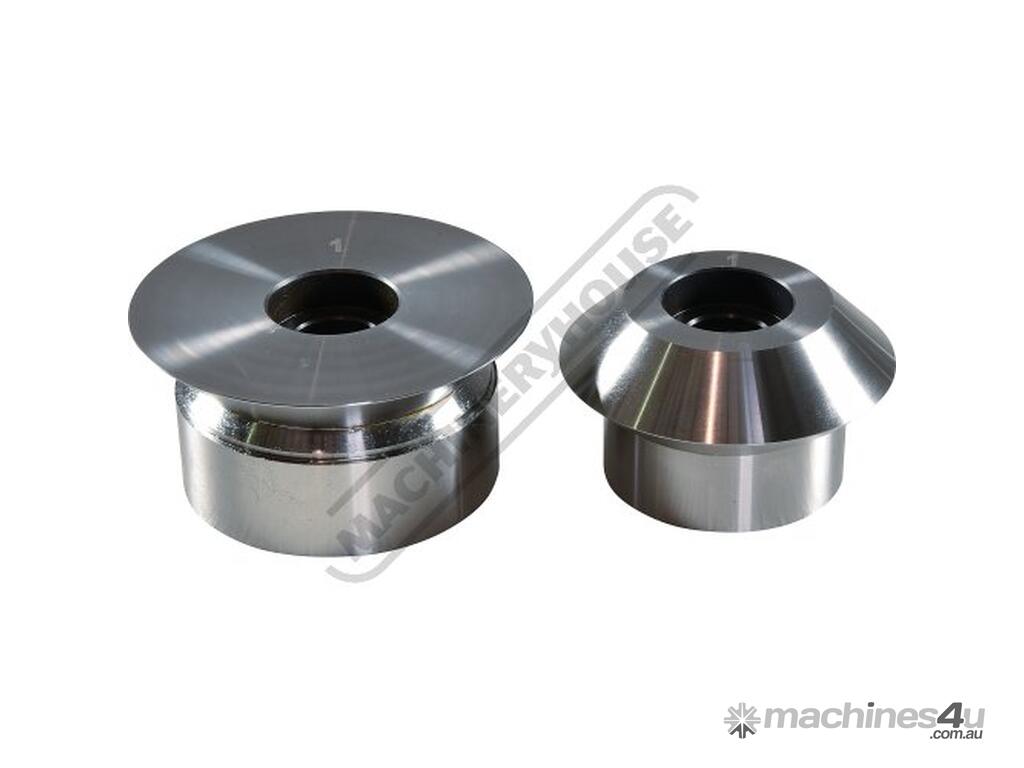

3 x roller sets made from CR12 steel & Hardened up to 45 HRC

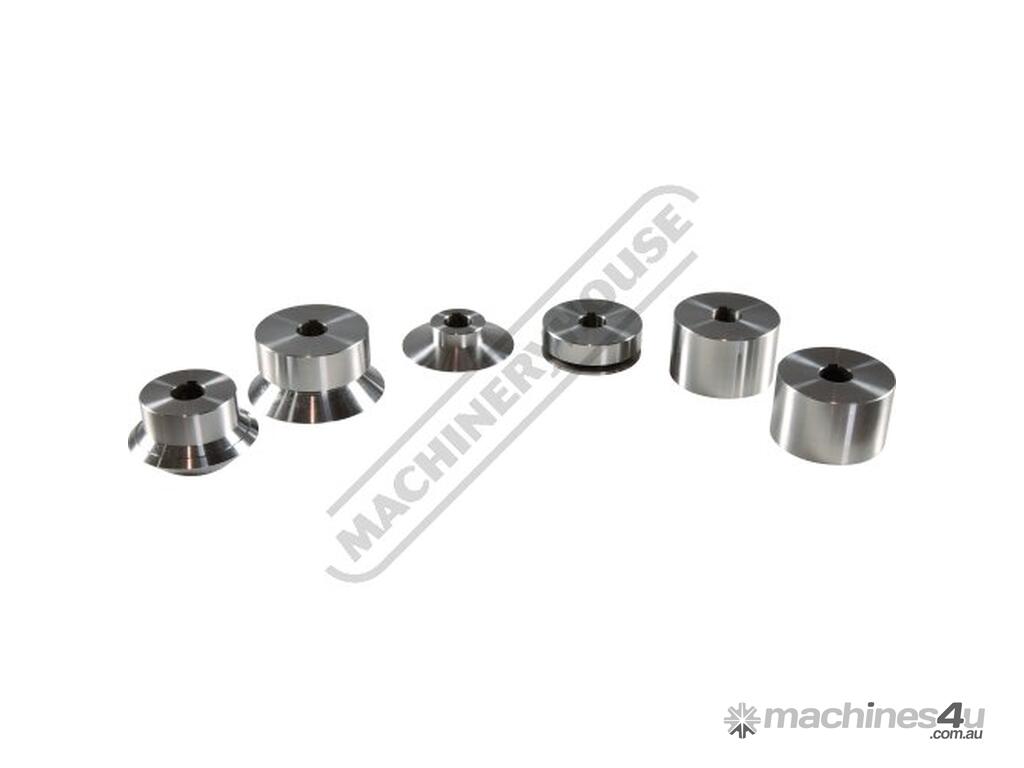

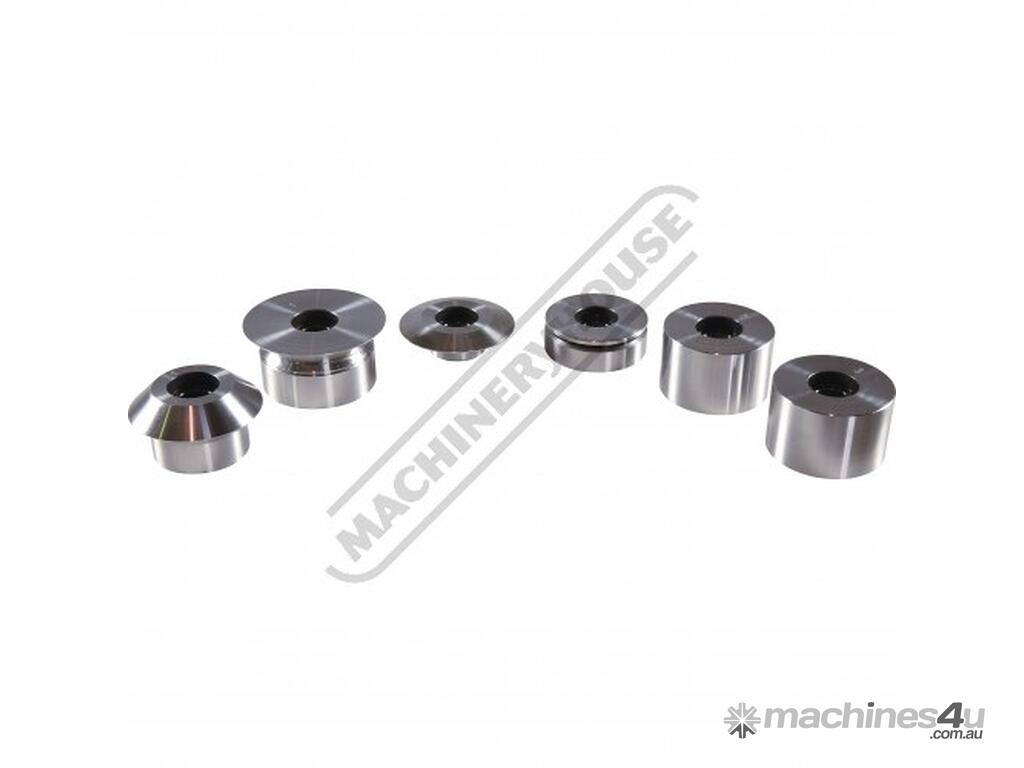

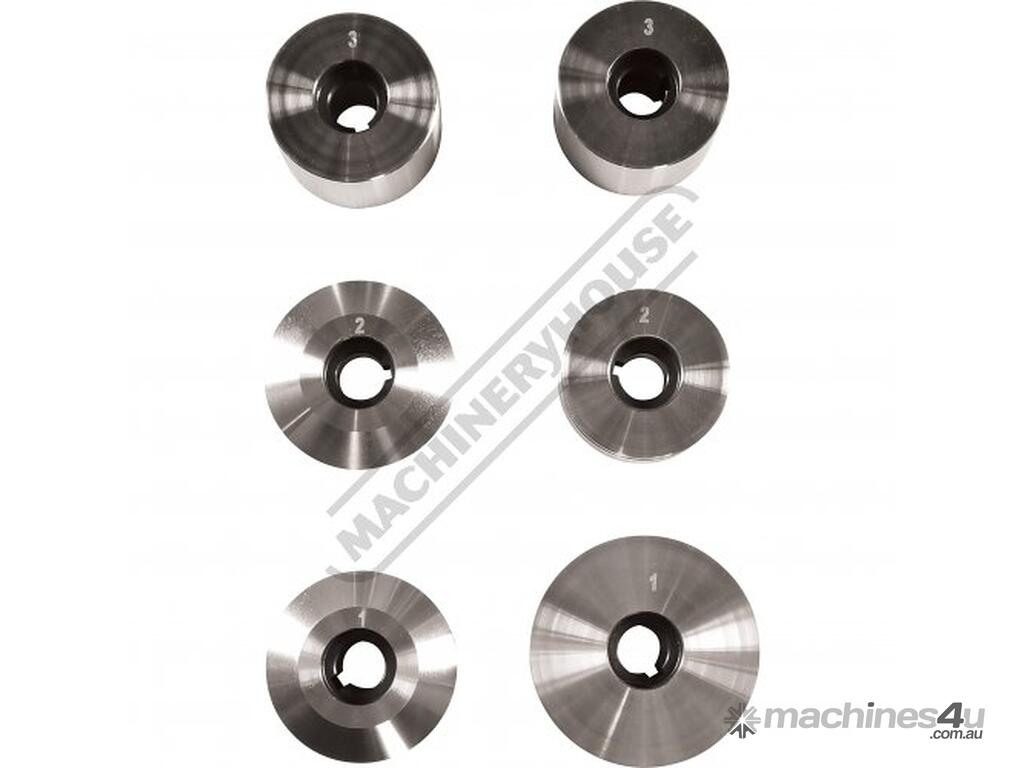

Includes:
- 1 x 90º male step die
- 1 x 90º female step die
- 1 x 140º male step die
- 1 x 140º female step die
- 1 x flat male step die
- 1 x flat female step die


Specifications:
ORDER CODE: S6337
MODEL: MBR-3HR
Part Number: ~
Type: 3 x Hem Bead Roller Sets
Type: ~
Size (inch / mm): ~
Bore Diameter (mm): Ø20 with Keyway
Spigot Diameter (mm): ~
Shaft Diameter: ~
Capacity (Mild Steel) (mm / Gauge): 1.2 / 18
Material (Type): Steel
Roller Diameter (mm): Ø80
Suits: MBR-610 & MBR-1070
Suits: Bead Rollers
Suits: ~
