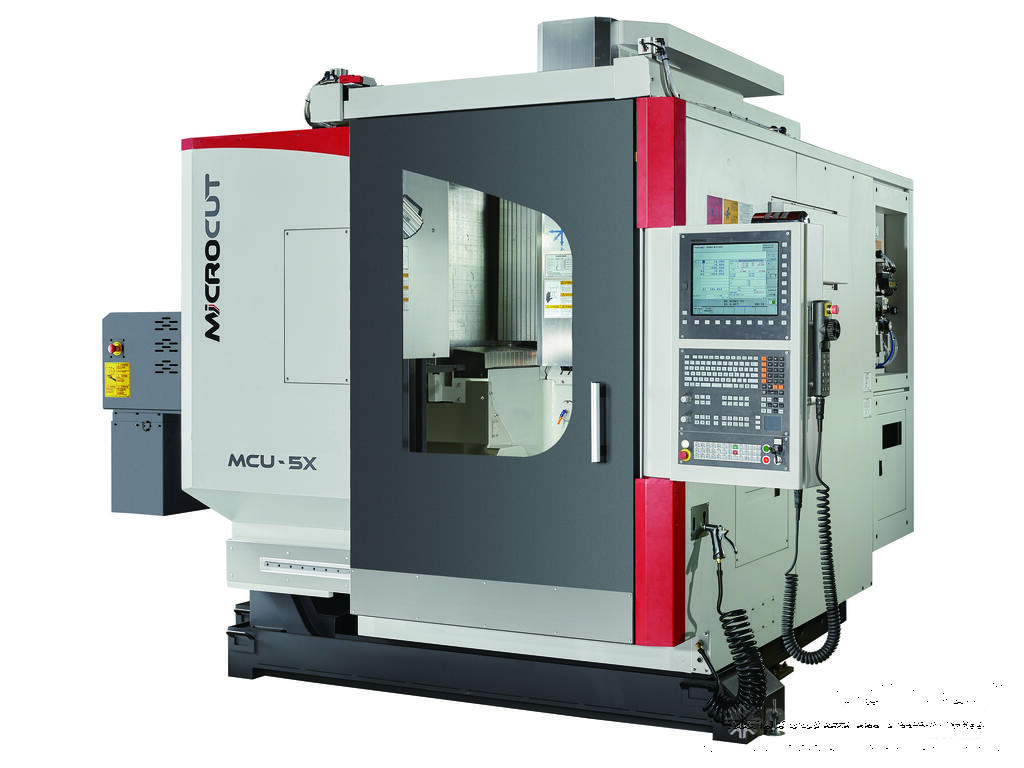

MCU-4+1 Axis VMC - 600mm Table - 35kw - 261nm Torque - 15,000rpm - Gantry Design - CTS Standard

Heavy Duty Gantry 4plus1 Axis machining, 15,000 rpm spindle with a massive 35Kw and 239 Nm, torque motor table (90 rpm) with 600kg load capacity and 20 bar CTS all standard! For many applications 4+1 axis is all that is required and significant costs can be saved for this configuration and with more than 140 sets of MCU’s installed around the world this is a machine that is at home with the heavy duty machining as well as the fine finishing!

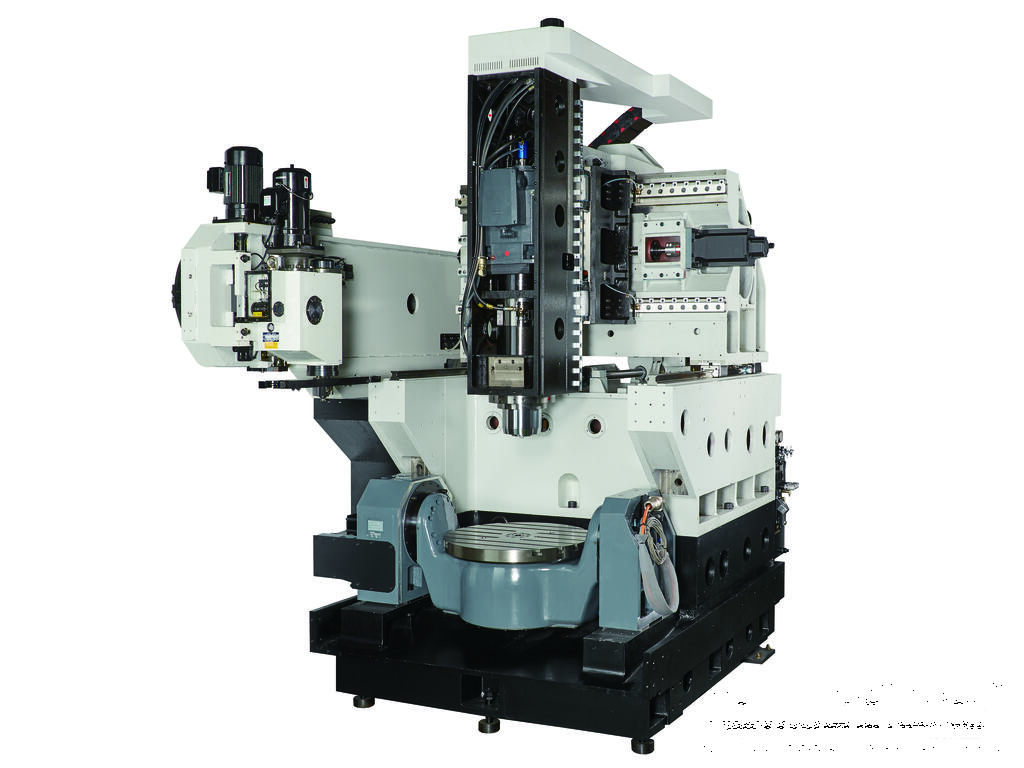

A big feature is that unlike many machines with Ø600mm table size, the MCU is a Gantry Type machine with the perfect U Shape closed design offering the ultimate in rigidity and stability which also provides unrivalled ergonomics for the operator to access the working area. The machine finish and design are second to none and when seen in the flesh it’s understandable why the MCU is causing a lot of headaches for high-end manufacturers in today’s markets around the world.

Specification:

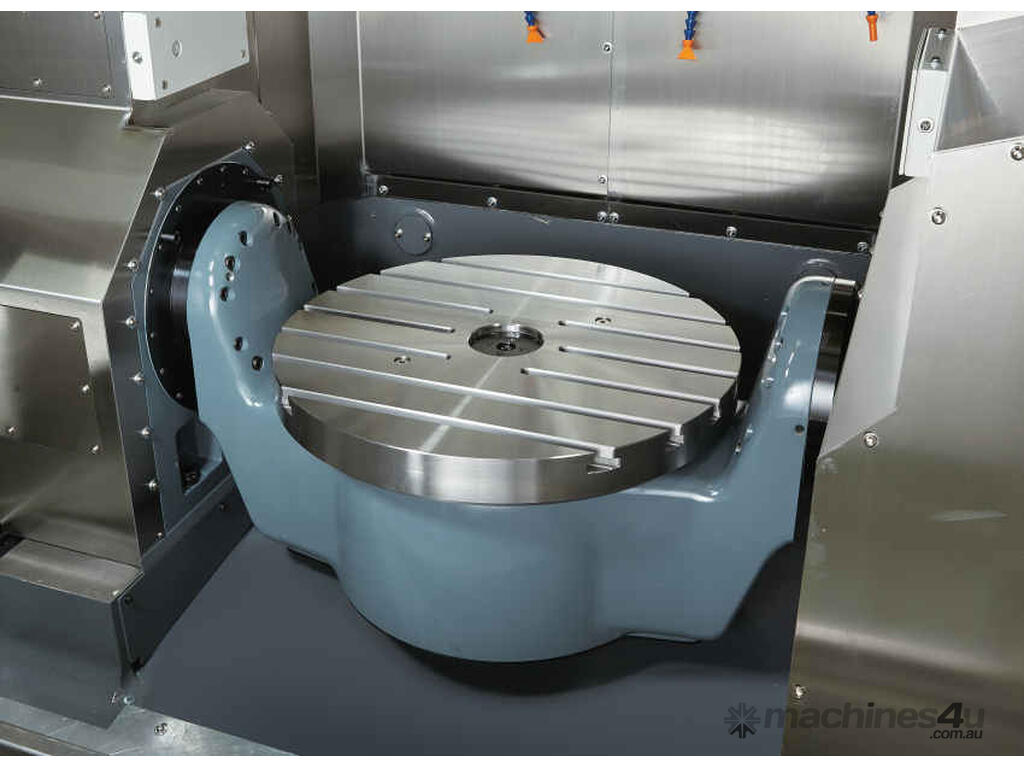

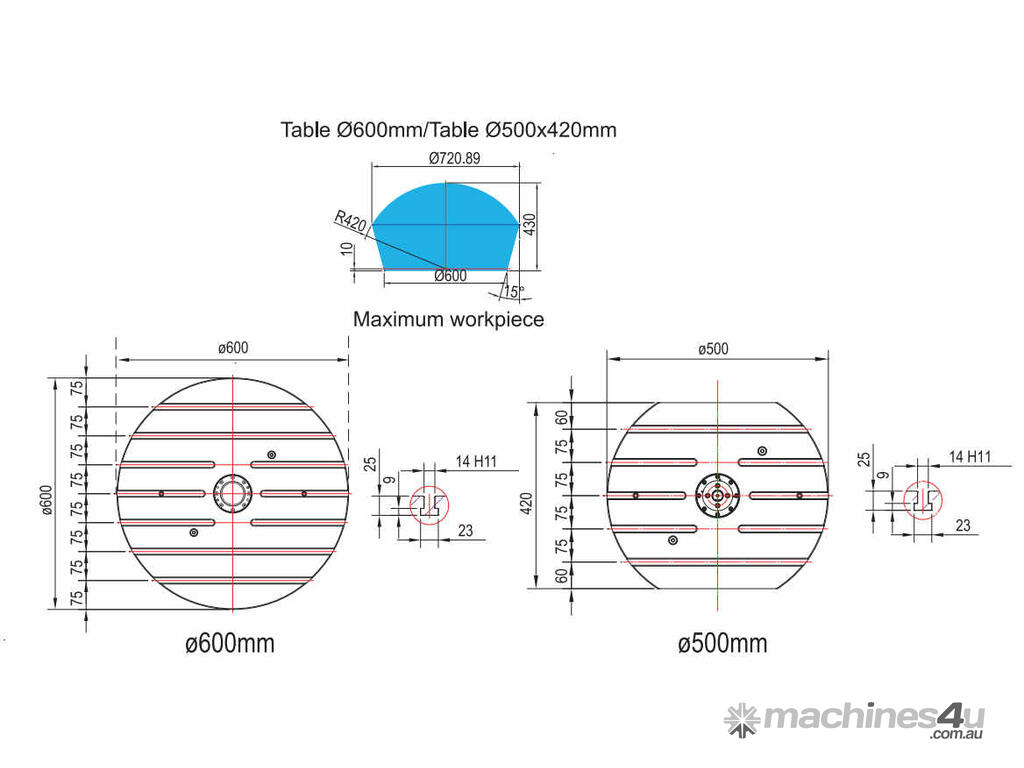

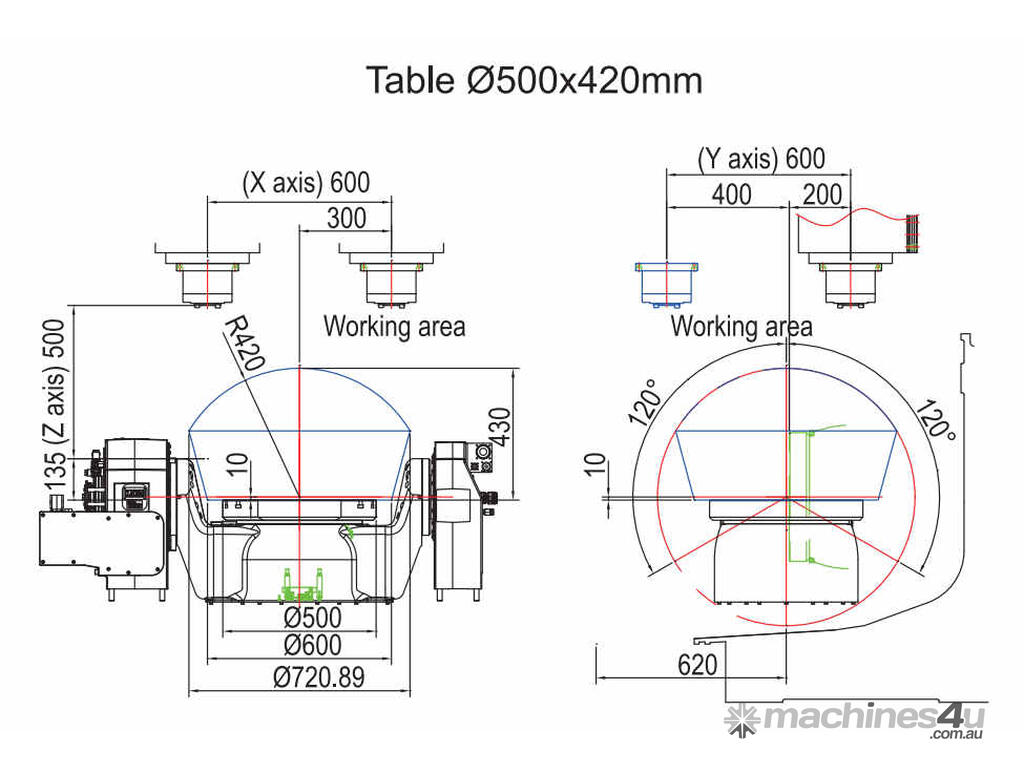

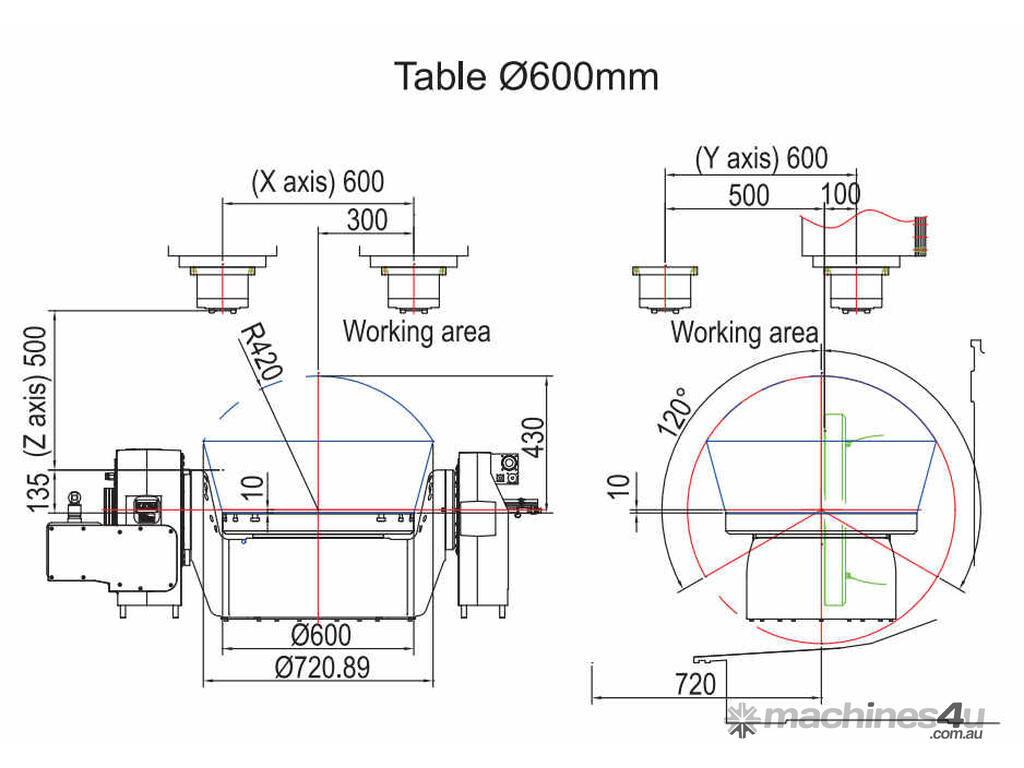

Table working area (mm): Ø600 or Ø500 x 420mm
Max table load (kg): 600
Travels X, Y, Z (mm): 650 x 600 x 500
A axis tilting range (deg): -120 ~ +120
C axis rotating range (deg): 360
Spindle taper: BBT40

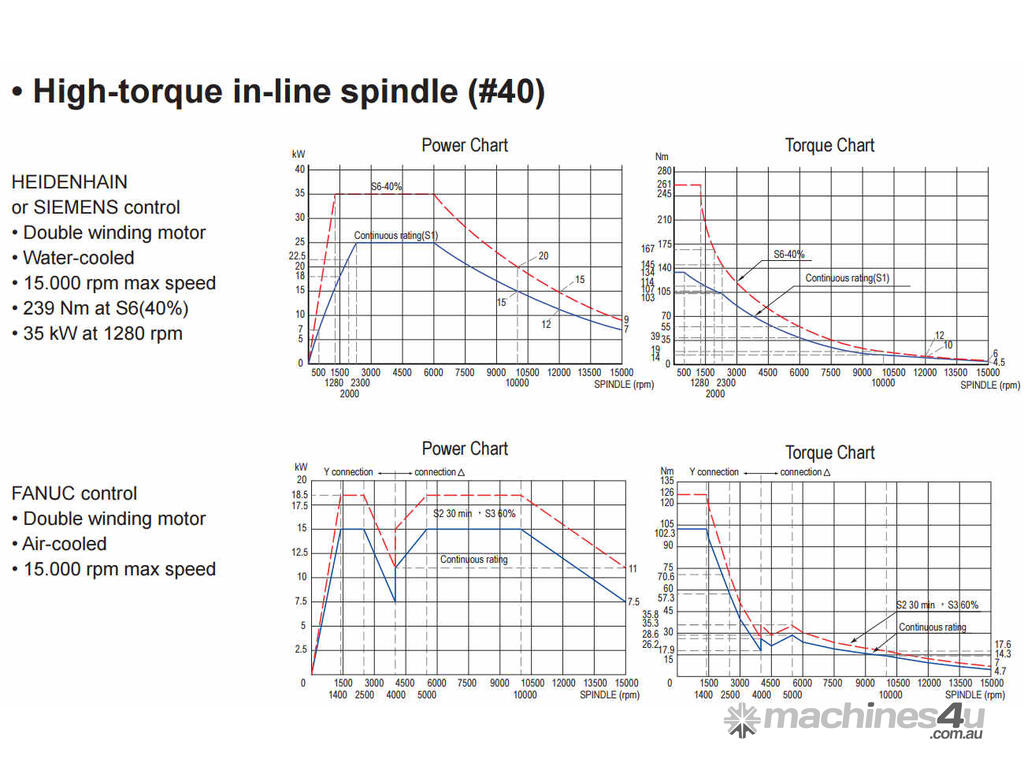

Spindle speed (rpm): 15,000
Spindle motor (kw): 25 / 35
Spindle torque (Nm): 134 / 261

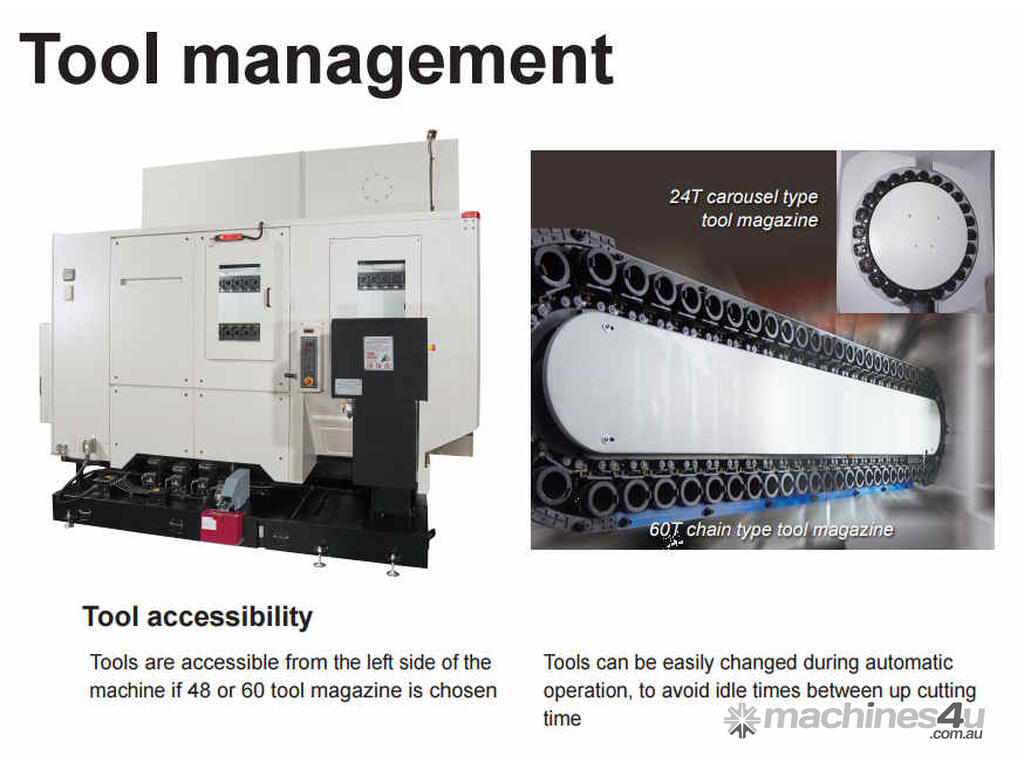

ATC: 24 tools (32, 48 & 60 opt)
Max feed rate X, Y, Z (m/min): 36

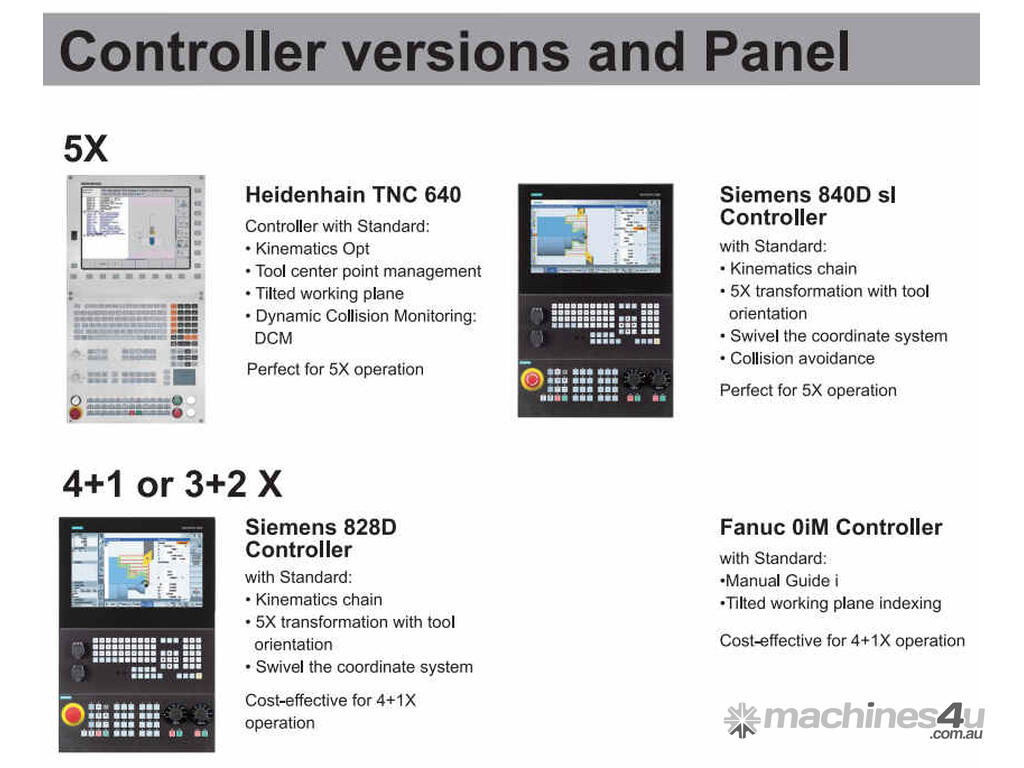

Controller: Siemens 828Dsl or Fanuc Oi Series (specs may vary with Fanuc)
Machine weight (kg): 9,000

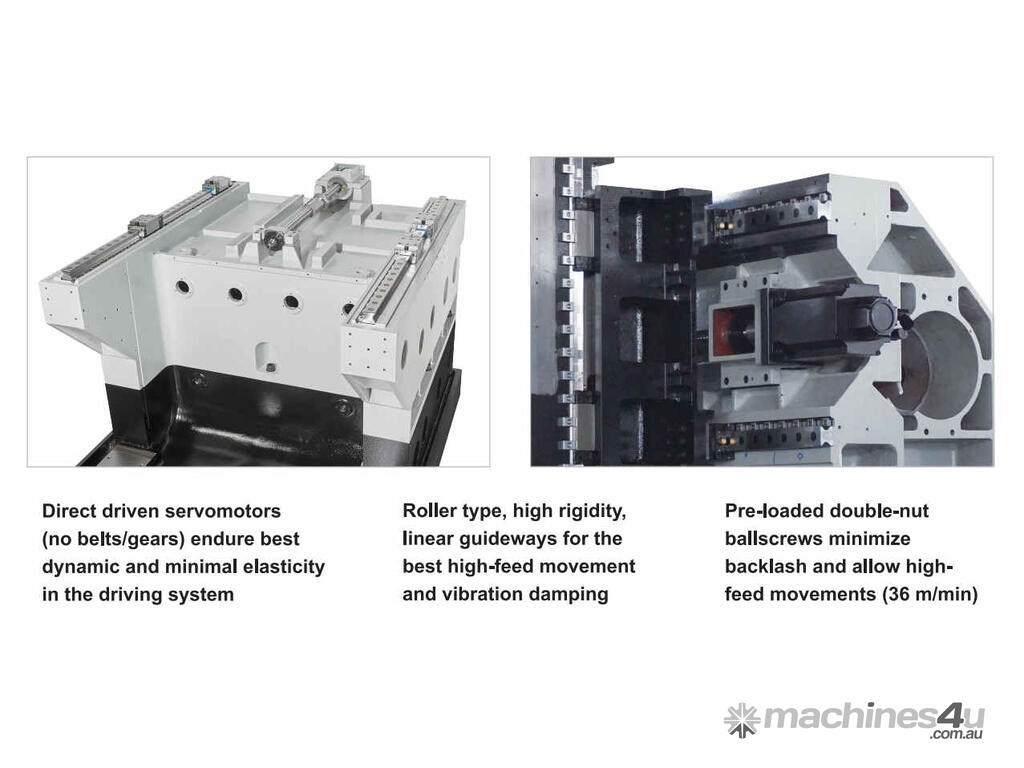

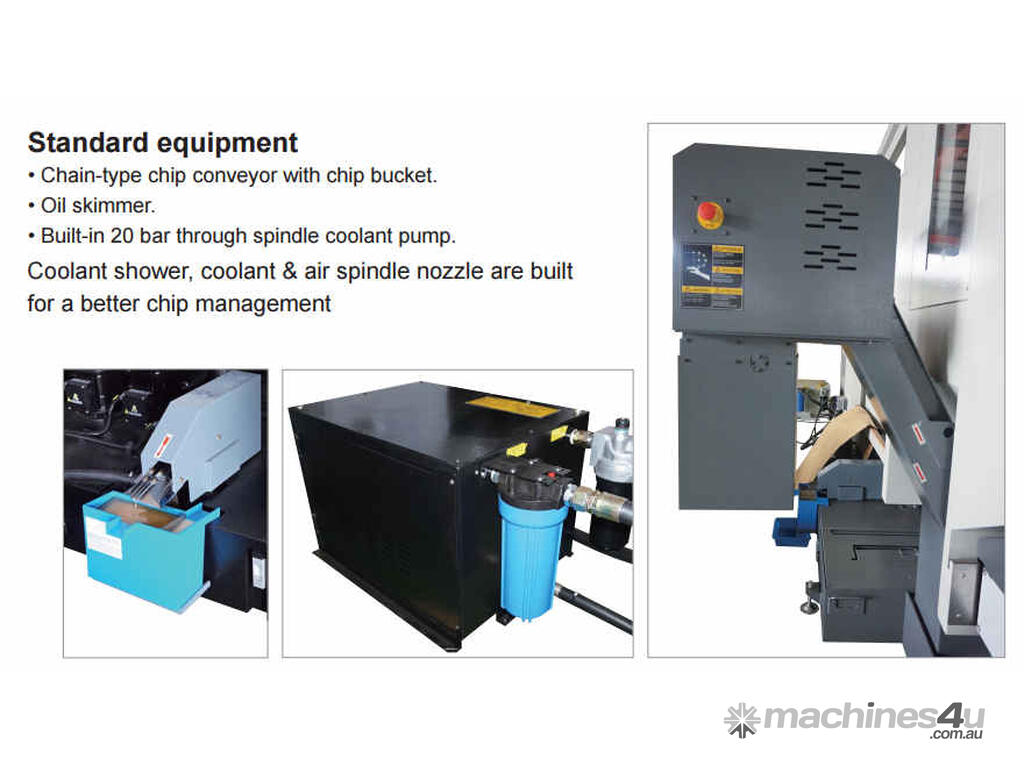

C/w: direct drive 15,000 rpm spindle, Ø600mm table (90rpm) with 600kg table loading, 3 x hydraulic and 1 x pneumatic integrated interfaces built in to the table, high speed ATC, heavy duty roller type linear guides, 20 bar coolant thru spindle (simple), chip conveyor, swarf wash down system & Siemens or Fanuc CNC Controls. Other options are available on request.
