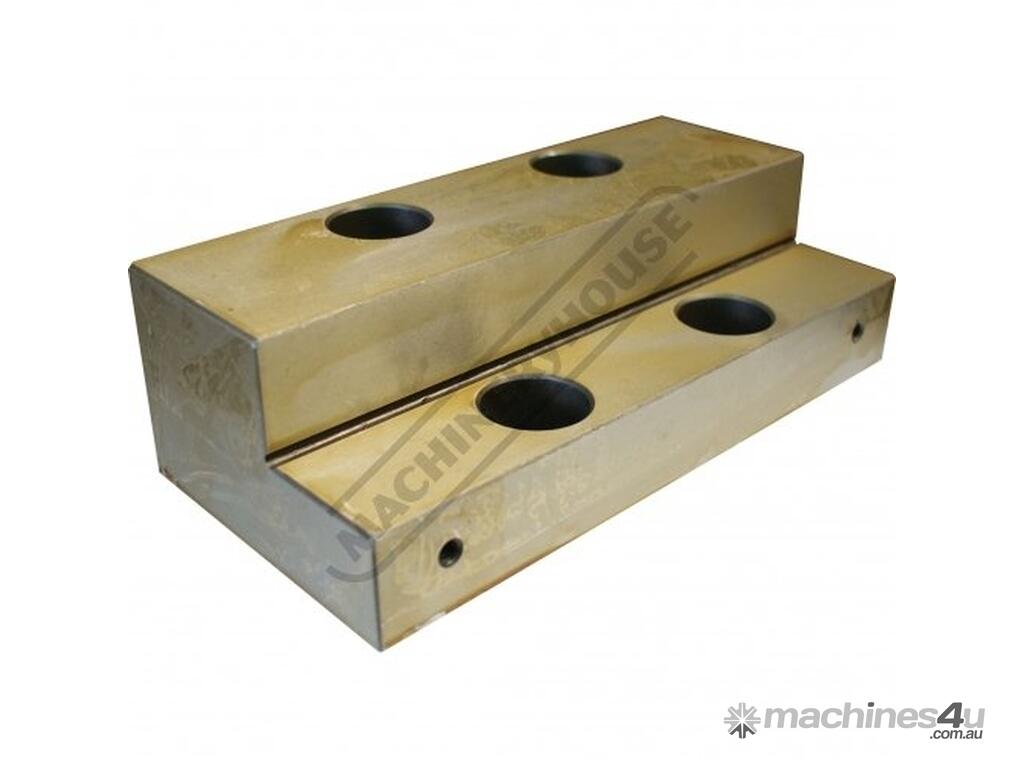

MD-200A Safeway Stepped Moveable Hardened Jaw - 200mm #10930200

SAFEWAY MD-200A Safeway Stepped Moveable Hardened Jaw - 200mm #10930200
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: V3582

Additional stepped stationary jaw designed to be used when thin work is to be held.

Suits - SAFEWAY VHV-200V - Compact Hydraulic Machine Vice (V3565)

Features:
Hardened and Ground to HRC52º-55º
Easy to change


Specifications:
ORDER CODE: V3582
MODEL: MD-200A
Type: Step Jaw - Moveable
A (mm): 200
B (mm): 97
C (mm): 60
D (mm): 74
E (mm): 59
F (mm): 19
G (mm): 9.5
H (mm): 28
J (mm): 34.5
K (mm): M16 x 70 Long
L (mm): 38
M (mm): 30
N (mm): M16 x 40 Long
Nett Weight (kg): 7


To Purchase Online Please Visit The Machineryhouse & Search For 'V3582'
