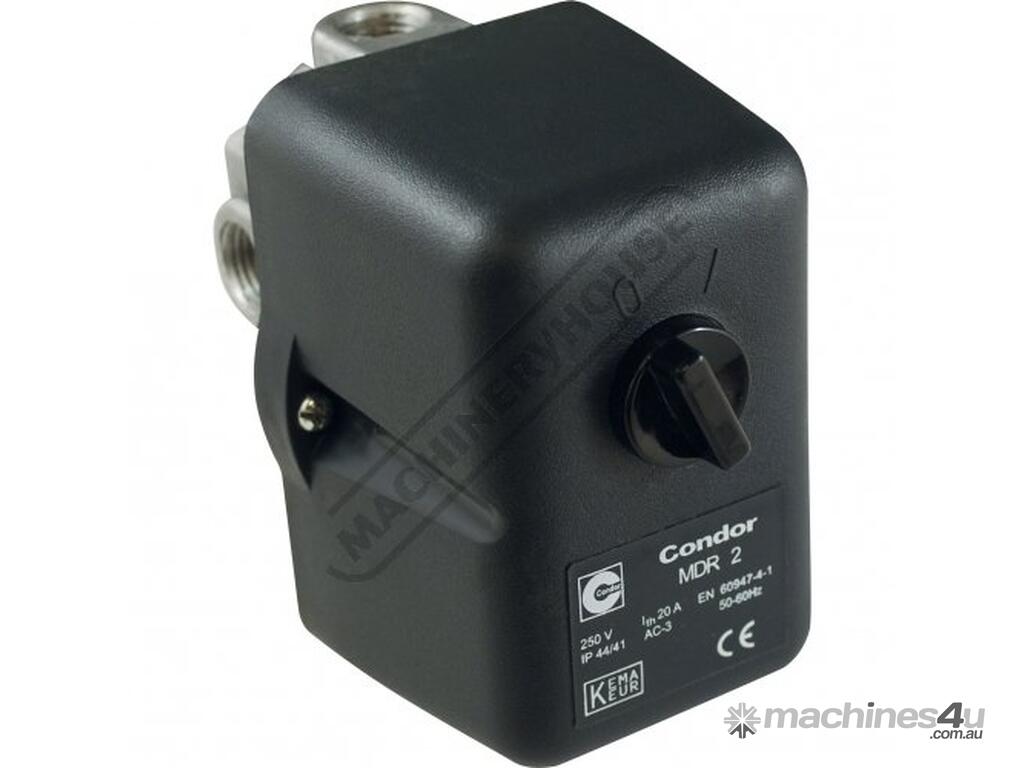

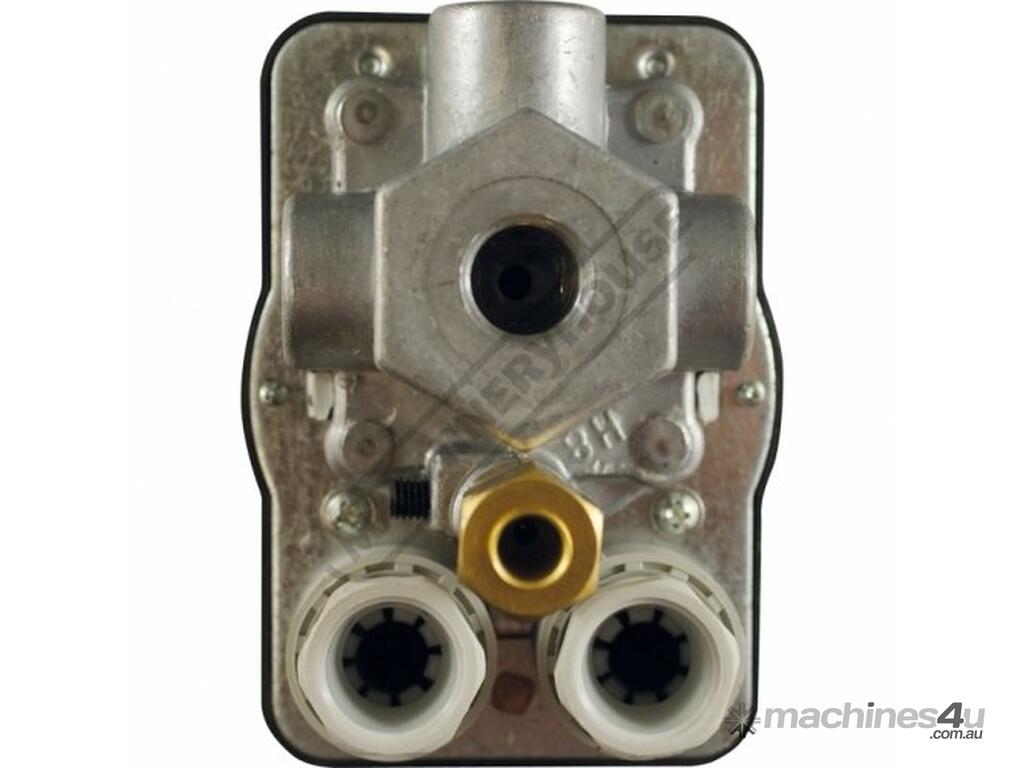

MDR 2 Pressure Switch CONDOR

CONDOR MDR 2 Pressure Switch CONDOR
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: A224

To adjust cut in / cut out pressure turn +/- Factory setting 100psi cut in & 125 cut out.
To adjust differential turn It should not be necessary to make this adjustment (factory set to about 2bar (29psi)

Note: Setting higher pressure will not get the machine to make more air, and the working pressure of the tank must not be exceeded. Also note the Super16 is a single stage compressor with a max working pressure of 9 bar (140psi)

Features:
Single phase
Switching capacity 2.2 kW
Max. cut-out pressure 12 bar
2-pole (N.C.)
Rated operational current at 240V: 20A
Acc. to EN 60947


Specifications:
ORDER CODE: A224


To Purchase Online Please Visit The Machineryhouse & Search For 'A224'
