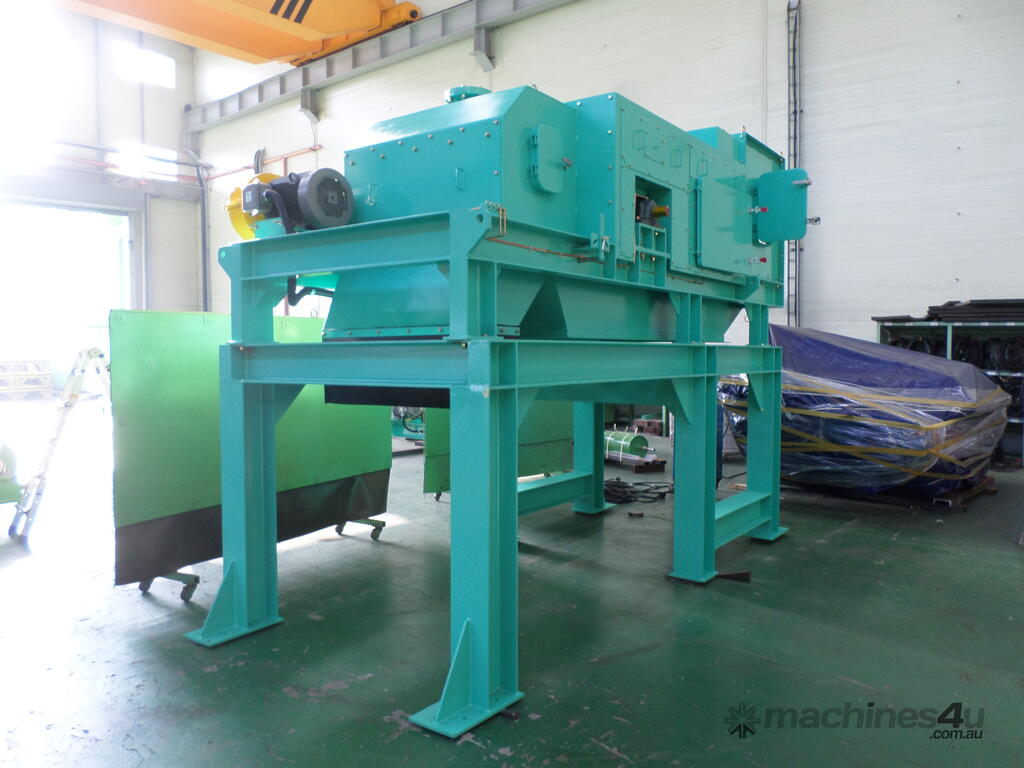

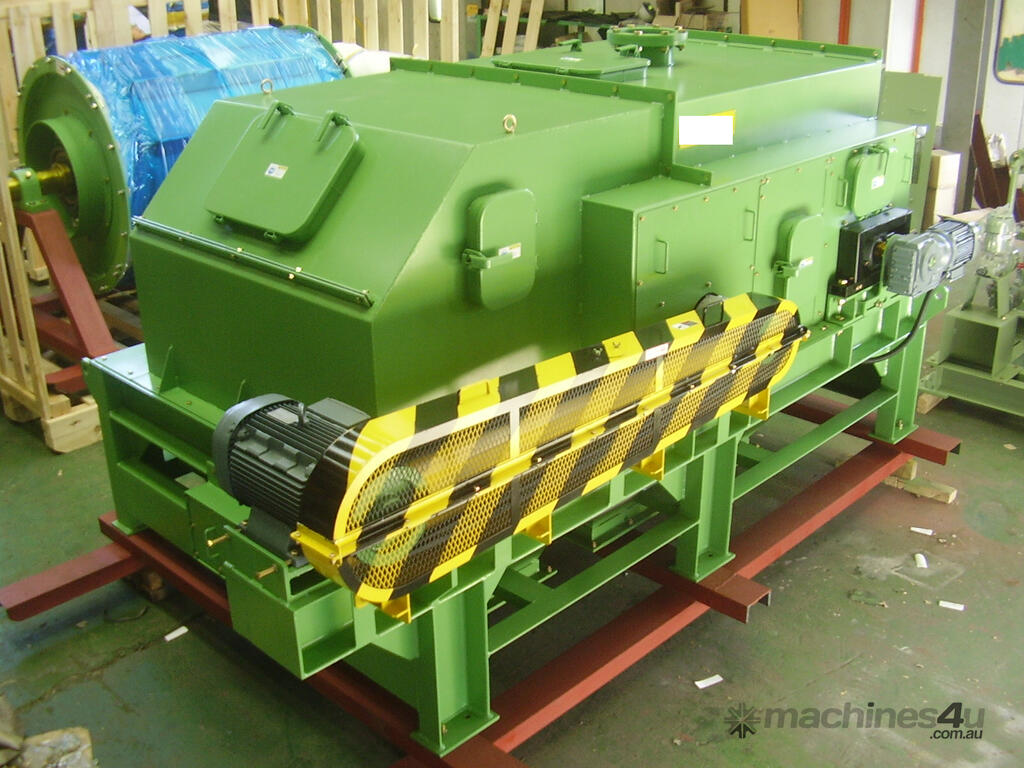

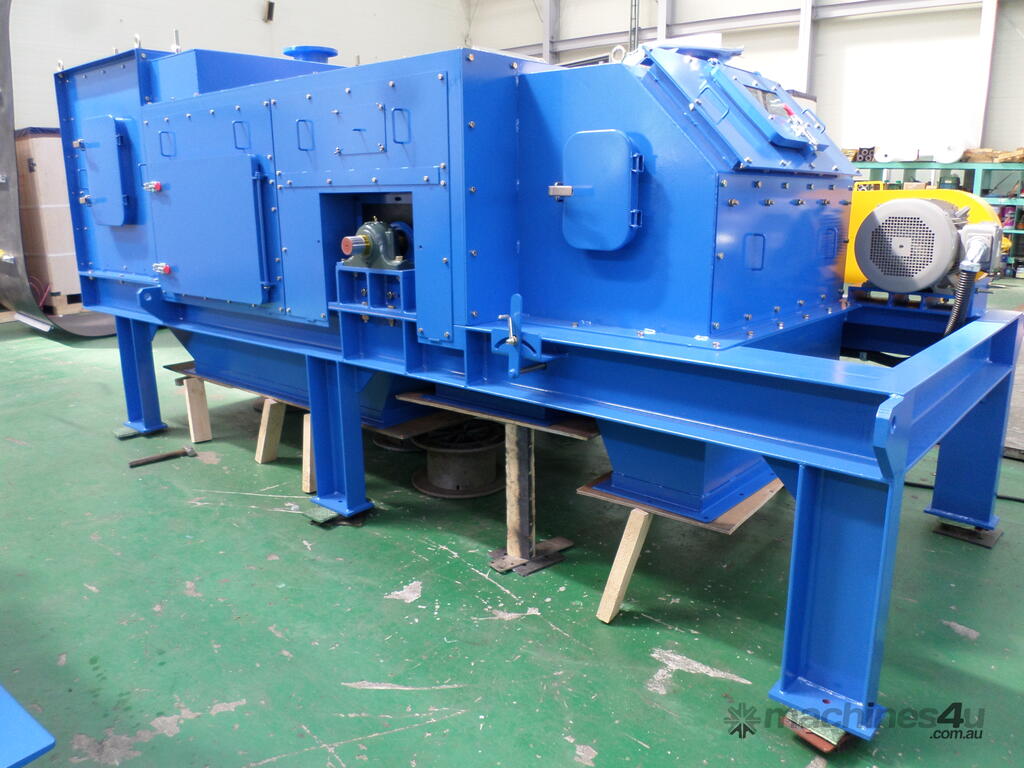

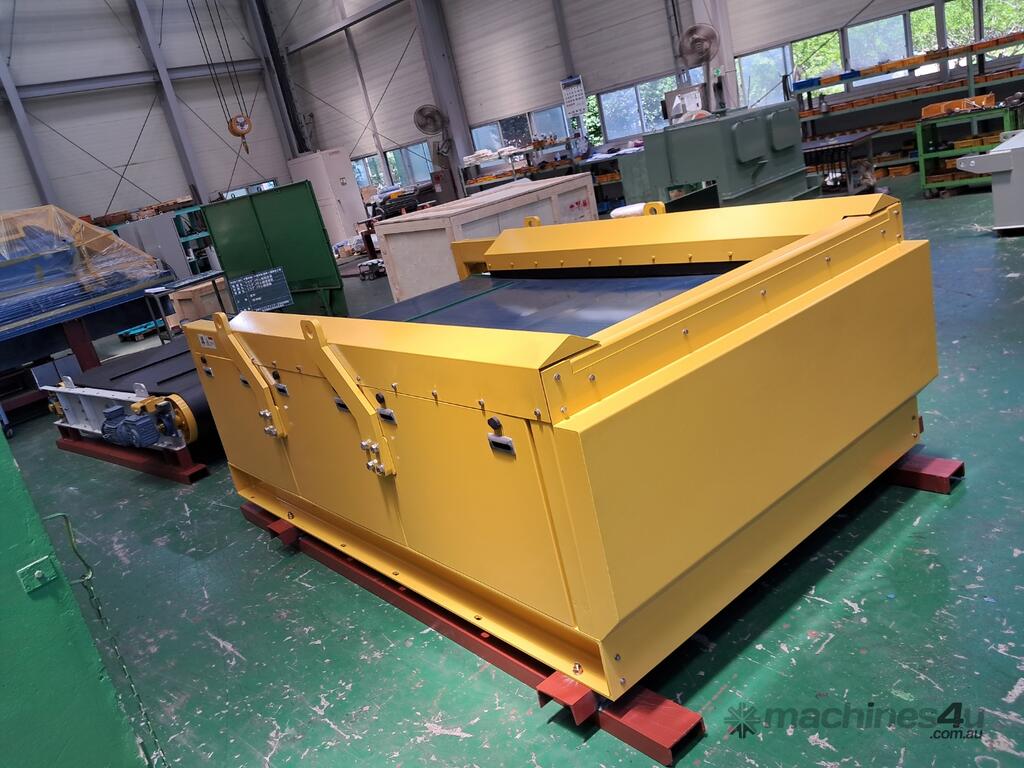

MECBIO - MATICS ECS-600 Eddy Current Separator

Separates non-ferrous metals such as aluminium, copper, brass, etc.
Separates materials into three categories : Ferrous, inerts, non-ferrous metals.

- Eddy current separator is used for separating non-ferrous metals (aluminum, copper, and bronze) with creating eddy current by fast rotation of a powerful magnetic rotor.
- Depending on the process volume, effective width can be order made from 200mm to 2000mm.
- The design of a magnetic rotor is determined depending on the size of separated non-magnetic substances.
- Suitable for separation of aluminum size less than 5mm, 5-10 mm, and 10-100mm

Matics’s design of magnetic rotor is eccentric type which has higher efficiency and durability than concentric type.

Rotor Drive (kW): 5.5
Belt drive (kw): 2.2
Vibratory motor (kw): 0.15 x 2
Belt width (mm): 600
