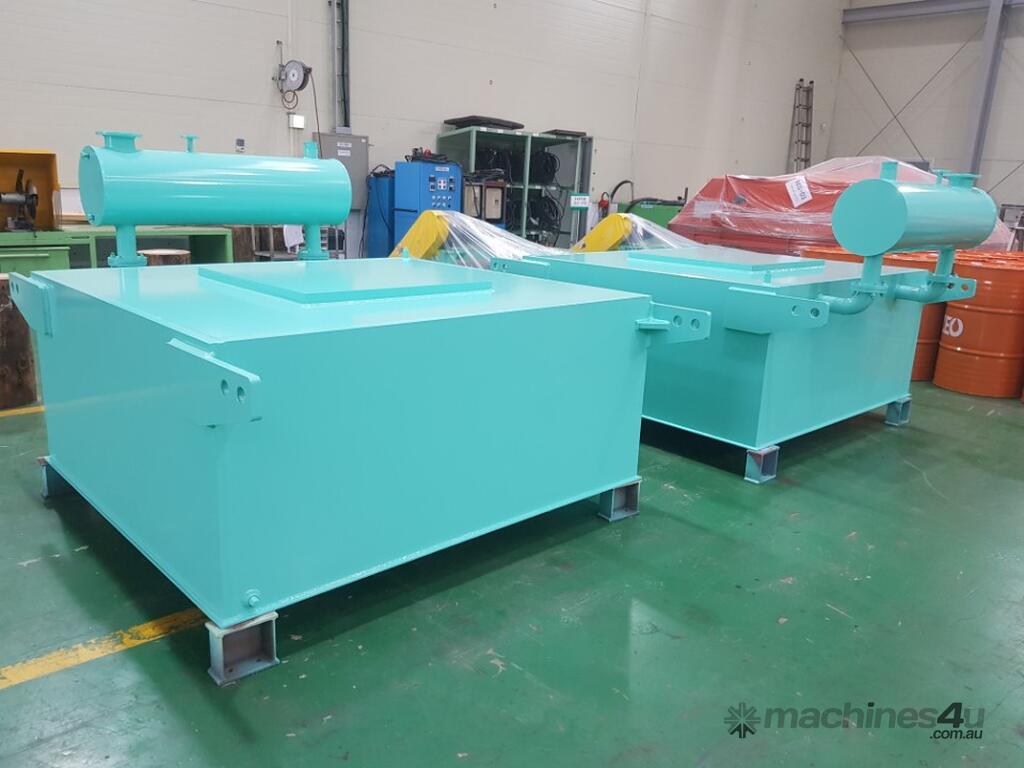

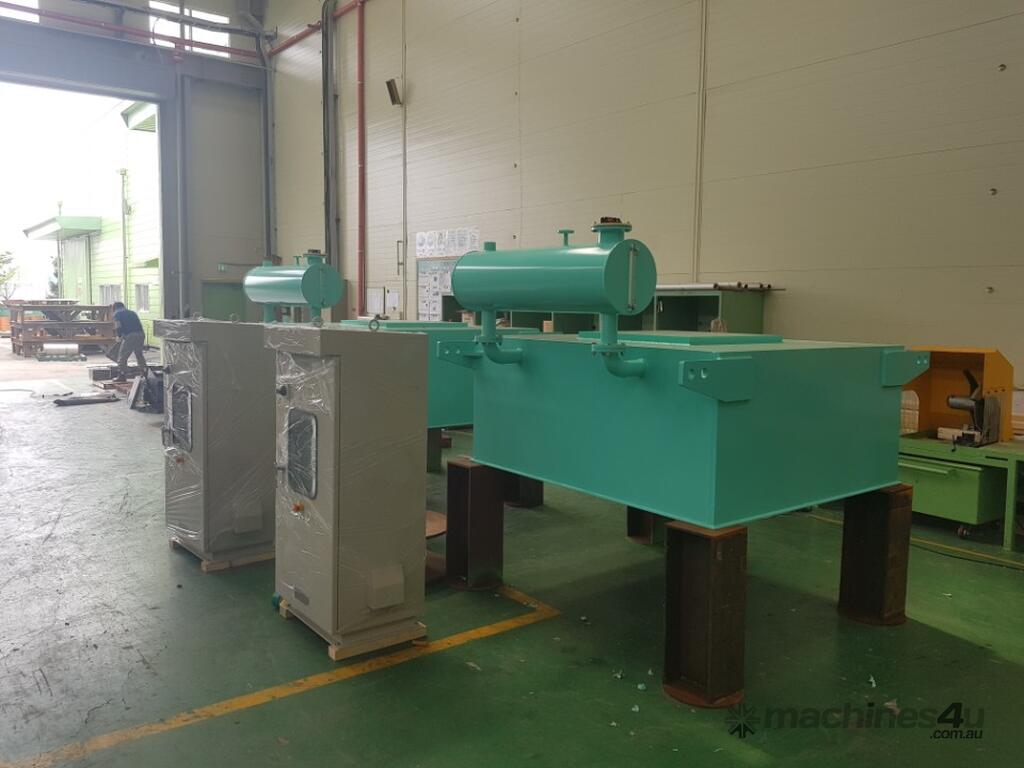

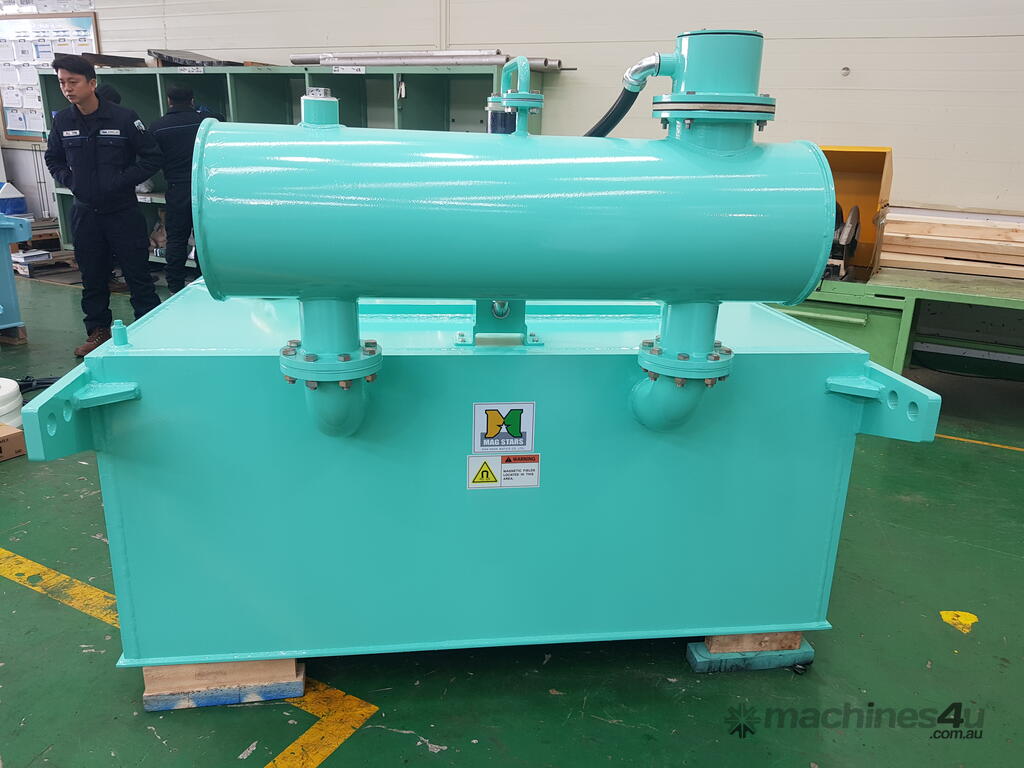

MECBIO - MATICS ES-2200 Suspended Electromagnetic Belt Separator (Manual cleaning type)

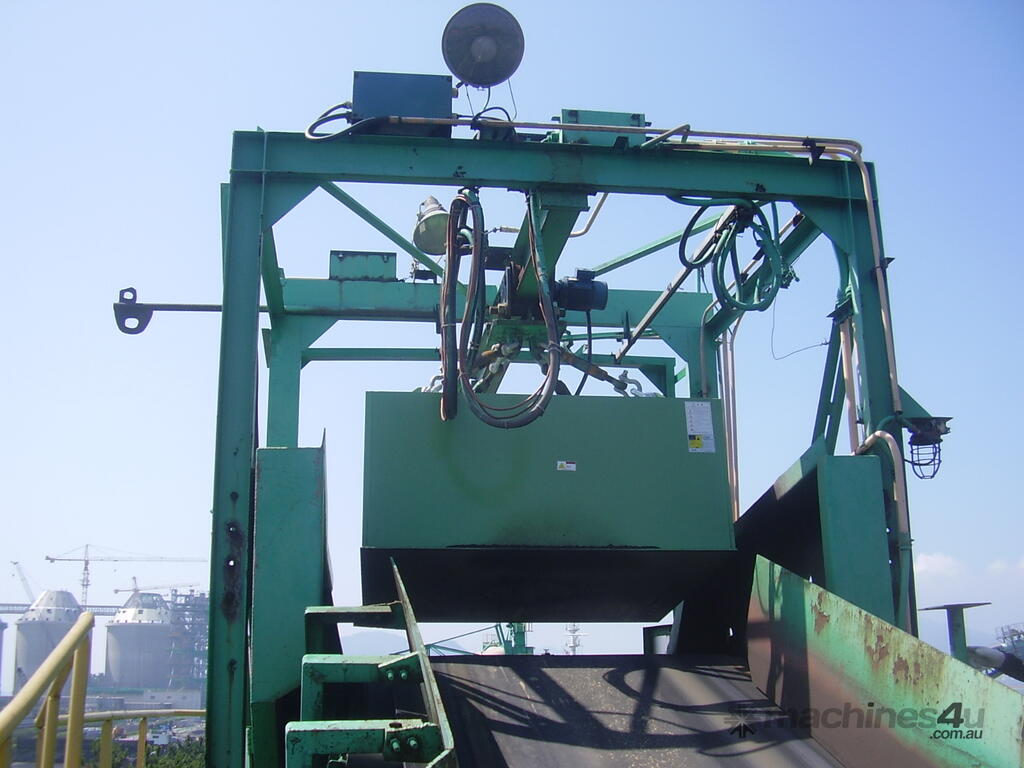

The separator is used for separating/sorting ferrous metal (magnetic material) in processing goods transferred to conveyor belts. The separator is suspended over a conveyor and various models and options are available depending on field conditions.

MATICS' suspended electromagnetic separators are manufactured based on optimized magnet design by using electromagnetic analysis software according to conditions (the speed of a conveyor, width, the height and load of processing goods) of installation locations.

The electromagnet type is capable of high absorption power compared to a permanent electromagnet type, and thus can remove various magnetic materials.


TECHNICAL DETAILS
Apply Conveyor belt width(mm):
In-line: 2200
Cross-belt: 2100

Magnet size LxW(mm): 2400 x 2200
Electromagnet DC power(kw): 13.0
Drive motor (kw): 5.5
Weight (kg): 14,000


MECBIO is a full-service provider for the recovery of Organic waste, C&D waste, and Plastics. We design, build, and service state-of-the-art mechanical and biological waste recovery facilities to convert wastes into new streams of use for our clients. We also provide a wide range of world class sorting and processing lines as well as specialist recycling equipment.
