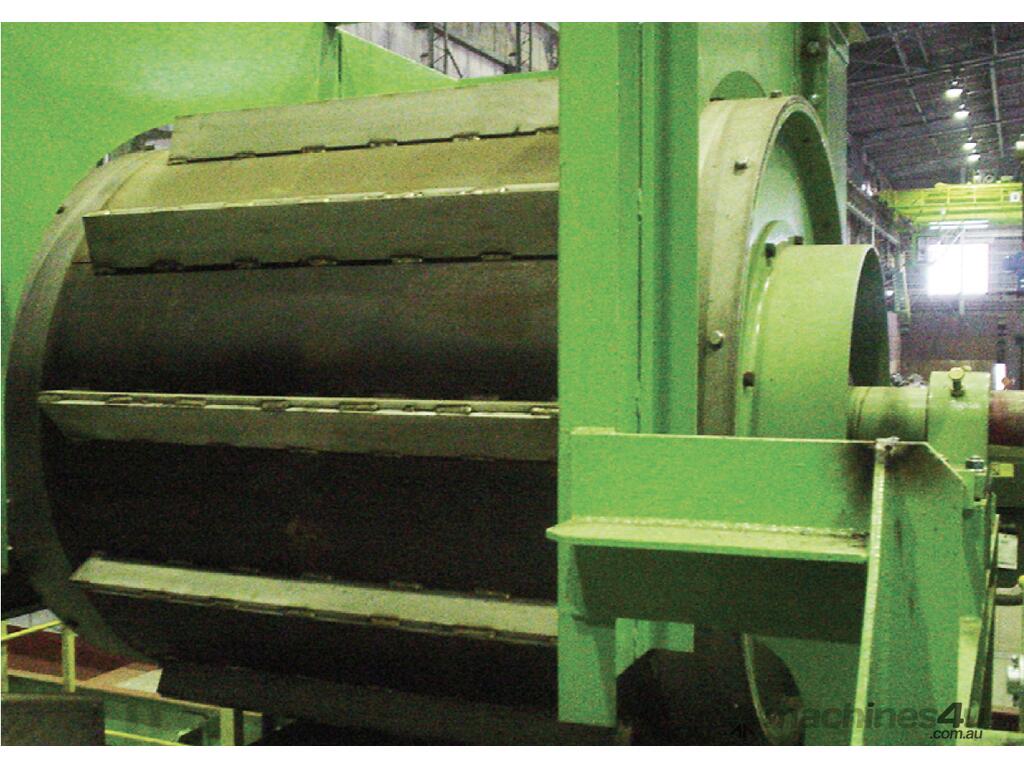

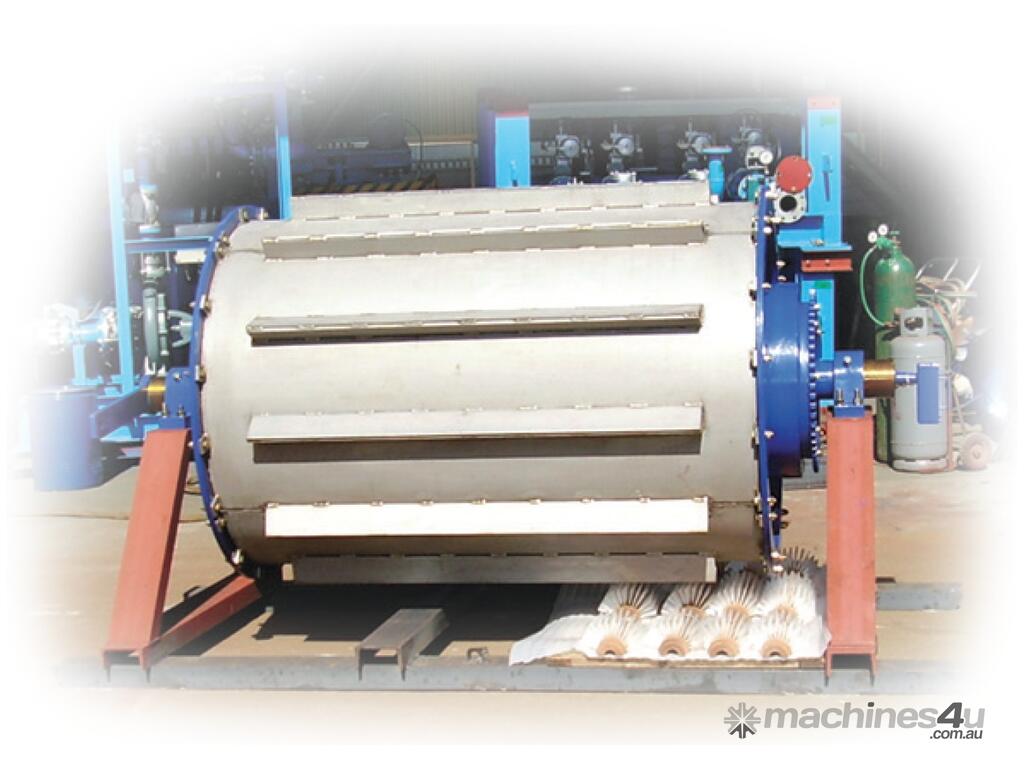

MECBIO - MATICS HSD-80-80P Shredder Drum Separator Permanent Magnet Type

- Core technology of the shredder facility to maximize of renewable resources.

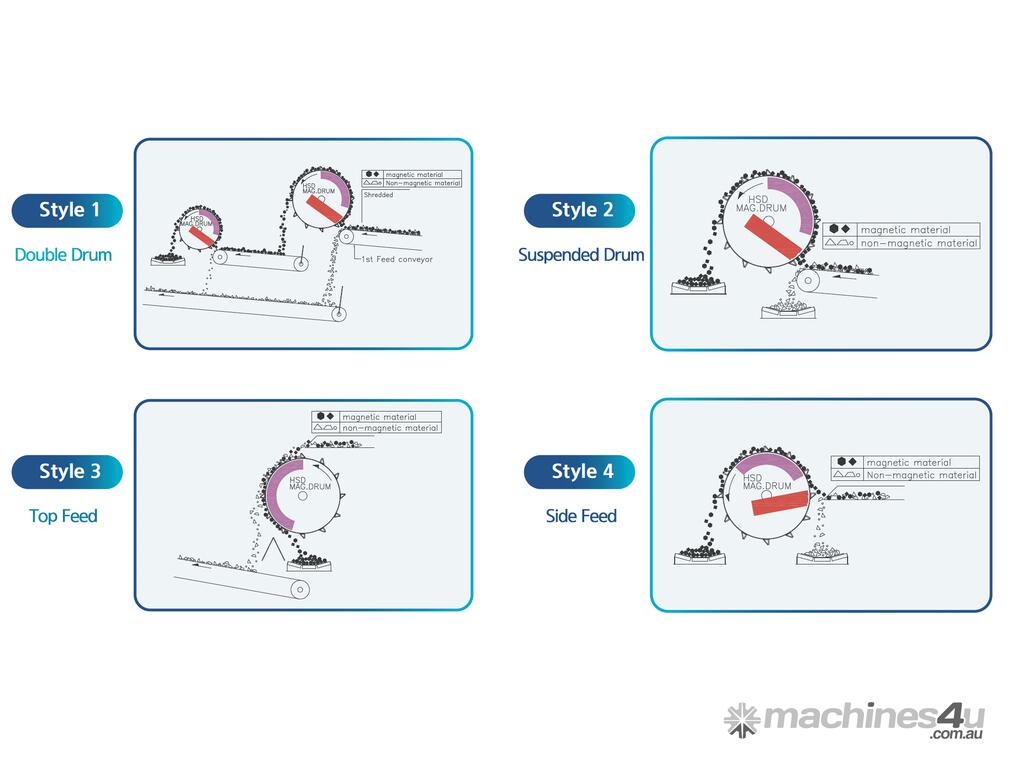

- Installation options to fit the work environment
- State-of-the-art design which combines the suction force of an electromagnet and the adsorption capacity of a permanent magnet.

Permanent magnetic drum
Inside of a rotating drum is designed with special magnetic polarity for permanent magnet. Permanent magnet type is ideal when power supply is limited and unstable.

Easy maintenance
Outside of the drum which contact with fed materials is made of a strong material to prevent wear, and it boasts long life. There is no maintenance required except lubricate in two bearings and drive chain.

Magnet width (mm): 800
Drum dimension (mm): Ø800 × 1250L × (8t+8t)
Drum speed (M/min): 60 M/min
Motor power (kw): 2.2kw × 1/30
Capacity(Max) (ton/hr): 9 ton/hr


MECBIO is a full-service provider for the recovery of Organic waste, C&D waste, and Plastics. We design, build, and service state-of-the-art mechanical and biological waste recovery facilities to convert wastes into new streams of use for our clients. We also provide a wide range of world class sorting and processing lines as well as specialist recycling equipment.

Go to the Mecbio showroom on Machines4u to see the range of machinery available, send Mecbio a message or give Mecbio a call, we are happy to answer any of your questions.
