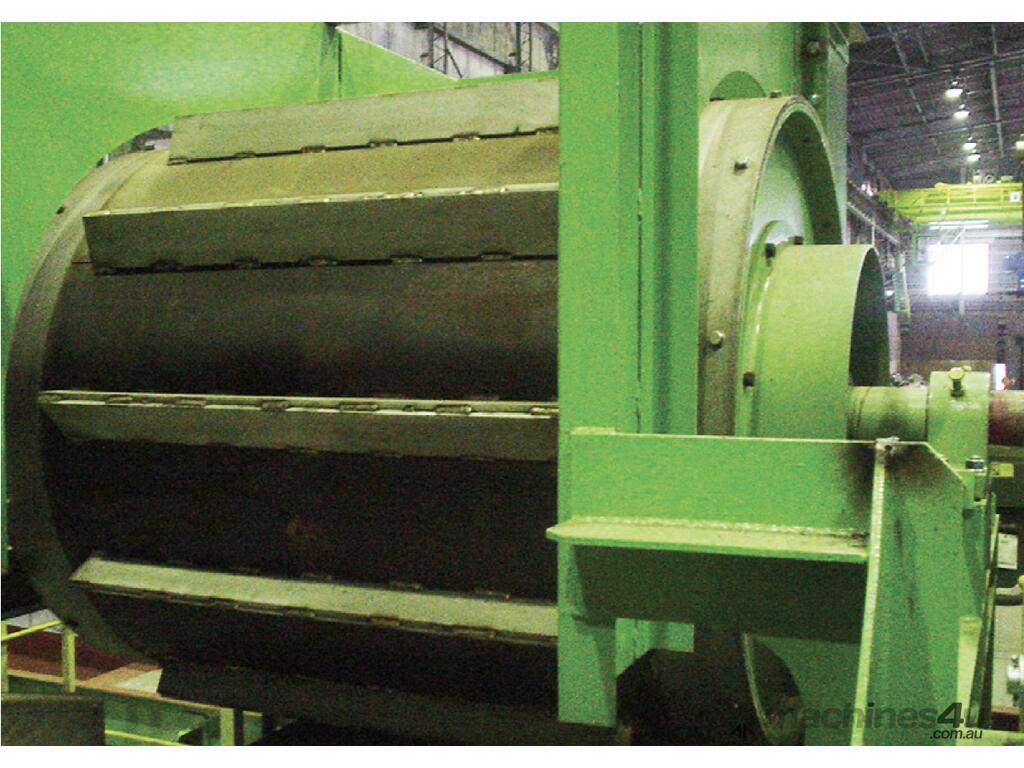

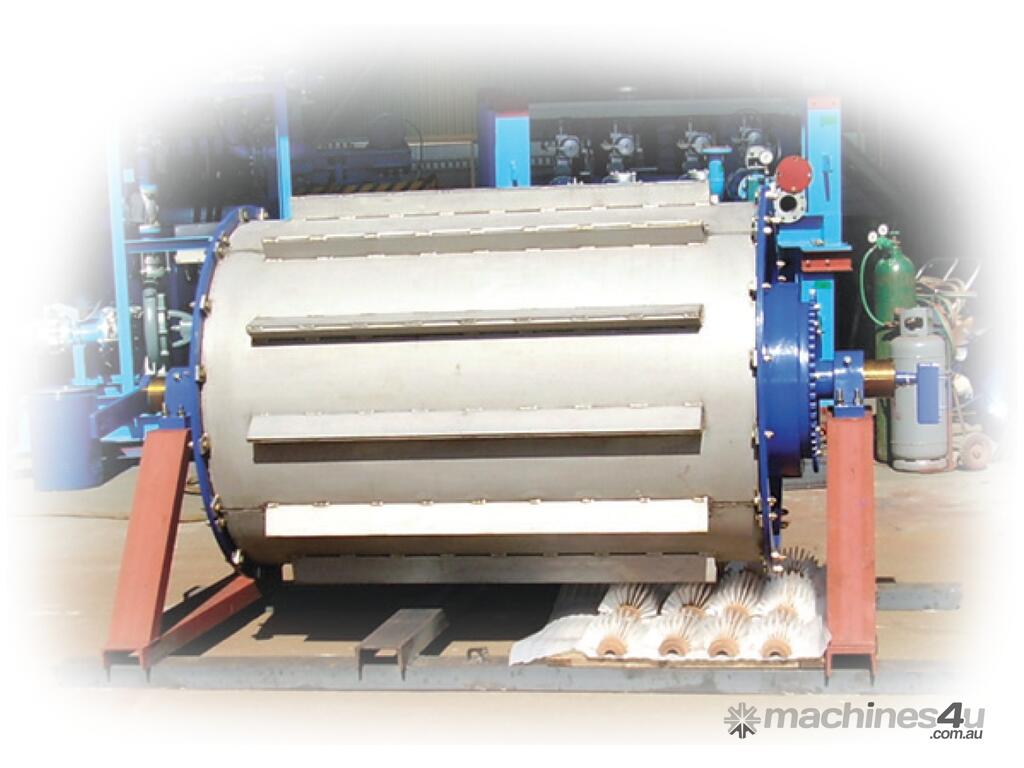

MECBIO - MATICS HSD-8080 Shredder Drum Separator

- Core technology of the shredder facility to maximize of renewable resources.

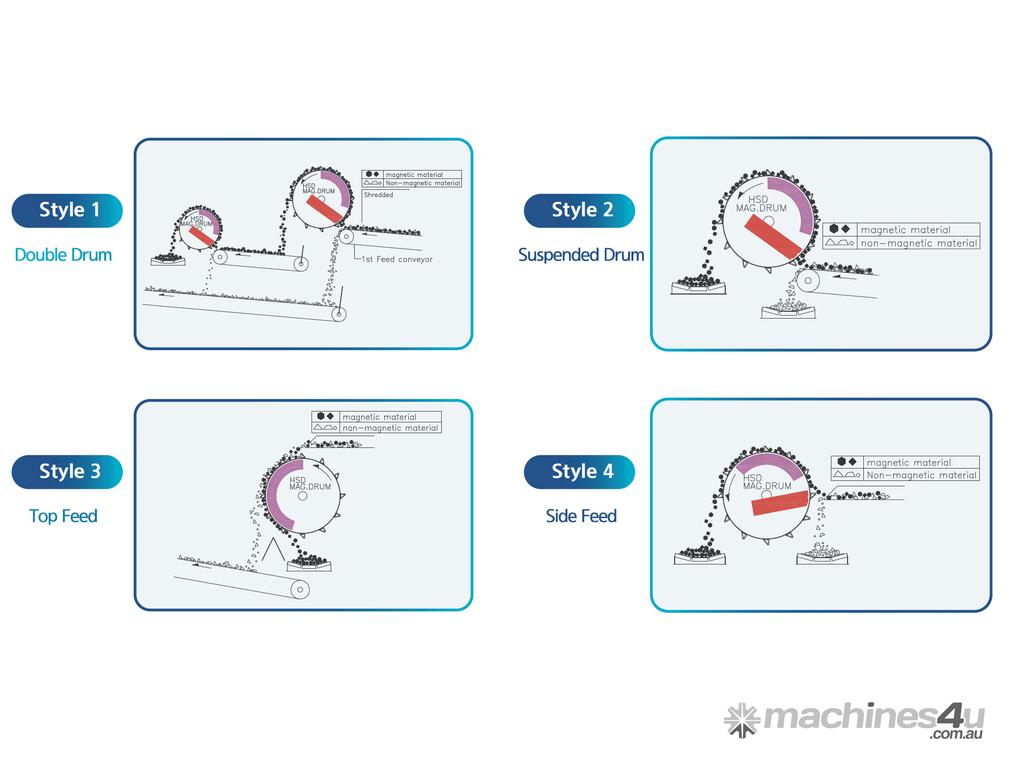

- Installation options to fit the work environment
- State-of-the-art design which combines the suction force of an electromagnet and the adsorption capacity of a permanent magnet.

This is combined Electromagnet and permanent magnet, so electromagnet is for absorption of iron among the fed materials and permanent magnet is for moving absorbed iron to opposite chute.

Easy maintenance
Outside of the drum which contact with fed materials is made of a strong material to prevent wear, and it boasts long life. There is no maintenance required except lubricate in two bearings and drive chain.

Electromagnet power (kw): 1.8kw at 20 degrees Celsius
Magnet width (mm): 800
Drum dimension (mm): Ø800 × 1250L × (8t+8t)
Drum speed (M/min): 60 M/min
Motor power (kw): 2.2kw × 1/30
Capacity(Max) (ton/hr): 11 ton/hr


MECBIO is a full-service provider for the recovery of Organic waste, C&D waste, and Plastics. We design, build, and service state-of-the-art mechanical and biological waste recovery facilities to convert wastes into new streams of use for our clients. We also provide a wide range of world class sorting and processing lines as well as specialist recycling equipment.
