MECBIO - MATICS HSD-90-90P Shredder Drum Separator Permanent Magnet Type

- Core technology of the shredder facility to maximize of renewable resources.

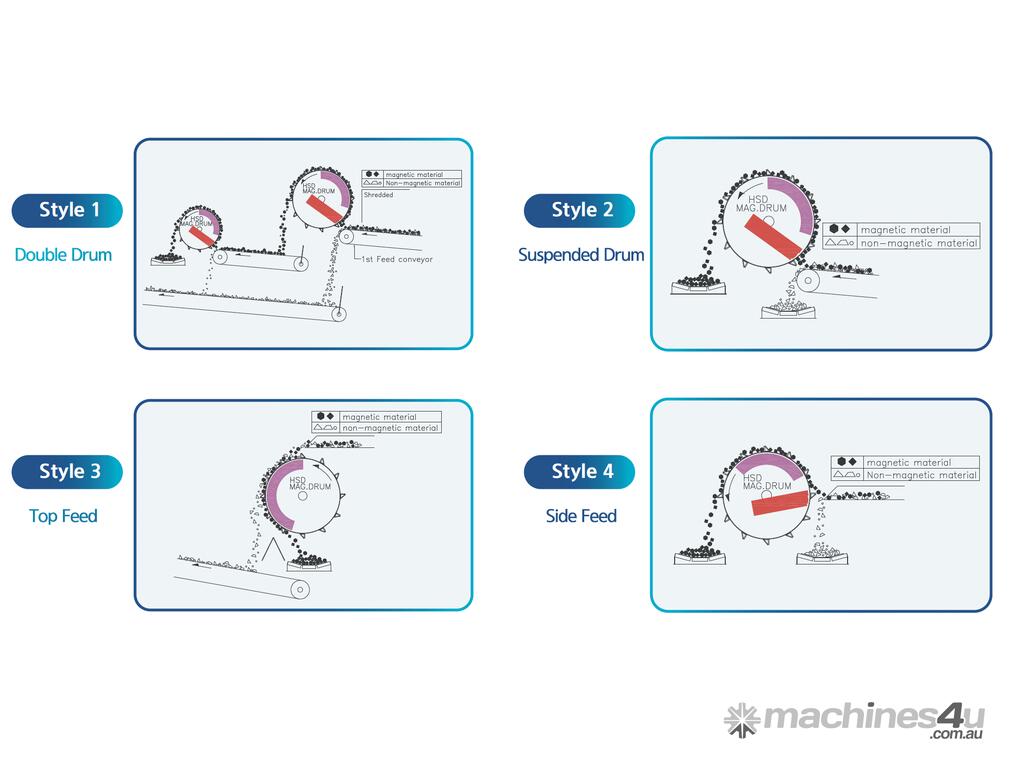

- Installation options to fit the work environment
- State-of-the-art design which combines the suction force of an electromagnet and the adsorption capacity of a permanent magnet.

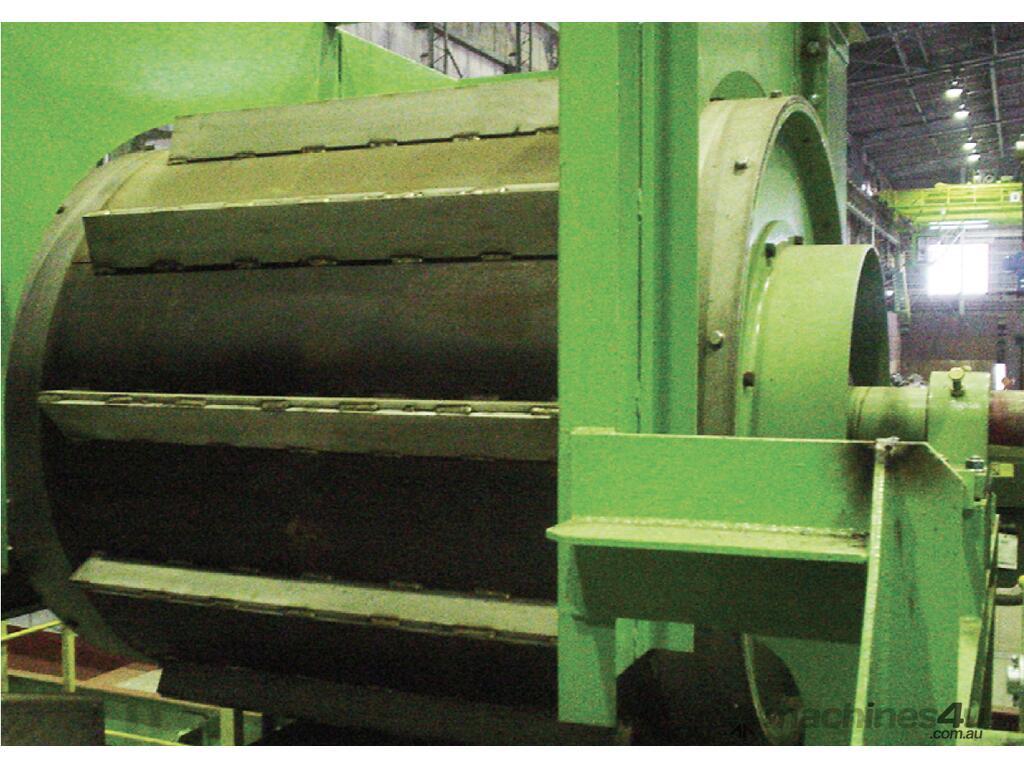

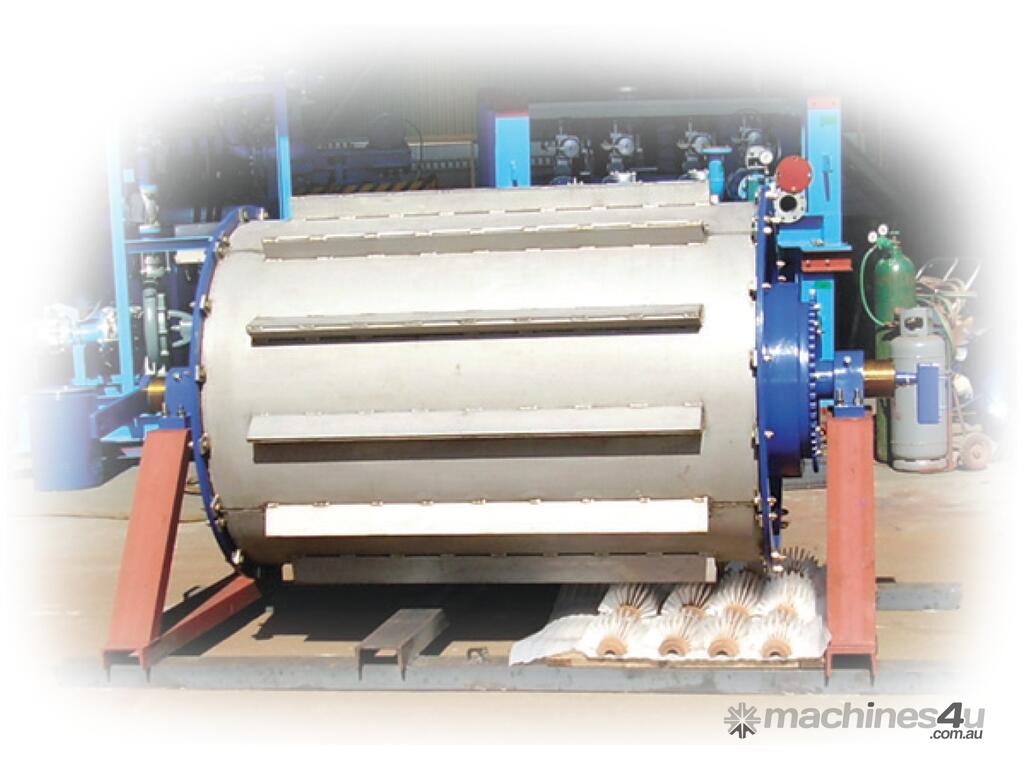

Permanent magnetic drum
Inside of a rotating drum is designed with special magnetic polarity for permanent magnet. Permanent magnet type is ideal when power supply is limited and unstable.

Easy maintenance
Outside of the drum which contact with fed materials is made of a strong material to prevent wear, and it boasts long life. There is no maintenance required except lubricate in two bearings and drive chain.

Magnet width (mm): 900
Drum dimension (mm): Ø920 × 1300L × (10t+6t)
Drum speed (M/min): 60 M/min
Motor power (kw): 3.7kw × 1/30
Capacity(Max) (ton/hr): 11 ton/hr
