MECBIO - MATICS HSD Series Shredder Drum Separator

- Core technology of the shredder facility to maximize of renewable resources.
- Installation options to fit the work environment
- State-of-the-art design which combines the suction force of an electromagnet and the adsorption capacity
of a permanent magnet.

Characteristics & Advantages Shredder Drum Separator

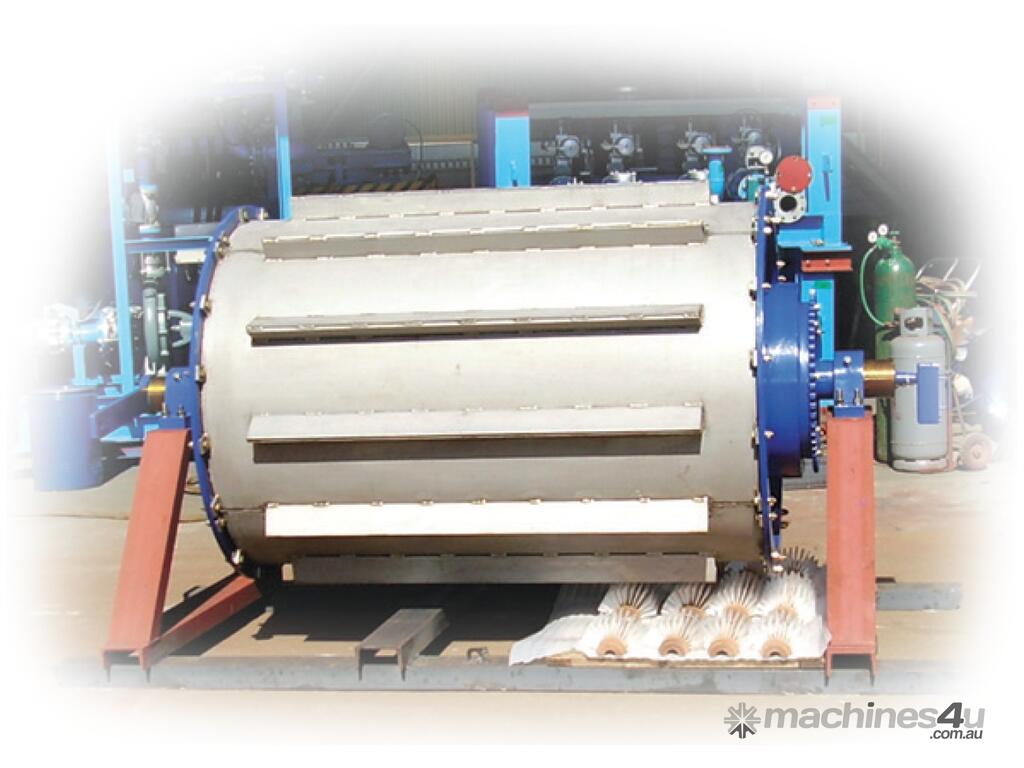

Electro-permanent drum
This is combined Electromagnet and permanent magnet, so electromagnet is for absorption of iron among the fed materials and permanent magnet is for moving absorbed iron to opposite chute.

Permanent magnetic drum
Inside of a rotating drum is designed with special magnetic polarity for permanent magnet. Permanent magnet type is ideal when power supply is limited and unstable.

Easy maintenance
Outside of the drum which contact with fed materials is made of a strong material to prevent wear, and it boasts long life. There is no maintenance required except lubricate in two bearings and drive chain.

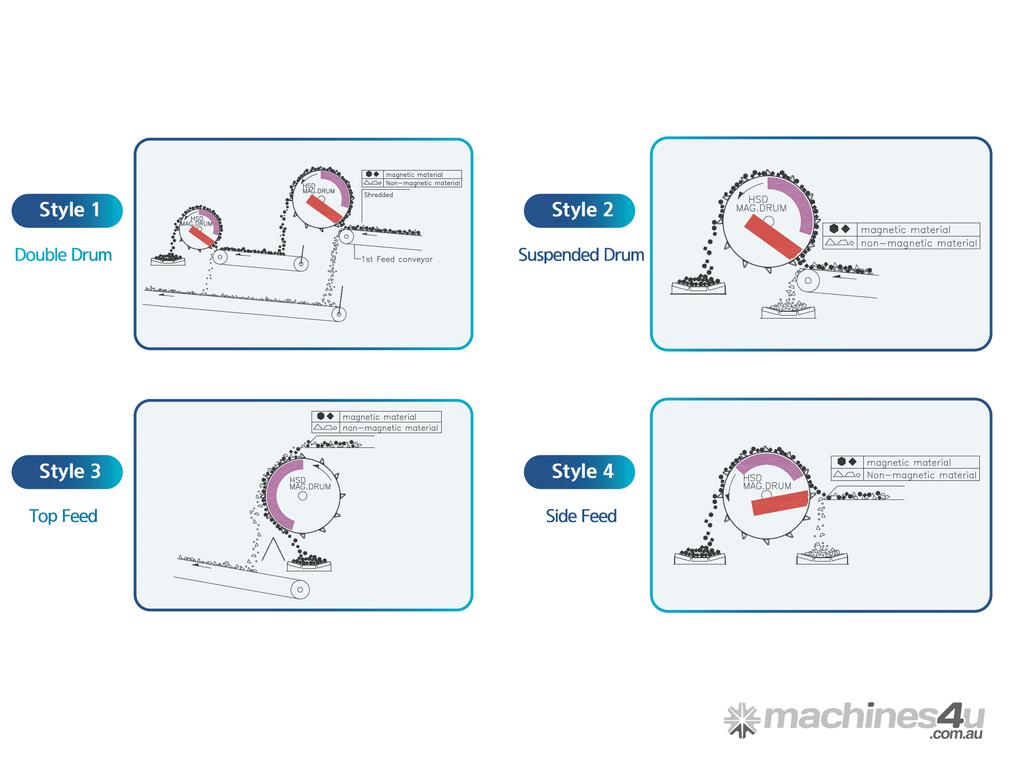

With 4 recommended drum installation types. Each part maximise recoveries of iron pieces from
shredded scrap, waste and other fed material.
- Double drum
- Suspended drum
- Top feed
- Side feed


MECBIO is a full-service provider for the recovery of Organic waste, C&D waste, and Plastics. We design, build, and service state-of-the-art mechanical and biological waste recovery facilities to convert wastes into new streams of use for our clients. We also provide a wide range of world class sorting and processing lines as well as specialist recycling equipment.
