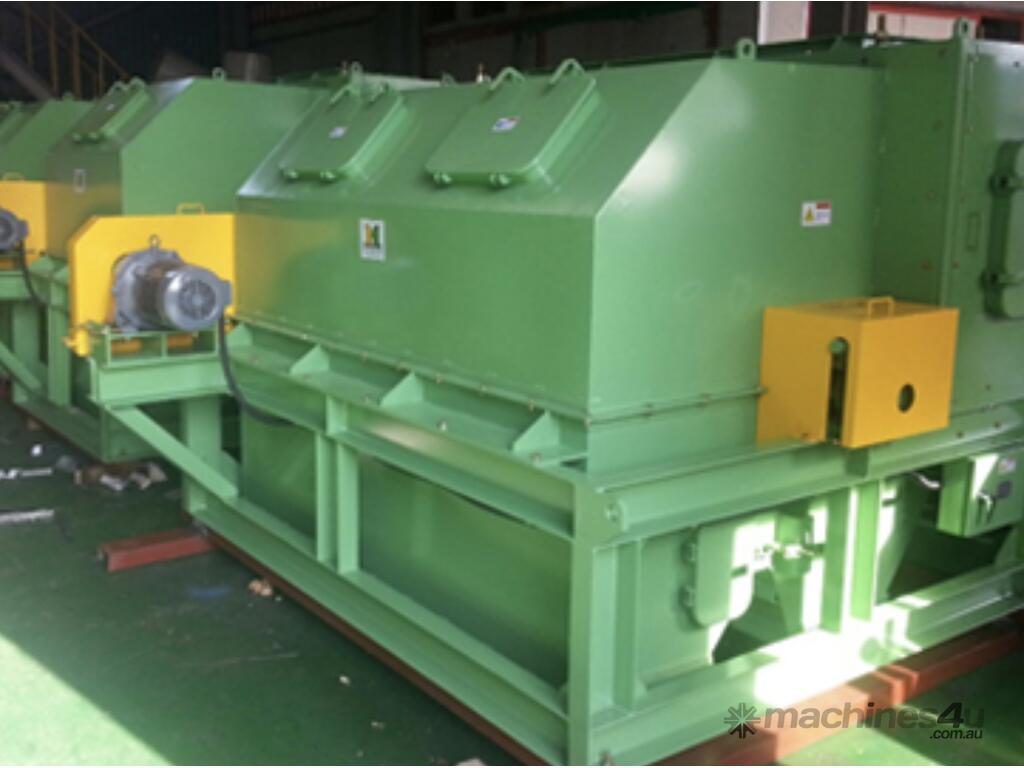

MECBIO - MATICS PD-90120 Permanent Magnetic Drum Separator

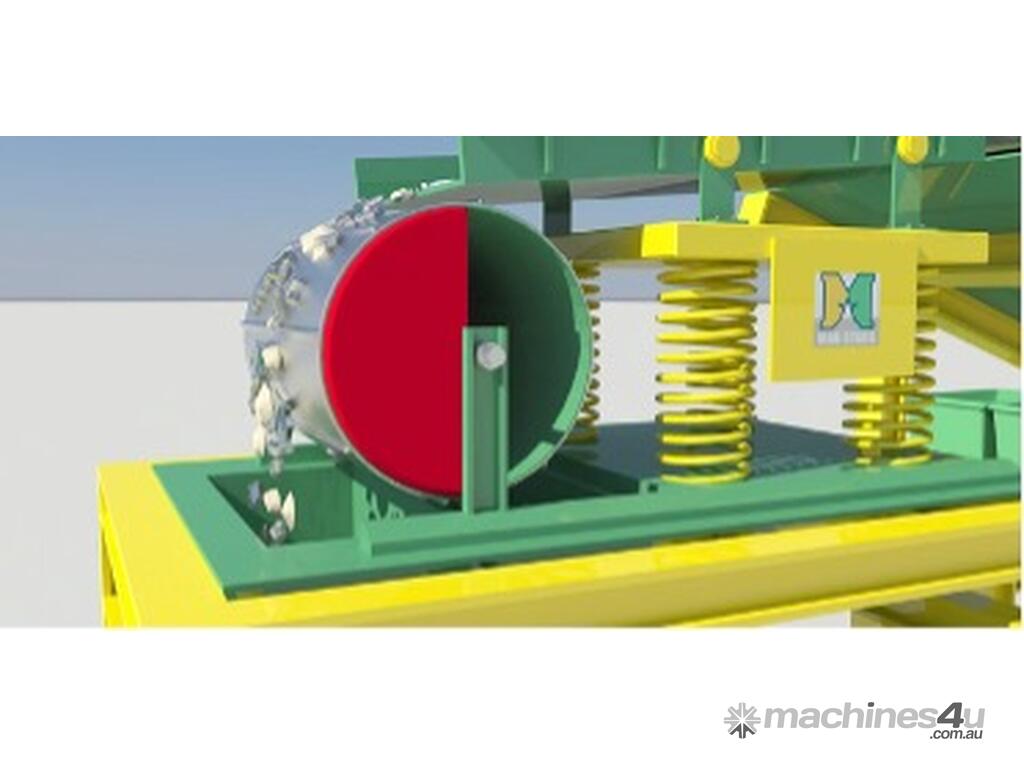

This drum magnetic separator is a sorting equipment of small magnetic material approx. 50mm particle size according to the rotation direction on the surface while rotating the exterior drum. The separator is installed with magnets over only half its area. Various magnetic force design is available depending on the condition of raw materials.

- Remove small magnetic particle from various materials.
- Drum separators are divided into two types Dry(PD) or Wet(WDPT), depending upon the material being handled
- Available in various diameters and widths according to the volume being proceed.
- There are four magnetic strength selections, depending on customer request or handling material.


Model: PD-90120
Diameter A(mm): 914
Width B(mm): 1200
Geared motor(kw): 1.5
Weights (kg): 2,500
Capacity (ton/hr): 48


MECBIO is a full-service provider for the recovery of Organic waste, C&D waste, and Plastics. We design, build, and service state-of-the-art mechanical and biological waste recovery facilities to convert wastes into new streams of use for our clients. We also provide a wide range of world class sorting and processing lines as well as specialist recycling equipment.

Go to the Mecbio showroom on Machines4u to see the range of machinery available, send Mecbio a message or give Mecbio a call, we are happy to answer any of your questions.
