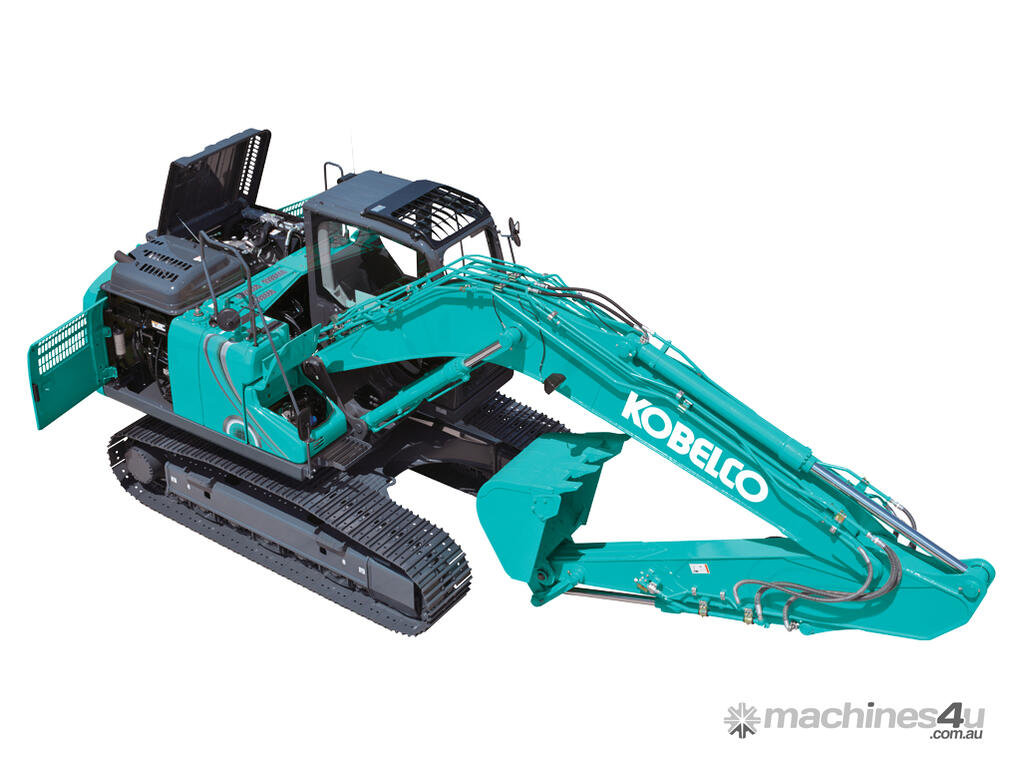

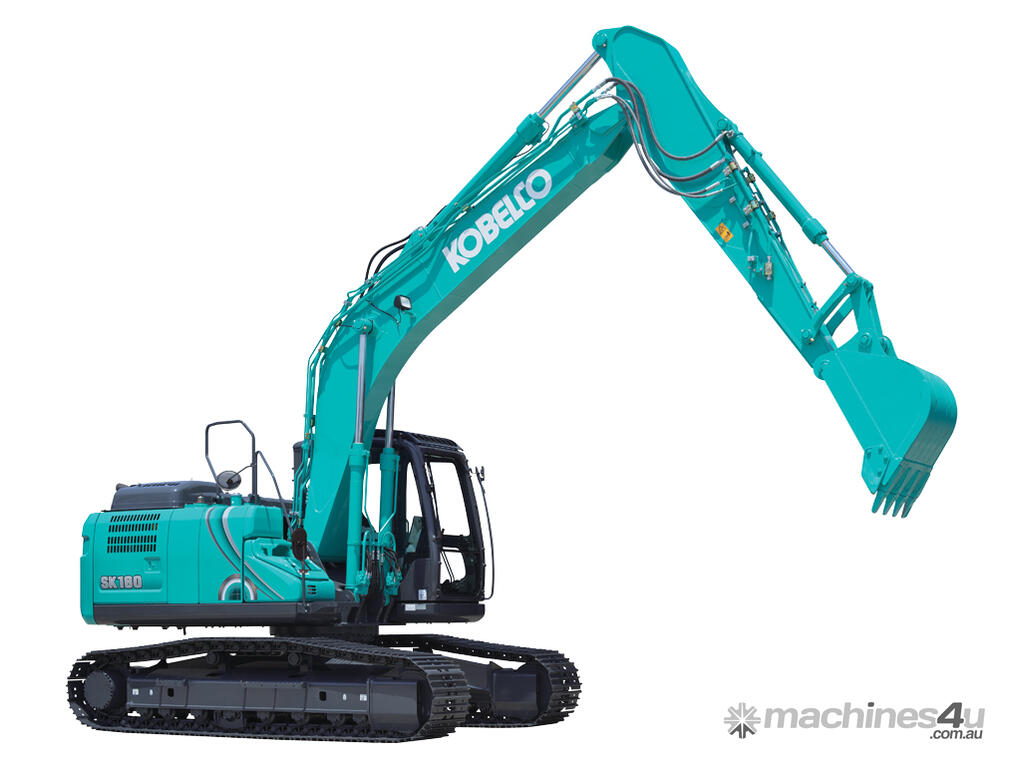

MEDIUM EXCAVATORS SK180-10

'Proudly representing Kobelco in North East Victoria and Southern NSW'

Structural design increases strength, while eliminating hydraulic problems.
Enhanced durability takes productivity to a new level.
A cab that puts the operator ?rst is key to improved safety.
2YR/3,000HR Full Machine Warranty and 4YR/6,000HR Major Component Extended Warranty.

Powerful traveling force and drawbar pulling force deliver plenty of speed when climbing slopes or negotiating bad roads, and the agility to change direction swiftly and smoothly.

The highly ef?cient hydraulic system minimises fuel consumption while maximising power, with nimble movement and outstanding digging power, this excavator improves job productivity. A work environment that is quieter and more comfortable.

SPECIFICATIONS
Transport Dimensions
Length, Width & Height

8.7 x 2.49 x 3.08 m

Operating Weight

18,800 kg

Refilling Capacities
Fuel Tank

280 L

Hydraulic Oil Tank

122 (200) L

Working Range
Max. Digging Depth

5.99 m

Max. Digging Reach

8.97 m

Engine
Rated Power Output

100.0 kW

Rated Torque

502 Nm

Breakout Force
Bucket Digging Force

126 kN (ISO 6015) Power Boost engaged

Arm Crowding Force

90.6 kN (ISO 6015) Power Boost engaged

Hydraulic System
Max. Pump Flow

2 x 160 L/min + 20, 44 L/min

Standard Auxiliary

N&B + Tilt Piping
