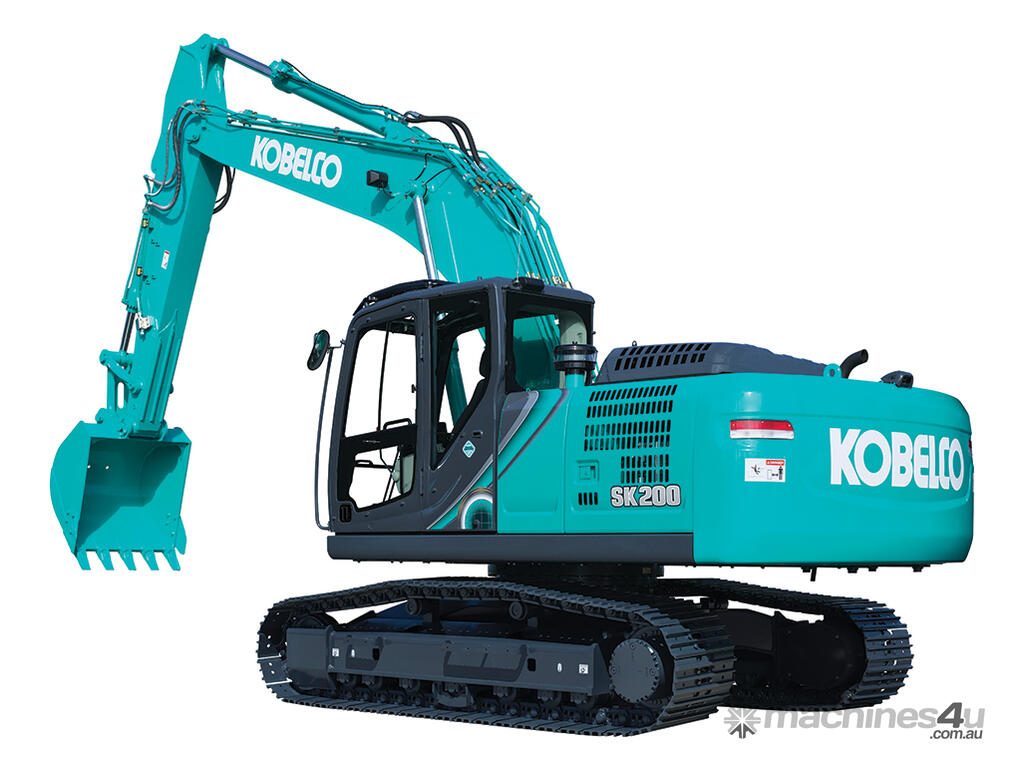

MEDIUM EXCAVATORS SK200-10

Units Available NOW
'Proudly representing Kobelco in North East Victoria and Southern NSW'

Available in Tier 3 or Stage V emissions
Includes Kobelco's Geoscan Excavator Remote Monitoring System for peace of mind.
2YR/3,000HR Full Machine Warranty and 4YR/6,000HR Major Component Extended Warranty.

The Generation 10 SK200-10 has enhanced durability that takes productivity to a new level.
The highly efficient hydraulic system minimises fuel consumption while maximising power.
There is lower fuel consumption by 16% in H-mode, 14% in S-mode and 19% in Eco-mode than previous models.

SPECIFICATIONS
Transport Dimensions
Length, Width & Height

9.60 x 2.8 x 3.06 m

Operating Weight

20,700 kg

Refilling Capacities
Fuel Tank

320 L

Hydraulic Oil Tank

140 (244) L

Working Range
Max. Digging Depth

6.7 m

Max. Digging Reach

9.9 m

Engine
Rated Power Output

118 kW

Rated Power Output - Stage V

124 kW

Breakout Force
Bucket Digging Force

157 kN

Arm Crowding Force

112 kN

Hydraulic System
Max. Pump Flow

2 x 220 + 20 L/min

Standard Auxiliary

N&B + Tilt Piping
