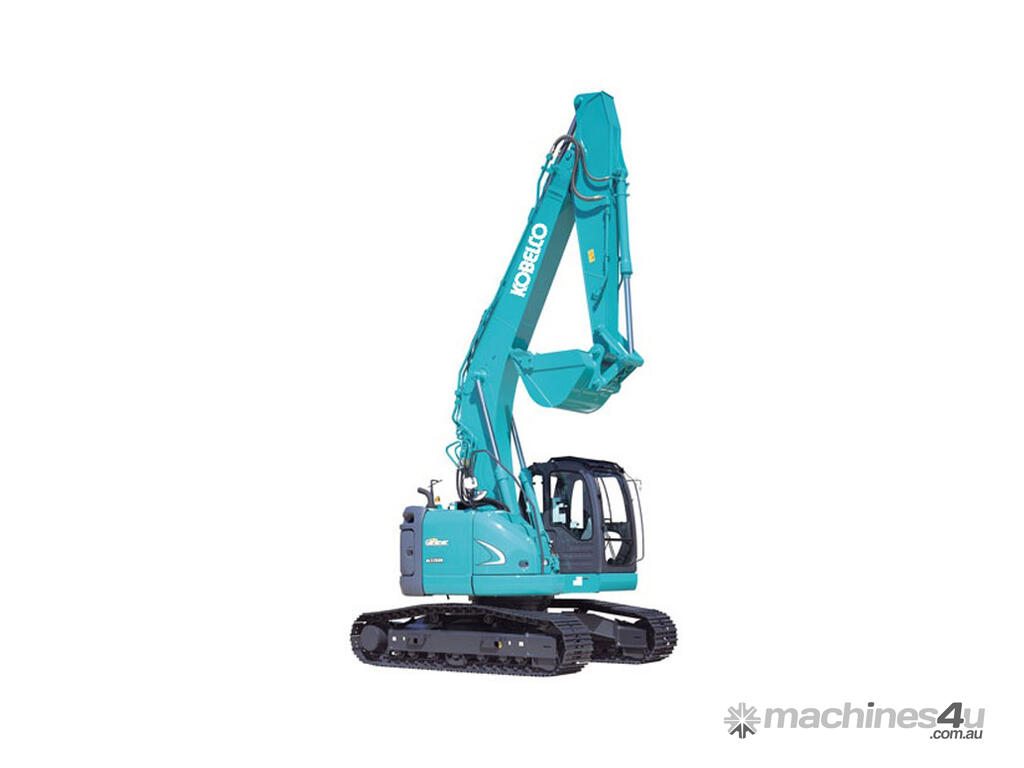

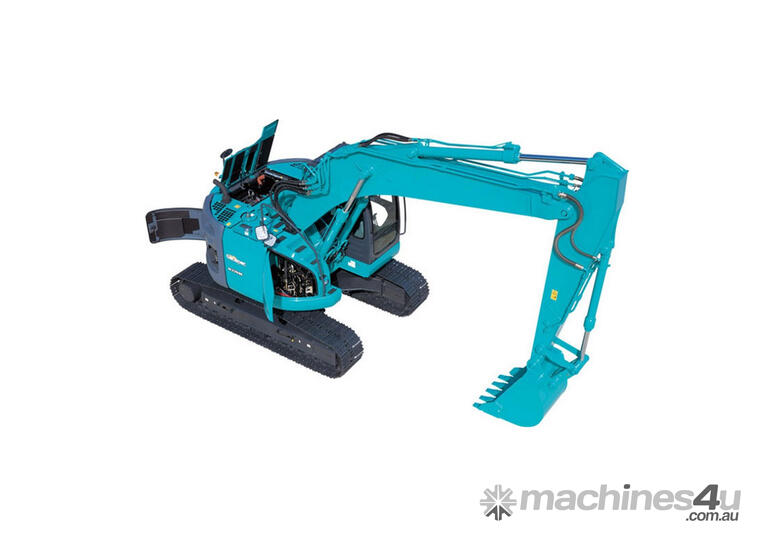

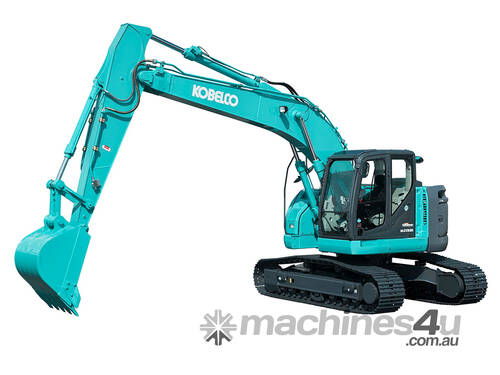

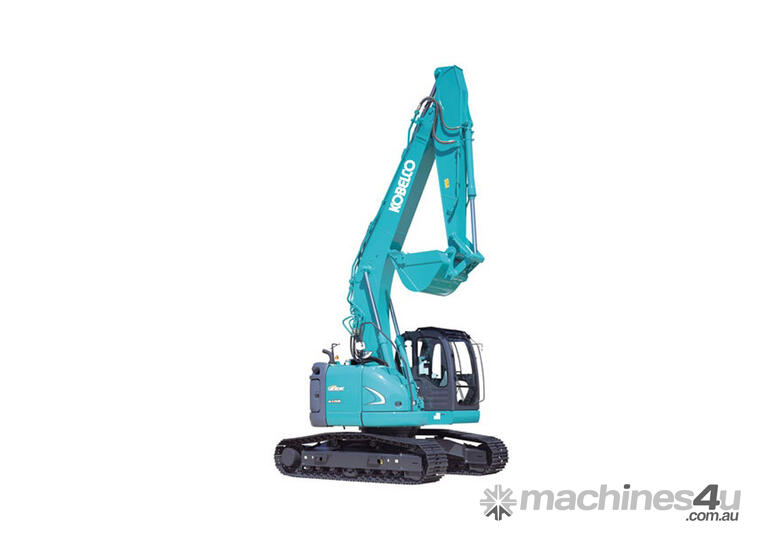

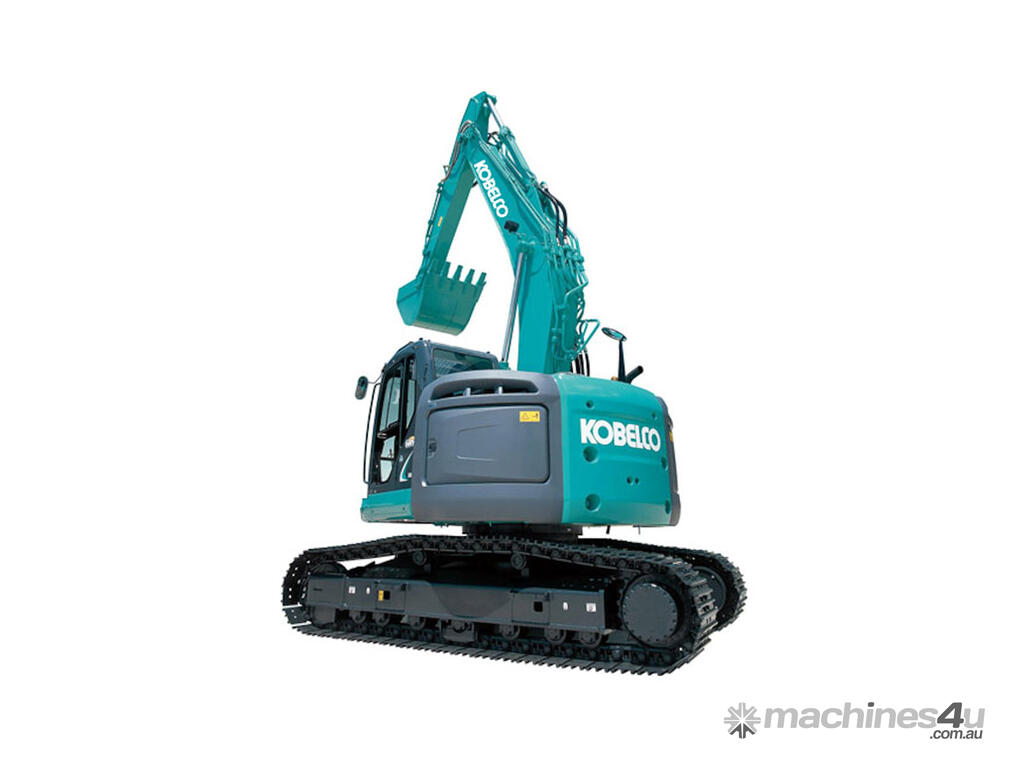

MEDIUM EXCAVATORS SK225SR-2

'Proudly representing Kobelco in North East Victoria and Southern NSW'

Powerful travel, digging, greater swing power and shorter cycle times.
Compact design means operators require less than 4 metres of working space.
2YR/3,000HR Full Machine Warranty and 4YR/6,000HR Major Component Extended Warranty.

Excellent visibility to minimise blind spots for greater onsite safety.
Includes Kobelco Geoscan Excavator Remote Monitoring System and Kobelco’s exclusive iNDr Cooling System for ultimate low noise and dust reduction.

Rugged durability that ensures long-term machine value.
Amazing productivity with 15-21% decrease in fuel consumption and “top-class” cost performance. Light lever operation means less operator fatigue over long hours of operation.

SPECIFICATIONS

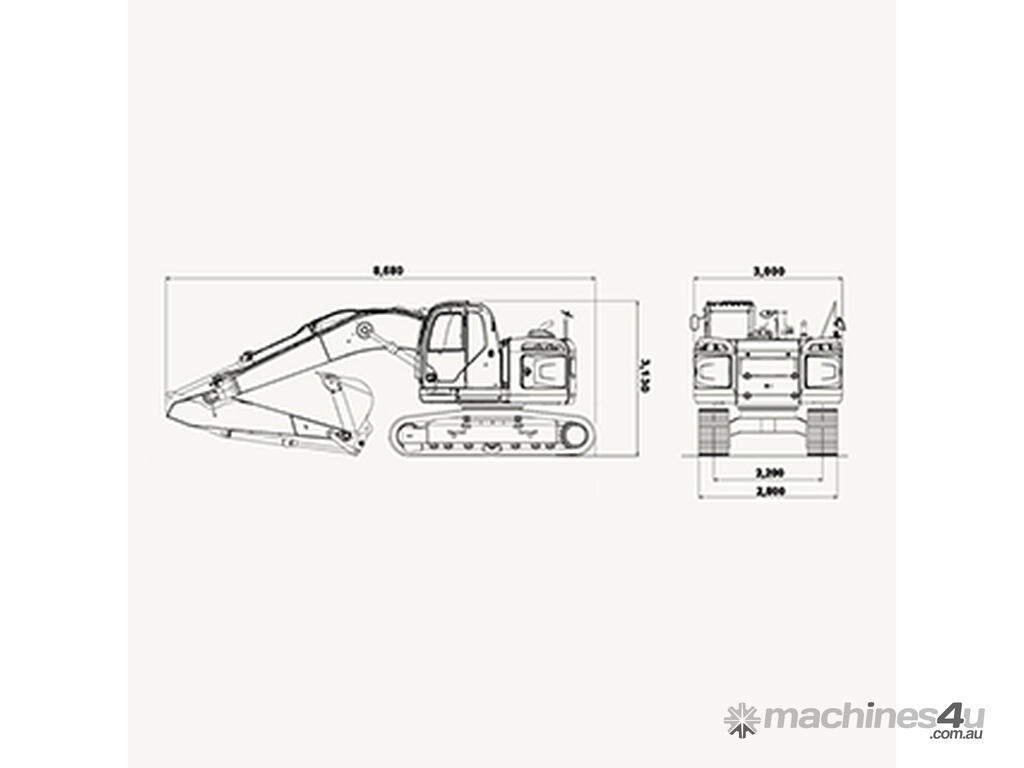

Transport Dimensions
Length, Width & Height

8.69 x 2.8 x 3.1 m

Operating Weight

22,500 kg

Refilling Capacities
Fuel Tank

300 L

Hydraulic Oil Tank

114 (230) L

Working Range
Max. Digging Depth

6.59 m

Max. Digging Reach

9.71 m

Engine
Rated Power Output

118 kW

Rated Torque

572 Nm

Breakout Force
Bucket Digging Force

132 kN

Arm Crowding Force

96.8 kN

Hydraulic System
Max. Pump Flow

2 x 220 + 20 L/min

Standard Auxiliary

-
