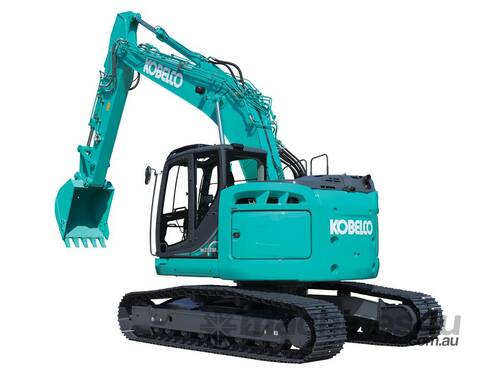

MEDIUM EXCAVATORS SK230SRLC-5

'Proudly representing Kobelco in North East Victoria and Southern NSW'

Stage V Compliant engine.
Excellent working ranges with class-topping vertical digging depth.
2YR/3,000HR Full Machine Warranty and 4YR/6,000HR Major Component Extended Warranty.

Ultimate low noise and dust reduction with Kobelco’s proprietary iNDr system.
Minimal swing radius improves efficiency.
Compact design allows for continuous 180 degree dig, swing and load operations within a working space of just 4.06m.

Strong drawbar pulling force produces powerful travel capabilities.
Includes Kobelco Geoscan Excavator Remote Monitoring System and standard quick hitch piping which speeds up attachment changes.

SPECIFICATIONS
Transport Dimensions
Length, Width & Height

8.83 x 2.99 x 3.15 m

Operating Weight

23,500 kg

Refilling Capacities
Fuel Tank

330 L

Hydraulic Oil Tank

114 (230) L

Working Range
Max. Digging Depth

6.58 m

Max. Digging Reach

9.7 m

Engine
Rated Power Output

124 kW

Rated Torque

660 Nm

Breakout Force
Bucket Digging Force

132 kN

Arm Crowding Force

96.8 kN

Hydraulic System
Max. Pump Flow

2 x 220 + 20 L/min

Standard Auxiliary

N&B + Tilt Piping
