'Proudly representing Kobelco in North East Victoria and Southern NSW'
Powerful travel, digging, greater swing power and shorter cycle times.
Rugged durability that ensures long-term machine value.
2YR/3,000HR Full Machine Warranty and 4YR/6,000HR Major Component Extended Warranty.

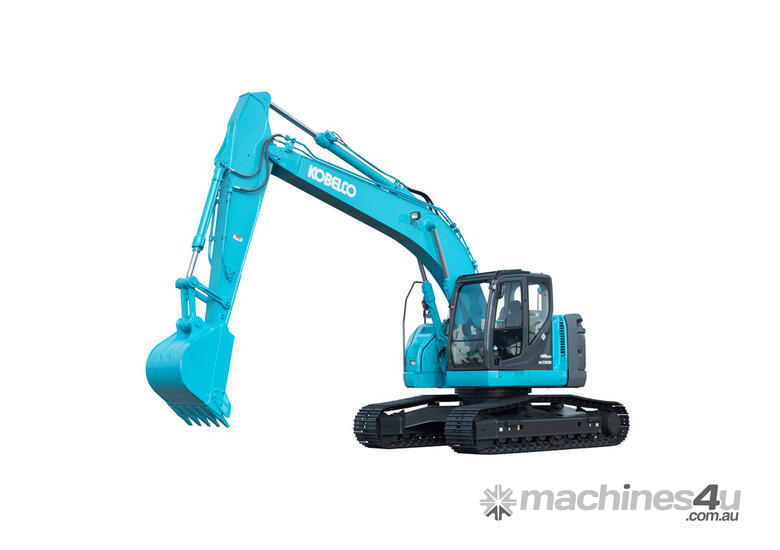

The compact design of this machine allows operators to perform continuous 180 degree dig, swing and load operations within a working space of just 4m. Amazing productivity with 8-15% decrease in fuel consumption and “top-class” cost performance.
Light lever operation means less operator fatigue over long hours of operation. ROPS cab ensures greater safety for the operator. Includes Kobelco Geoscan Excavator Remote Monitoring System and Kobelco’s exclusive iNDr Cooling System for ultimate low noise and dust reduction.
SPECIFICATIONS

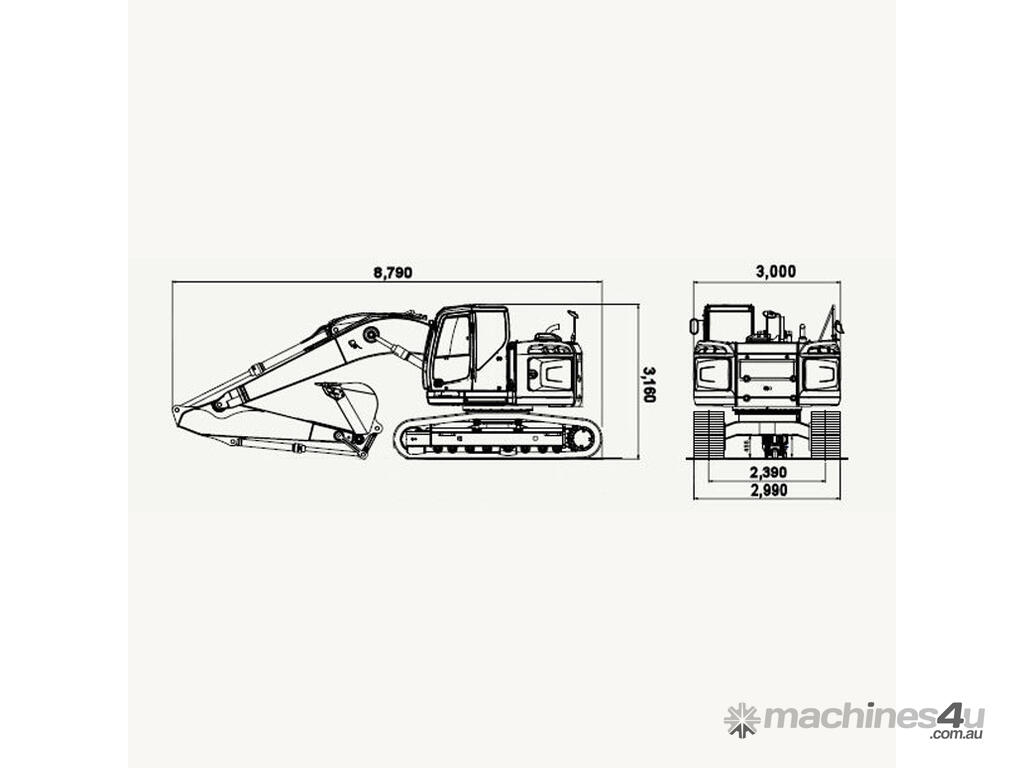

Transport Dimensions
Length, Width & Height
8.79 x 2.99 x 3.15 m
Operating Weight
24,300 kg
Refilling Capacities
Fuel Tank
330 L
Hydraulic Oil Tank
114 (230) L
Working Range
Max. Digging Depth
6.65 m
Max. Digging Reach
9.85 m
Engine
Rated Power Output
118 kW
Rated Torque
572 Nm
Breakout Force
Bucket Digging Force
157 kN
Arm Crowding Force
112 kN
Hydraulic System
Max. Pump Flow
2 x 220 + 20 L/min
