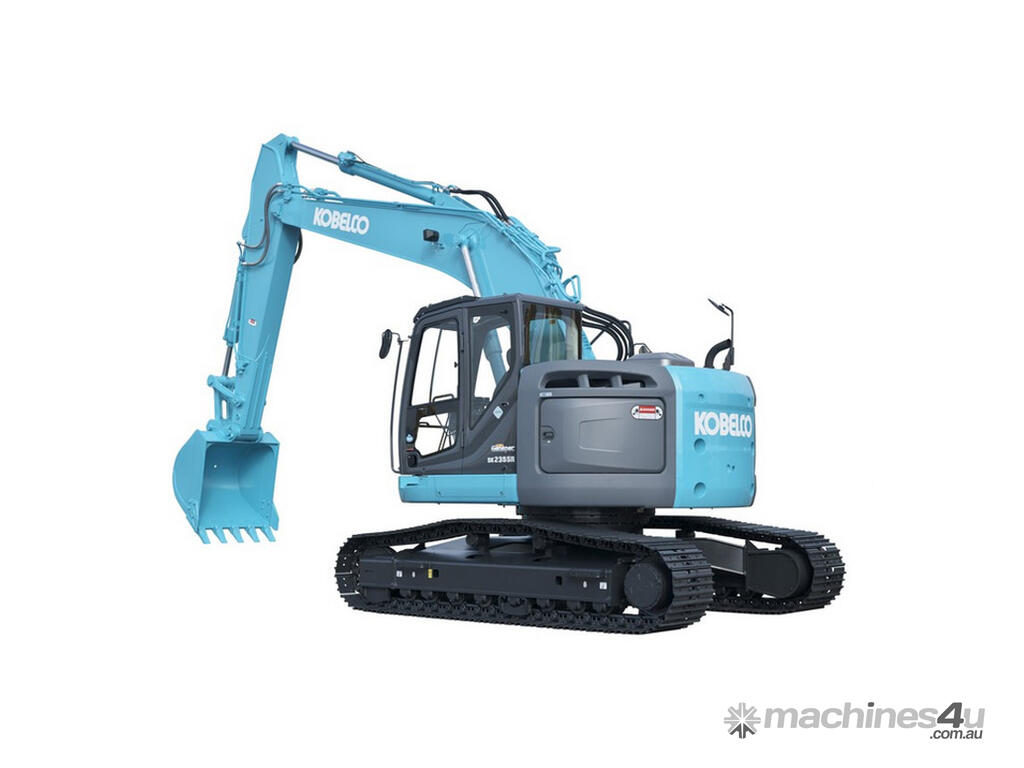

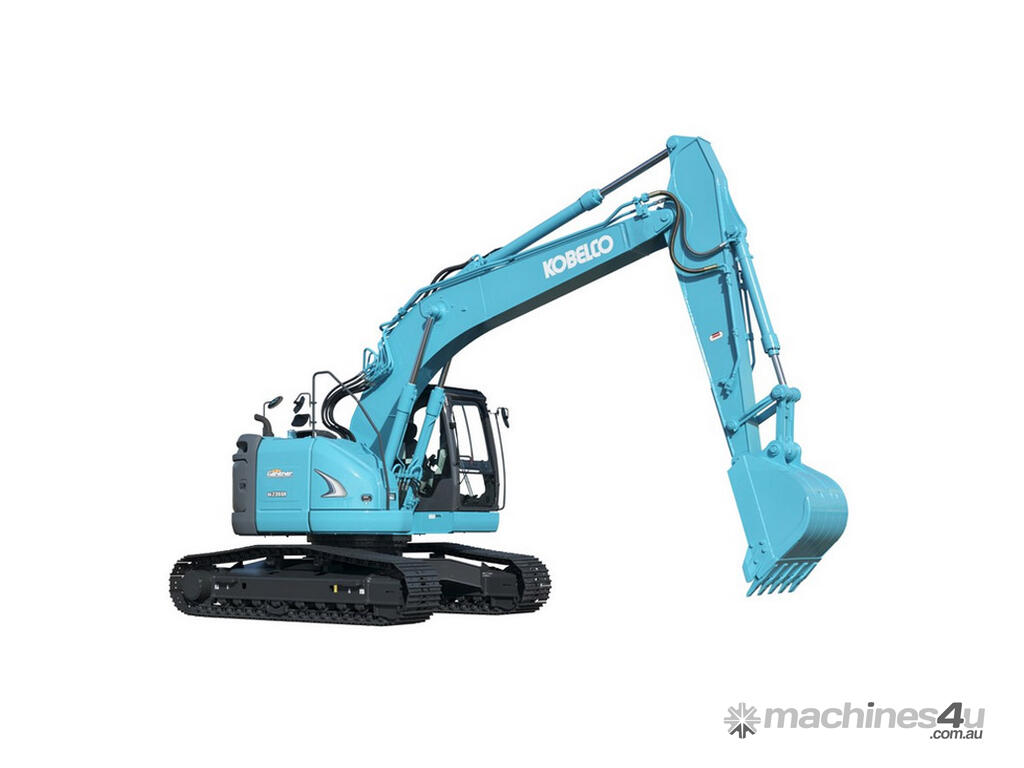

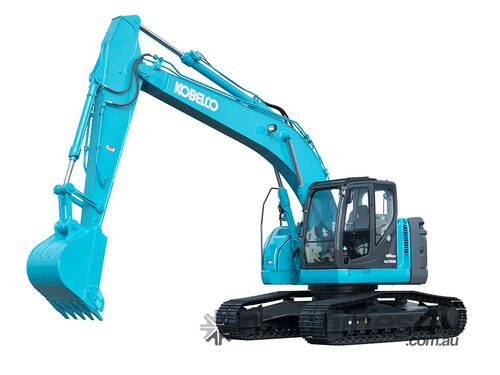

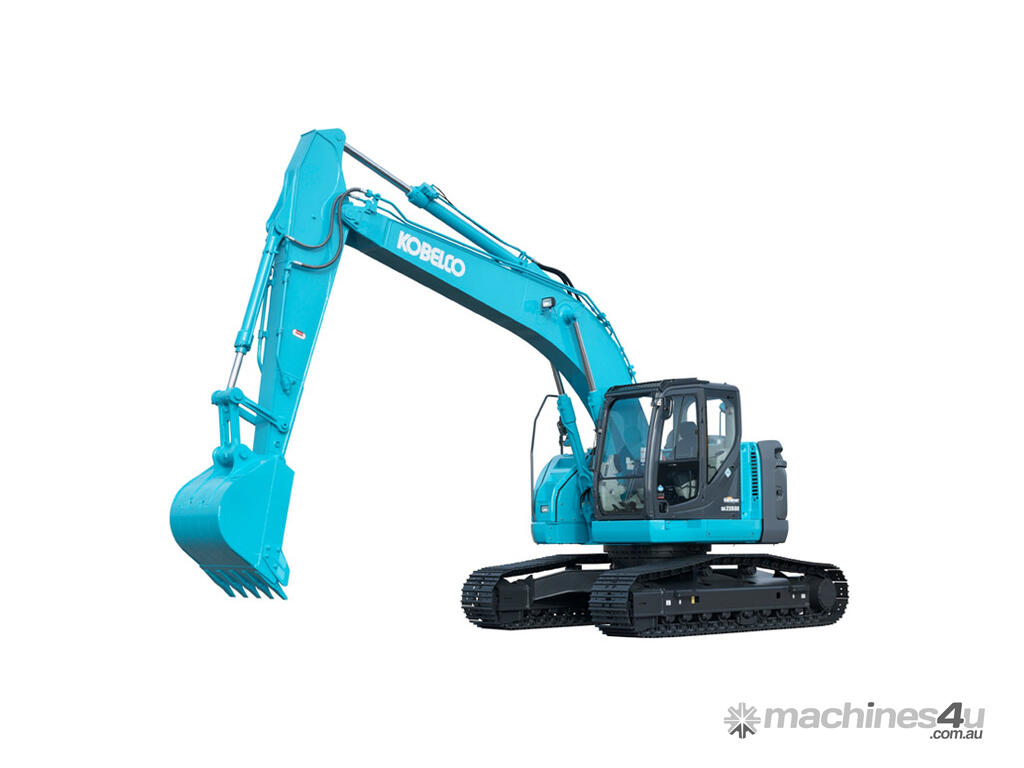

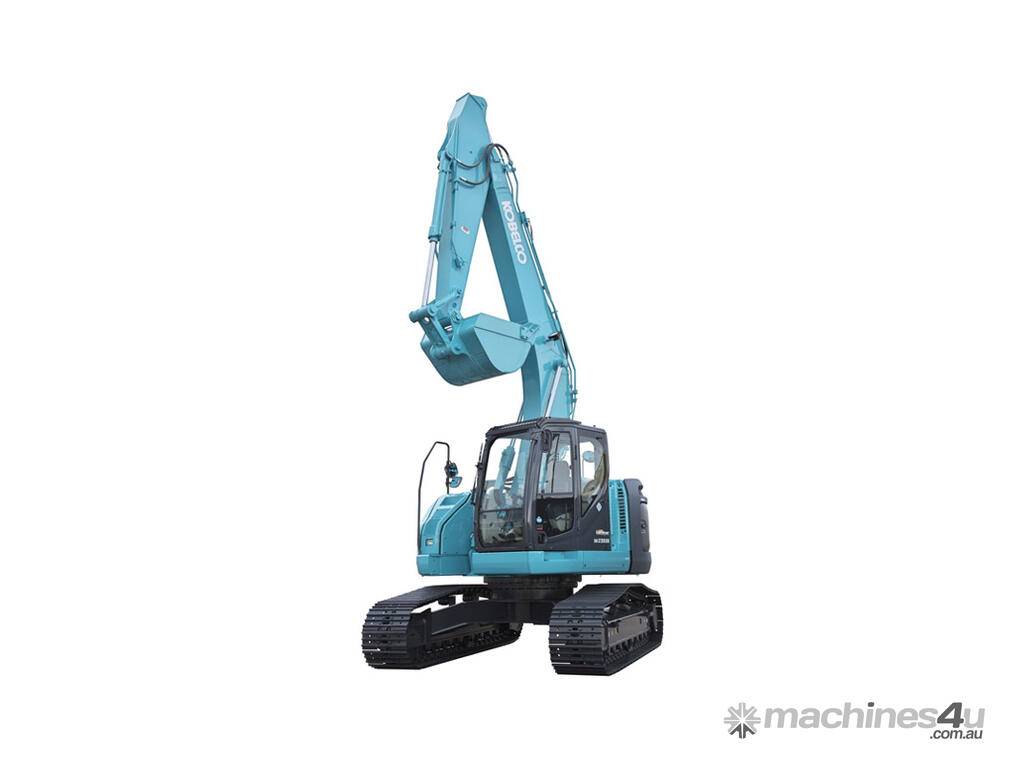

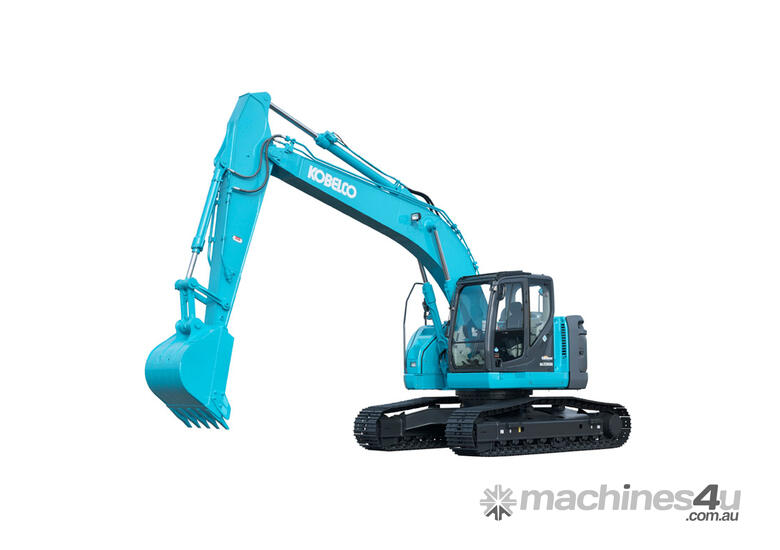

MEDIUM EXCAVATORS SK235SRLC-2

'Proudly representing Kobelco in North East Victoria and Southern NSW'

Powerful travel, digging, greater swing power and shorter cycle times.
Amazing productivity with 8-15% decrease in fuel consumption and "top-class" cost performance.
2YR/3,000HR Full Machine Warranty and 4YR/6,000HR Major Component Extended Warranty.

The compact design of this machine allows operators to perform continuous 180 degree dig, swing and load operations within a working space of just 4m.
Light lever operation means less operator fatigue over long hours of operation.

ROPS cab ensures greater safety for the operator.
Includes Kobelco Geoscan Excavator Remote Monitoring System and Kobelco’s exclusive iNDr Cooling System for ultimate low noise and dust reduction.
Rugged durability that ensures long-term machine value.

SPECIFICATIONS
Transport Dimensions
Length, Width & Height

8.98 x 3.19 x 3.15 m

Operating Weight

24,900 kg

Refilling Capacities
Fuel Tank

330 L

Hydraulic Oil Tank

114 (230) L

Working Range
Max. Digging Depth

6.50 m

Max. Digging Reach

9.85 m

Engine
Rated Power Output

118 kW

Rated Torque

572 Nm

Breakout Force
Bucket Digging Force

157 kN

Arm Crowding Force

112 kN

Hydraulic System
Max. Pump Flow

2 x 220 + 20 L/min
