MEDIUM EXCAVATORS SK250-10

'Proudly representing Kobelco in North East Victoria and Southern NSW'

Available in Tier 3 or Stage V emissions.
Standard factory fitted quick hitch piping and tilt circuit piping.
2YR/3,000HR Full Machine Warranty and 4YR/6,000HR Major Component Extended Warranty.

The Generation 10 SK250-10 is built to operate in tough working environments and highly efficient hydraulic system minimises fuel consumption while maximising power. Rugged durability that ensures long-term machine value. This machine has superior digging force, top class travelling force and working ranges.

With nimble movement and ample digging power, this excavator promises to improve productivity. Takes 38% less effort to work the operation lever, which reduces fatigue over long hours of operation Includes Kobelco Geoscan Excavator Remote Monitoring System.

SPECIFICATIONS

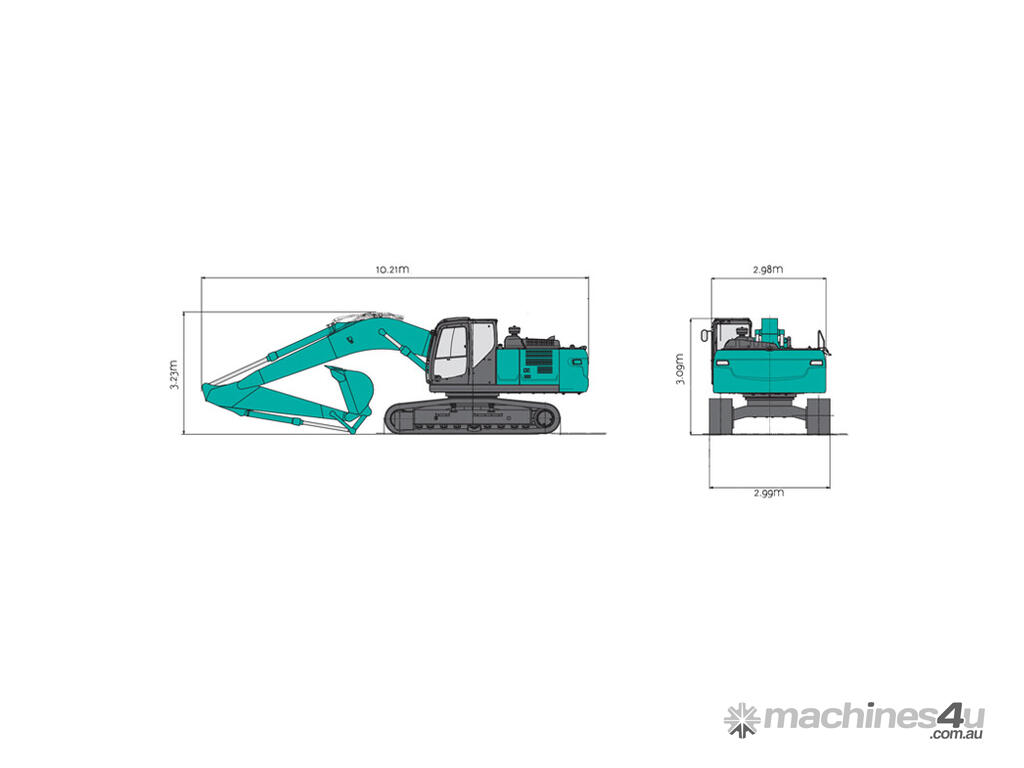

Transport Dimensions
Length, Width & Height

10.21 x 2.99 x 3.09 m

Operating Weight

25,100 kg

Refilling Capacities
Fuel Tank

403 L

Hydraulic Oil Tank

165 (273) L

Working Range
Max. Digging Depth

7.0 m

Max. Digging Reach

10.31 m

Engine
Rated Power Output

137 kW

Rated Power Output - Stage V

138 kW

Breakout Force
Bucket Digging Force

187 kN

Arm Crowding Force

131 kN

Hydraulic System
Max. Pump Flow

2 x 245 + 21 L/min

Standard Auxiliary

N&B + Tilt Piping
