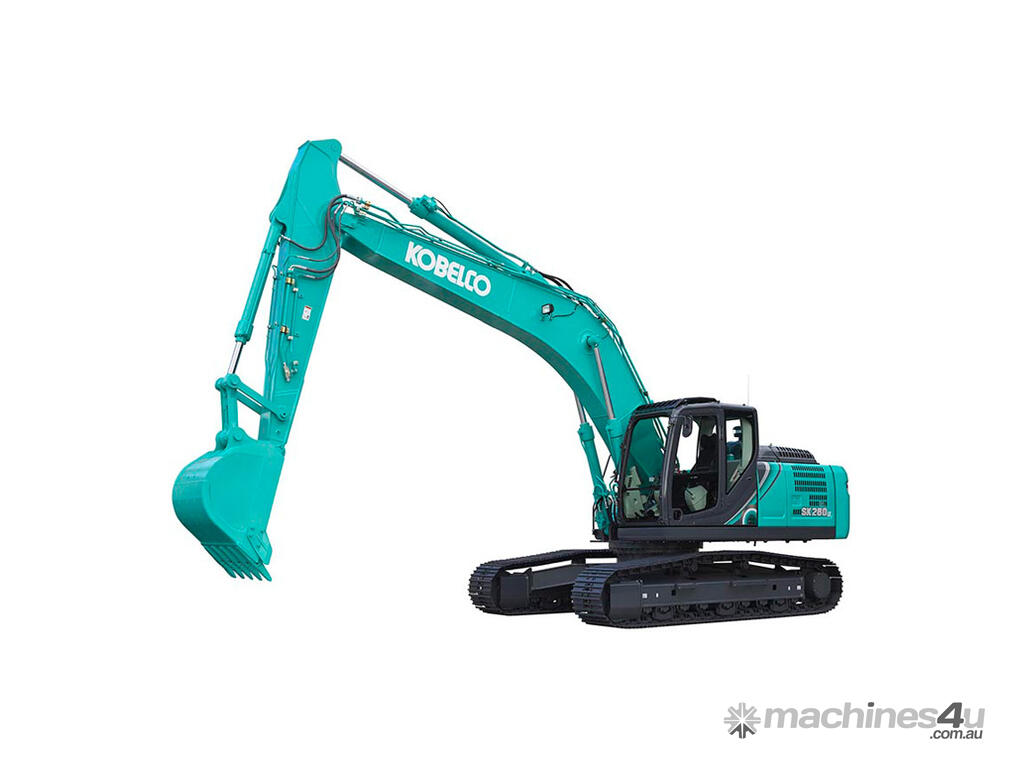

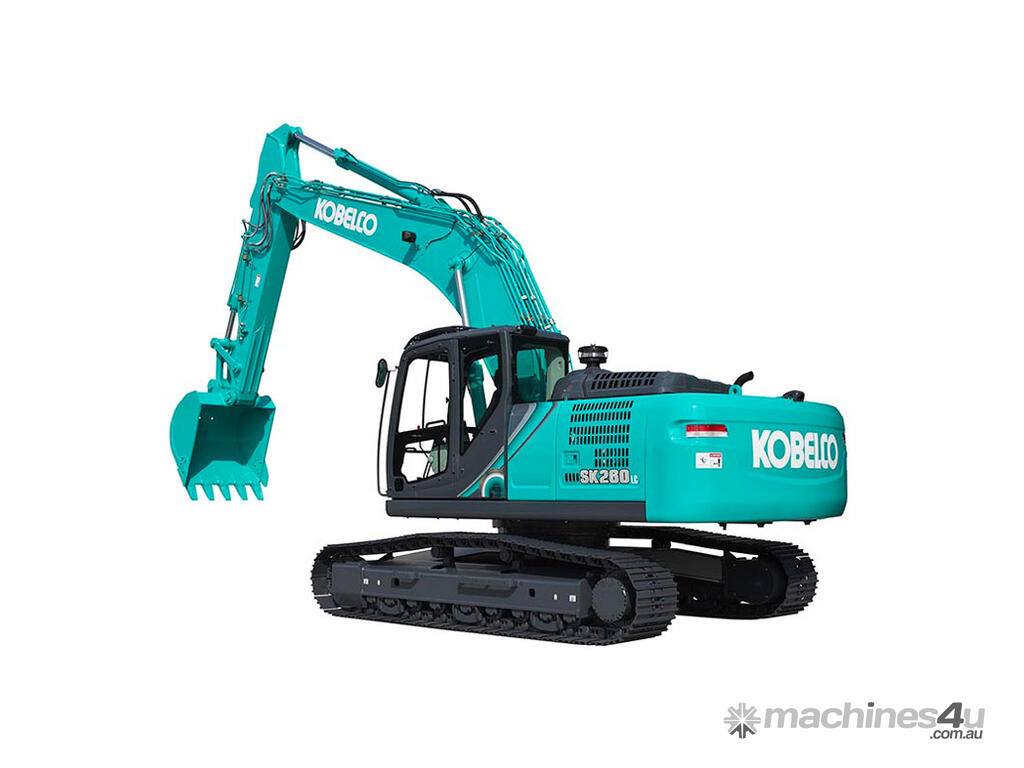

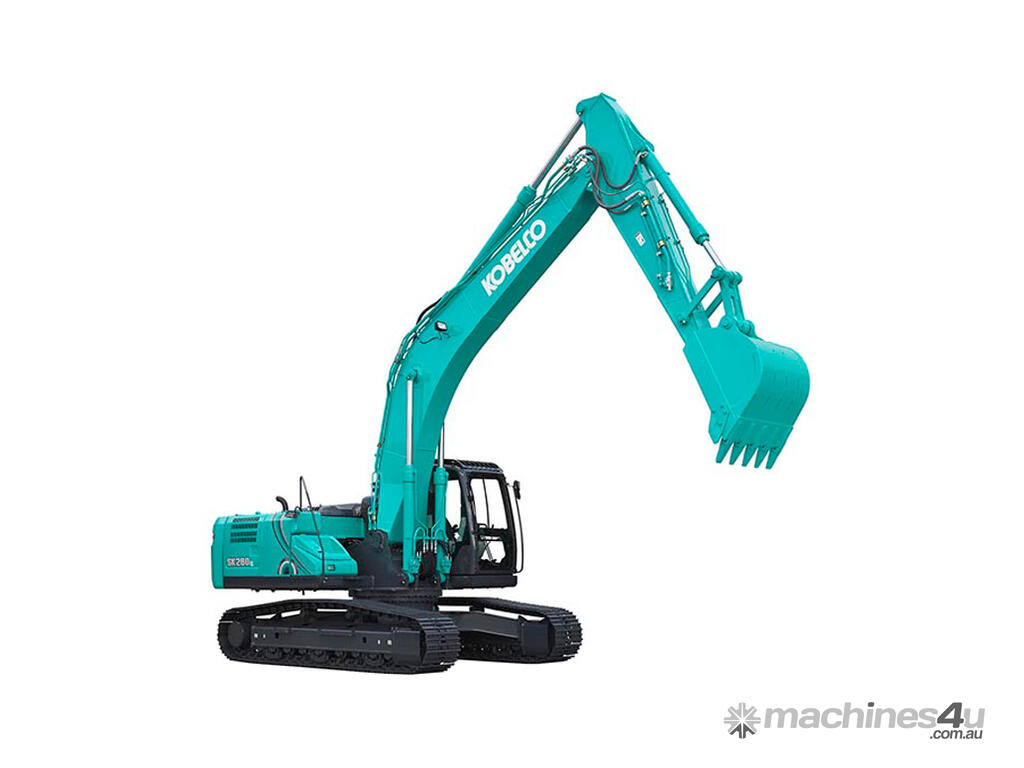

MEDIUM EXCAVATORS SK260LC-10

'Proudly representing Kobelco in North East Victoria and Southern NSW'

Available in Tier 3 or Stage V emissions.
Standard factory fitted quick hitch piping and tilt circuit piping.
2YR/3,000HR Full Machine Warranty and 4YR/6,000HR Major Component Extended Warranty.

The Generation 10 SK260LC-10 has advanced technology that improves hydraulic efficiency, with lower fuel consumption by 17% in H-mode, 14% in S-mode and 23% in Eco-mode than previous models. Takes 38% less effort to work the operation lever, which reduces fatigue over long hours of operation.

With nimble movement and ample digging power, this excavator promises to improve productivity, and has superior digging force, top class travelling force and working ranges. Rugged durability that ensures long-term machine value and includes Kobelco Geoscan Excavator Remote Monitoring System.

SPECIFICATIONS

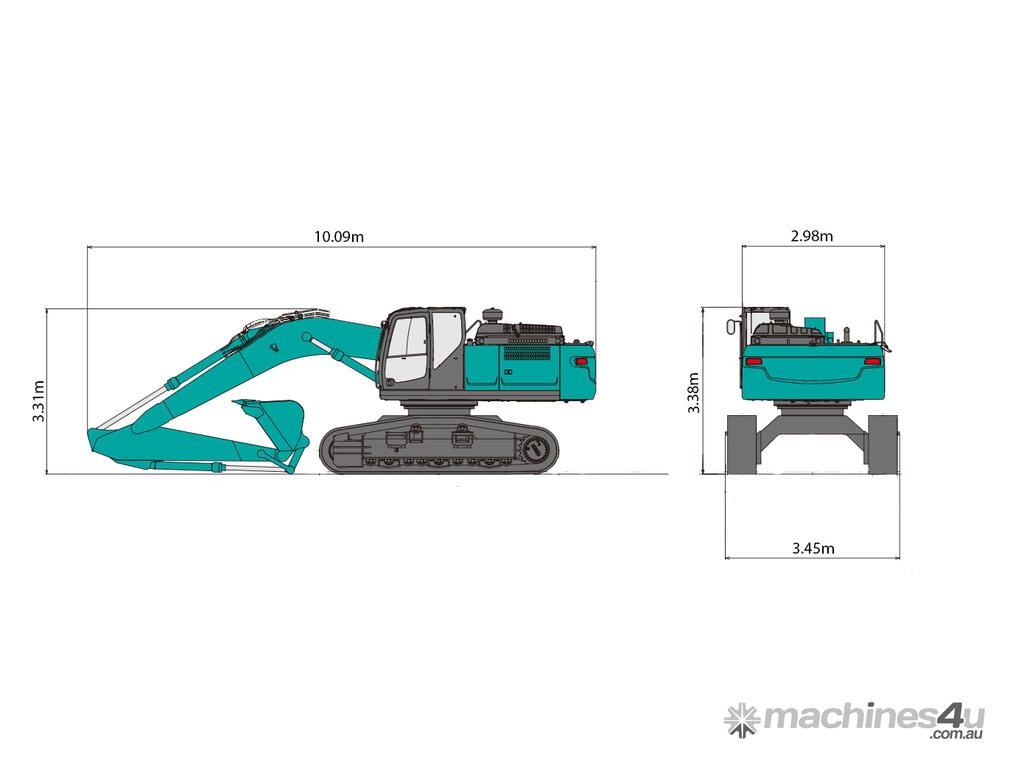

Transport Dimensions
Length, Width & Height

10.21 x 3.19 x 3.09 m

Operating Weight

25,700 kg

Refilling Capacities
Fuel Tank

403 L

Hydraulic Oil Tank

165 (273) L

Working Range
Max. Digging Depth

7.0 m

Max. Digging Reach

10.31 m

Engine
Rated Power Output

137 kW

Rated Power Output - Stage V

138 kW

Breakout Force
Bucket Digging Force

187 kN

Arm Crowding Force

131 kN

Hydraulic System
Max. Pump Flow

2 x 245 + 21 L/min

Standard Auxiliary

N&B + Tilt Piping
