MEDIUM EXCAVATORS SK300LC-10 HIGH AND WIDE

'Proudly representing Kobelco in North East Victoria and Southern NSW'

This machine is specially equipped for forestry and hilly terrain work
2YR/3,000HR Full Machine Warranty and 4YR/6,000HR Major Component Extended Warranty.

This machine is specially equipped for forestry and hilly terrain work.
It has generous ground clearance of 785mm.

The extra crawler width ensures excellent stability and improved lifting capacity.
The highly efficient hydraulic system minimises fuel consumption while maximising power.

SPECIFICATIONS

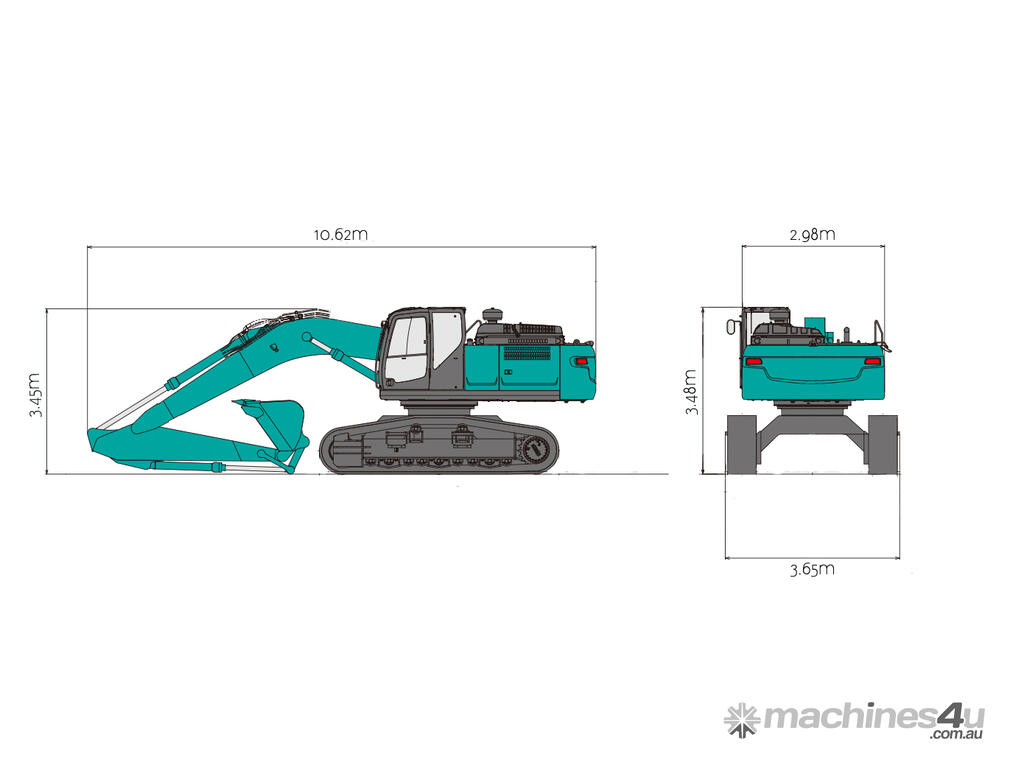

Transport Dimensions
Length, Width & Height

10.62 x 3.65 x 3.48 m

Operating Weight

34,100 kg

Refilling Capacities
Fuel Tank

503 L

Hydraulic Oil Tank

245 (410) L

Working Range
Max. Digging Depth

6.89 m

Max. Digging Reach

10.87 m

Engine
Rated Power Output

185 kW

Rated Torque

998 Nm

Breakout Force
Bucket Digging Force

208 kN

Arm Crowding Force

139 kN

Hydraulic System
Max. Pump Flow

2 x 245+ 21 L/min

Standard Auxiliary

N&B + Tilt Piping
