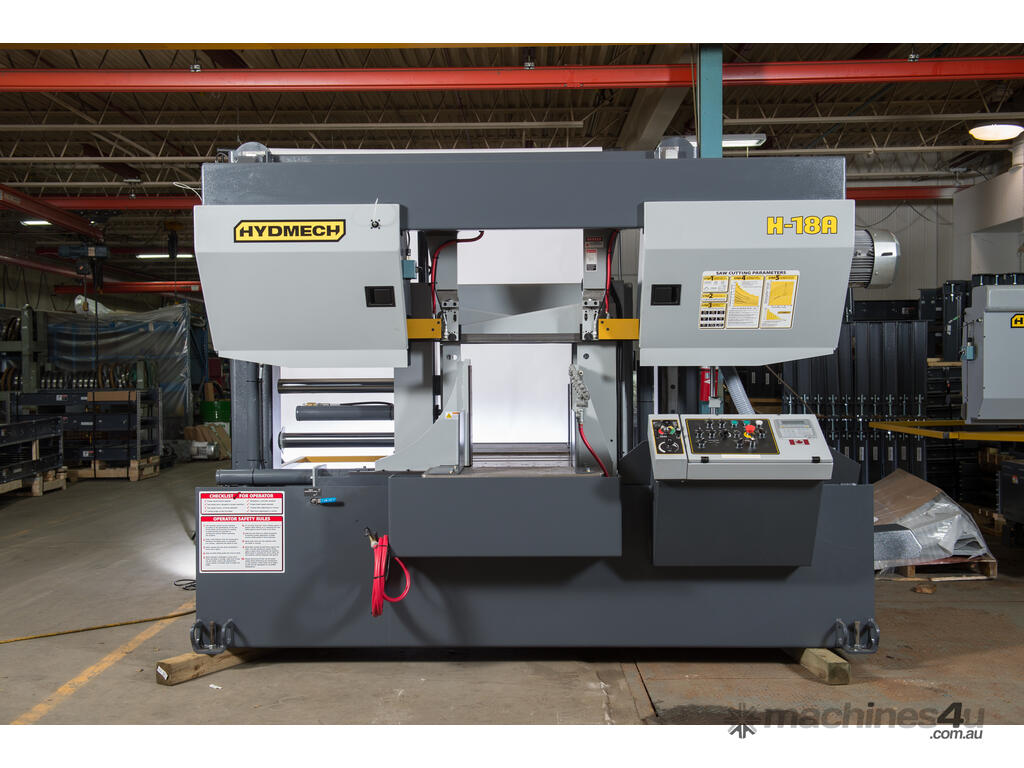

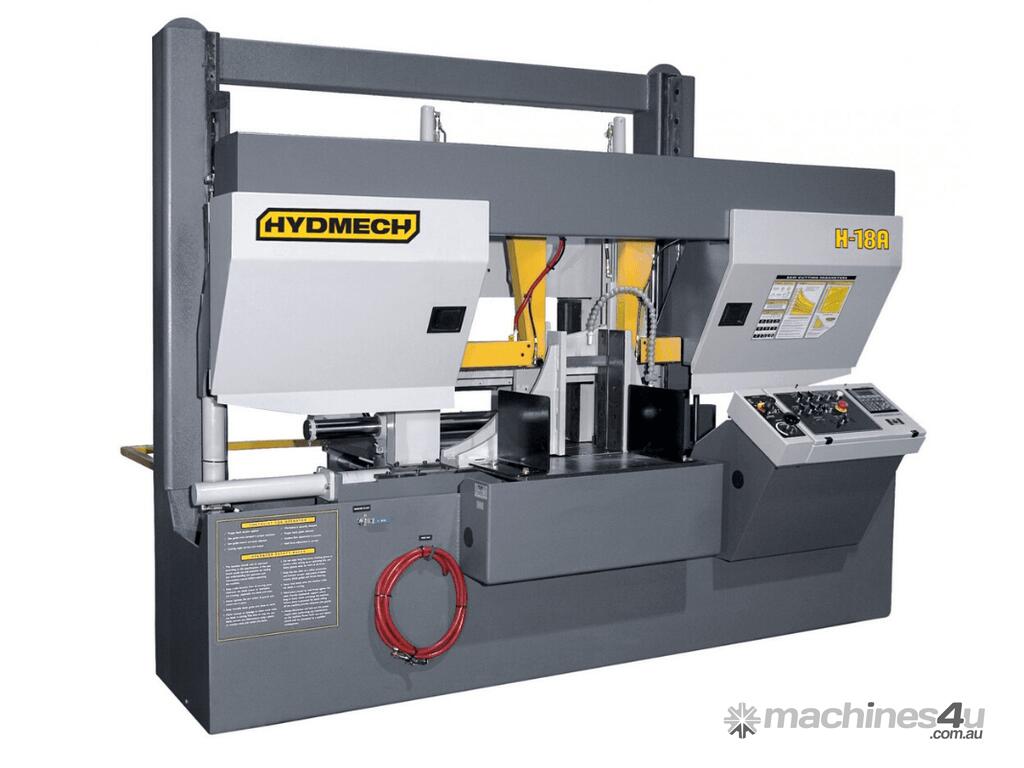

MEDIUM TO HEAVY DUTY - Hydmech H18A Horizontal Band Saw - 457 x 457mm capacity

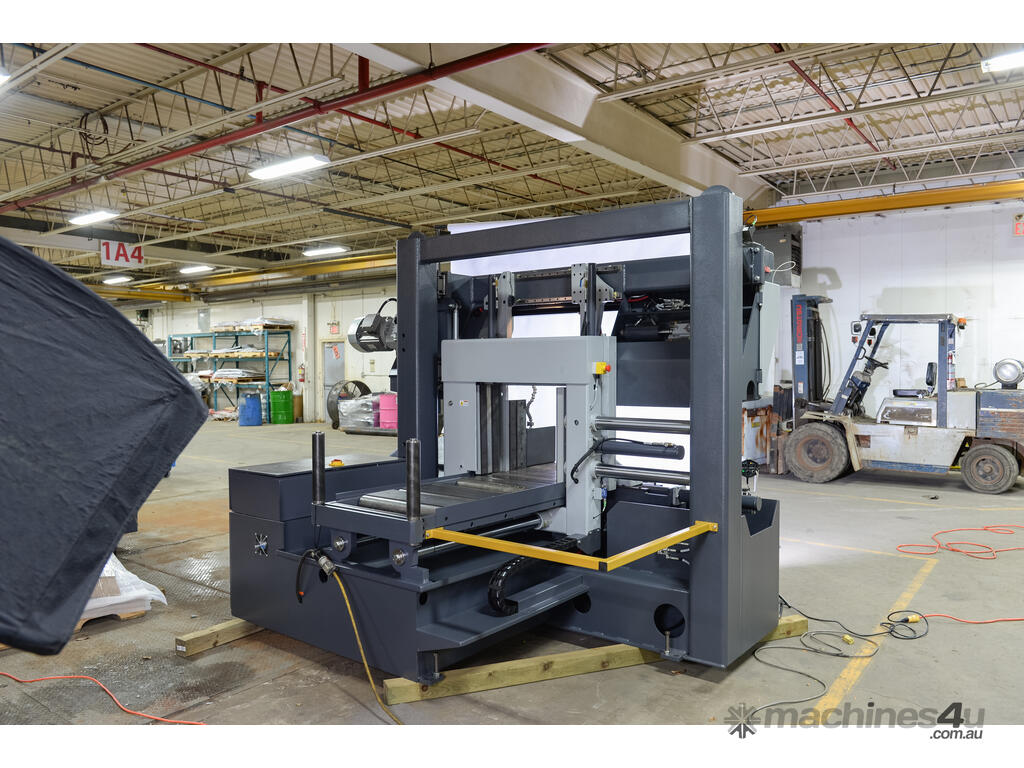

The H-18A is an automatic horizontal band saw providing accurate 90° metal cutting for medium to heavy-duty applications with a capacity of 457 x 457mm.

UNIQUE FEATURES

• One-piece design – no alignment necessary

• Spilt front vice to clamp both sides of the cut.

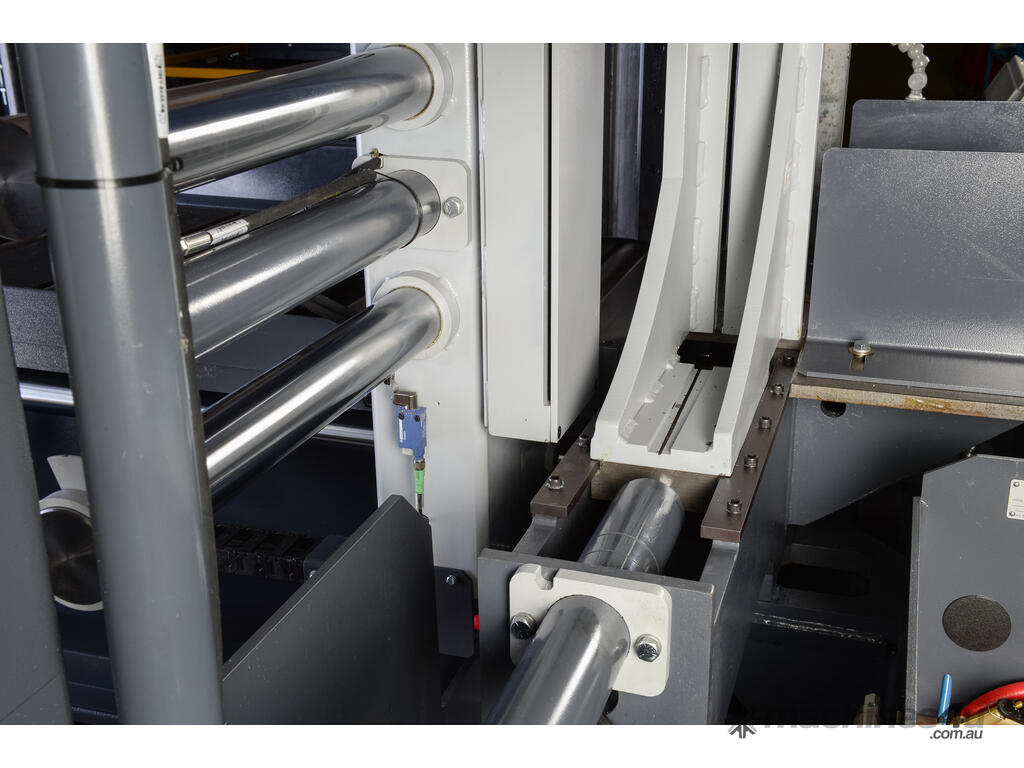

• Cast iron shuttle features automatic multi-indexing up to 863 mm in a single stroke with automatic kerf compensation.

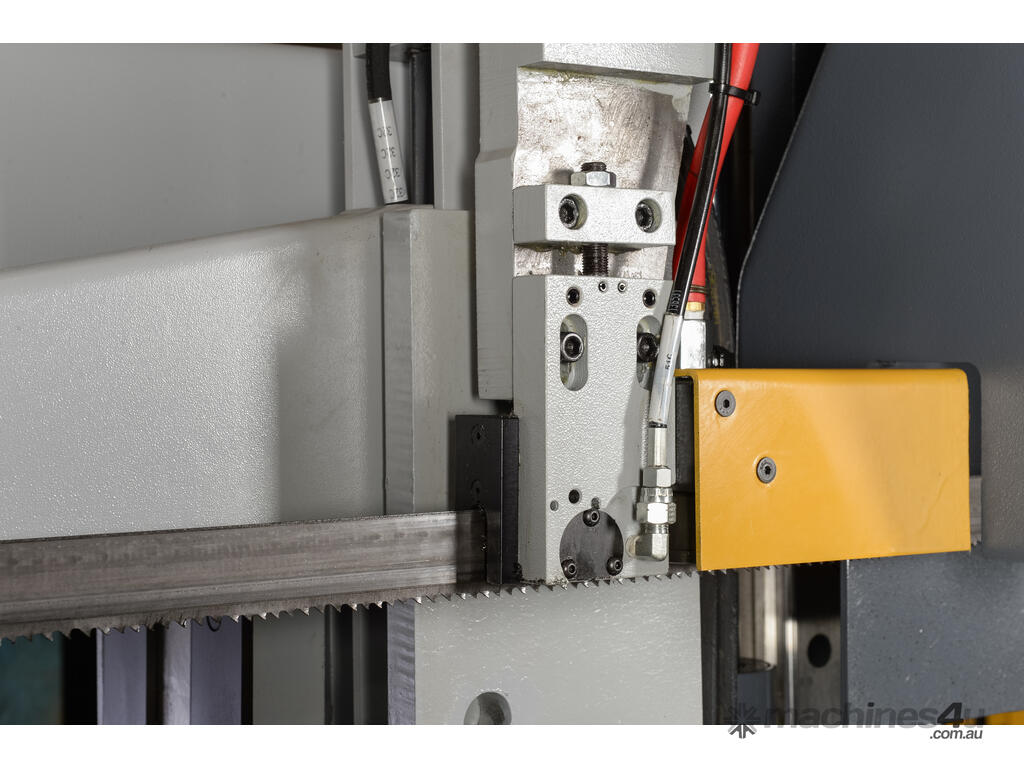

• Steel guide arms. The idler side guide arm is mechanically connected to the front vice moveable jaw for proper guide arm spacing at all times.

• 7.5 kW VFD. True direct blade drive – no belts/pulleys

• Full capacity, full stroking hydraulic vices

• Hydraulic positive down feed

• High-resolution feed rate valve allows for constant feed rate when cutting special alloys

• Blade chamber separates material from the cut part

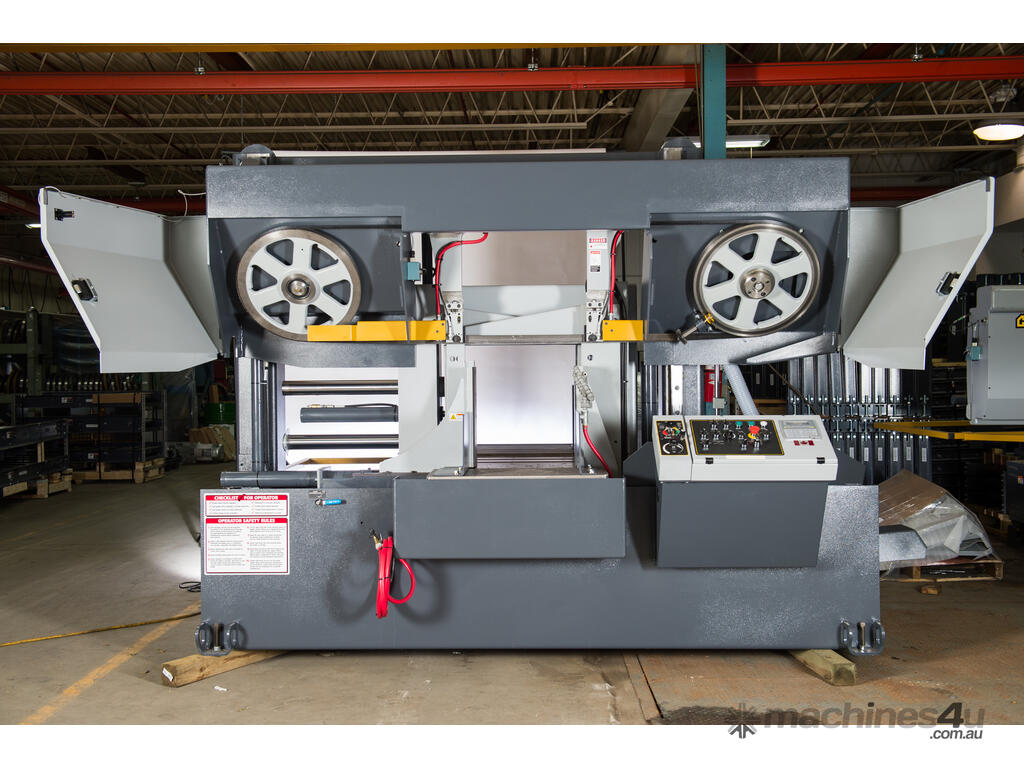

• Cast iron band wheels to reduce vibrations.

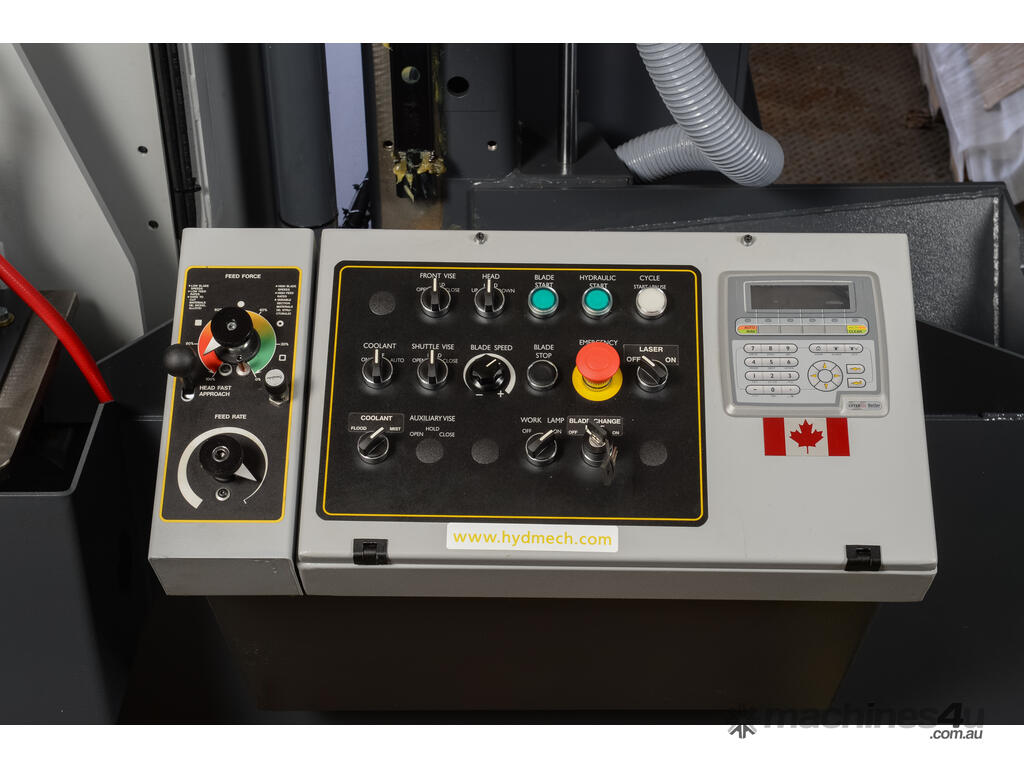

• 178 mm Mitsubishi FX5U PLC color touchscreen controller. No flipping from screen to screen, the control is interactive with messages for the operator, which reduces the learning curve. Programmable head-up position, Built-in machine diagnostics on the display screen, Simple Software updates, 999 jobs, ten jobs in the queue.

• Replaceable blade brush

• Robust steel base

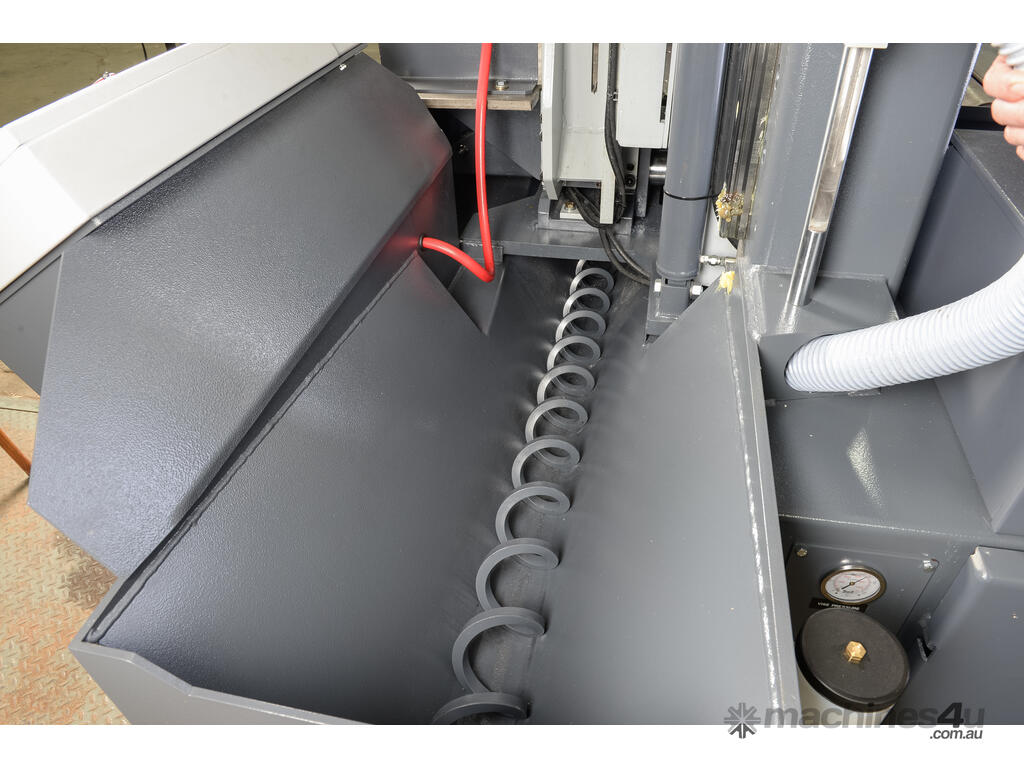

• Automatic chip removal auger

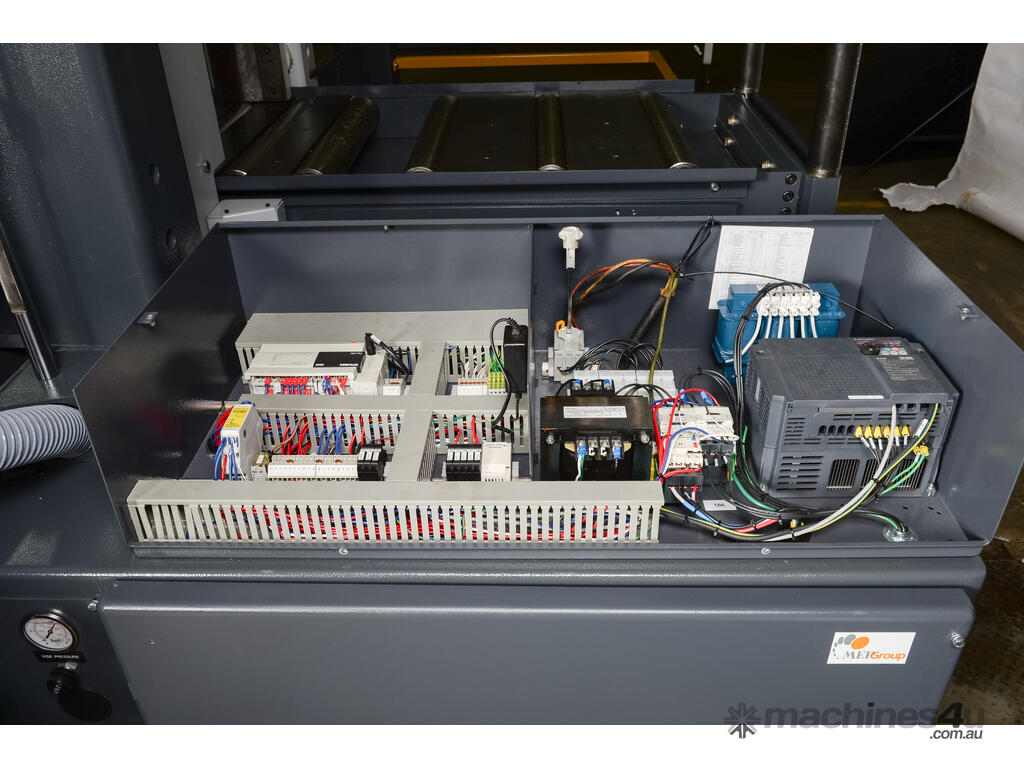

• Easy access electrical panel and hydraulics

• Blade breakage switch

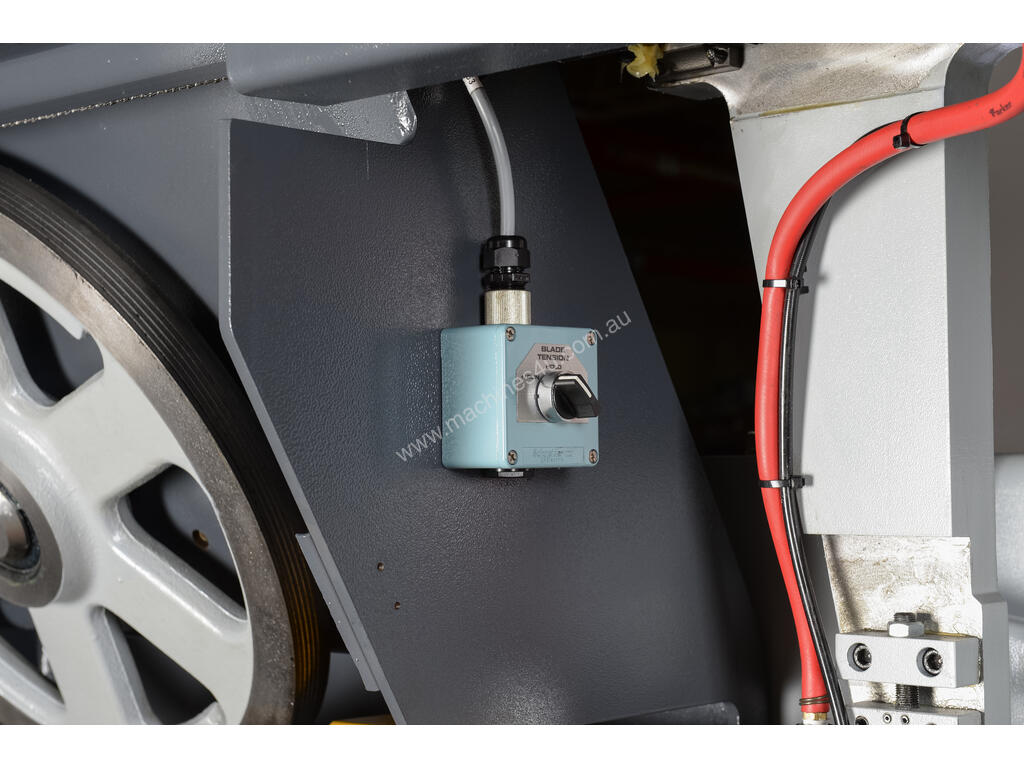

• Hydraulic band tensioning with digital readout

• Hydraulic carbide guide tensioning

• Hardened, replaceable wear plates

• Safety door interlocks

• Flood coolant with a wash-down hose

• Work light

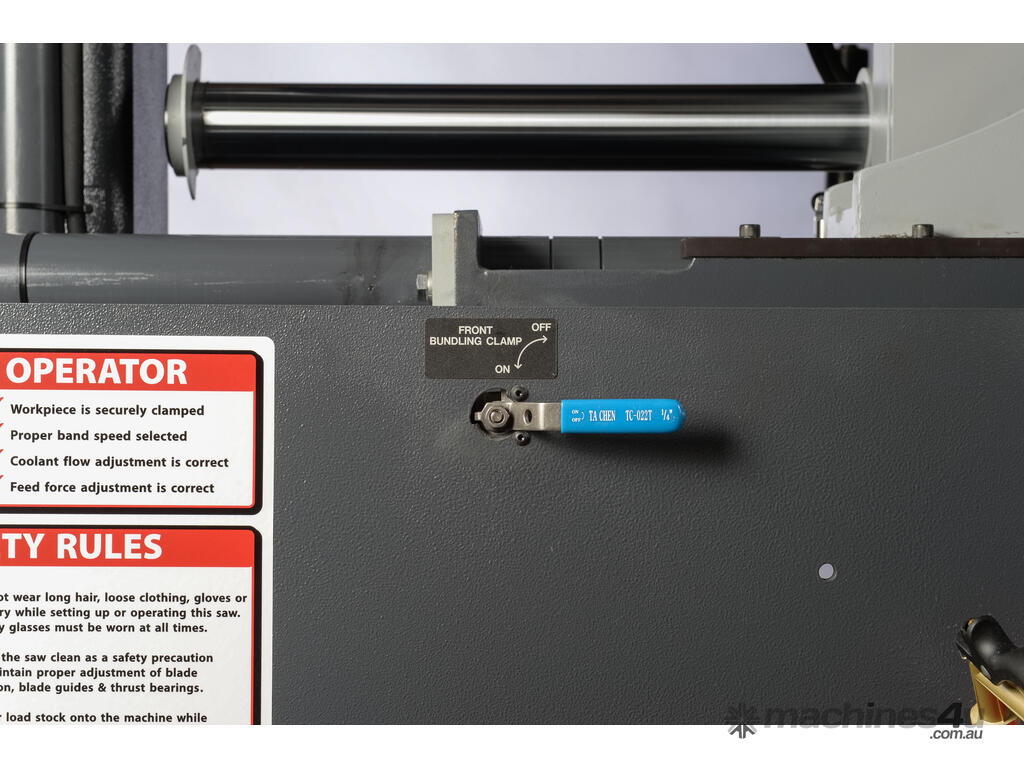

• Variable vice pressure

• Out of stock switch
