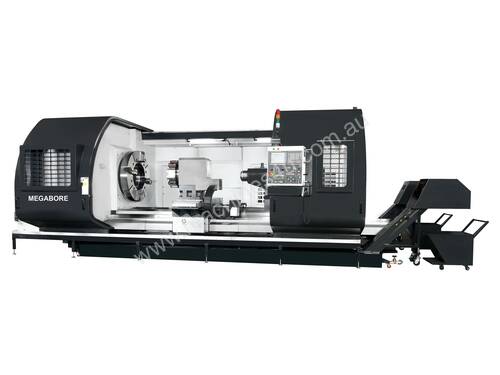

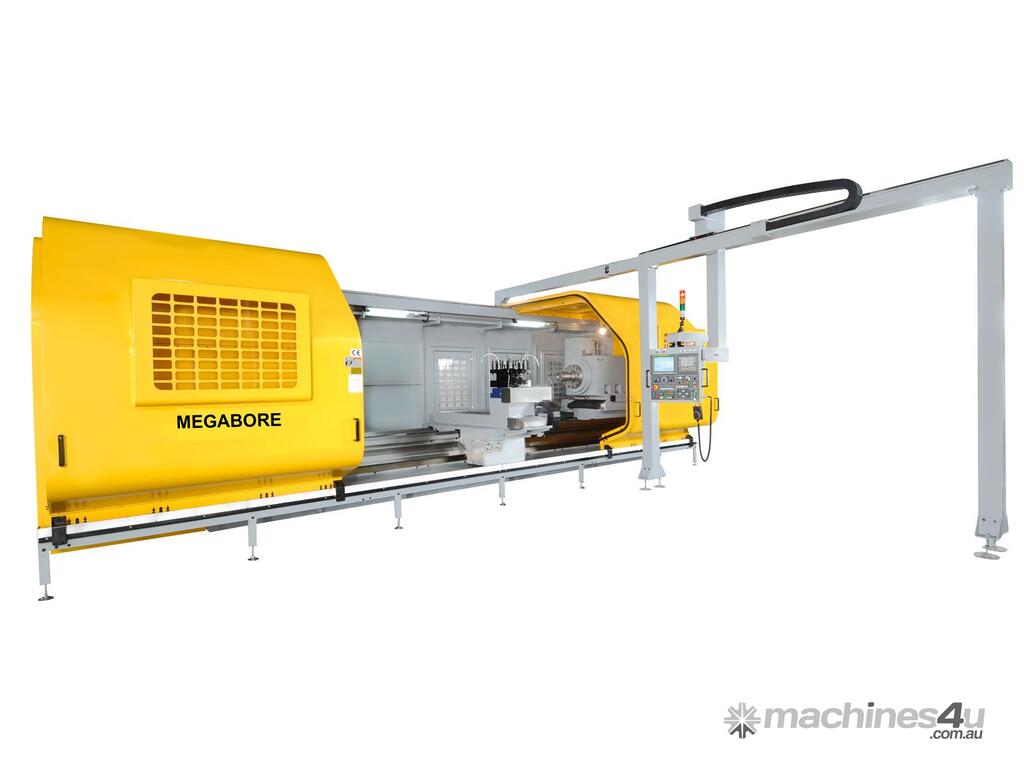

MEGABORE CNC LATHE 45" SWING OVER BED

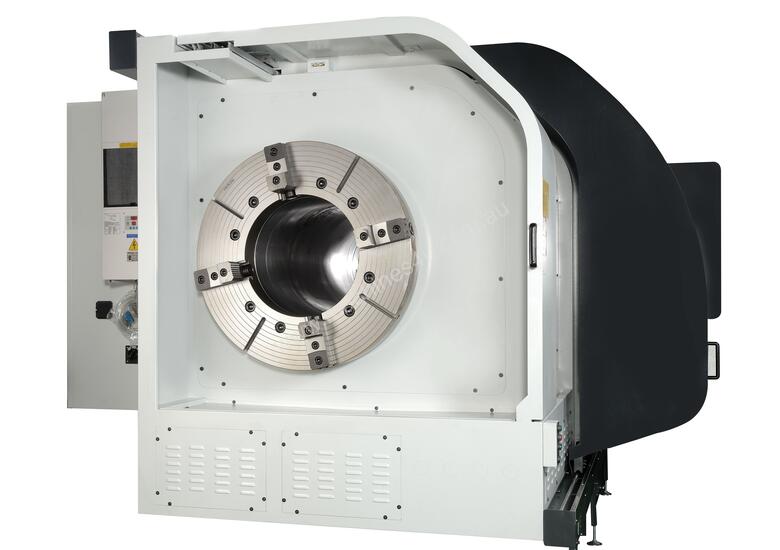

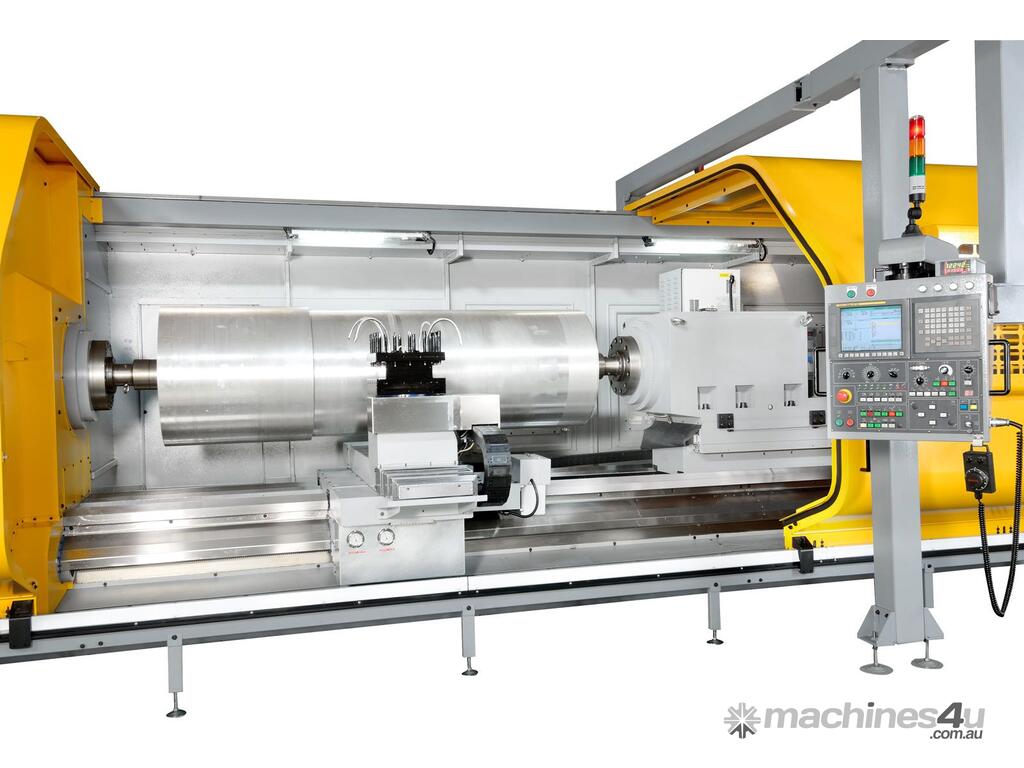

Megabore is the start of our extra heavy duty CNC Lathes with a 2 shear bed. Described here the BN-45 (45"swing) This model is also available with 50"and 60" swing. Features * One piece bed, floor type casting. * Alloy steel spindle with opposed taper roller bearings. * All gears in the headstock are hardened and precisely ground. * Automatic ranges of spindle speed through pneumatic gear shift. * Spindle speed ranges are automatically changed by M code. * Infinitely variable speed are commanded by S code. * Tool change are commanded by T code. * Auto lubrication system is equipped for headstock, carriage, and cross-slide. * Precision tapered roller bearings are equipped on the spindle and the quill. * The quill is heat treated and precisely ground. * Internal taper of quill to suit MT#6 dead center or live centre. * Turcite B anti friction material is applied on cross slide and carriage for reduce friction. * X and Z axis ballscrews are protected by covers to prevent ingress of swarf / chips and coolant. Photos show some variations of the BN-BNC range.

Specifications:
Swing 45"
Centers 0'
Spindle Bore 16"
Power 40 hp

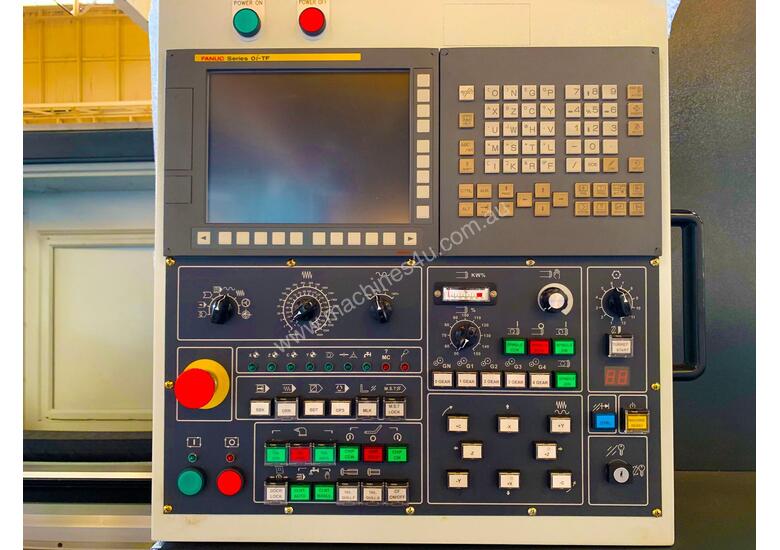

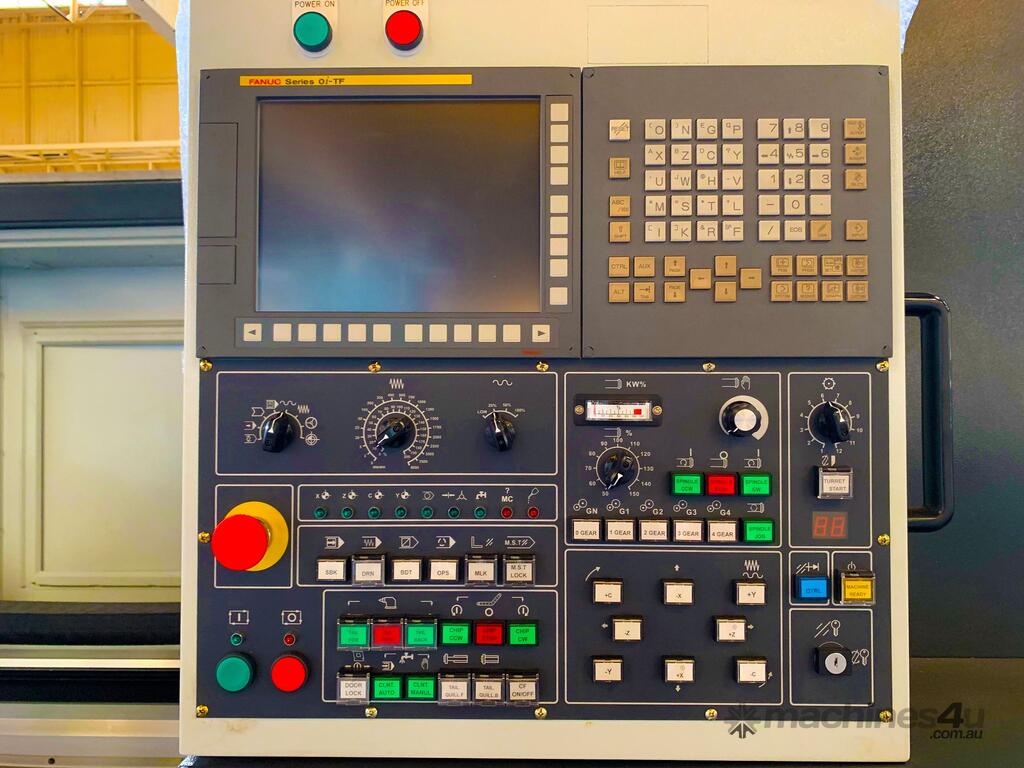

Control CNC (Fanuc 0i-TF, 31i-B or User Spec.)

BED
2 Shear Width..................................................mm (in.) 715 (28.14)

CARRIAGE
Width of cross slide...........................................mm (in.) 400 (15.74)

TURRET

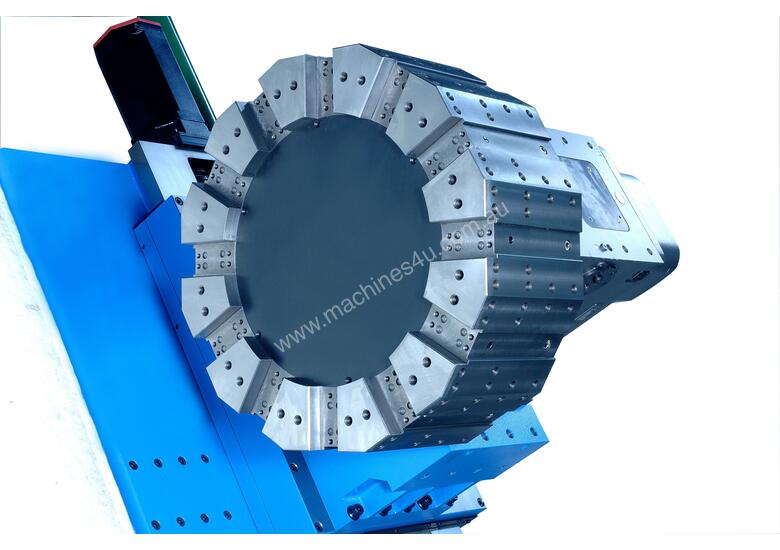

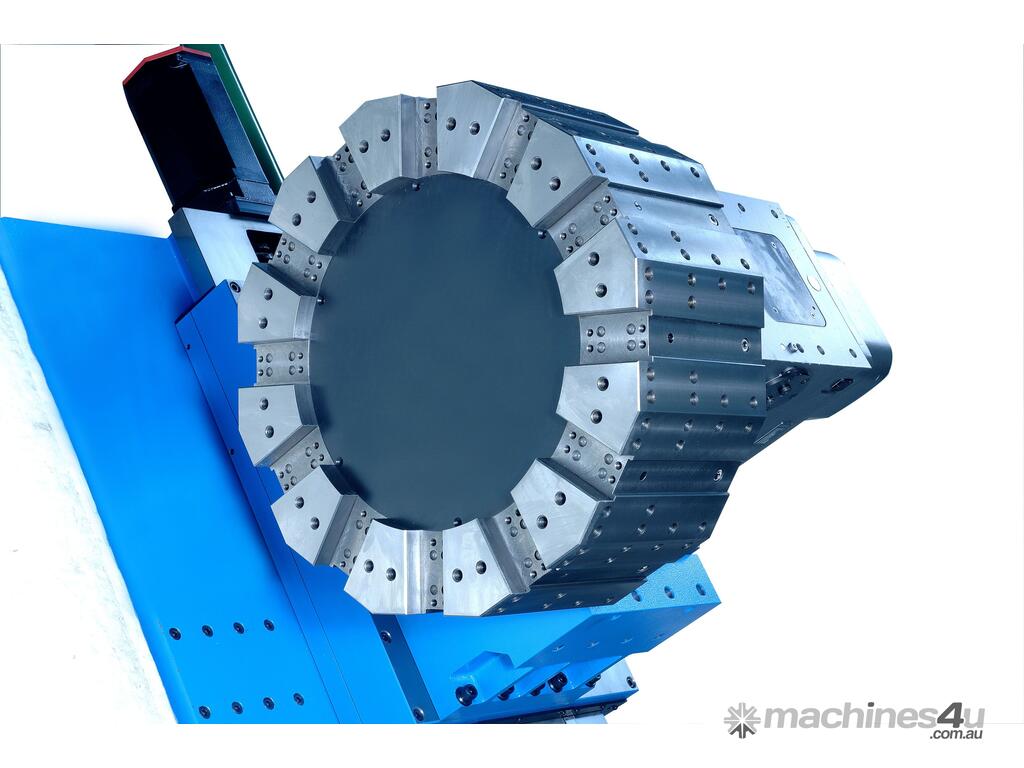

Standard tool post........................... Auto 4-way / Polygon Disc / VDI disc
No. of tool stations..........................................H4;H6 / V12 / V8;V12
Turning Tool Size...........................................mm (in.) 32 x 32 (1.25)
Boring Tool Size (max.)...........................................mm (in.) 63 (2.5)

TRAVEL
Cross slide (X axis) travel.....................................mm (in.) 950 (37.4)
Longitudinal(Z axis) travel mm (in.) 1500 (59.05), 2000 (78.74), 3000 (118.11),
4000 (157.48), 5000 (196.85), 6000 (236.22), 7000 (275.59), 8000 (314.96),
9000 (354.33), 10000 (393.70), 11000 (433.07), 12000 (472.44)
Cutting feed rate mm(in.)/rev
X axis :................. 0.001~250(0.00004~9.84); Z axis: 0.001~400 0.00004~15.75)
Rapid travel.........................M.(Ft.)/min X axis: 6(19.68); Z axis: 6(19.68)
Ballscrew diameter......................mm (in.) X axis: 50(1.96); Z axis: 80(3.14)

TAILSTOCK
Quill type Built-in type, Rotating tailstock quill
Quill diameter...................................................mm (in.) 235(9.25)
Quill travel.....................................................mm (in.) 200(7.87)
Internal taper of quill.......................................................MT#6

MOTOR
Headstock oil refrigerator.....................................18,000BTU(4,500Kcal)
Main spindle.........................KW(HP) 30/37(40/50)-STD. ; 37.5/45(50/60)-OPT.
Axis servo................................KW(HP) X axis: 7(9.387); Z axis: 7(9.387)
Hydraulic tank........................................................KW(HP) 3.7(5)
Coolant pump.......................................................KW(HP) 1.05(1.4)

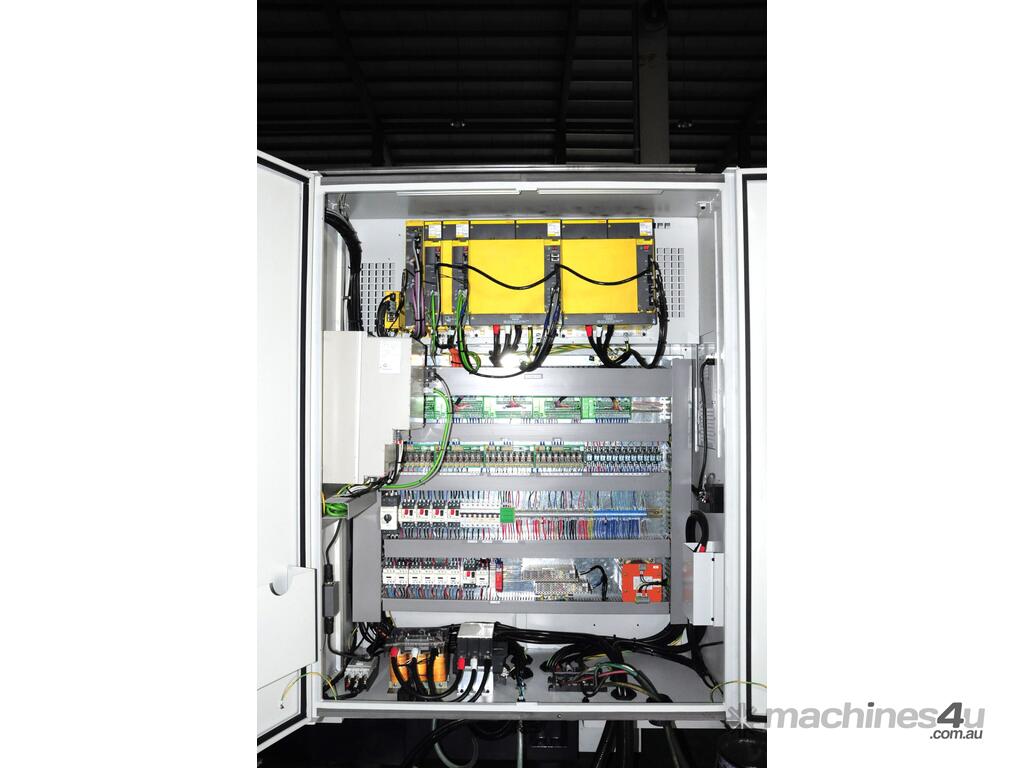

Controller
FANUC 0i-TF series-STD ; FANUC 31i-B series / Other required-OPT.
Note:
(1) X and Z axes actual cutting diameter will change when equipped with different
turrets.
(2) Specifications are subject to change without notice for improvement.
Hollow spindles available 6 inch to 22 inch.

Equipped With

45 inch Swing Over Bed
Between Centers 1500 mm (5ft) to 12000 mm (40 ft).
Hollow Spindles from 6 inch to 30 inch.
BED 2 Shear Width mm (in.) 715 (28.14)

* Hydraulic H4 turret.
* Rotating tailstock quill with 235mm diameter.
* Motorized tailstock body and quill movement.
* FANUC 0i-TF series complete with manual guide and thread repair.
* Front and rear chip conveyor.



Huge range equipment available for this machine
