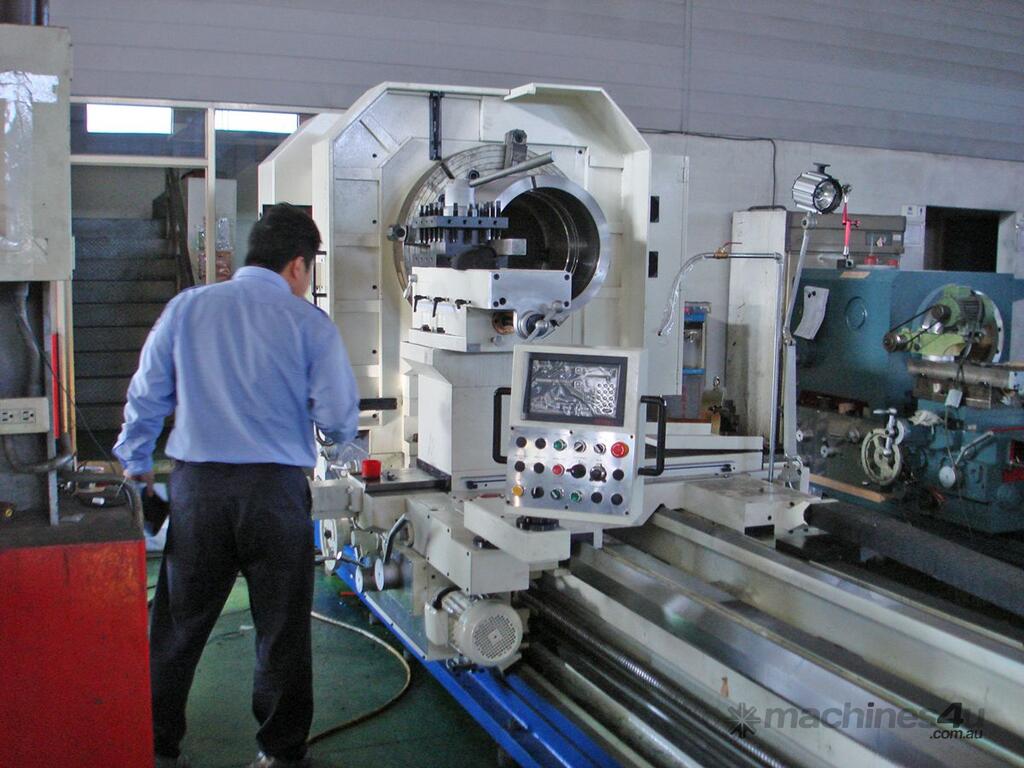

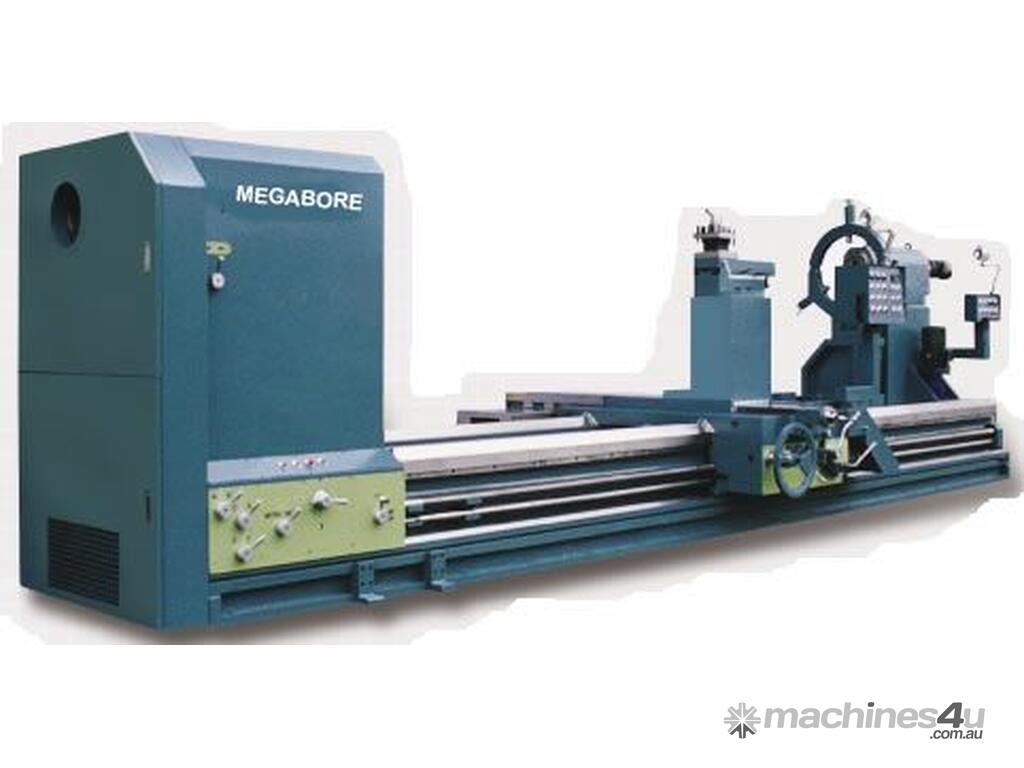

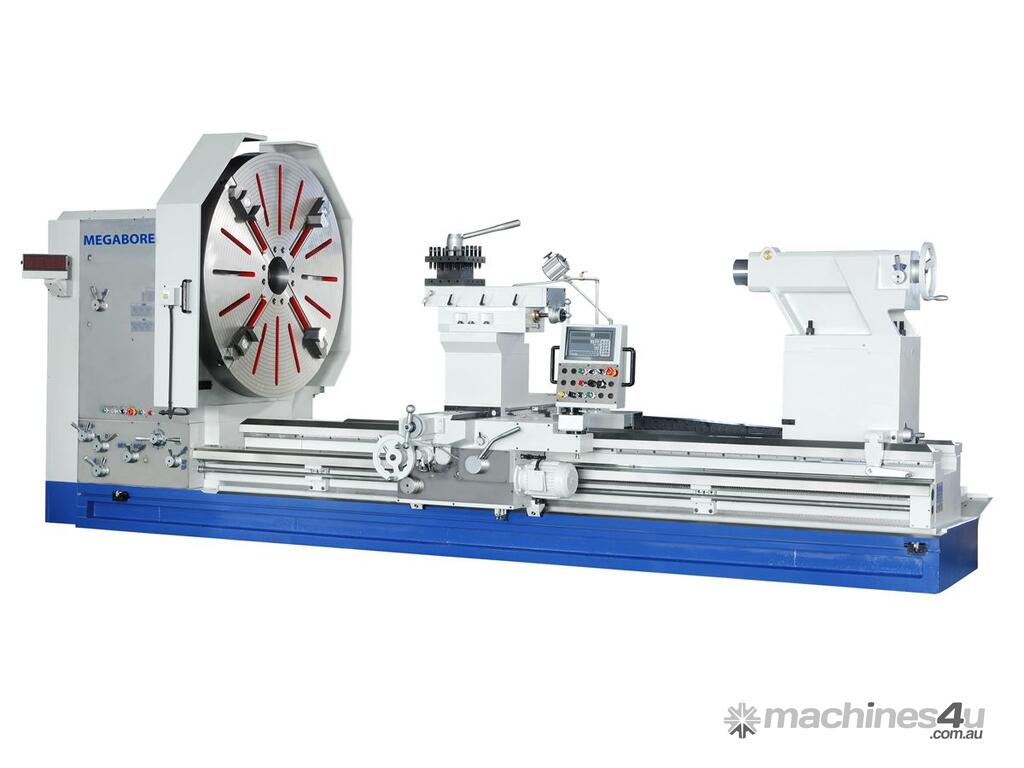

New megabore Engine Lathe for sale - MEGABORE PC-60

Condition:
New - Build-To-Order

Engine lathes offering swings from 60 ins to 80 ins. PC series PC-60 PC-70 PC-80 Swing over bed 1,560mm 1,805mm 2,050mm Over cross slide 1,100mm 1,350mm 1,600mm Swing over gap 2,120mm 2,370mm 2,620mm Distance between centers 1,500mm~12,000mm Hollow spindles 7 inch tp 32 inch FEATURES * One piece bed, floor type casting. * 2 shear bed way with extra way supporting the apron. * All ways are hardened and ground. * Alloy steel spindle with opposed taper roller bearings. * Hardened and ground gears, shafts. * Electromagnetic spindle brake. * 18-speed geared headstock. * 6-way rapid traverse and power feed to top slide. * Totally enclosed universal inch / metric gear box. * Carriage position device. * Dual voltage spindle motor, 30 to 75 HP. * Pressurized one shot lube system for cross slide and carriage.

Specifications:
Swing: 60"
Swing Over Cross Slide: 43"
Centers: 236"
Spindle Bore: 28"
Power: 40 hp

BED 3 Shear with auxiliary slide.
Width (W/O auxiliary guide)...................................mm (in.) 920 (36.22)
Width (W auxiliary guide)....................................mm (in.) 1090 (42.91)

CARRIAGE
Cross slide travel...........................................mm (in.) 1170 (46.06)
Compound tool post travel.....................................mm (in.) 600 (23.62)
4-way tool post width.........................................mm (in.) 310 (12.20)

THREAD FEED RANGE
Longitudinal feed.........................mm/rev (in.rev ) 0.045~2.55 (0.0018~0.1)
Cross feed................................mm/rev (in.rev) 0.023~1.28 (0.0009~0.05)
Longitudinal rapid feed...............................mm/rev (in.rev) 2000 (78.74)
Cross rapid feed.......................................mm/min (in/min)1270 (50.00)
Metric thread mm.................................................(kinds) 1~56 (60)
Inch thread TPI................................................(kinds) 1/2~28 (60)
Module thread MOD.............................................(kinds) 0.25~14 (60)
Diametral pitch thread DP.......................................(kinds) 2~112 (60)
Pitch of leadscrew.................................................mm (TPI) 12 (2)

TAILSTOCK
Quill diameter.................................................mm (in.) 160 (6.29)
Quill travel...................................................mm (in.) 200 (7.87)
Inner taper of quill.........................................................MT#6
Bearing surface on the bed ways...............................mm (in.) 760 (29.92)

MOTOR
Main spindle motor......KW (HP) 22(30)-STD. 29(40) / 37(50) / 44(60) / 55(75)-OPT.
Coolant pump motor.............................................KW (HP) 0.1 (0.125)

Note:
(1) X and Z axes actual cutting diameter will change when equipped with different
turrets.
(2) Specifications are subject to change without notice for improvement


Equipped With:
STANDARD ACCESSORIES
* 1 dead centre, MT #6.
* 2-speed tailstock quill (manual).
* One piece stainless steel leadscrew cover.
* Coolant pump.
* Follow type splash guard.
* Rear side chip and water collect plate.
* Thread chasing dial.
* Water and oil collect plate under apron.
* Work lamp.
* Spindle bore options 6 inch up to 32 inches.
