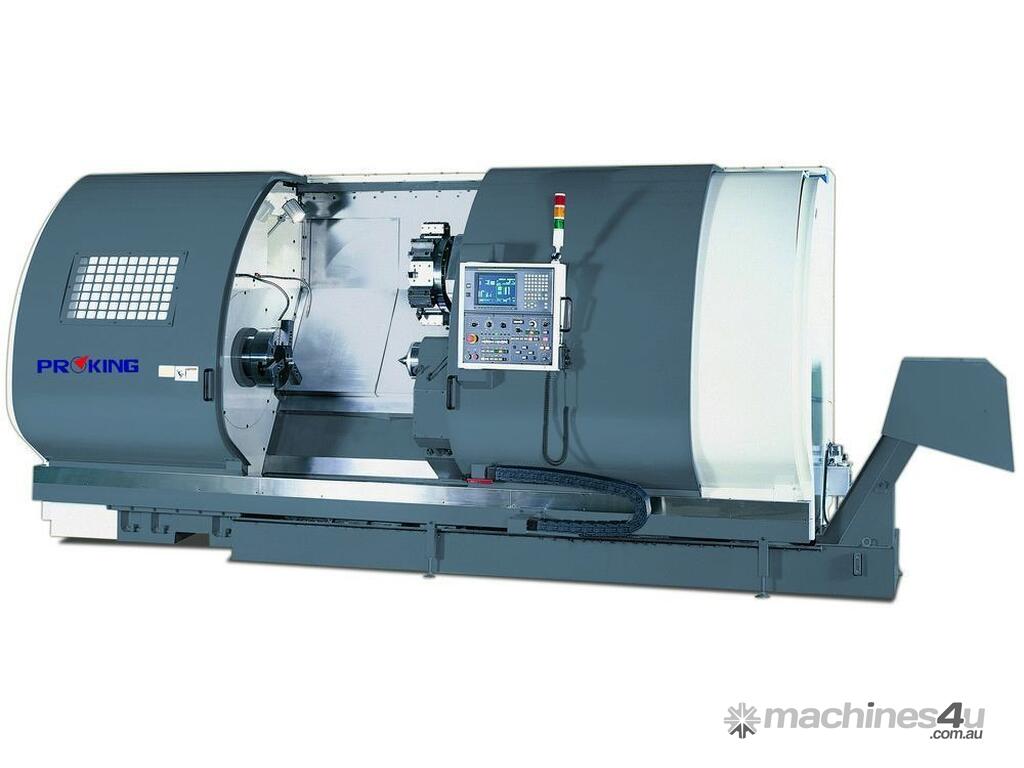

Megabore SS-27 Slant bed Hollow spindle 5"inch. Swing over bed 700mm Swing over cross slide 570mm * One piece bed, 45° slant bed construction ensures maximum stability and convenient chip disposal. * Alloy steel spindle with opposed taper roller bearings. * All gears in the headstock are hardened and precisely ground. * Infinitely variable speed are commanded by S code. * Tool change are commanded by T code. * Auto lubrication system is equipped for headstock, carriage, and cross-slide. * Precision tapered roller bearings are equipped on the spindle and the quill. * The quill is heat treated and precisely ground. * Internal taper of quill to suit MT#6 dead center or live centre. * Turcite B anti friction material is applied on cross slide and carriage for reduce friction. * X and Z axis ballscrews are protected by covers to prevent ingress of swarf / chips and coolant.
Specifications:
Swing 27"
Bar Capacity 5"
Power 22 kW
Max RPM 1,800 RPM
Turning Dia 27"
Control CNC (Fanuc)
Distance between centers 700mm, 1200mm, 1700mm, 2200mm, 2700mm, 3200mm
Spindle nose : A2-11
Spindle bore: Ø130mm (5.19)
Spindle speed: 1800/min
Spindle motor: 22KW (?22/7000i)
Controller: FANUC / FAGOR / SIEMENS
Equipped With
V12 turret.
* Rotating tailstock quill with 115mm diameter.
* Motorized tailstock body and quill movement.
* FANUC 0i-TF series complete with manual guide and thread repair.
* Front chip conveyor.
