MG-840 Mechanical Guillotine 2500 x 4mm Mild Steel Shearing Capacity Manual Backgauge & Includes Rap

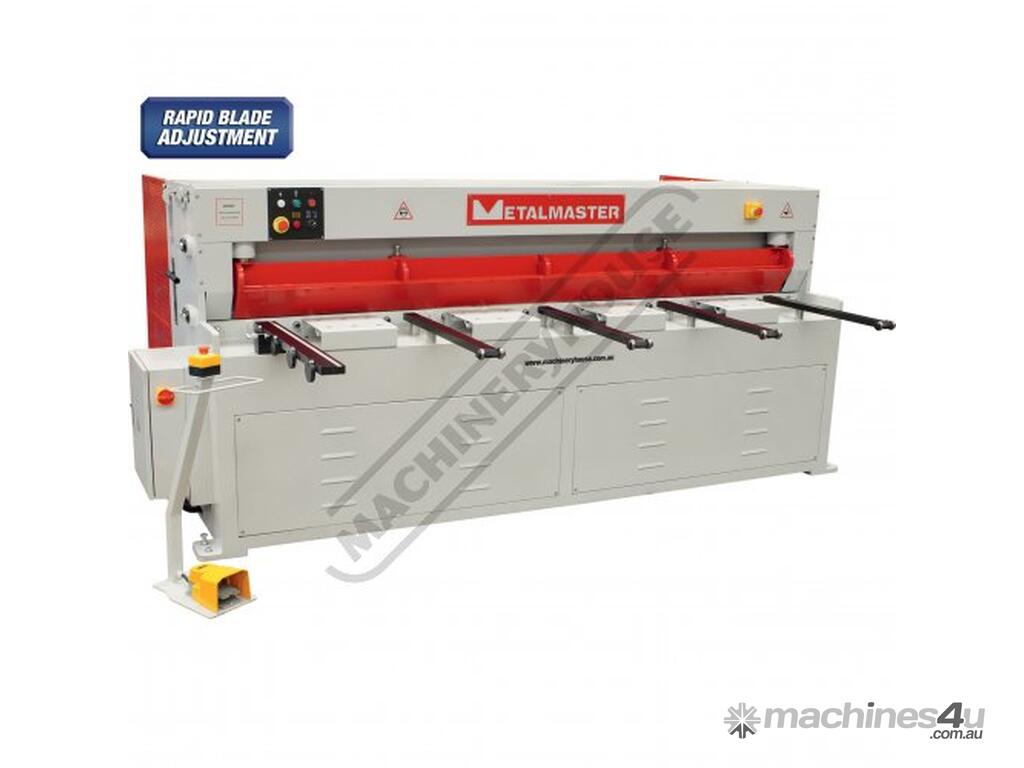

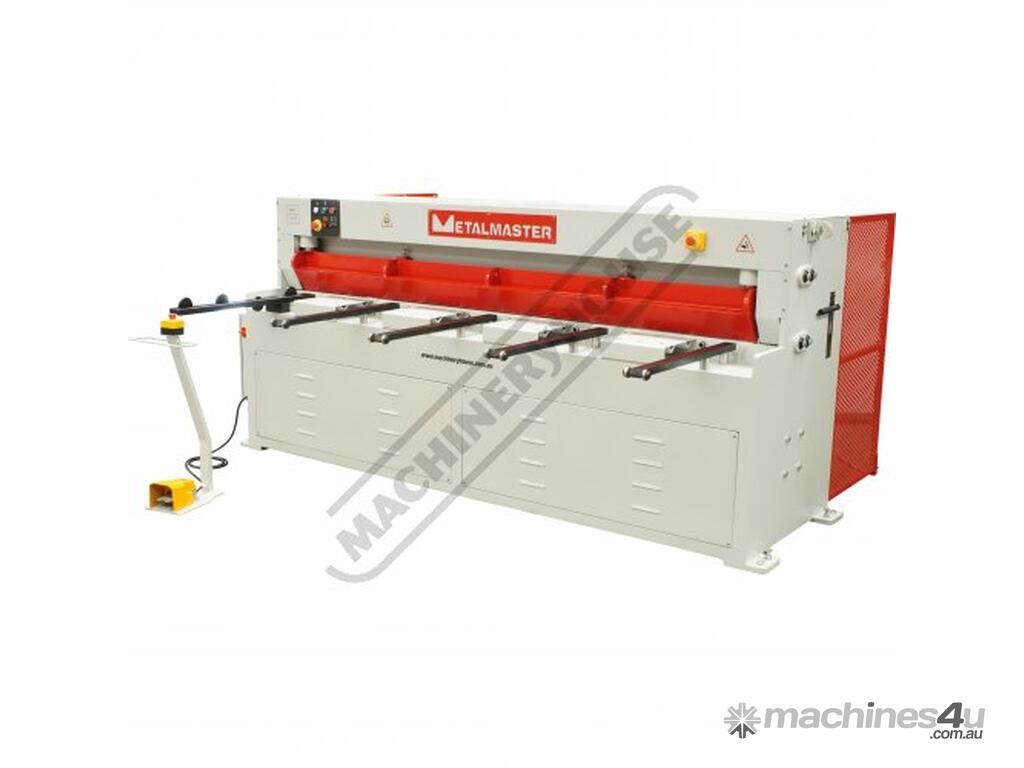

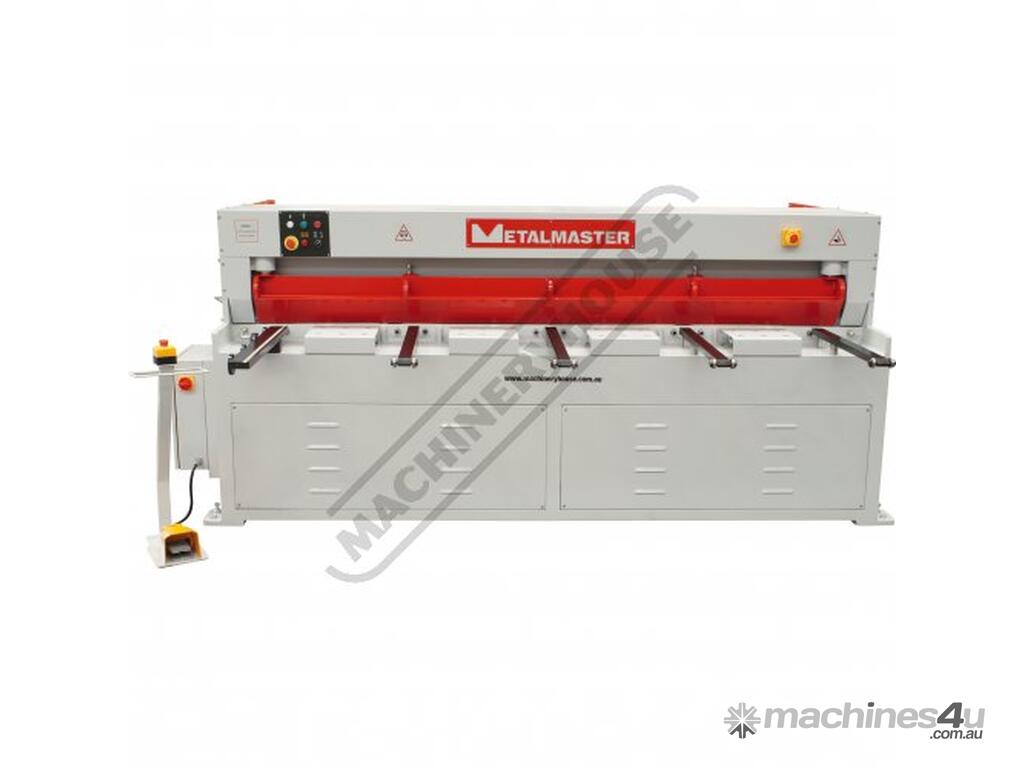

METALMASTER MG-840 Mechanical Guillotine 2500 x 4mm Mild Steel Shearing Capacity Manual Backgauge & Includes Rapid Blade Adjustment
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S926A

Features:
2500mm x 4mm cutting capacity
7.5kW / 10hp 415V brake motor

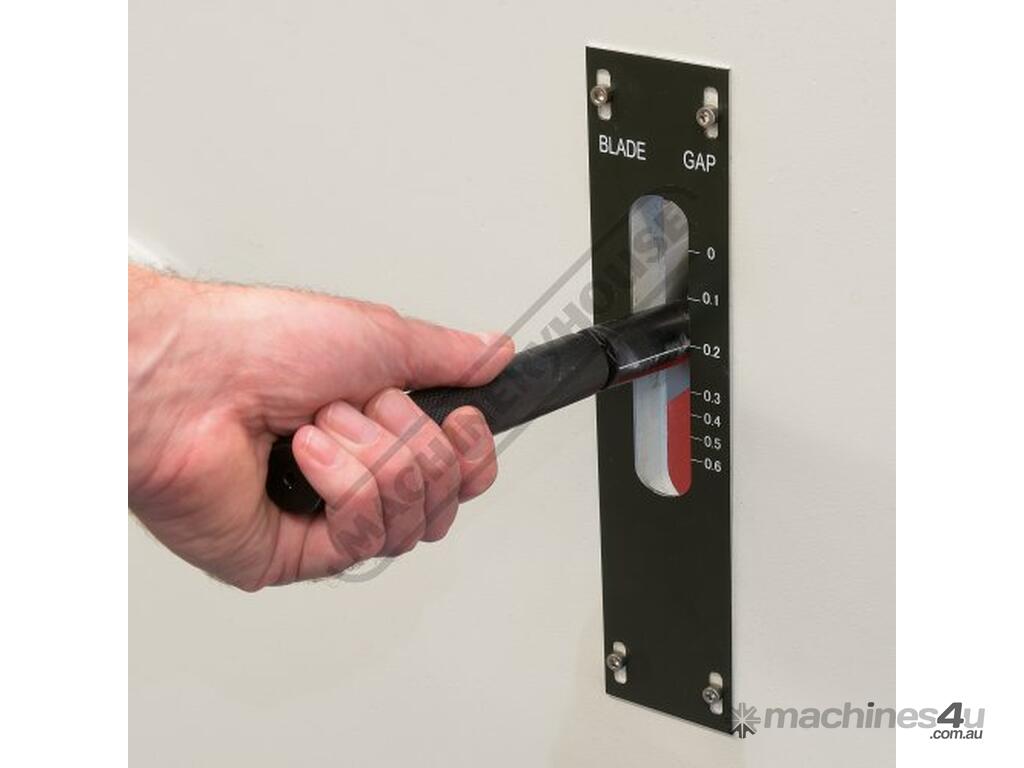

Quick action blade clearance adjustment for shearing material 1 - 4mm
Full length material clamp bar load spring assisted

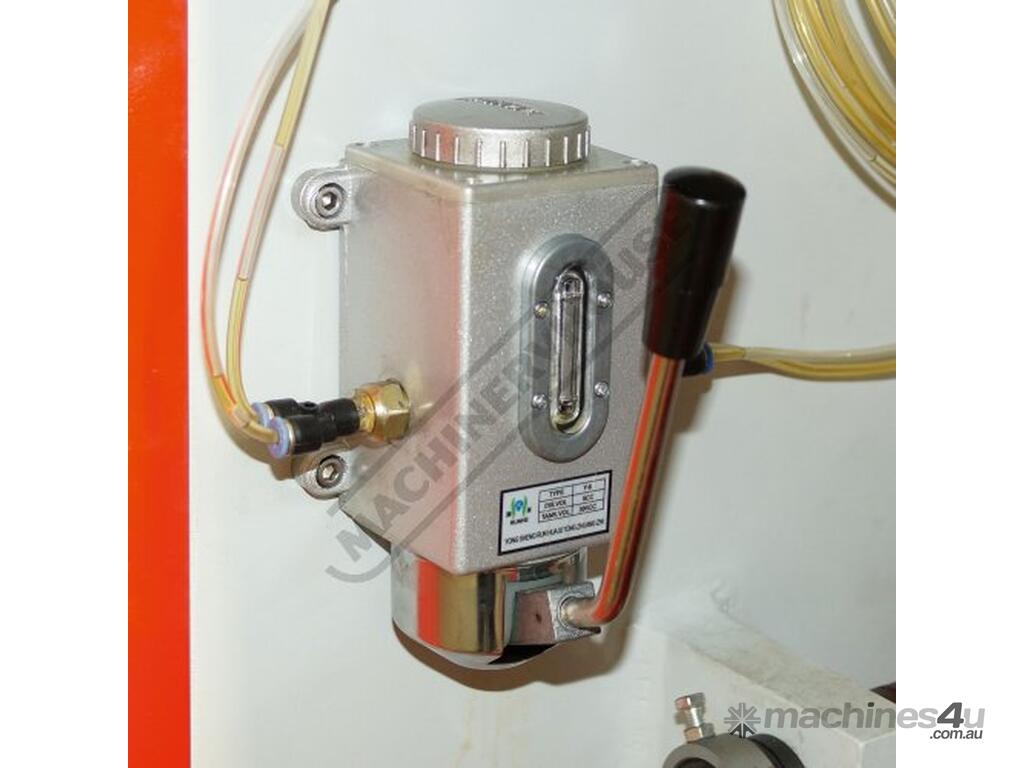

One shot lubrication pump & reservoir for slideway protection

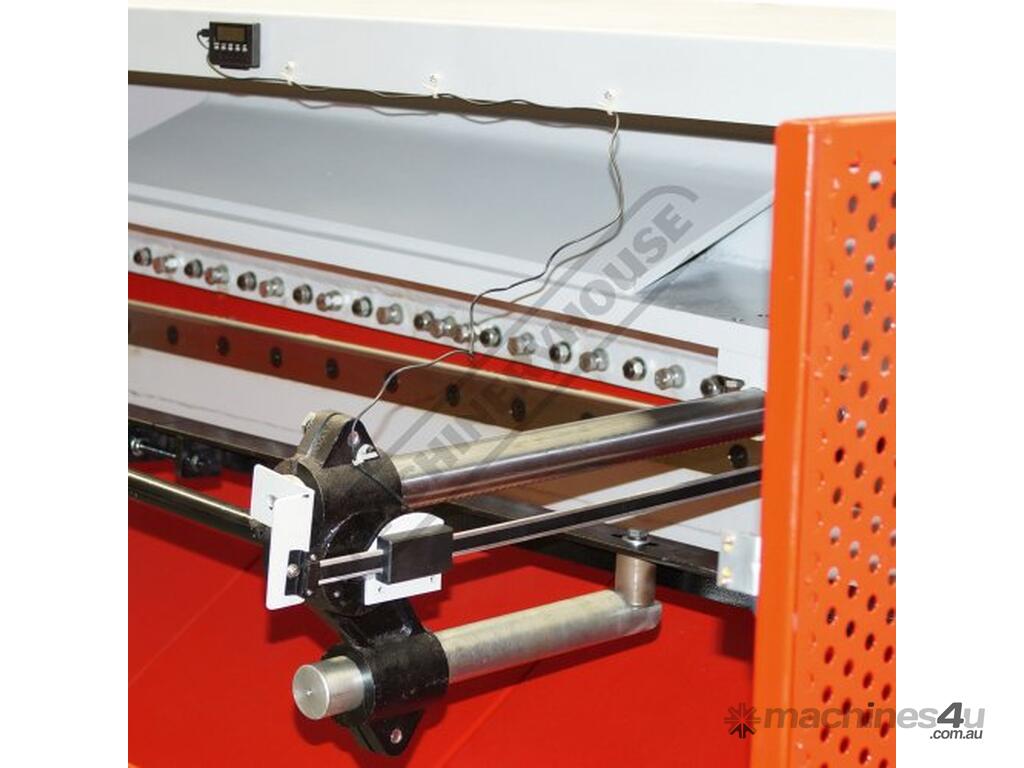

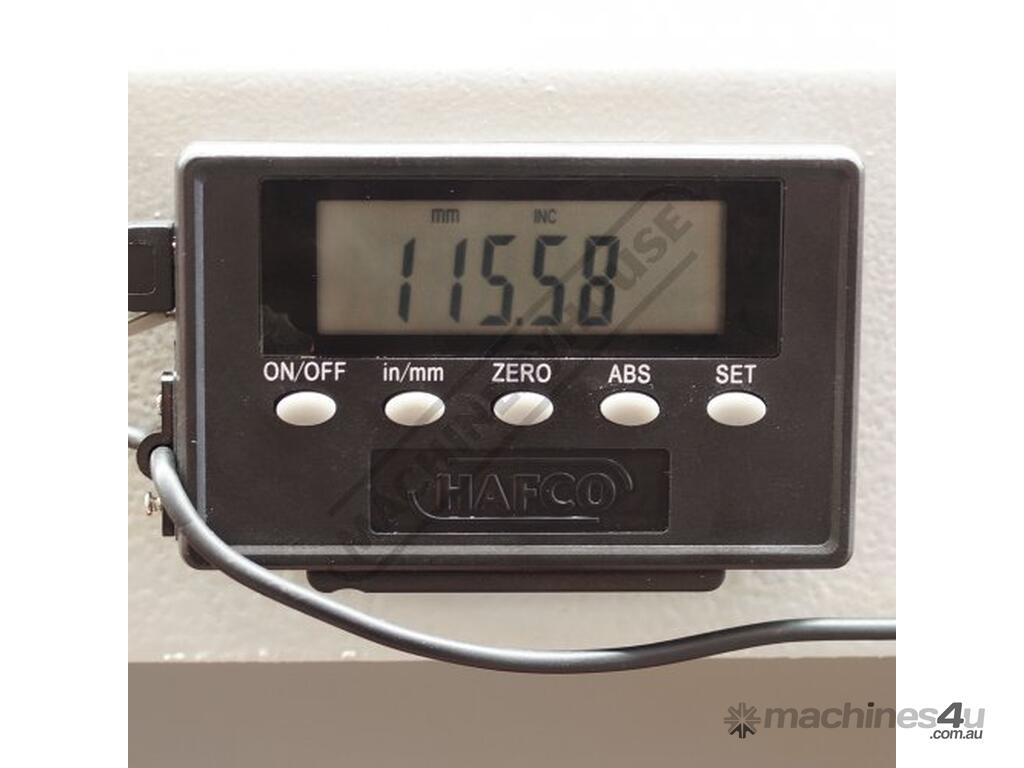

Manual backgauge with digital scale display unit
Equipped with shadow line lighting-alignment device

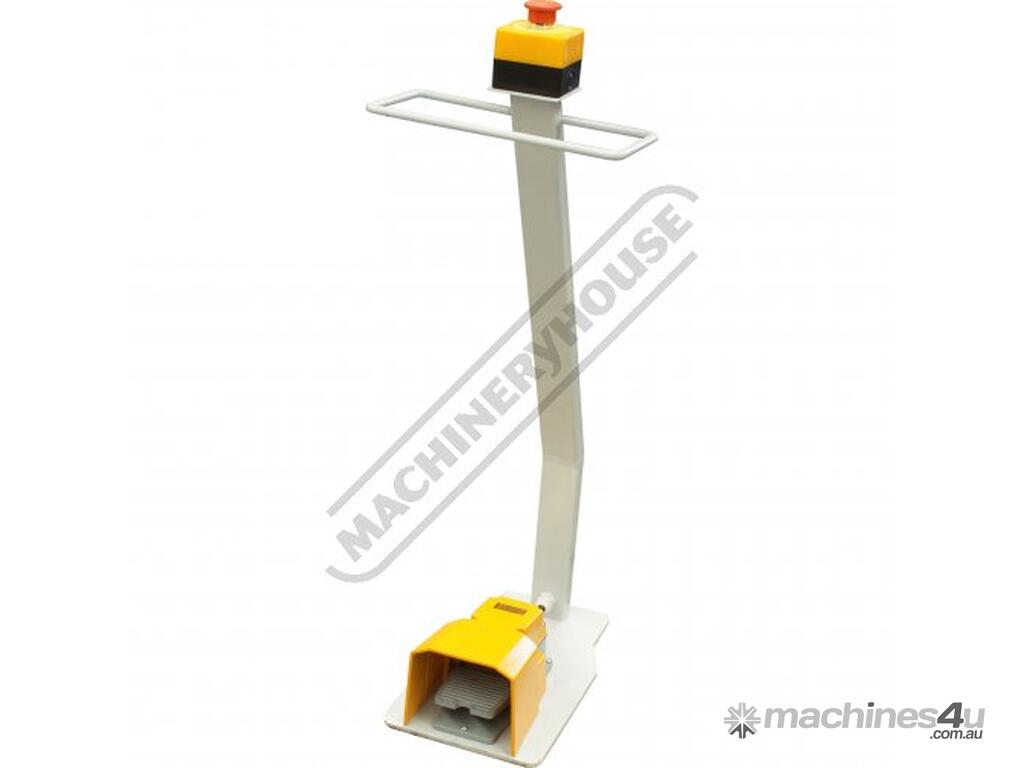

Roving foot pedal control
Clamp beam design allows clear view to shadow line on material
Blades made from 9CrSi material suitable for cutting stainless steel

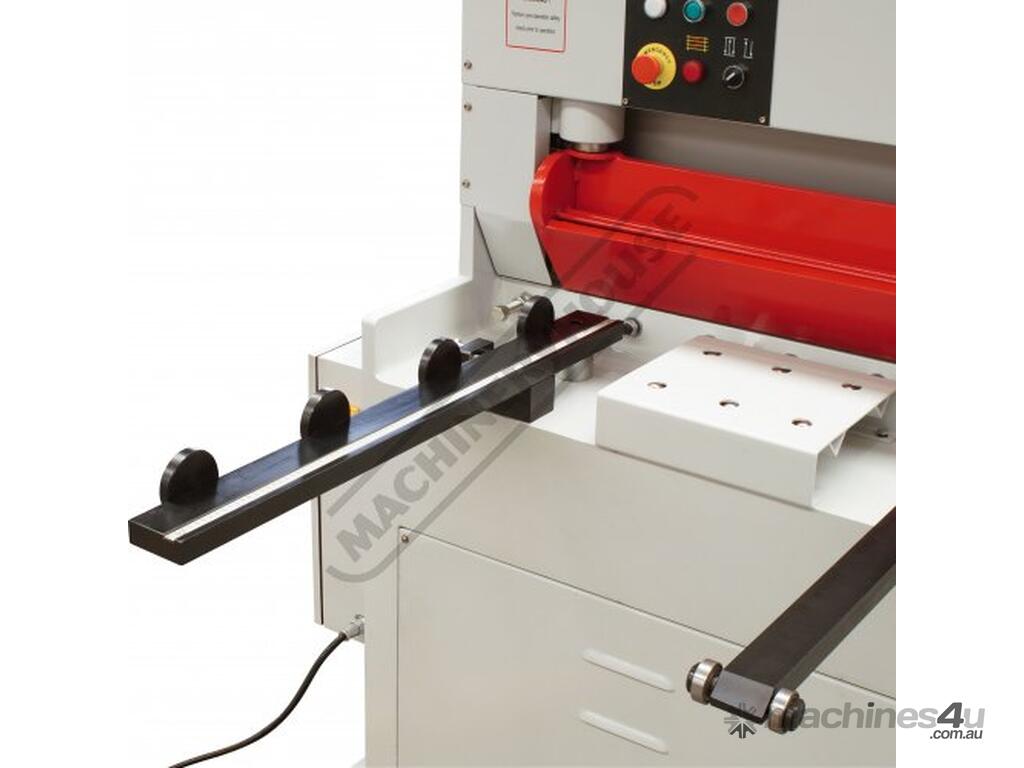

Transfer balls inserted into work table allowing larger sheets to be easily positioned to the cut position and squaring arm

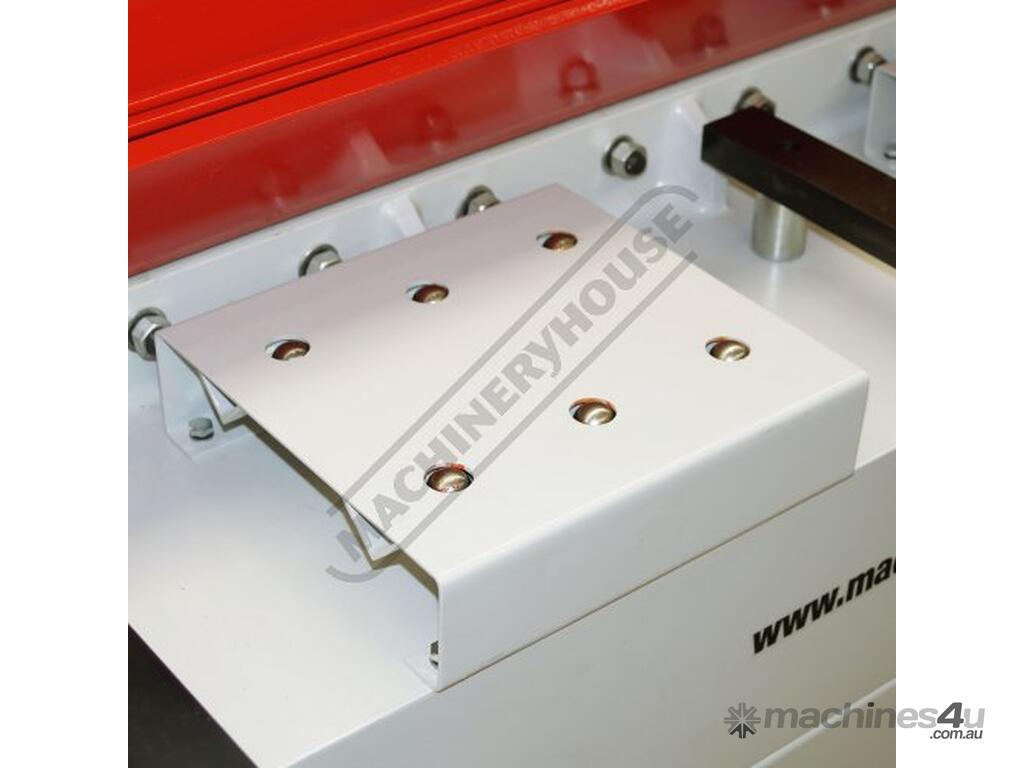

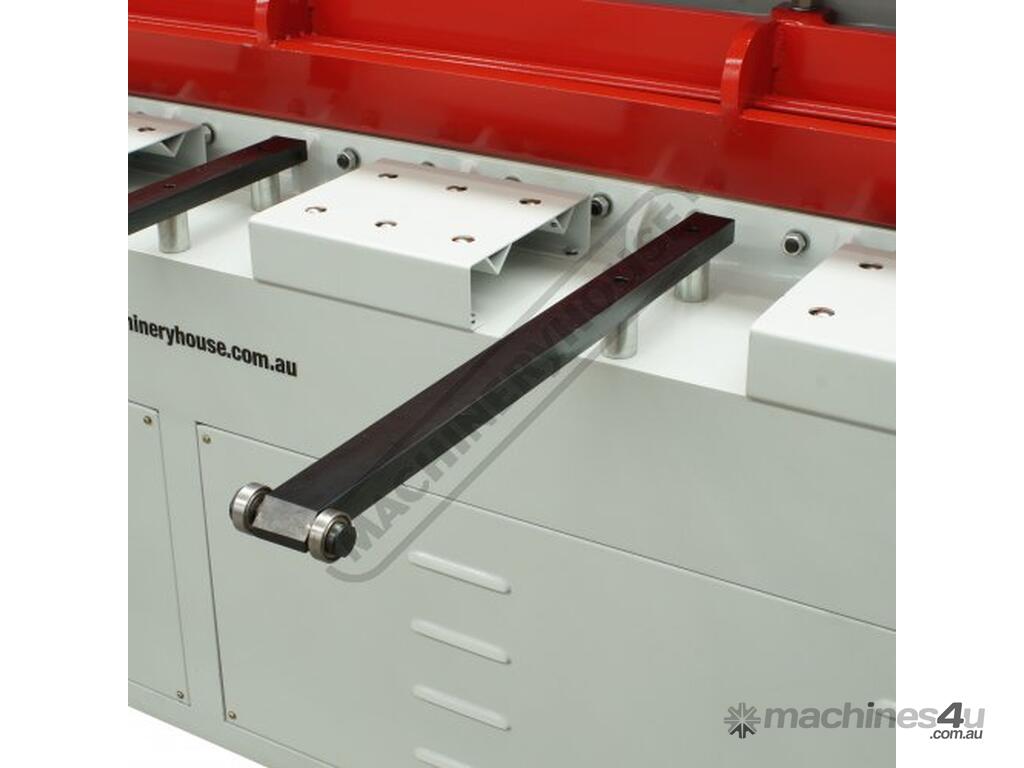

Front sheet supports with ball bearing guides preventing material damage when setting up

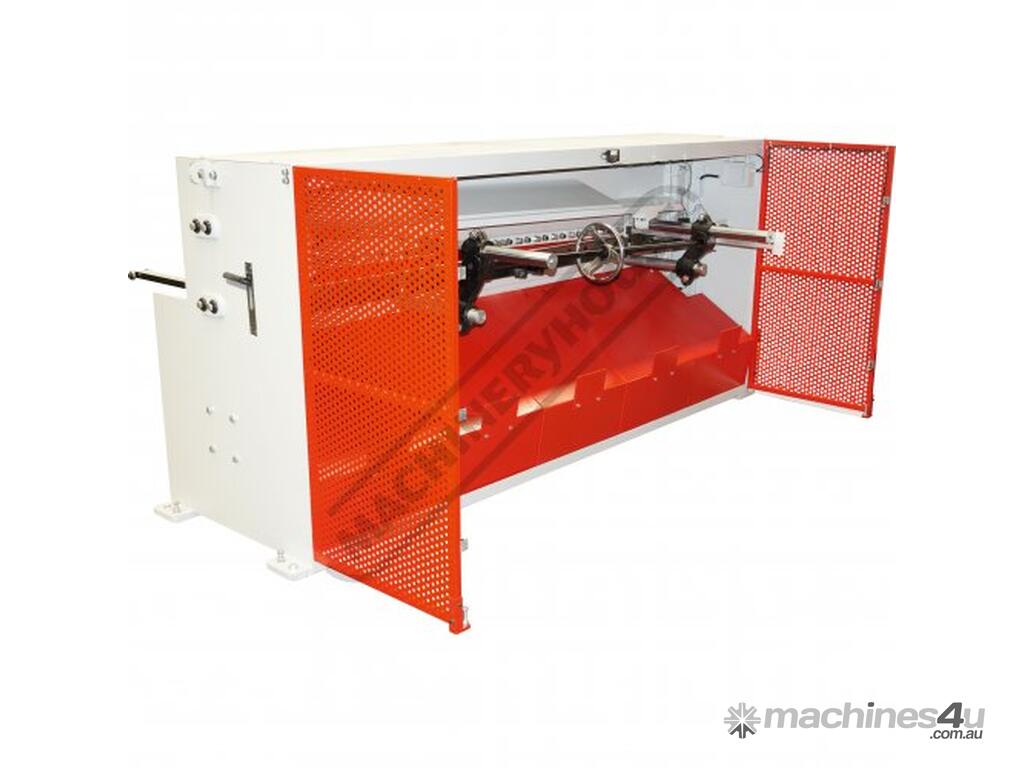

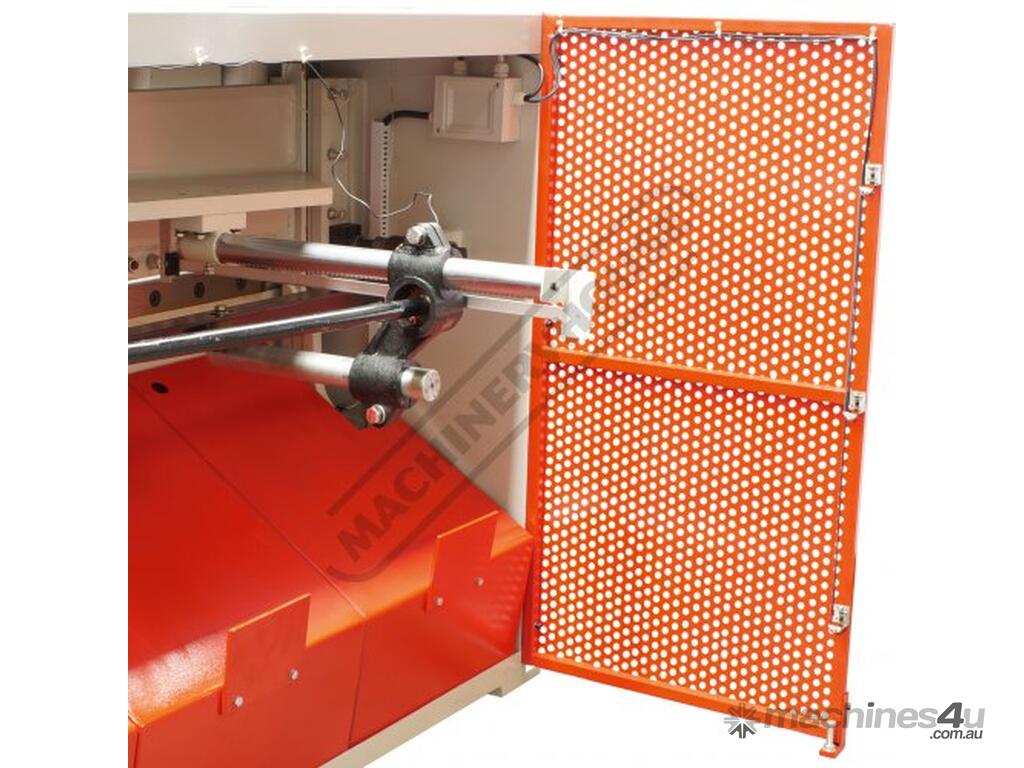

Three safety photo electric light beams on rear guarding
Safety reset rear guarding button mounted to back of electrical box

Mild steel capacity is rated on hot rolled material with 250MPA

Pre-Commissioning:
1. Guillotine is run & tested prior delivery


Specifications:
ORDER CODE: S926A
MODEL: MG-840
Shearing Capacity - Mild Steel (mm): 4
Shearing Capacity - Stainless Steel (mm): 2.5
Shearing Length (mm): 2500
NC Control (Type): ~
Backgauge (Type): Manual
Backgauge Travel (mm): 760
Pneumatic Sheet Supports: ~
Quick Action Blade Clearance Adjustment: Yes
Strokes / min (SPM): 24
Blade Angle (deg): 2º
Blade Angle (deg): ~
Throat Depth (mm): ~
Motor Power (kW / hp): 7.5 / 10
Voltage / Amperage (V / amp): 415
Floor Space Requirements (L x W x H) (mm): 3270 x 2230 x 1365
Nett Weight (kg): 2590


To Purchase Online Please Visit The Machineryhouse & Search For 'S926A'
