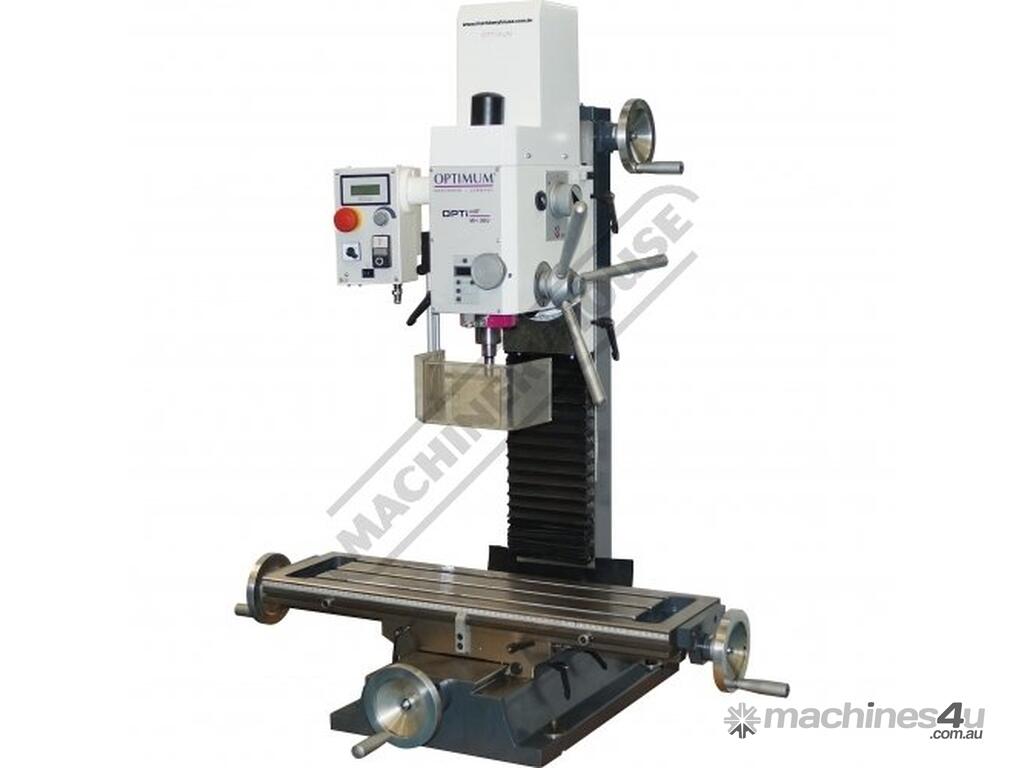

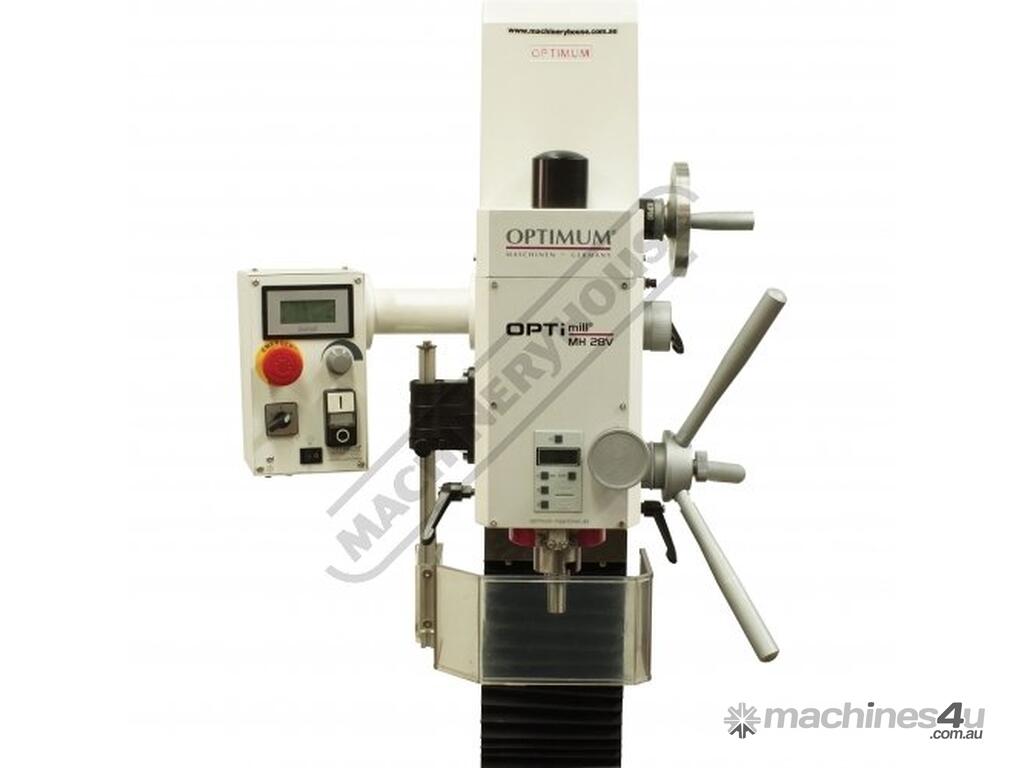

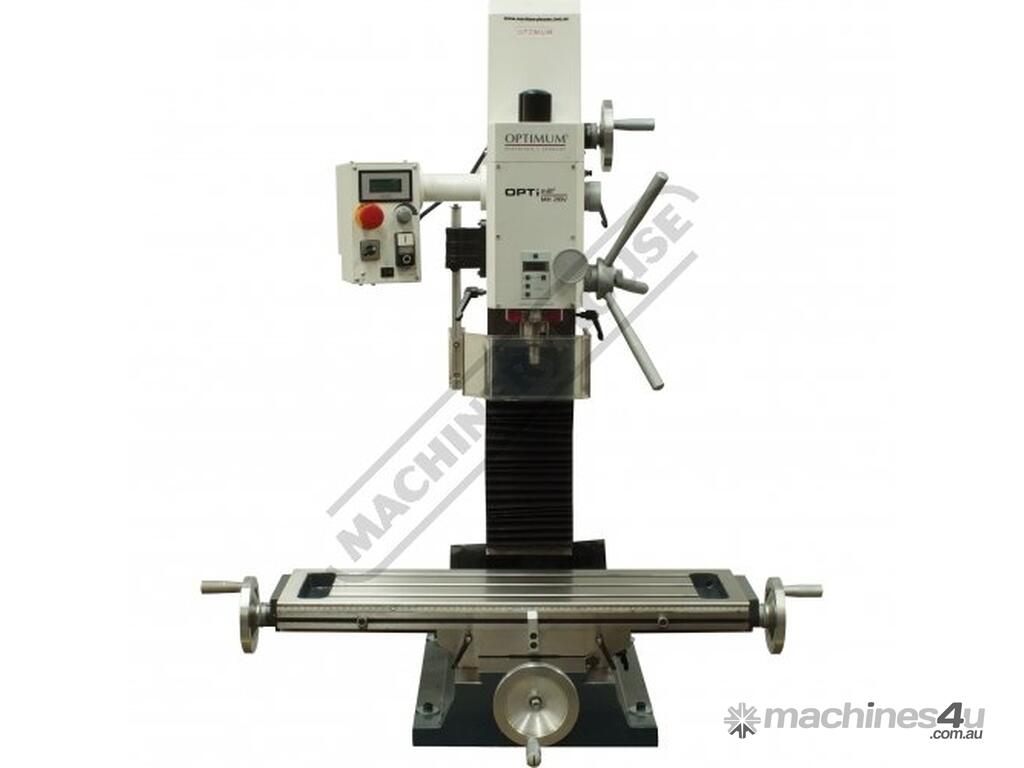

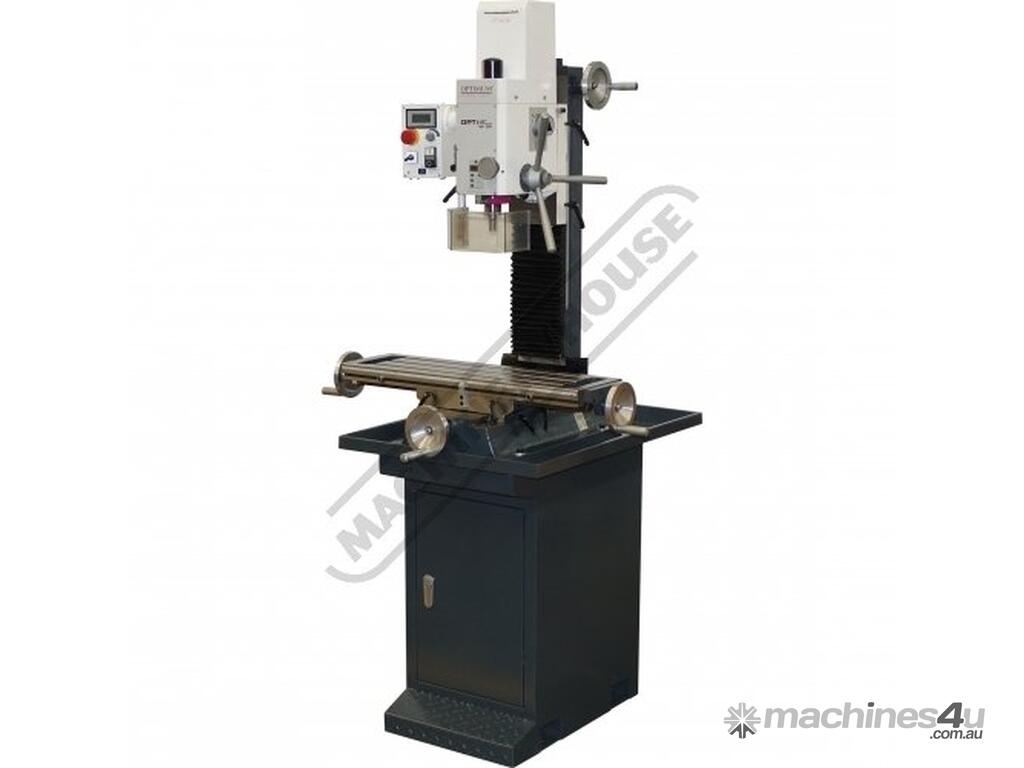

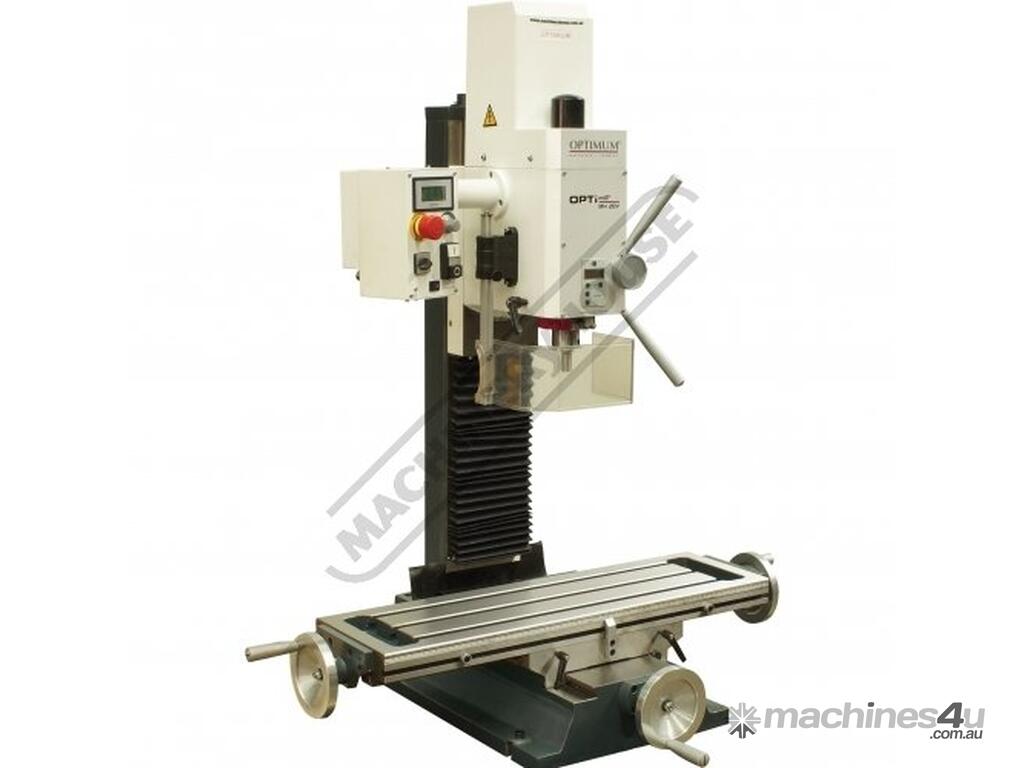

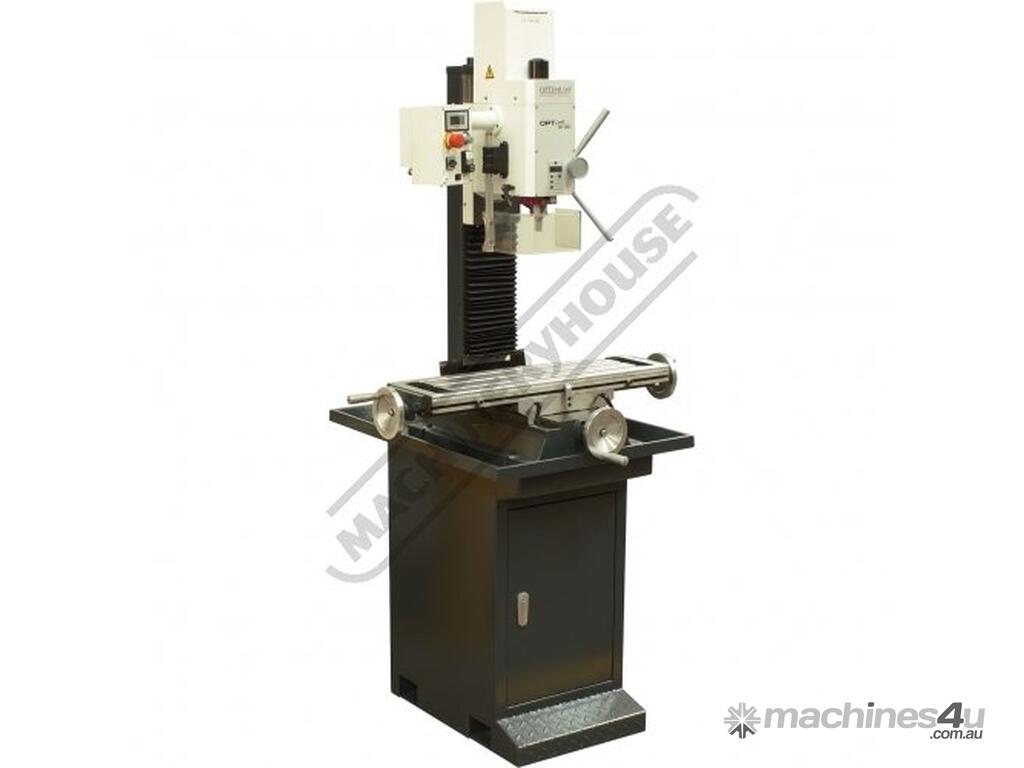

MH-28V Mill Drill - Geared & Tilting Head Table Travel: (X) - 430mm (Y) - 220mm (Z) - 355mm Electron

OPTIMUM MH-28V Mill Drill - Geared & Tilting Head Table Travel: (X) - 430mm (Y) - 220mm (Z) - 355mm Electronic Variable Speeds & Dovetail Column
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M652

Excellent quality mill drill machine designed for the model engineer

Features:
Electronic infinitely variable speed
3MT spindle taper

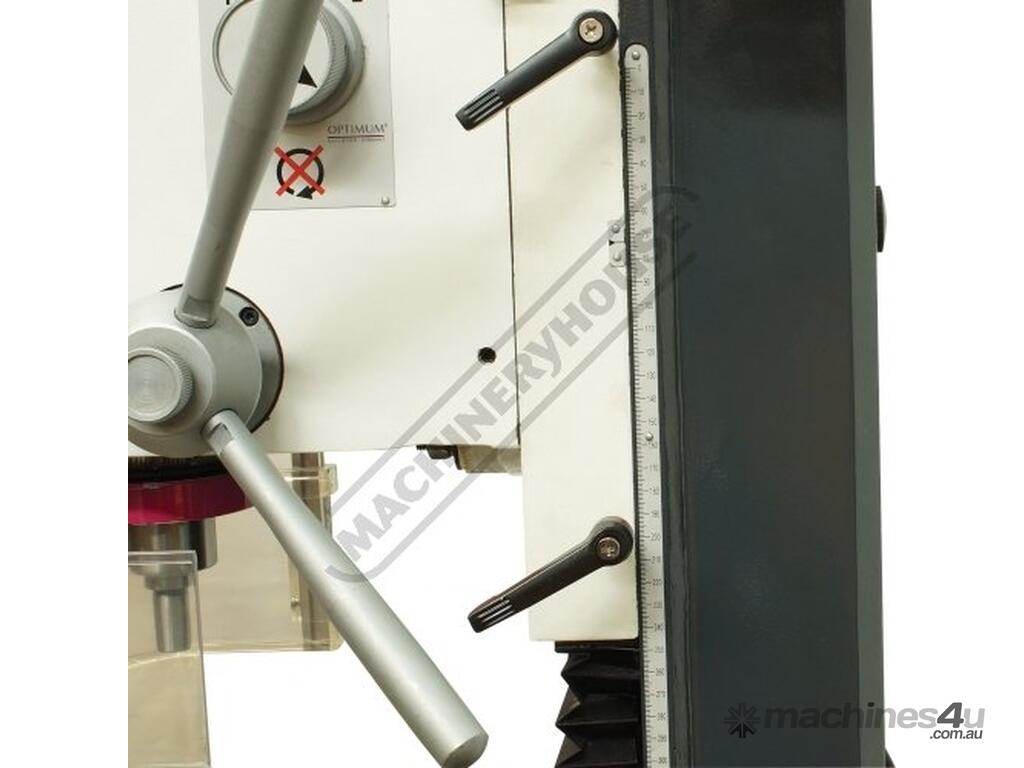

Dovetail vertical Z-Axis

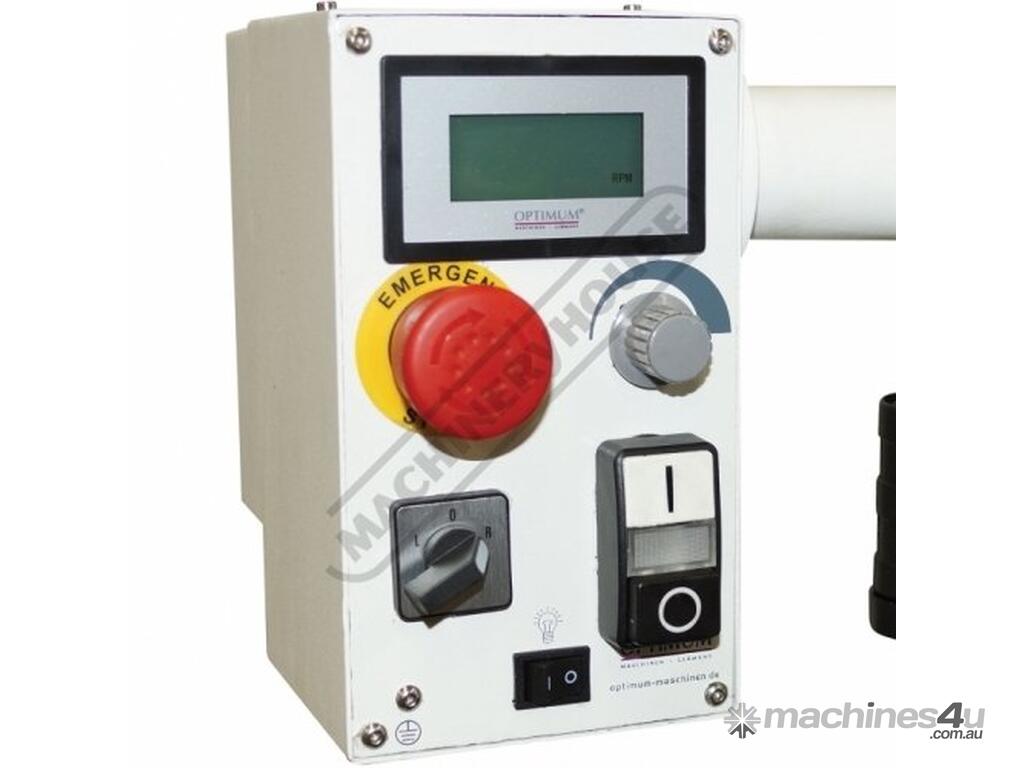

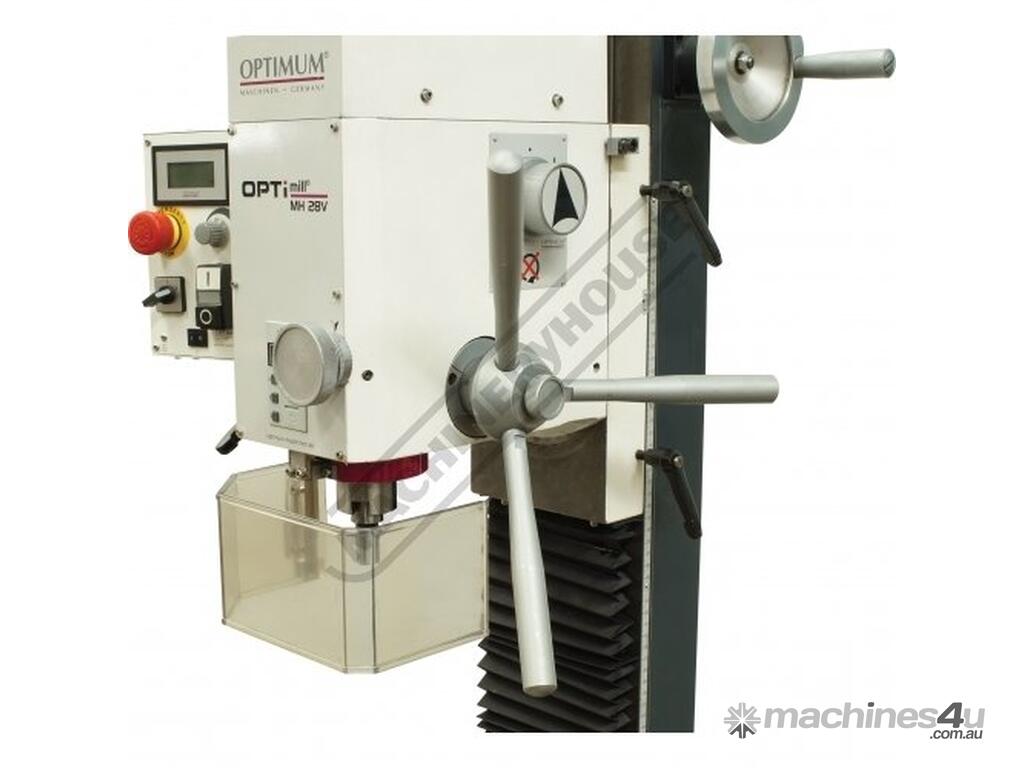

Digital readout speed display
Work light mounted underneath mill head

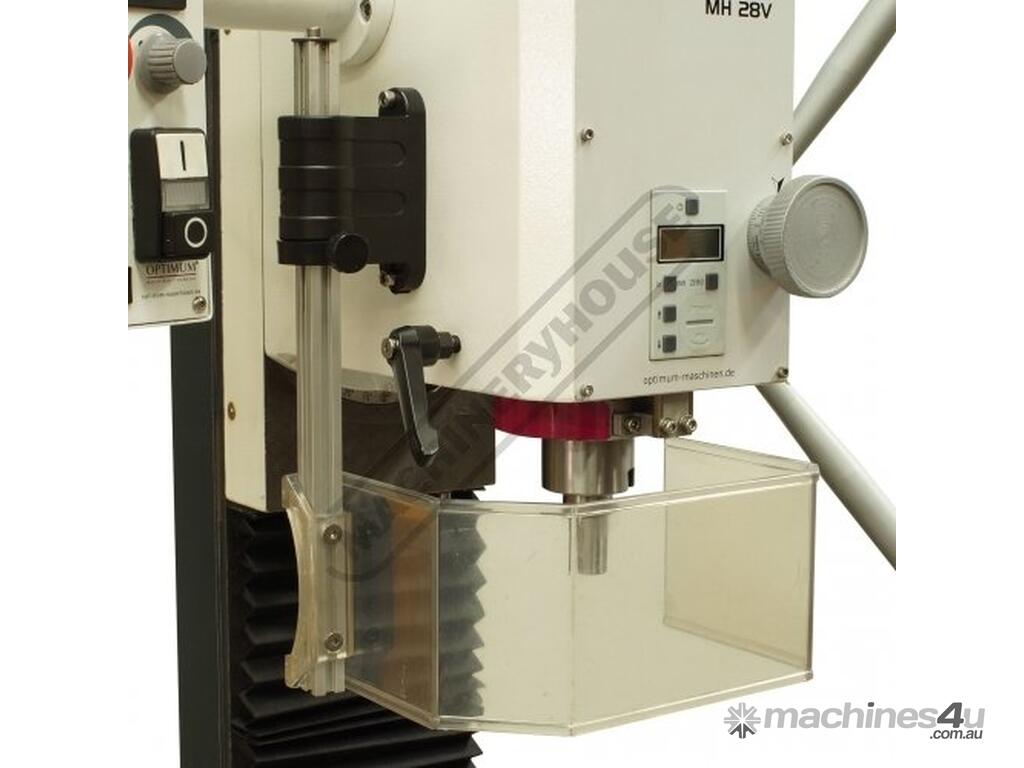

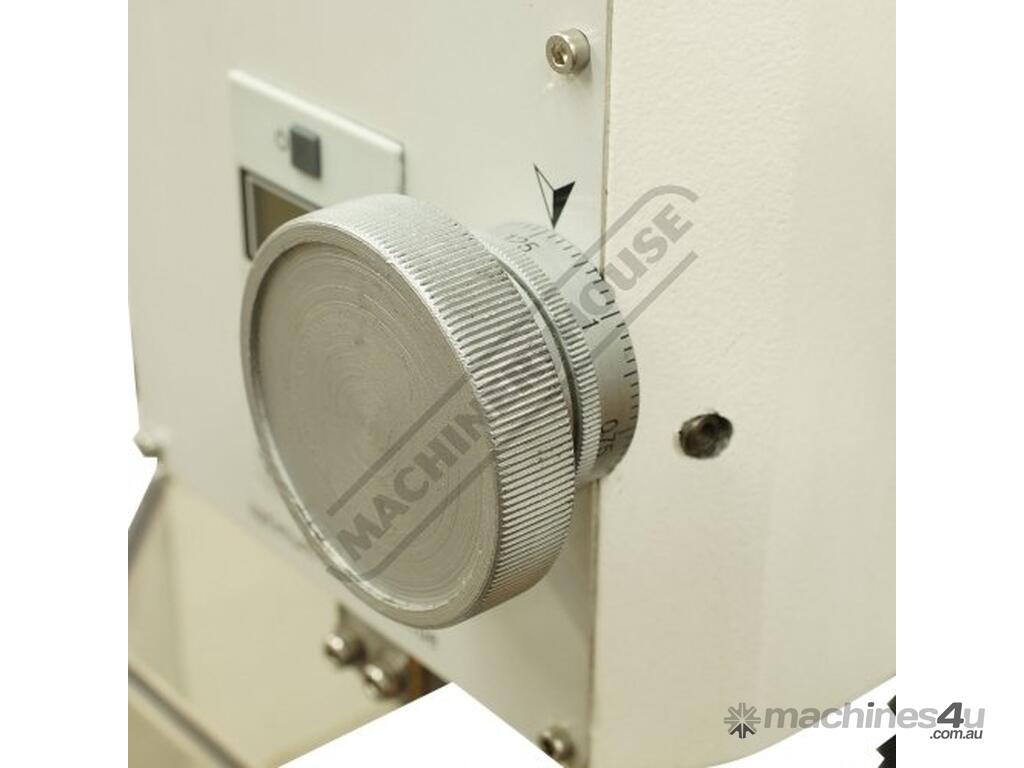

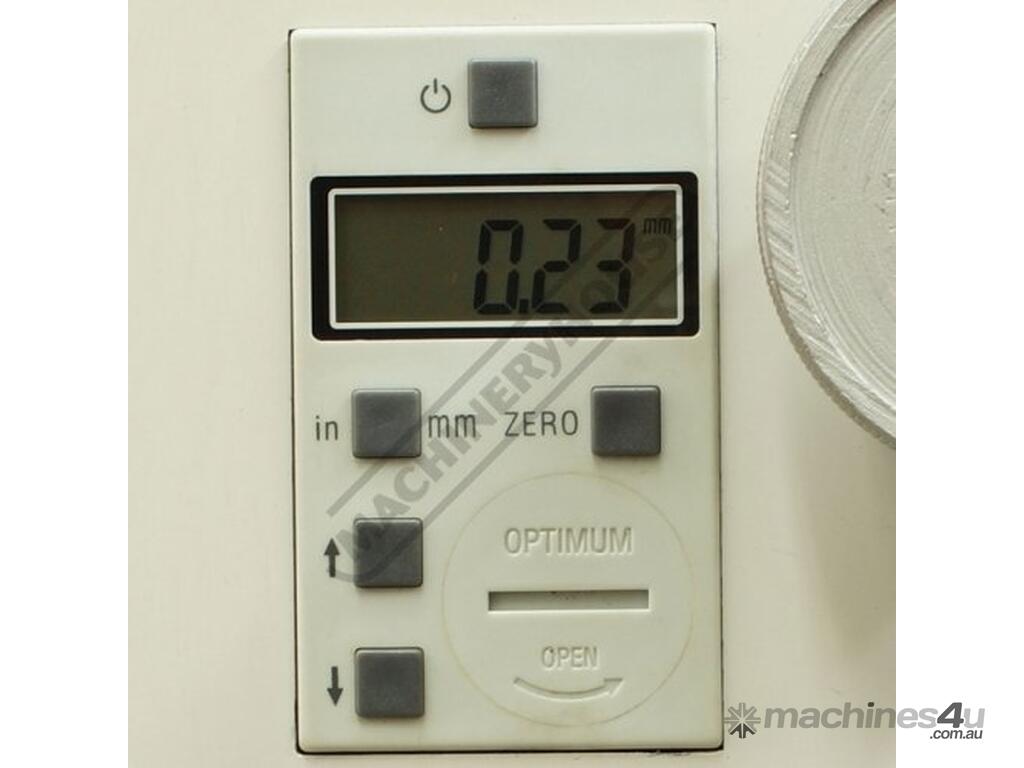

Digital depth display with zero reset for quill

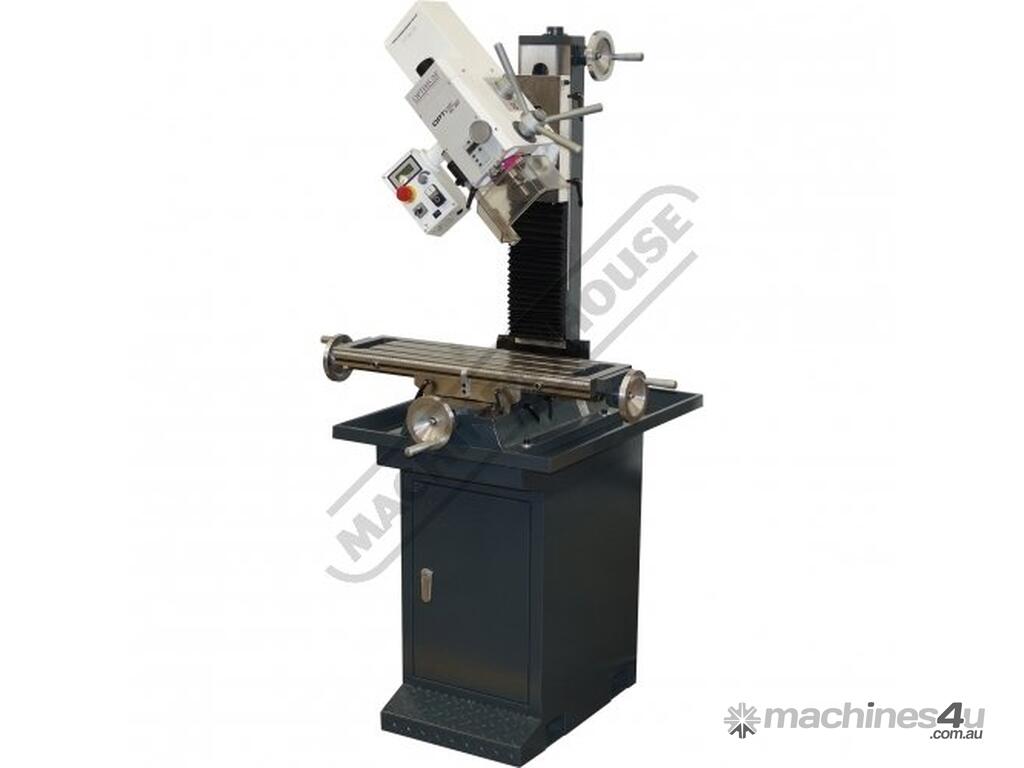

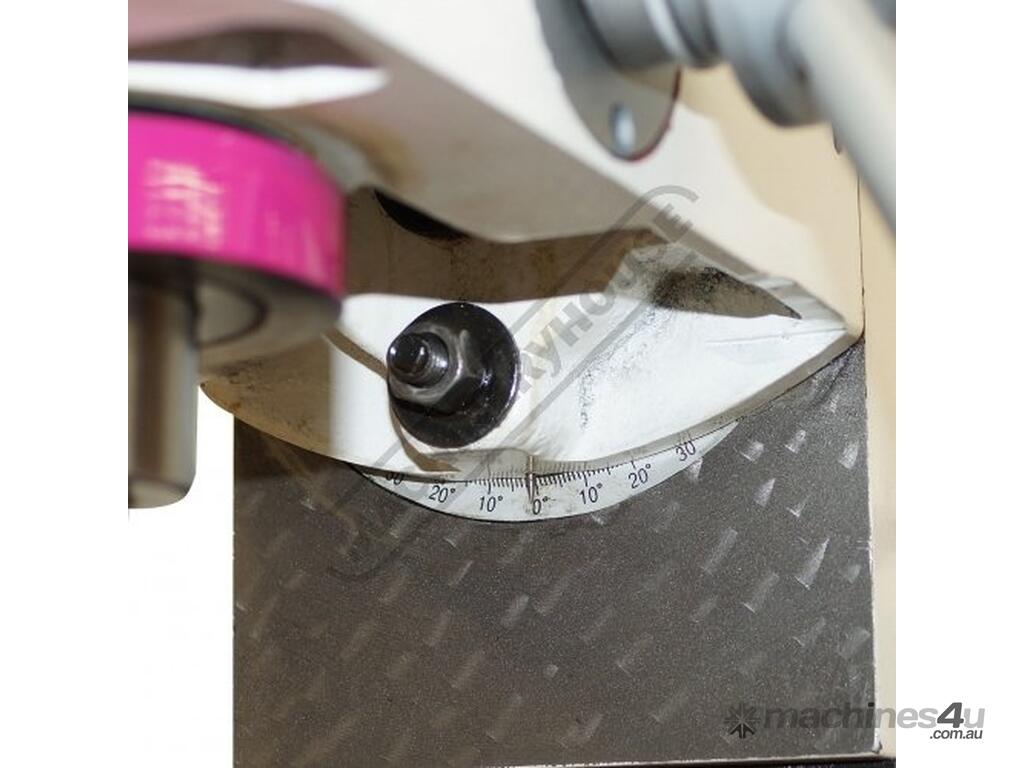

Tilting head to ± 90° from vertical

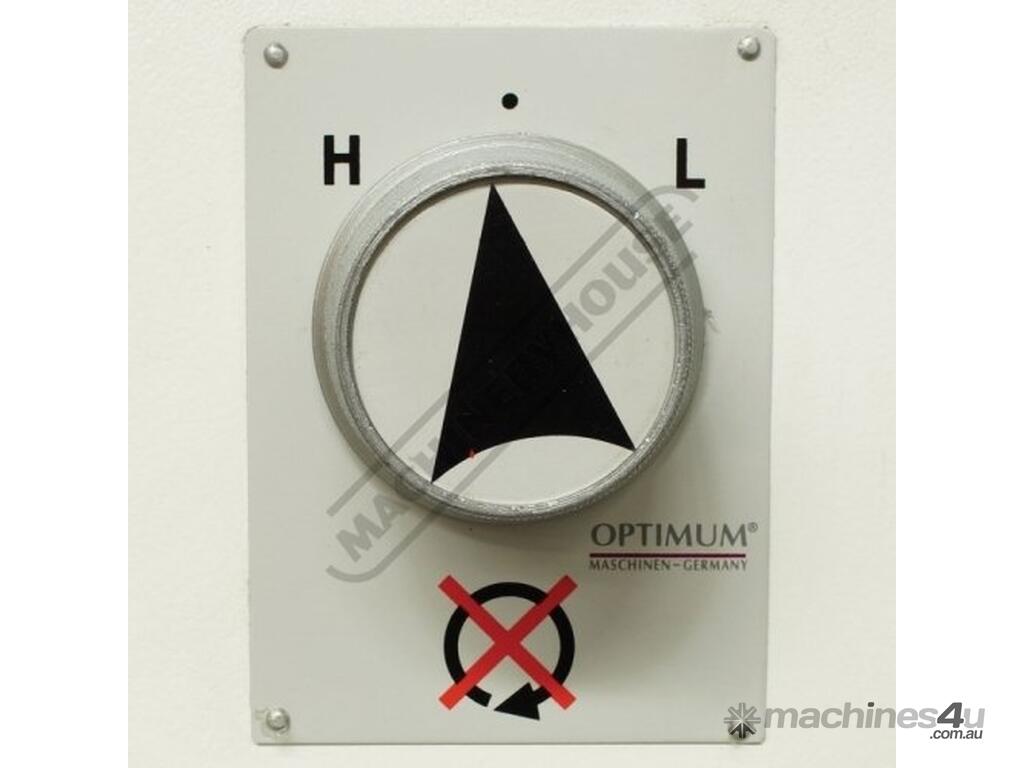

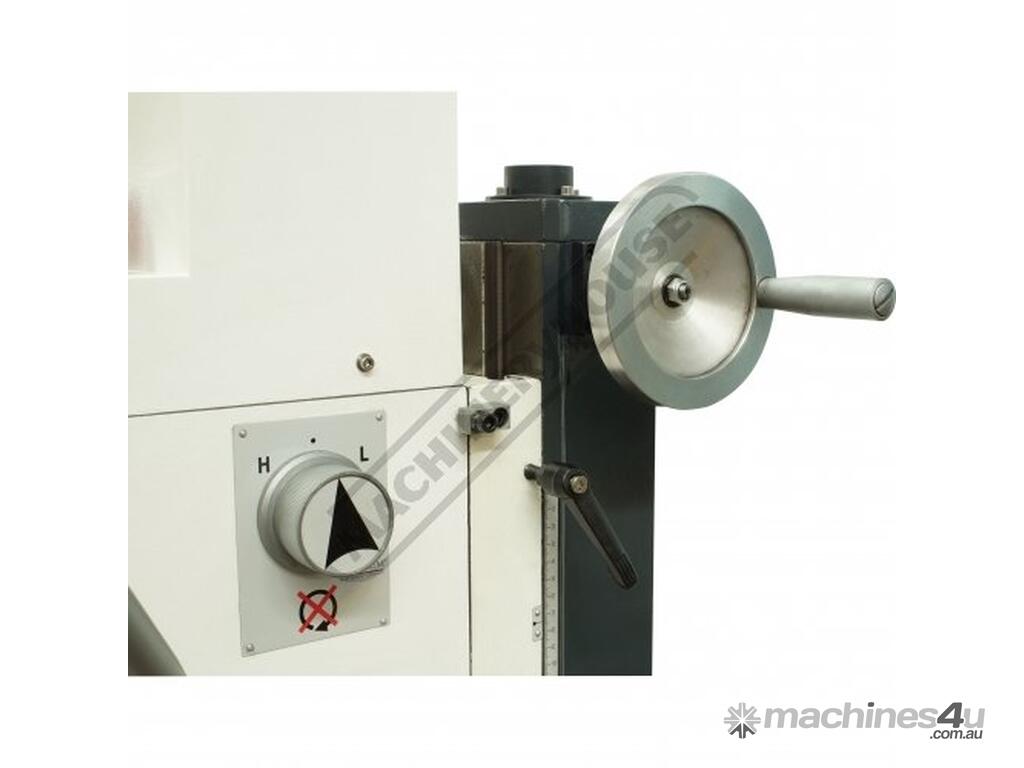

2 speed gearbox (high / low) drive
Forward and reverse spindle switch
Adjustable dovetail slideways on all 3 axis

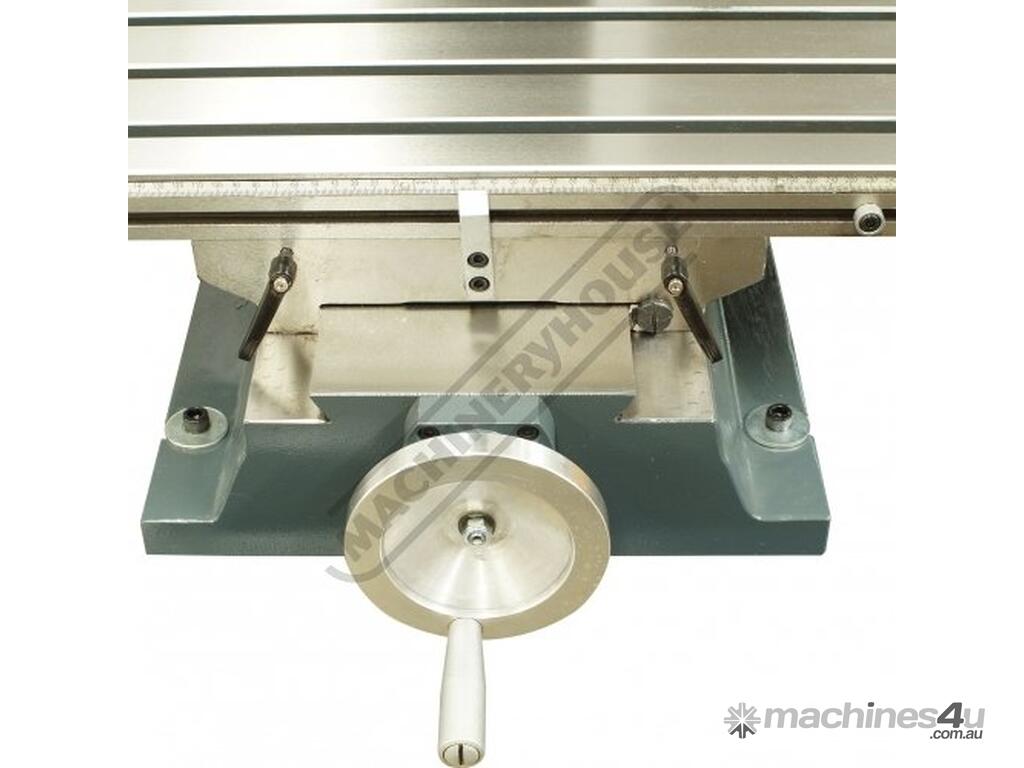

730 x 210mm cast iron table with T-slots
Adjustable table and drill length stops

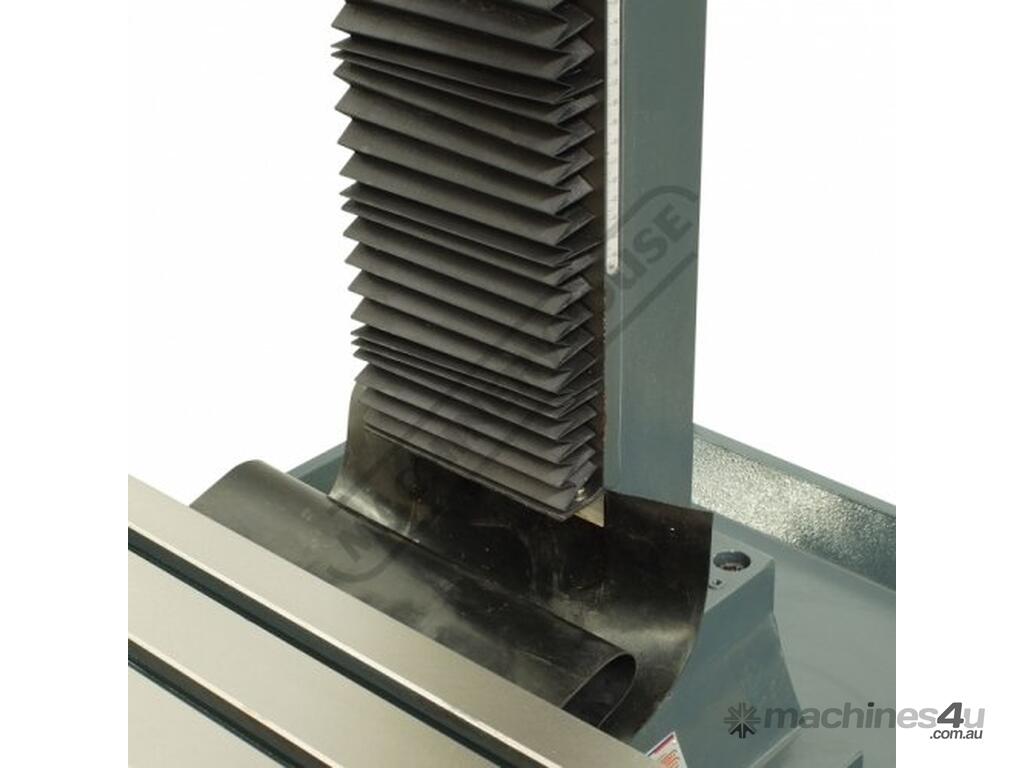

Rear slideway covers and slide clamps on all axis

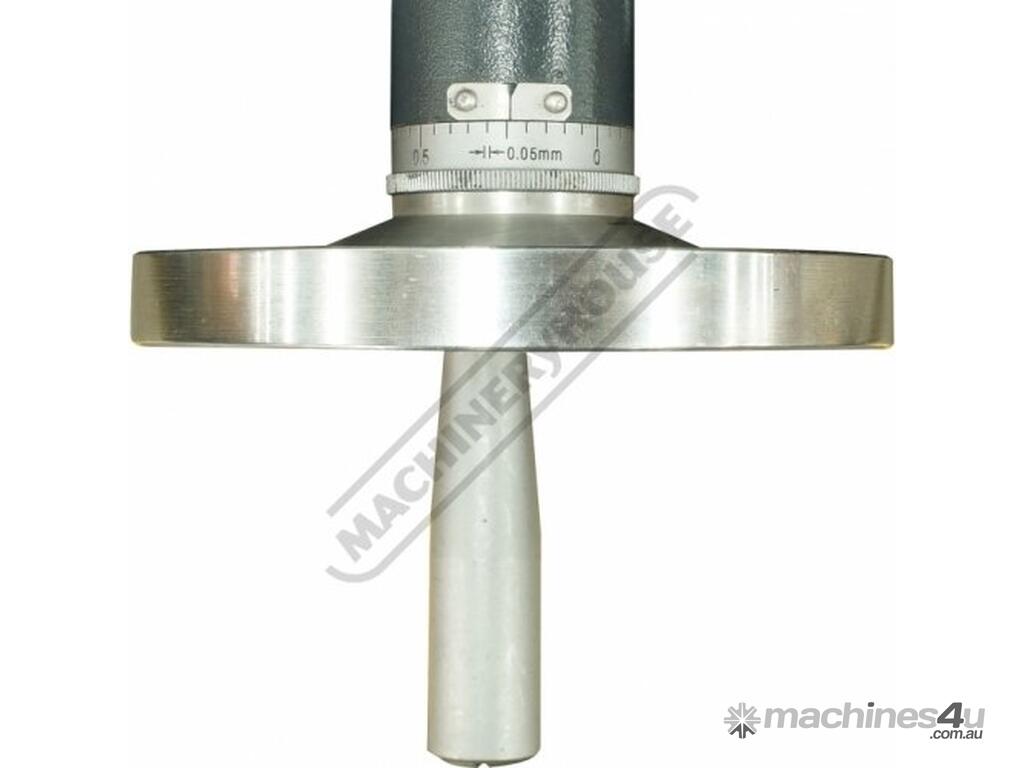

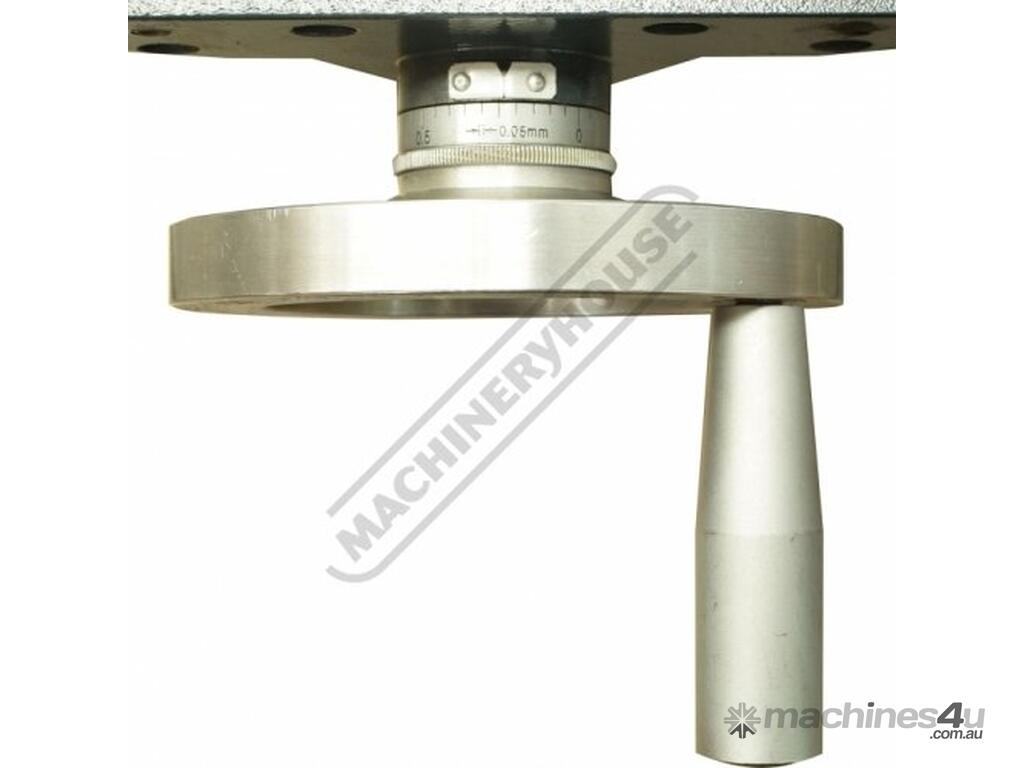

Metric dial graduations on X & Y-Axis



Includes:
- 3MT x JT6 drill chuck arbor
- Safety cutter guard
- Work light
- Bracket kit for optional digital readout
- 1/2" x 12tpi whitworth drawbar



Specifications:
ORDER CODE: M652
MODEL: HM-28V
Digital Readout: Optional
Type: Vertical
Table Size (mm): 730 x 210
Column Type: Dovetail
Spindle Taper - Vertical: 3MT
Spindle Taper - Horizontal: ~
Longitudinal Travel (X-Axis) (mm): 430
Cross Travel (Y-Axis) (mm): 220
Vertical Travel (Z-Axis) (mm): 355
Type of Slides: Dovetail
Ram Travel (mm): ~
Spindle to Table (mm): 465
Spindle to Base: ~
Spindle Travel / Diameter (mm): 70 / ~
Throat Depth (max.) (mm): 210
Tilting Head (Left ~ Right): ±90º
Tilting Head (Forward ~ Back): Fixed
Drilling Capacity (mm): 20
End Milling Capacity (mm): 28
Face Milling Capacity (mm): 70
Power Feed - Quill (mm/rev): ~
Power Feed - Longitudinal (X-Axis) (mm/min): ~
Power Feed - Cross (Y-Axis) (mm/min): ~
Power Feed - Vertical (Z-Axis) (mm/min): ~
Table T-Slot Size (inch / mm): 14
Work Table Load Capacity (kg): 55
Spindle Speeds Vertical (No./ rpm): Variable (100 - 2500)
Spindle Speeds Horizontal (No./ rpm): ~
Spindle Speeds - Universal Head: ~
Motor Power - Vertical Spindle (kW / hp): 1.1 / 1.5
Motor Power - Horizontal Spindle (kW / hp): ~
Motor Power - Universal Head: ~
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 240
