Hardened and precision ground bed way.
The slideways between the saddle and bed are TURCITE B coated, reducing friction and saving on power consumption.
The cross slide is induction hardened to HRC 52° and precision ground.
Two speed tailstock is standard.
Swing over bed 510mm (20``)
Swing over cross slide 330mm (13``)
Swing in gap diameter 680mm (26 3/8``)
Length of gap in front of face plate 180mm (7 1/16``) D1-8
Centre Height 255mm (10``)
Distance between centres 1530mm (60``)
Bed Width 400mm (16``)
Main Motor 10HP,3ph (15HP Optional)
Coolant pump 1/8HP,3ph
Spindle Bore 80mm (3 1/8``)
Spindle Nose D1- 8`` ISO or A1- 8`` ISO
Taper in nose/sleeve No.7/No.5
Number of Speeds 12
Speed Range 20~1550 r.p.m.
Cross slide travel 320mm (12 1/2``)
Compound rest travel 255mm (10``)
Leadscrew diameter & thread 38mm (1 1/2``) / 4 TPI
Tailstock quill Diameter 75mm (3``)
Quill Travel 160mm (6 5/16``)
Quill Taper 5MT
Net Weight 2330KG
Machine Dimensions 3048 x 1280 x 1355mm

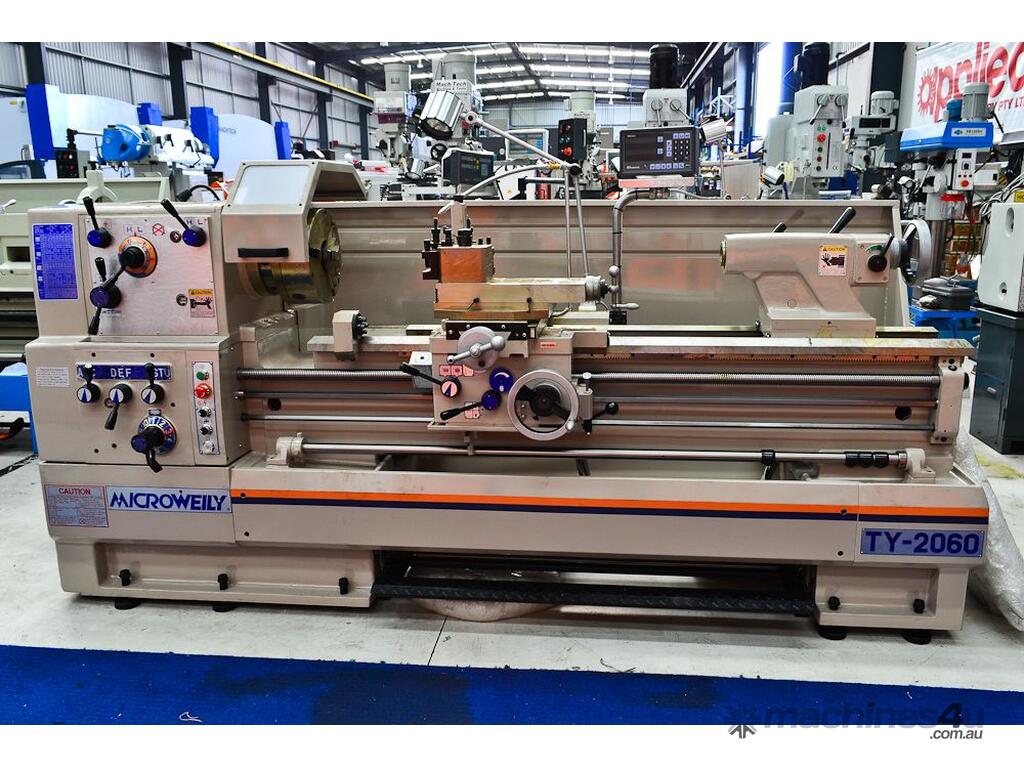

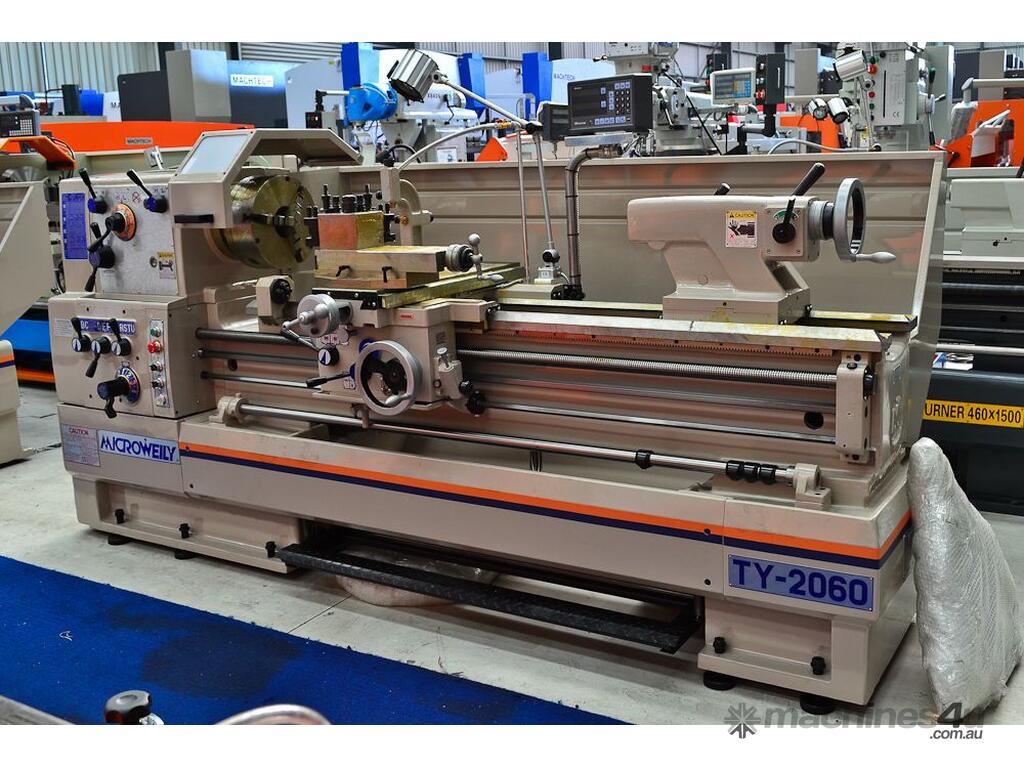

*video and images are for example machine is new
