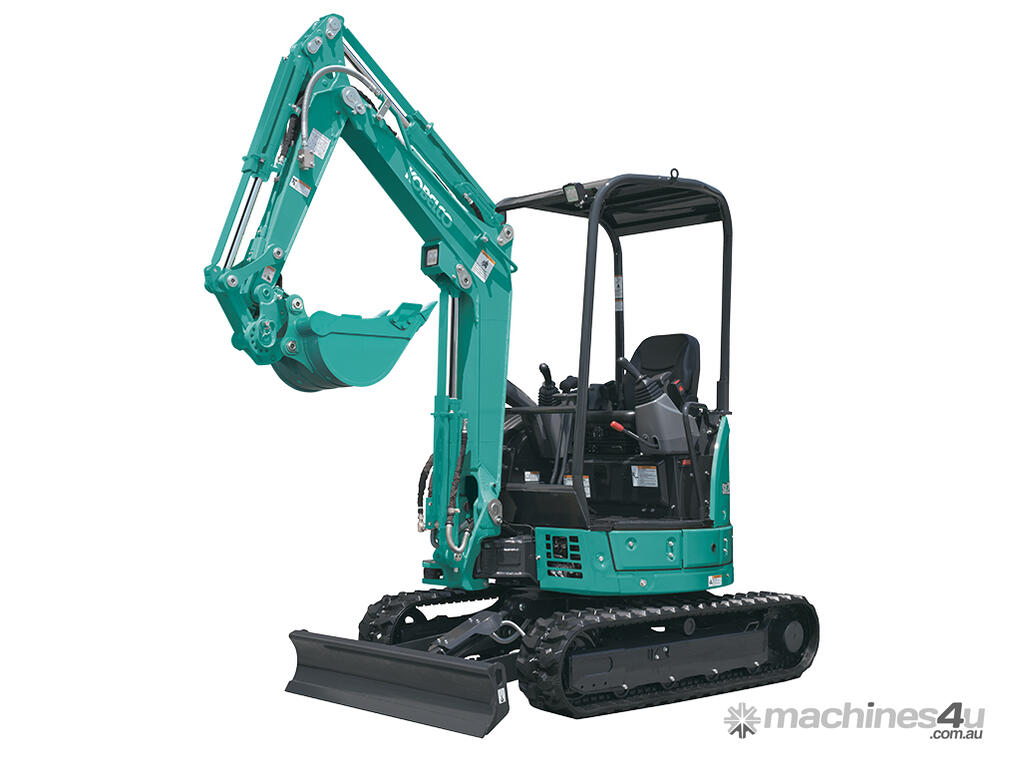

MINI EXCAVATORS SK20SR-6

'Proudly representing Kobelco in North East Victoria and Southern NSW'

Max. Arm Crowding and Bucket Digging Force: 13.1kN |17.5kN
Reliable swing power, top-class swing speed and excellent working ranges.
Standard factory fitted hydraulic quick hitch piping.
Like all Kobelco mini excavators, the SK20SR comes with a standard 4 year/4,000 hour Full Machine Warranty.

The SK20SR-6 combines a compact design with efficiency, moveability and durability to ensure a long working life, which means a machine that maintains its value. The right-side opening layout has made it easier for the operator, with a wide and comfortable operating station giving a spacious and relaxed feel.

The high-strength canopy meets ROPS and FOPS standards for greater operator safety. Safety lever locks permit dismounting only when control levers are disengaged, to prevent accidental operation. The SK20SR provides easier maintenance, with a fully-opening engine hood that allows easy ground-level access to daily inspection items, with key items easily visible.

The compact design allows continuous dig-180 degree swing-dump operations within a working space of only 2.22m. This zero tail swing machine has a swing radius of only 690mm. The combination of the side-ditching swing boom and zero tailswing radius makes it easy to dig next to walls with a compact operating footprint.

The SK20SR features powerful digging force, reliable swing power, top-class swing speed and excellent working ranges. Boosted swing power and top-class swing speed deliver shorter cycle times for added productivity. The standard multi-function LCD screen allows easy access to all key operational data.

SPECIFICATIONS
Transport Dimensions
Length, Width & Height

3.89 x 1.38 x 2.42 m

Operating Weight

2,125 kg

Refilling Capacities
Fuel Tank

27.5 L

Hydraulic Oil Tank

25.1 (39.5) L

Working Range
Max. Digging Depth

2.27 m

Max. Digging Reach

4.14 m

Engine
Rated Power Output

14.3 kW

Rated Torque

68.6 Nm

Breakout Force
Bucket Digging Force

17.5 kN

Arm Crowding Force

13.1 kN

Hydraulic System
Max. Pump Flow

2 x 21.6 + 1 x 20.4 L/min

Standard Auxiliary

N&B Piping
