MINI EXCAVATORS SK25SR-6E

'Proudly representing Kobelco in North East Victoria and Southern NSW'

Top-class max. digging reach and max. digging depth for the 2.5 tonne class.
Max. Arm Crowding and Bucket Digging Force: 12.6kN | 23.1kN*
Easy hydraulic piping for quick hitch fitted as standard.
Like all Kobelco mini excavators, the SK25SR comes with a standard 4 year/4,000 hour Full Machine Warranty.

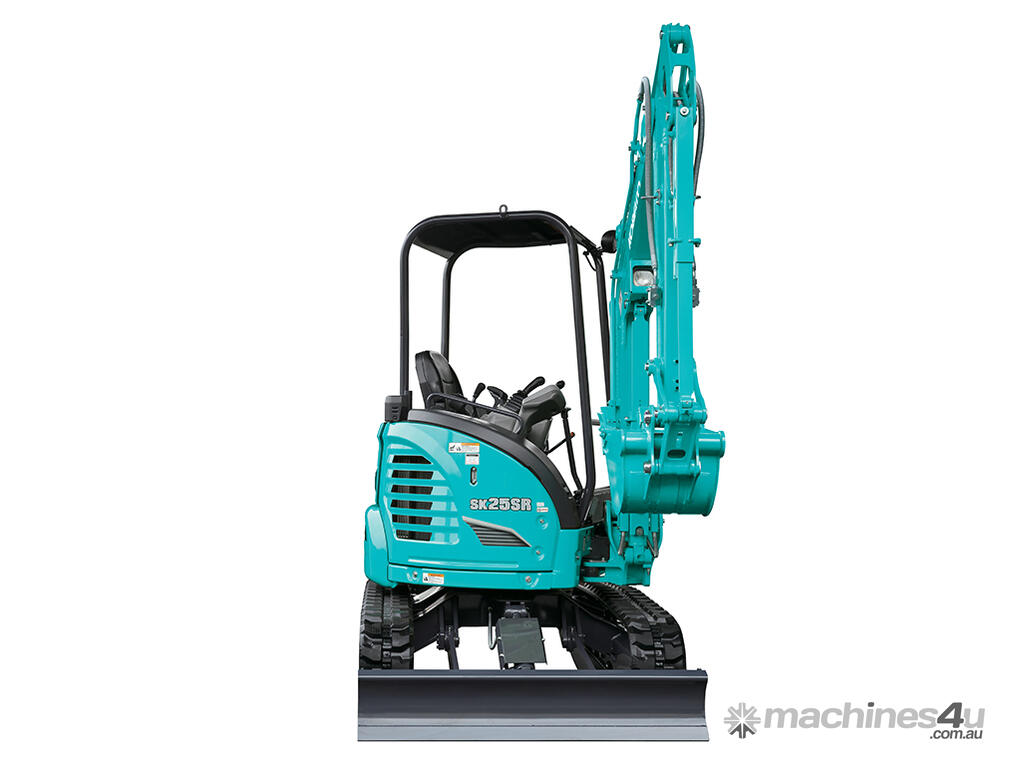

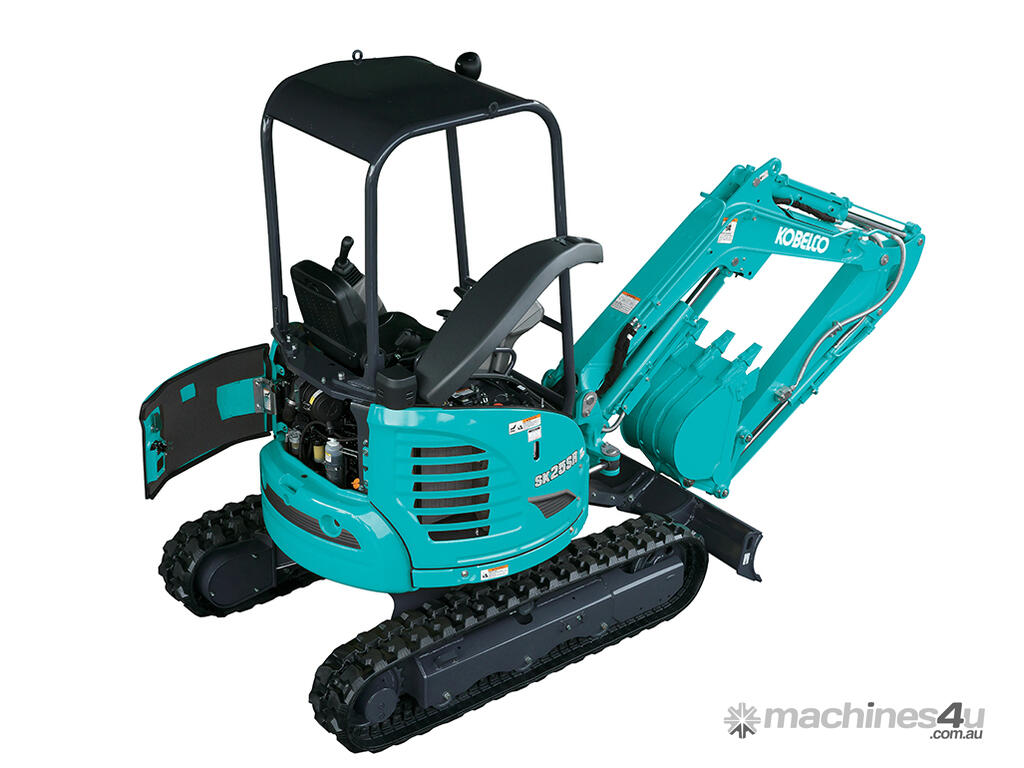

The SK25SR combines a compact design with efficiency, manoeuvrability and durability to ensure a long working life. Light enough to be transported on a trailer even with additional attachments. Built to stand the test of time with robust durability engineered in, and innovative spring-steel guards on all cylinder rods.

The combination of side-ditch digging swing boom function and zero tailswing radius makes the SK25SR easy to dig next to walls with a compact operating footprint. Reliable swing power, faster working speed, powerful digging and a wide working range.

The SK25SR is as comfortable and productive as it is practical. The cabin features a reclining operator’s seat, plenty of foot room and wide operational space for a comfortable working environment. The backlit liquid crystal monitor is provided as standard, providing easy visibility of all key machine operation data. The four-post canopy meets ROPS and FOPS standards for greater operator safety.

SPECIFICATIONS

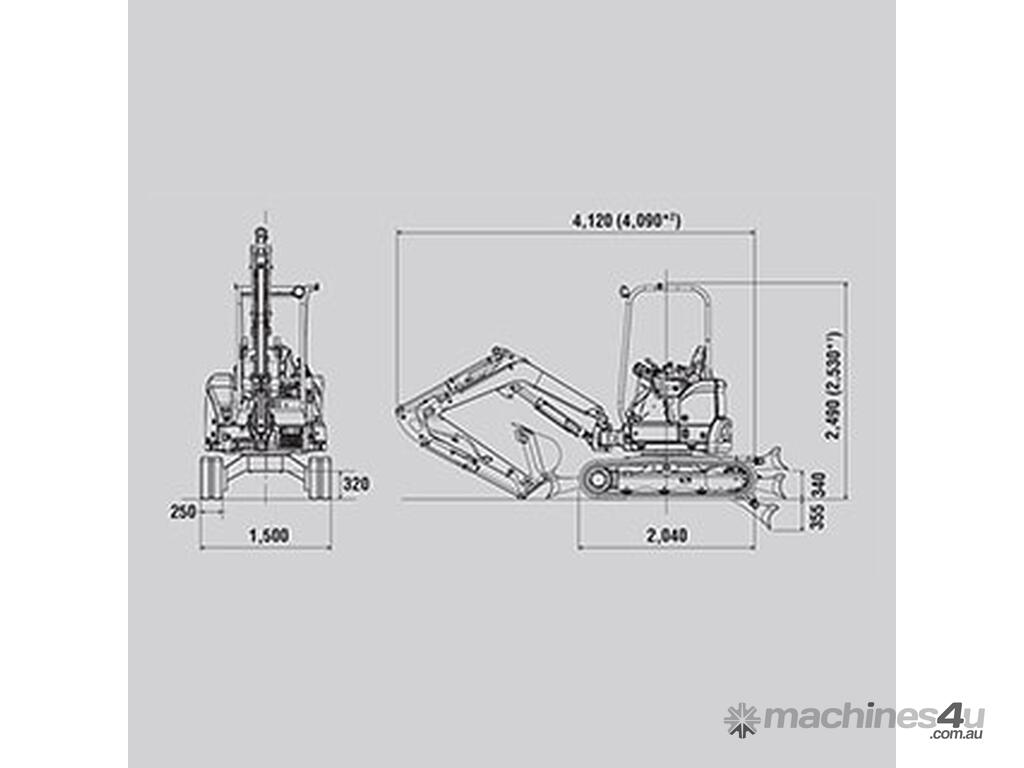

Transport Dimensions
Length, Width & Height

4.12 x 1.5 x 2.49 m

Operating Weight

2,765 kg

Refilling Capacities
Fuel Tank

30.5 L

Hydraulic Oil Tank

25 (39) L

Working Range
Max. Digging Depth

2.79 m

Max. Digging Reach

4.75 m

Engine
Rated Power Output

15.2 kW

Rated Torque

63.9 Nm

Breakout Force
Bucket Digging Force

23.1 kN

Arm Crowding Force

12.6 kN

Hydraulic System
Max. Pump Flow

2 x 30.0 + 23.1 L/min

Standard Auxiliary

N&B Piping
