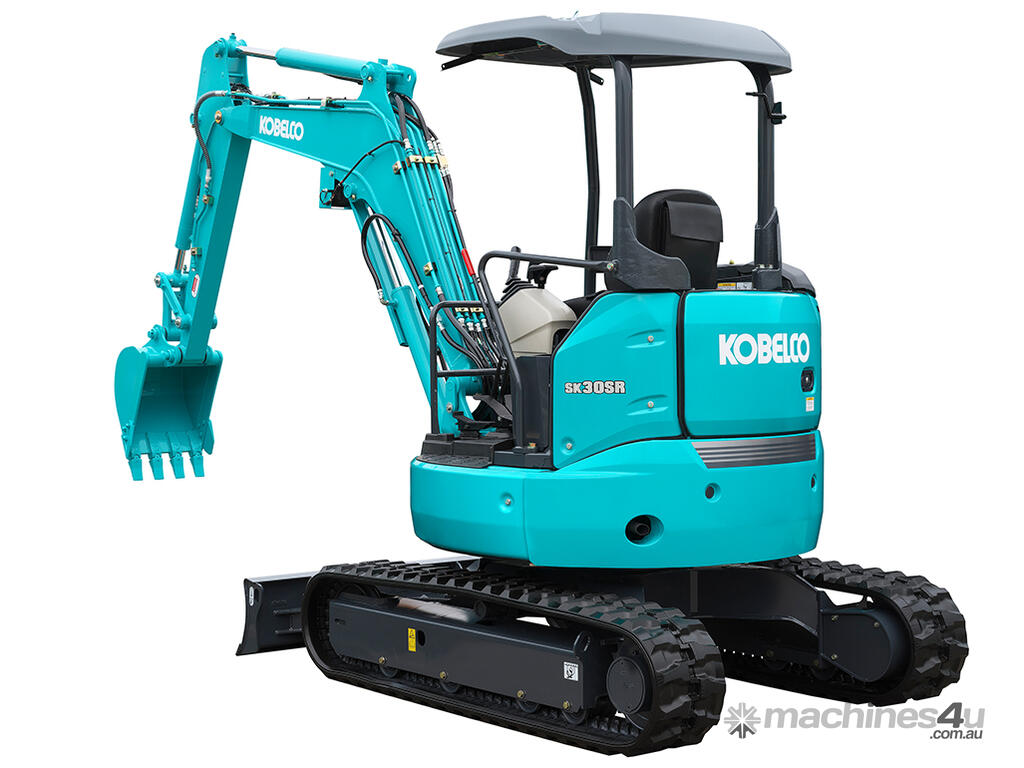

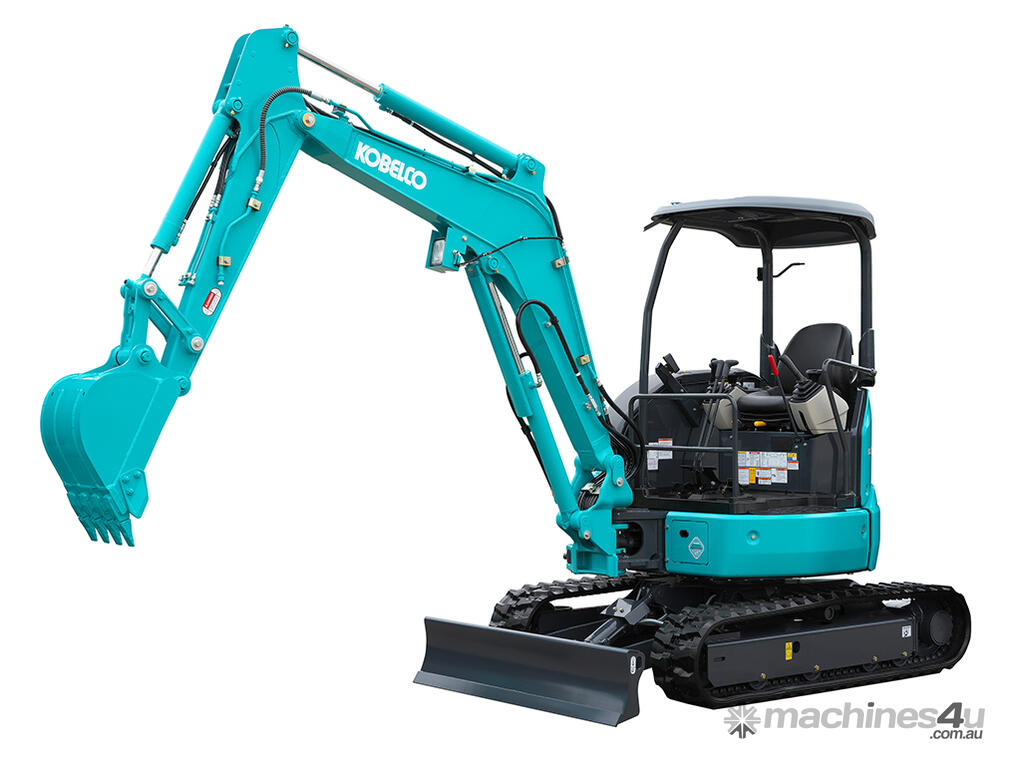

MINI EXCAVATORS SK30SR-6

'Proudly representing Kobelco in North East Victoria and Southern NSW'

With an overall height of 2,510 mm, the SK30SR is designed for easy transport.
A larger boom and arm are provided as standard equipment.
Wider working range and a short tail swing to allow operators to work in tight spaces.
Like all Kobelco mini excavators, the SK30SR comes with a standard 4 year/4,000 hour Full Machine Warranty.

Digging performance is outstanding, with a multiple pump flow-sharing system providing pump flow of 38.4 L/min and pressure of 23.0 MPa (relief valve setting), maintaining ample power for any task at hand. Energy Conservation Mode – equipped with ‘S’ mode, which lowers fuel consumption by up to 25% over previous models.

A hydraulic pilot-controlled dozer operation lever is provided for increased accuracy and control. Operators will appreciate that Kobelco’s unique blade design is purpose-built to form earth into an arc that always falls forward, minimising instances of material spilling over the blade.

The spacious cab provides an optimised control layout for comfortable, easy operation. A greater window area further improves visibility. A clear view is provided at the rear, and there’s also more floor space, with a seat that slides further to ensure plenty of leg room. Easier maintenance, with a fully-opening engine hood and equipment that requires the most frequent checks positioned to be readily visible.

The SK30SR includes Kobelco’s exclusive iNDr cooling system reducing heat, noise and dust penetration and comes with standard factory quick hitch piping and colour LCD screen, making it a stand-out machine in the 3T class.

SPECIFICATIONS

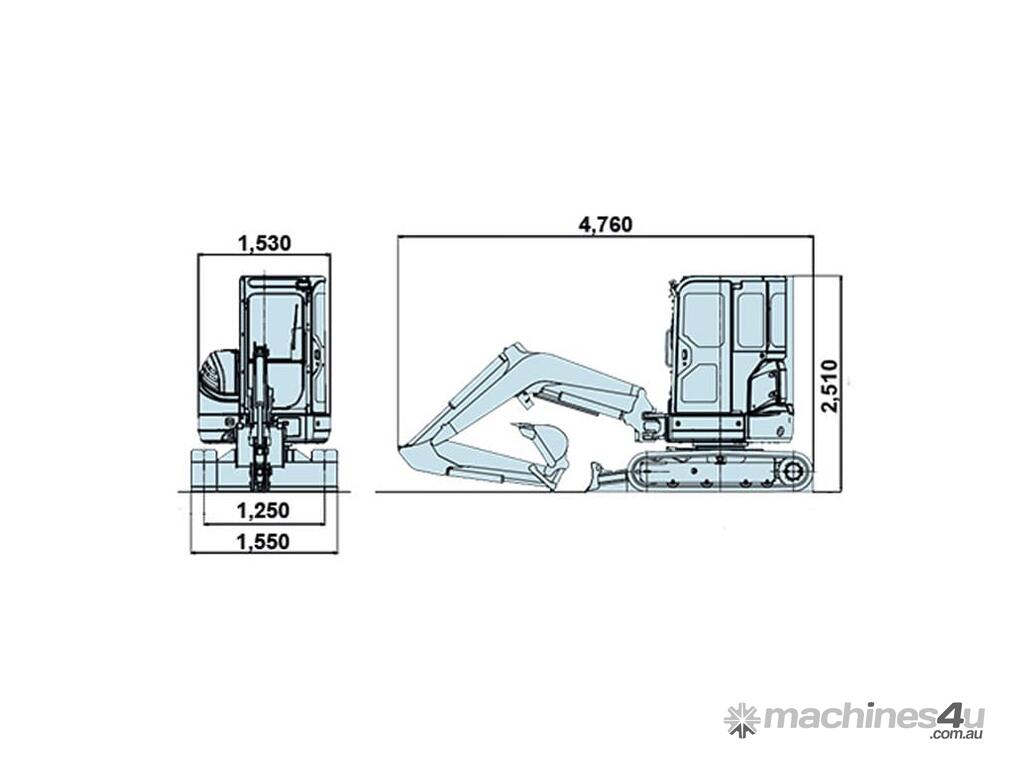

Transport Dimensions
Length, Width & Height

4.76 x 1.55 x 2.51 m

Operating Weight

3,455 kg

Refilling Capacities
Fuel Tank

42 L

Hydraulic Oil Tank

20.4 (44.8) L

Working Range
Max. Digging Depth

2.83 m

Max. Digging Reach

5.24 m

Engine
Rated Power Output

18.1 kW

Rated Torque

79.4 Nm

Breakout Force
Bucket Digging Force

27.7 kN

Arm Crowding Force

19.1 kN

Hydraulic System
Max. Pump Flow

2 x 38.4 + 19.2 L/min

Standard Auxiliary

N&B + Tilt Piping
