MINI EXCAVATORS SK35SR-6

'Proudly representing Kobelco in North East Victoria and Southern NSW'

The SK35SR is built to maximise performance in the 3.5T class.
The boom, arm and swing bracket all have large cross-section segments for added attachment strength.
Ensures durability and reliability over the life of the machine, and maximising resale value.
Like all Kobelco mini excavators, the SK35SR comes with a standard 4 year/4,000 hour Full Machine Warranty.

Digging performance is outstanding, with a multiple pump flow-sharing system providing pump flow of 38.4 L/min and pressure of 23.0 MPa (relief valve setting), maintaining ample power for any task at hand. Energy Conservation Mode – equipped with ‘S’ mode, which lowers fuel consumption by up to 25% over previous models.

The SK35SR includes Kobelco’s exclusive iNDr cooling system reducing heat, noise and dust penetration with a short tail swing to allow operators to work in tight spaces.

The SK35SR has standard factory fitted quick hitch piping, colour LCD monitor and more digging power. It also features a unique blade design which prevents earth from falling behind the blade, by curling it forward as it cuts. The dozer lever features hydraulic pilot control for precise control.

Start-up checks are essential for safe and reliable machine operation. All start-up checks can be performed at ground level, with an easy-to-understand layout and cover design that simplifies access and saves time.

SPECIFICATIONS

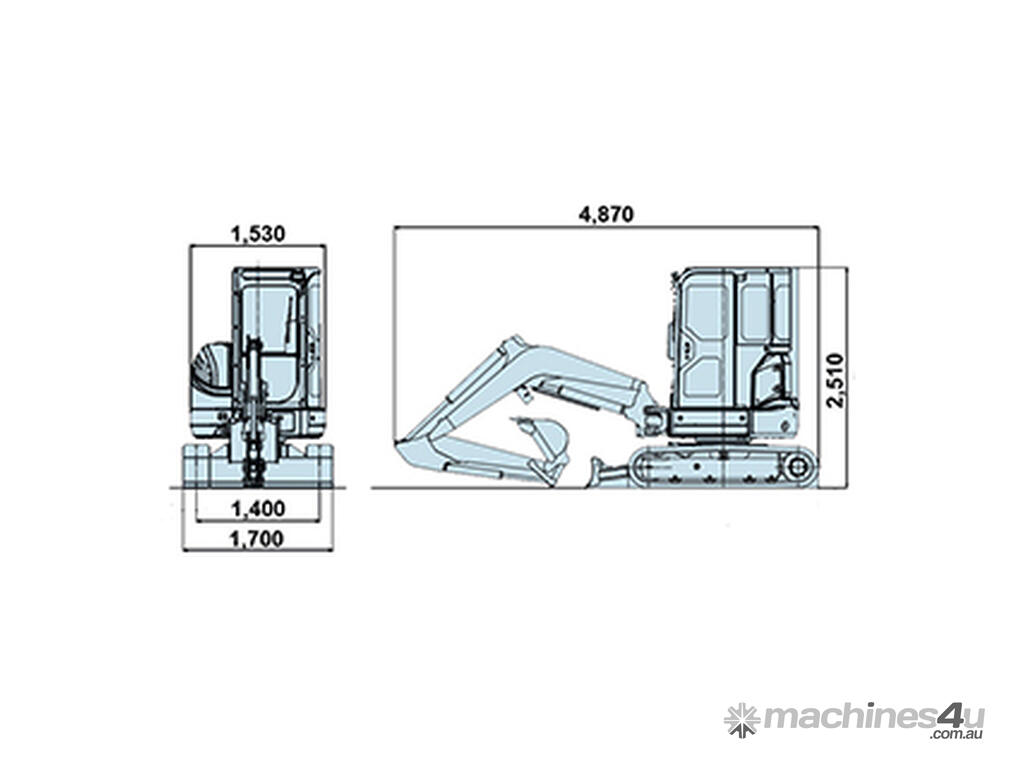

Transport Dimensions
Length, Width & Height

4.87 x 1.7 x 2.51 m

Operating Weight

3,705 kg

Refilling Capacities
Fuel Tank

42 L

Hydraulic Oil Tank

20.4 (44.8) L

Working Range
Max. Digging Depth

3.05 m

Max. Digging Reach

5.39 m

Engine
Rated Power Output

18.1 kW

Rated Torque

79.4 Nm

Breakout Force
Bucket Digging Force

27.8 kN

Arm Crowding Force

22.4 kN

Hydraulic System
Max. Pump Flow

2 x 38.4 + 19.2 L/min

Standard Auxiliary

N&B + Tilt Piping
