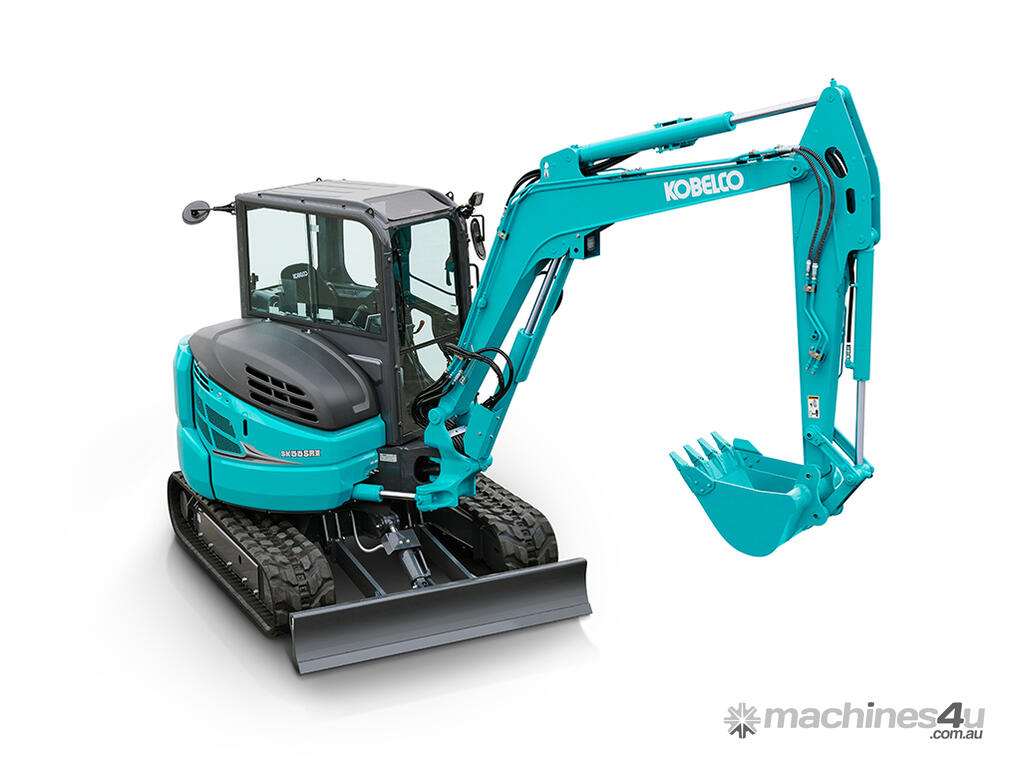

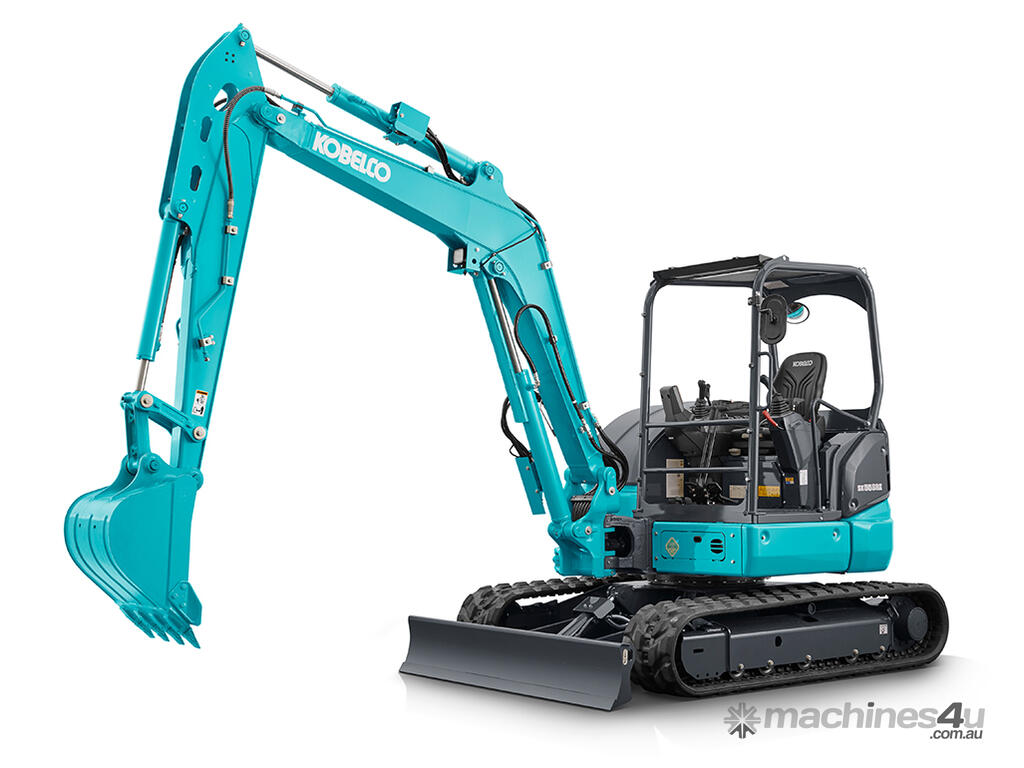

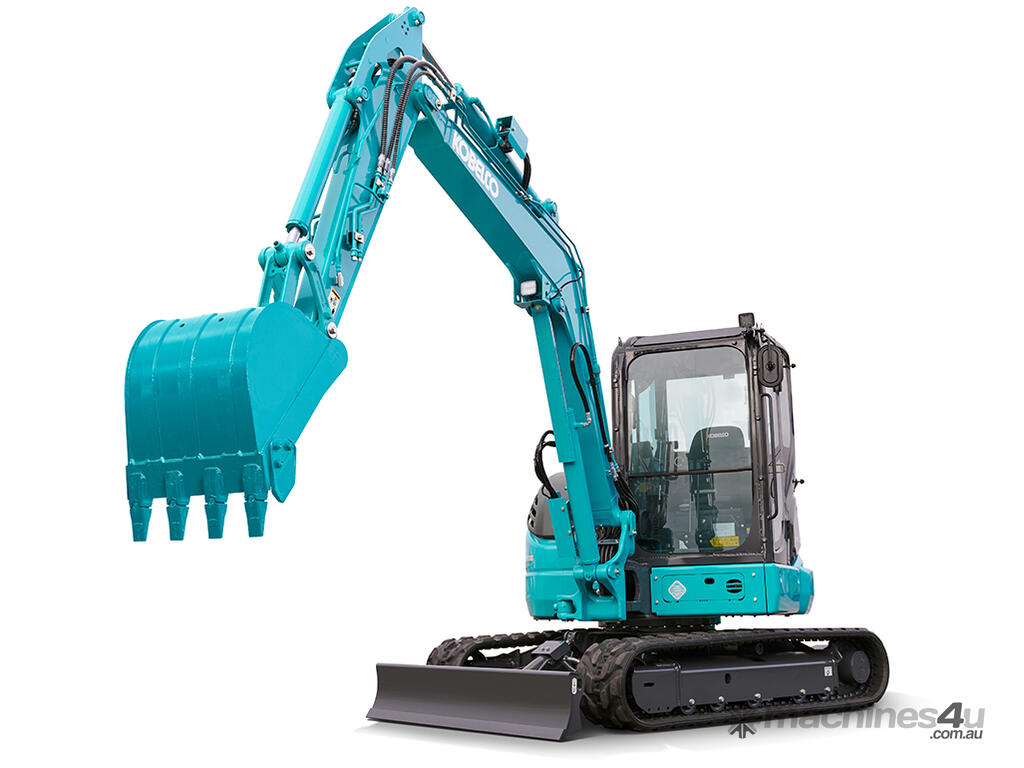

MINI EXCAVATORS SK55SRX-7

'Proudly representing Kobelco in North East Victoria and Southern NSW'

Reliable construction, fast and powerful digging and levelling, plus much more.
Larger boom and arm provided as standard equipment for a top class working range.
The boom, arm and swing bracket all have large cross-section segments for added attachment strength.
Like all Kobelco mini excavators, the SK55SRX comes with a standard 4 year/4,000 hour Full Machine Warranty.

The SK55SRX-7 features a compact tail swing for operation in restricted spaces, such as on urban or residential jobsites, for a smaller working footprint. However, a larger boom and arm are provided as standard equipment for a wide working range.

The iNDr system on the SK55SRX features air intake at the front of the machine and air exhaust underneath. It functions in the same way as the iNDr System on the SR series machines. The stainless-steel filter is extremely effective against dust, with 30-mesh wave-type screen that removes tiny dust particles from the intake air and delivers amazingly quiet operation. The highly airtight engine compartment and the offset duct contribute to noise reduction.

The next generation SK55SRX-7 delivers increased performance and productivity and follow Kobelco’s Performance X Design concept for enhanced design and operator comfort.

SPECIFICATIONS
Transport Dimensions
Length, Width & Height

5.55 x 1.96 x 2.53 m

Operating Weight

5,095 kg

Refilling Capacities
Fuel Tank

75 L

Hydraulic Oil Tank

27.9 (57.7) L

Working Range
Max. Digging Depth

3.9 m

Max. Digging Reach

6.27 m

Engine
Rated Power Output

29.6 kW

Rated Torque

139.1 Nm

Breakout Force
Bucket Digging Force

35.2 kN

Arm Crowding Force

24.6 kN

Hydraulic System
Max. Pump Flow

2 x 49.9 + 33.8 L/min

Standard Auxiliary

N&B + Tilt Piping
