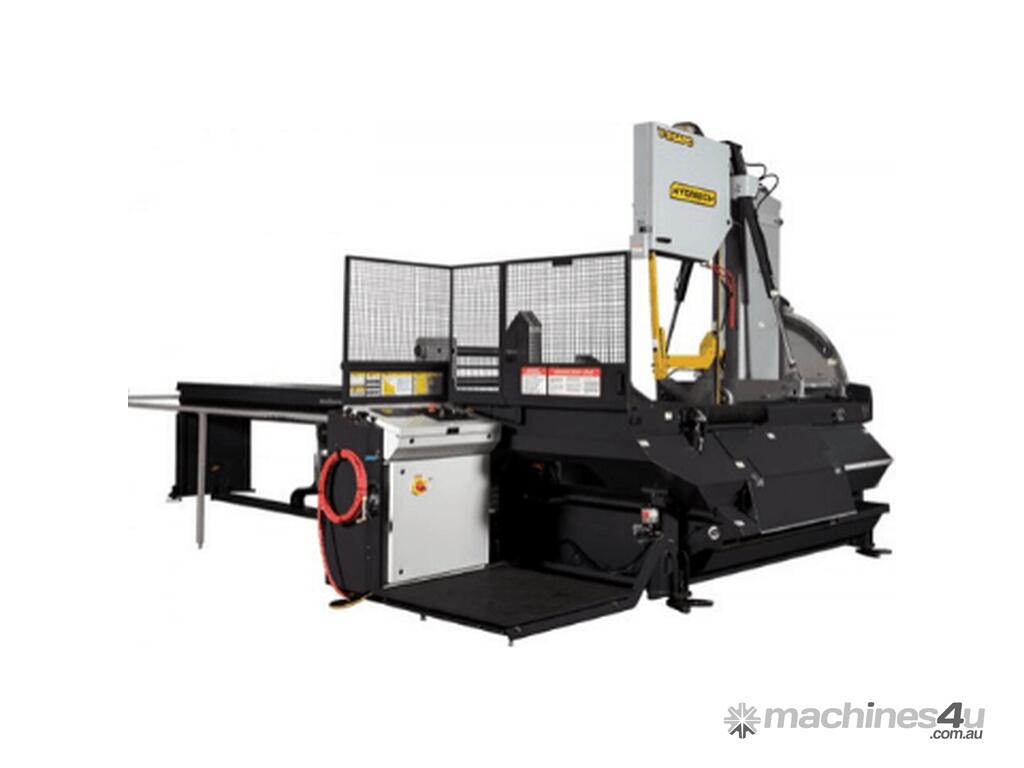

MITRES FROM 60°LEFT TO 60° RIGHT - IT DOES IT ALL! - Automatic Bandsaw - Hydmech V-25APC

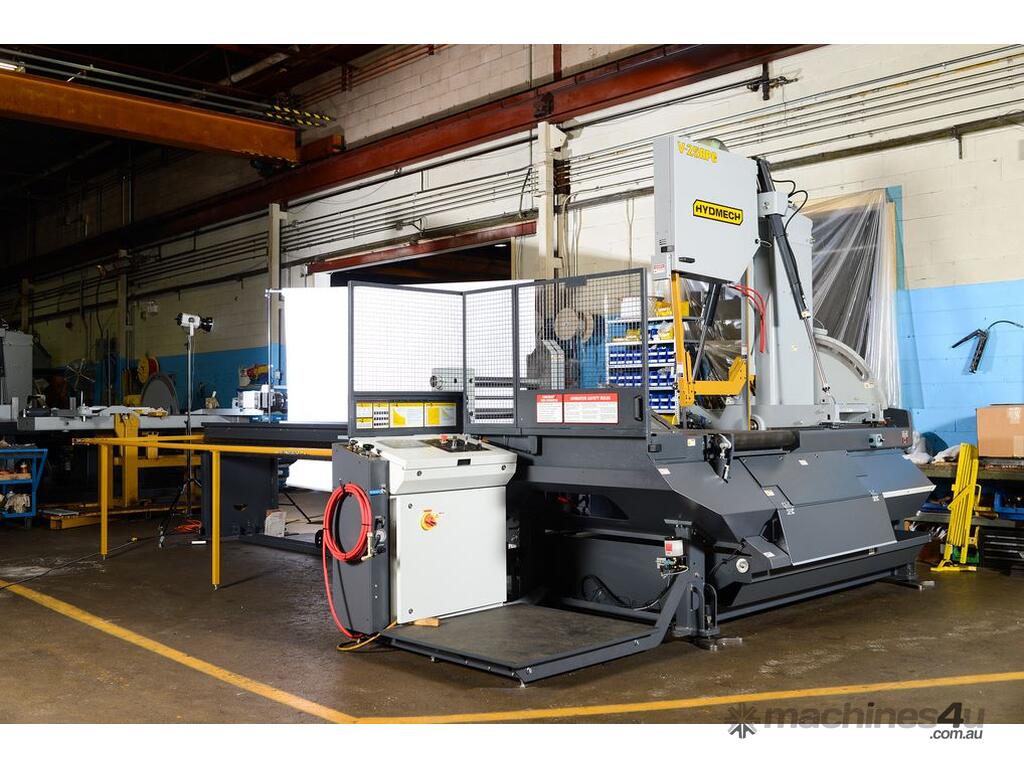

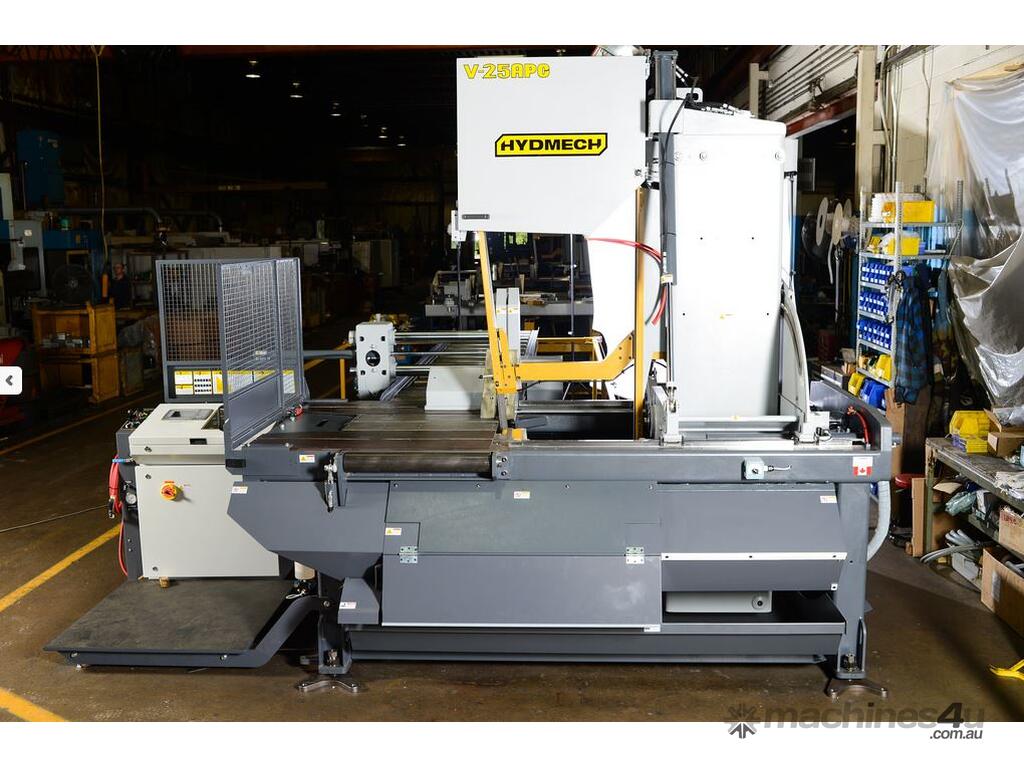

With its large capacity of 762 mm x 635 mm, the automatic vertical bandsaw by Hydmech V-25APC, has the ability to mitre from 60° left to 60° right. It does it all!

UNIQUE FEATURES

• 6° canted head allows for efficient cutting and improved blade life

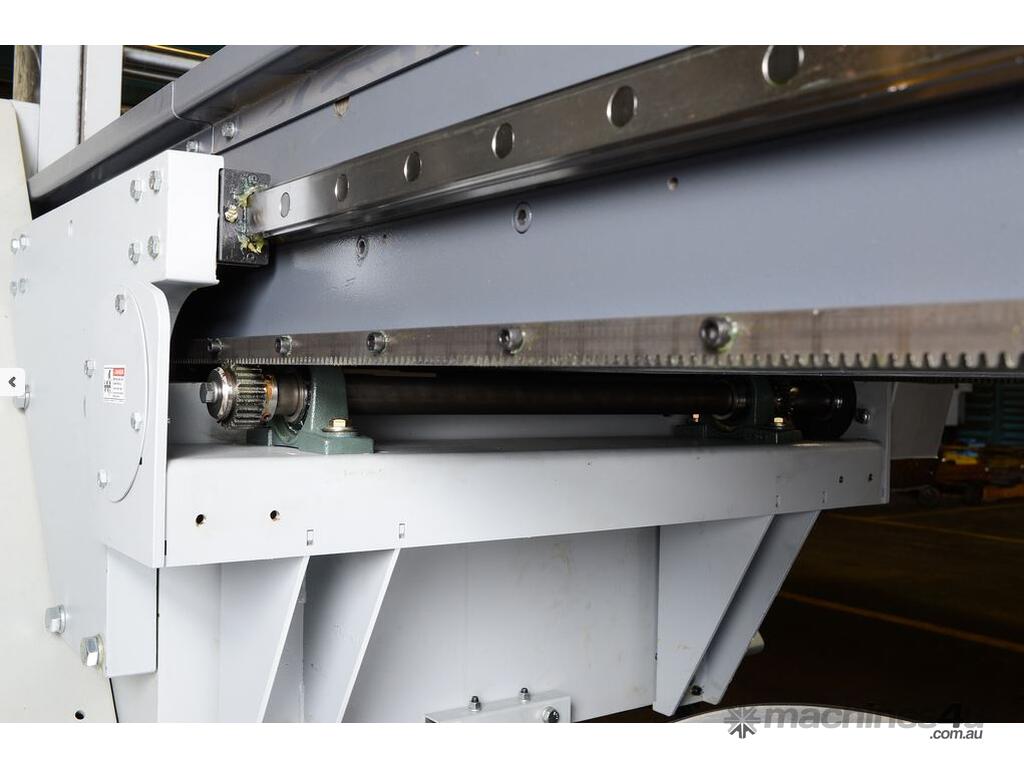

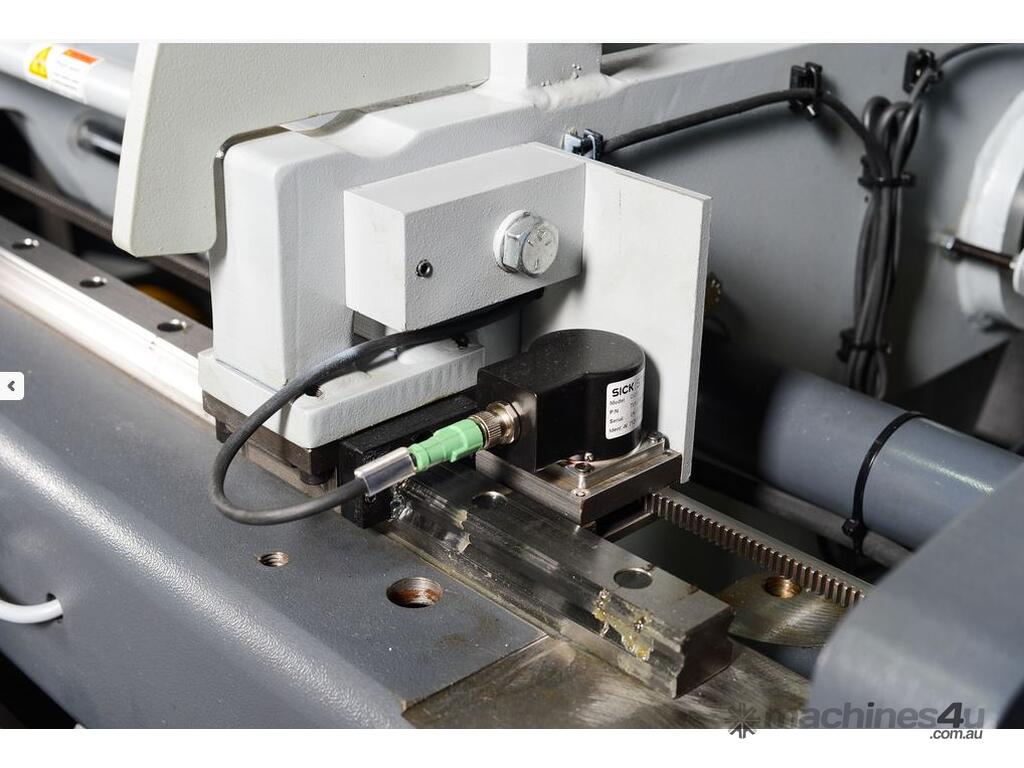

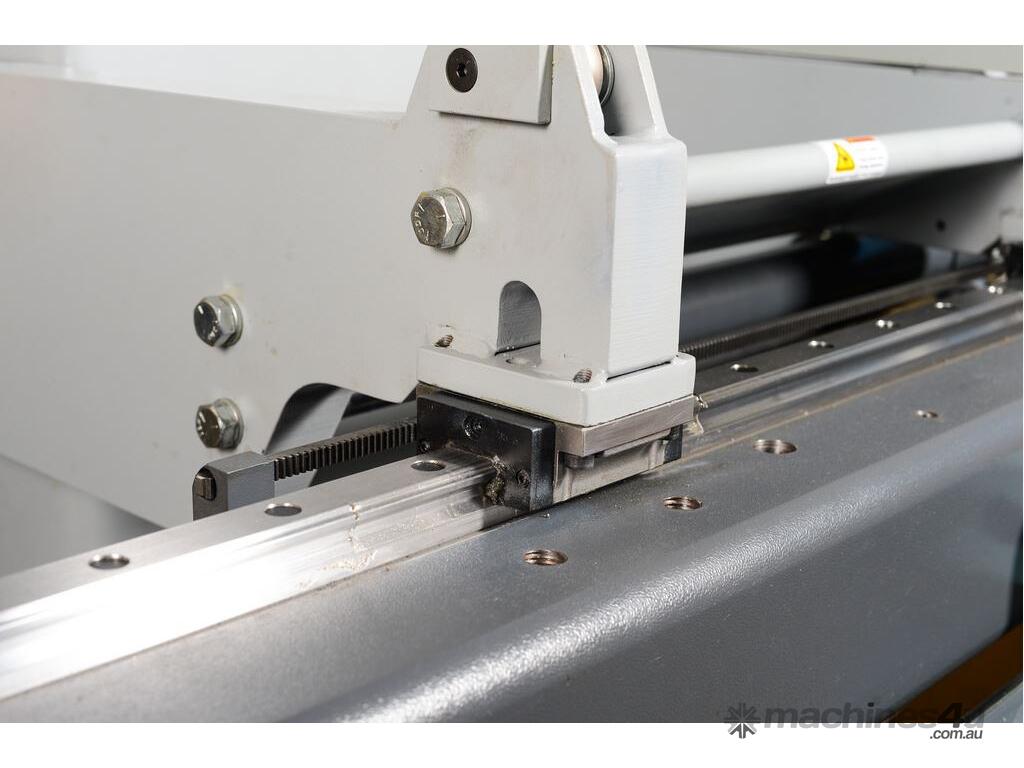

• 60” bar feed, left side• Shuttle features automatic multi-indexing up to 60” (120” optional) in a single stroke with automatic kerf compensation. Powered by a rack and pinion servo drive.

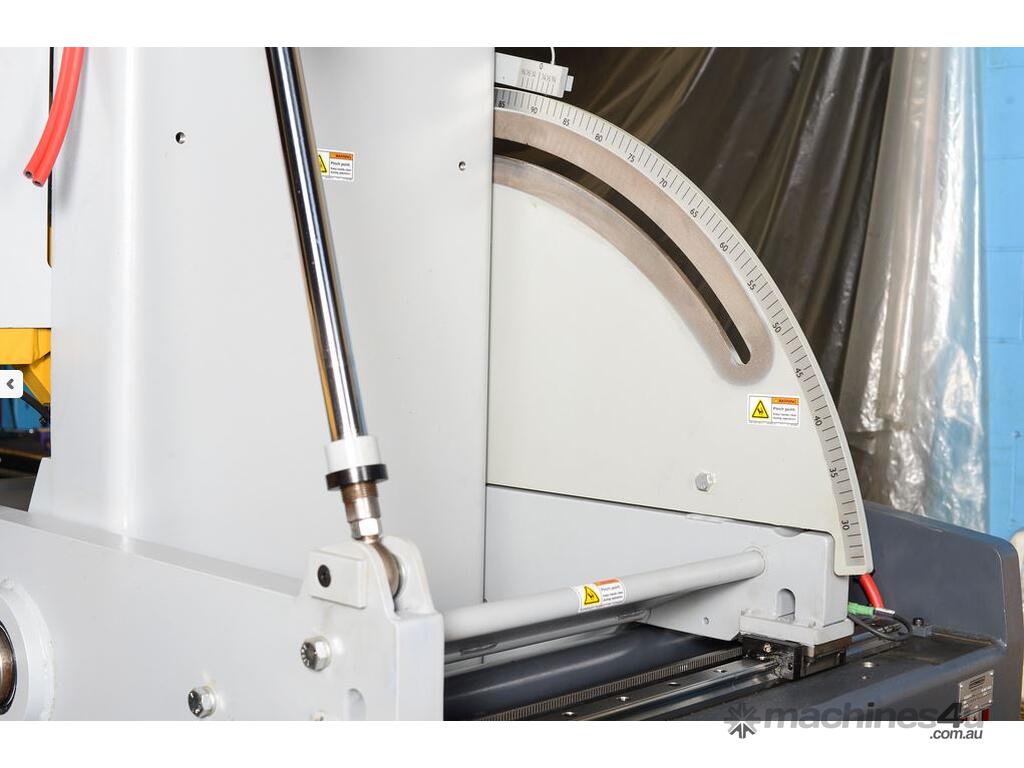

• Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right

• Hydraulic head tilt

• Cast iron band wheels

• Automatic PLC, touch screen control programmable up to 1000 jobs with 20 in queue.

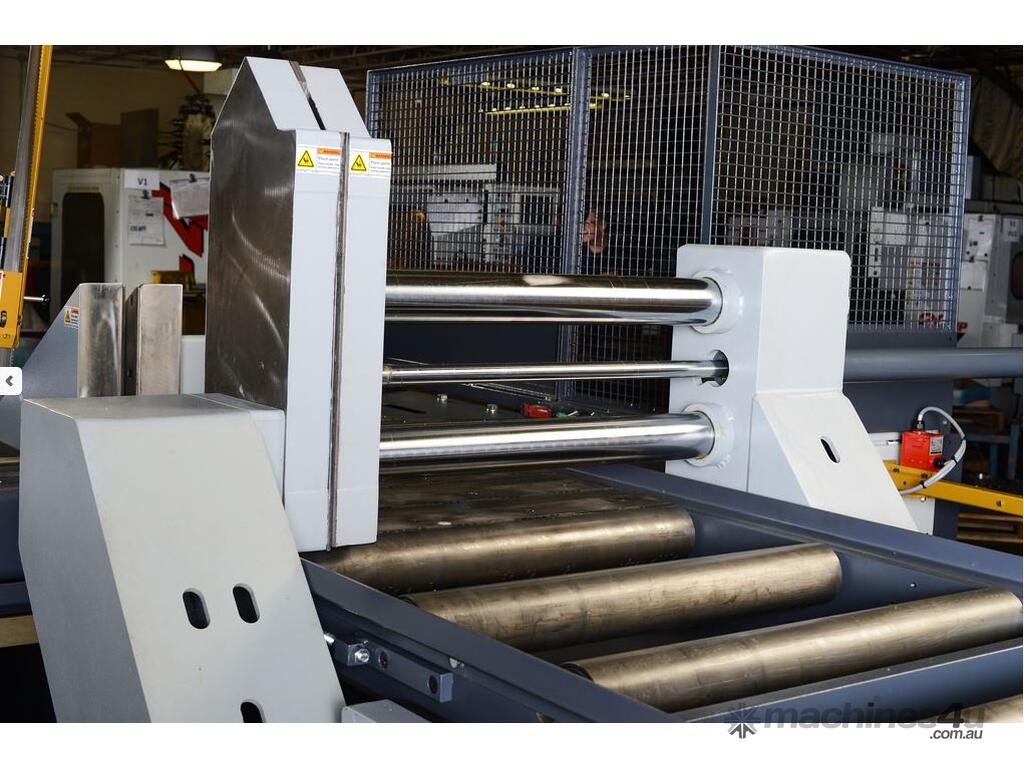

• Two full stroking hydraulic vices

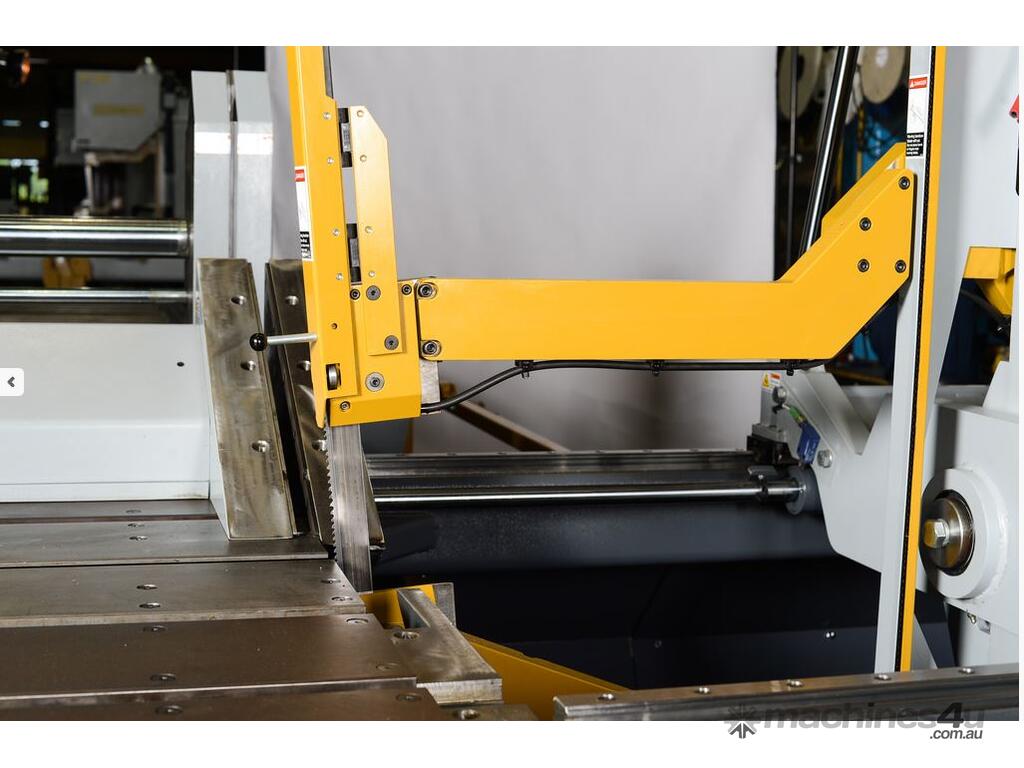

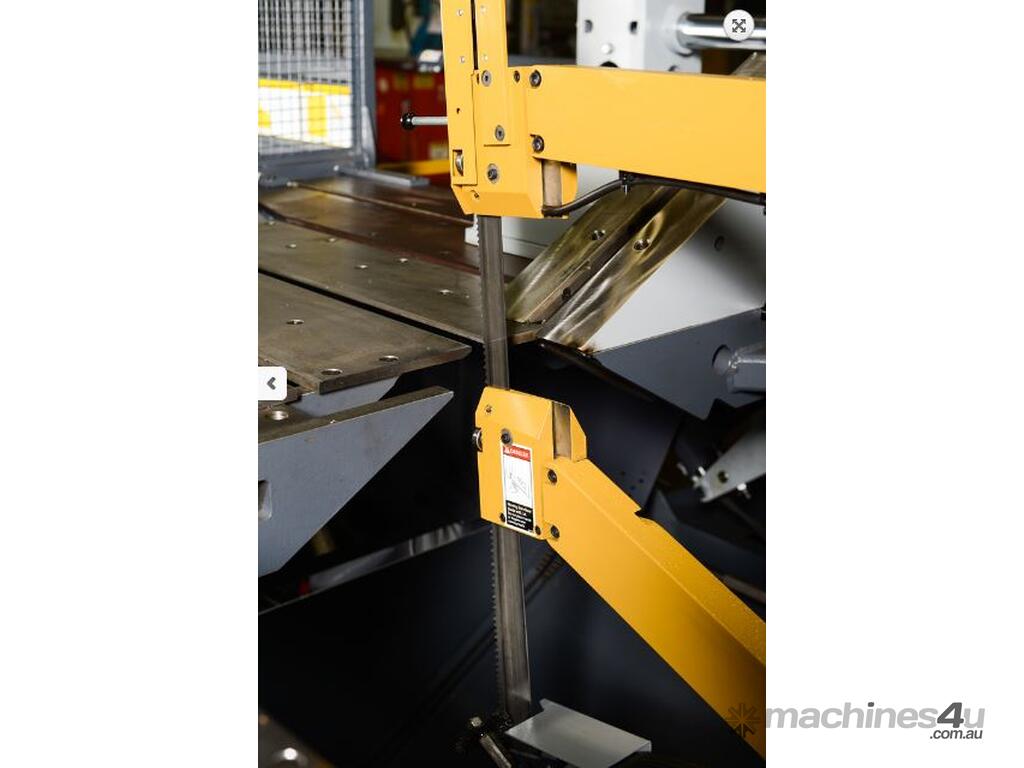

• Hydraulically powered, programmable guide arm attached

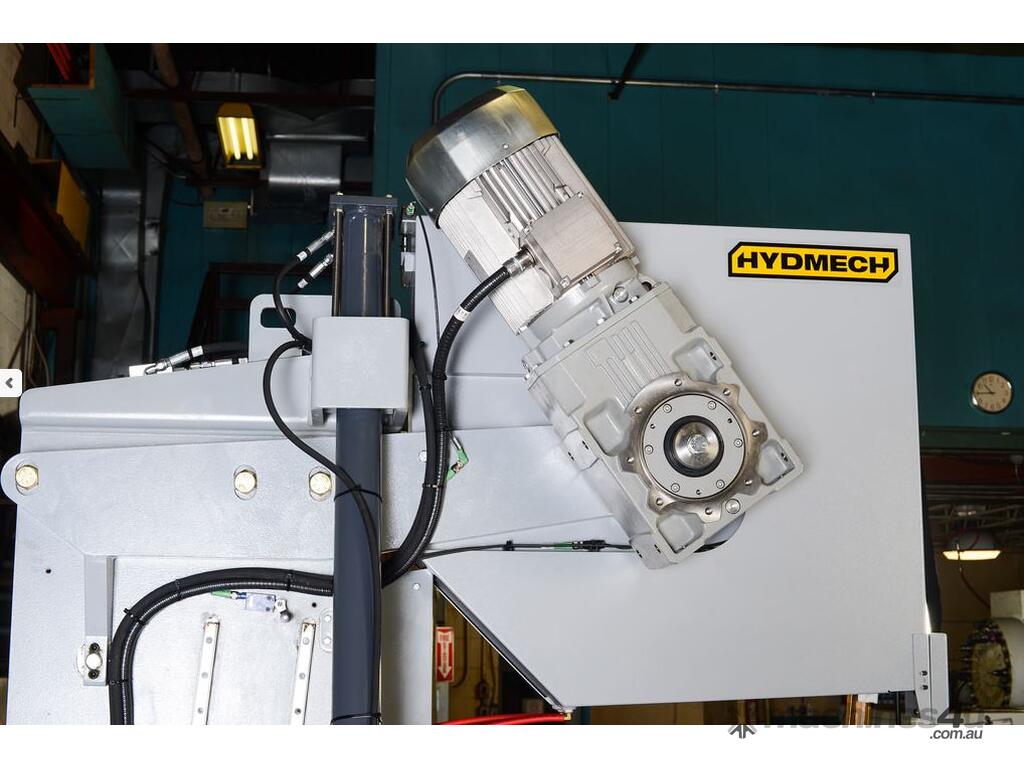

• 10 HP VFD. True direct blade drive

• Blade chamber separates material from cut part

• Hydraulic chip conveyor efficiently removes chips from saw base

• Replaceable blade brush

• Robust steel base

• Out of stock switch

• Blade breakage switch

• Easy access electrical and hydraulics

• Pop-up feed roller – one opposite bar feed

• Hydraulic band tensioning with digital readout

• Replaceable carbide guide inserts

• 3 HP hydraulic pump provides system pressure

• Safety door interlocks

• Flood coolant with wash down hose

• Laser light

• Work light

• Variable vice pressure


“We had such a good experience with the V-18APC, a smaller automatic shuttle compound mitering saw that HYDMECH made, we were really dead-set on getting another HYDMECH. What we liked about the V-25APC is the multiple options for clamping and shuttling, gear box location, its 25-in.-capacity throat and how far it could miter both directions.”

Dee Roskelley, Richards Sheet Metal Works


DOWNLOAD THE BROCHURE
