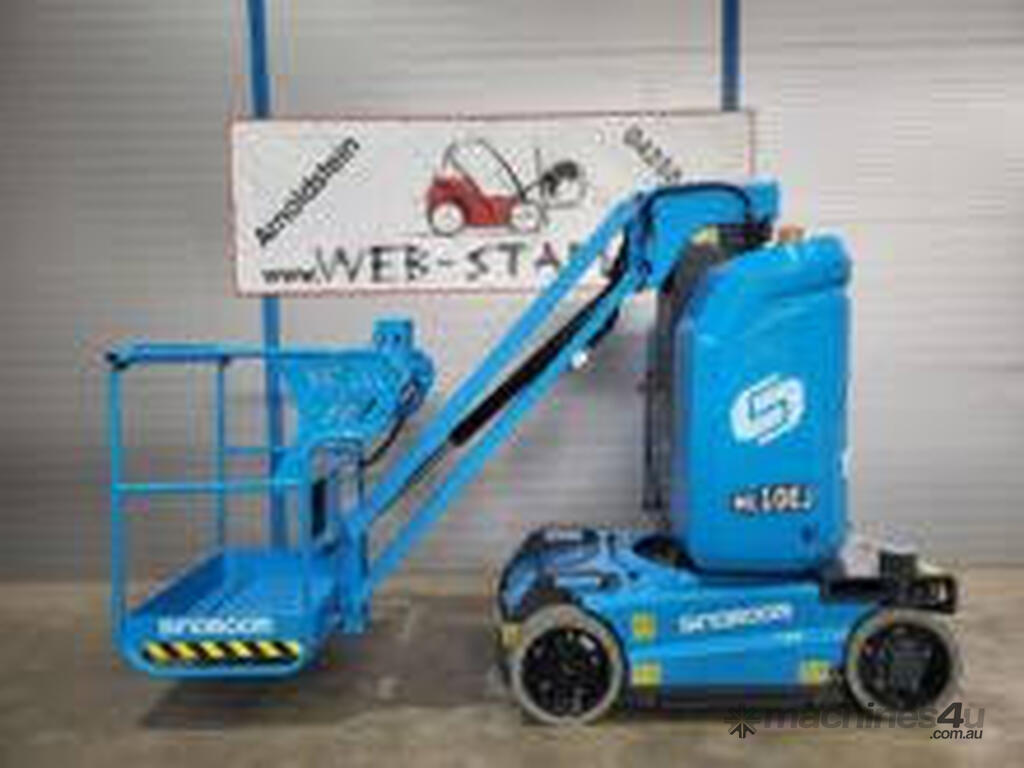

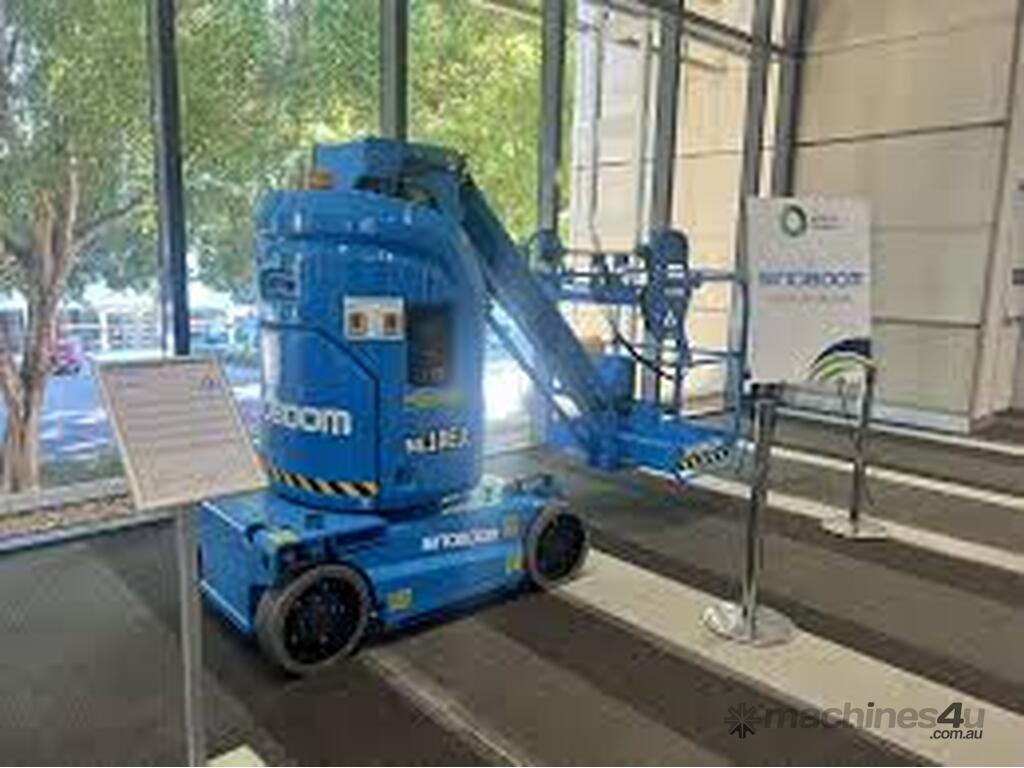

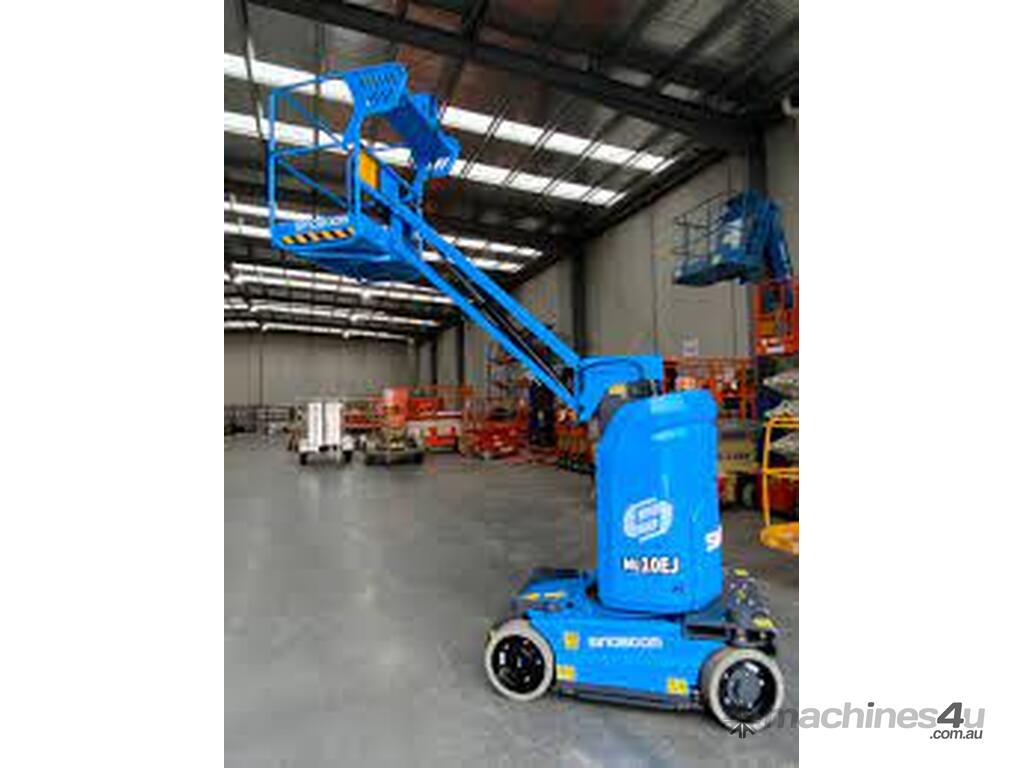

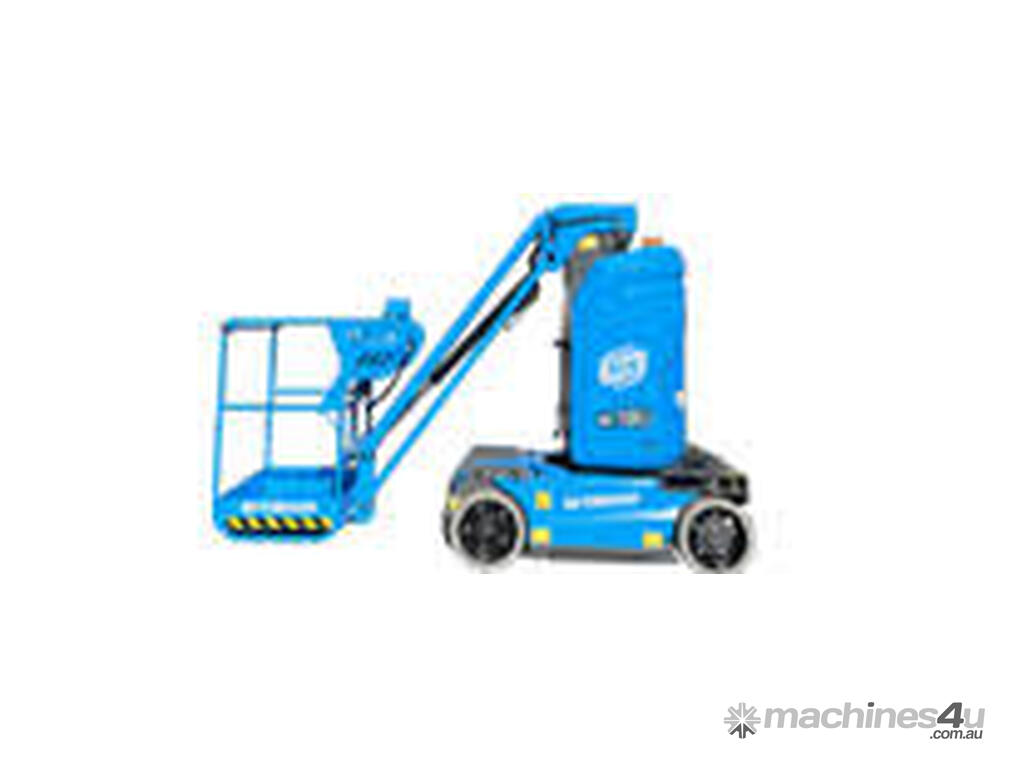

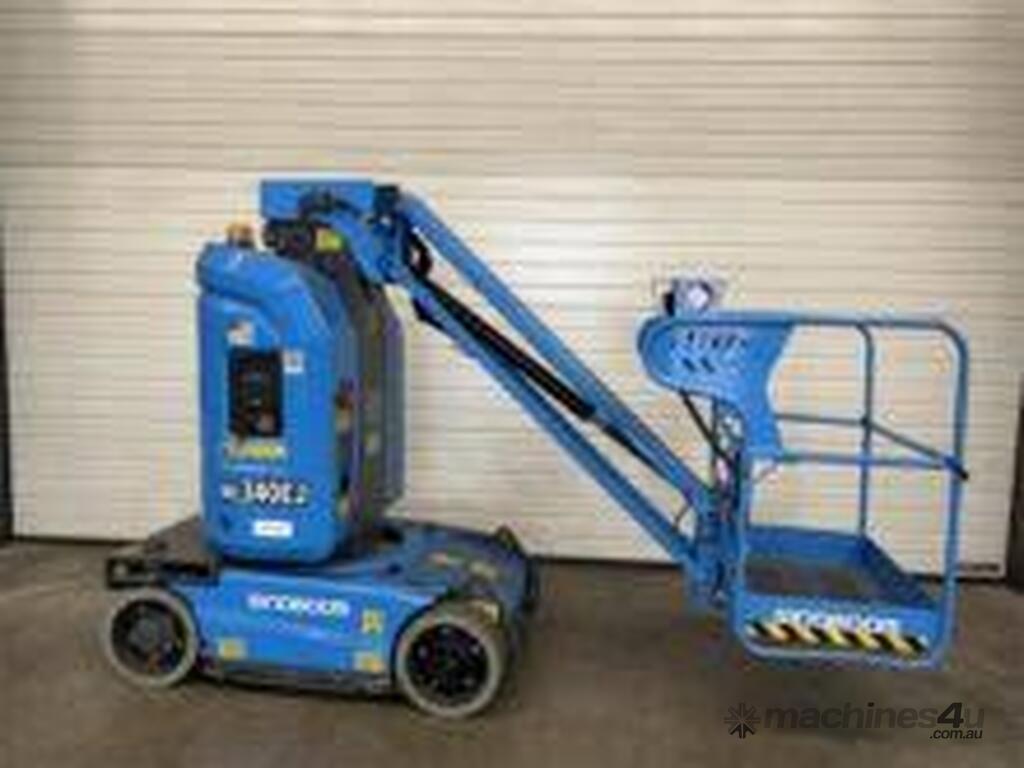

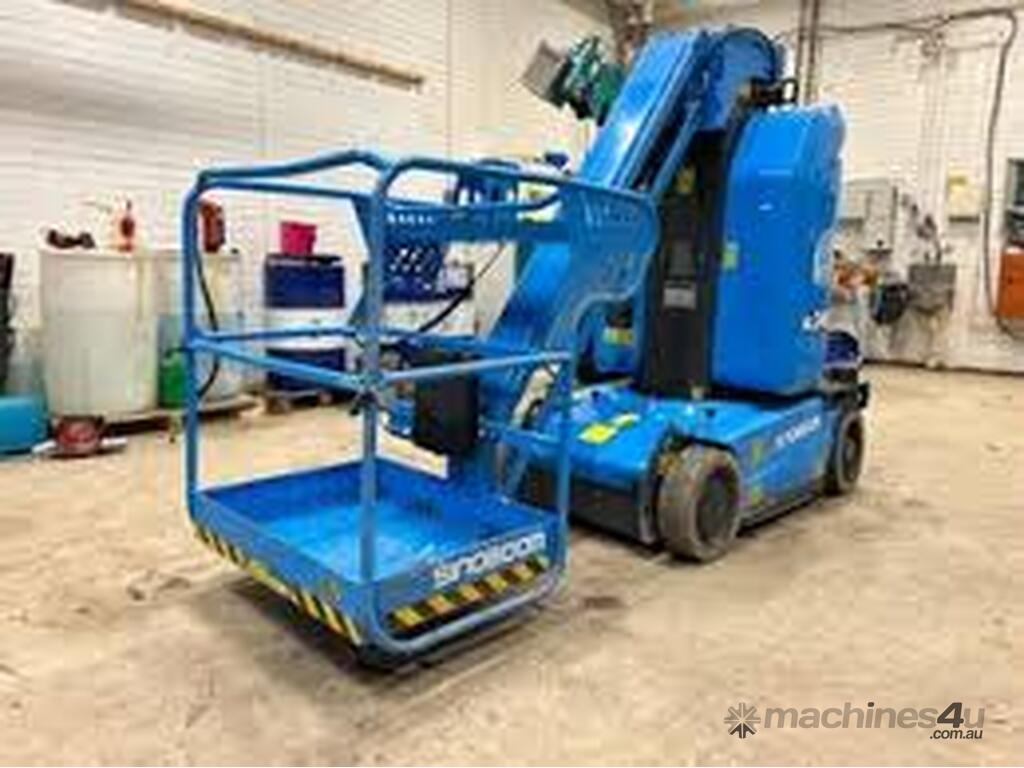

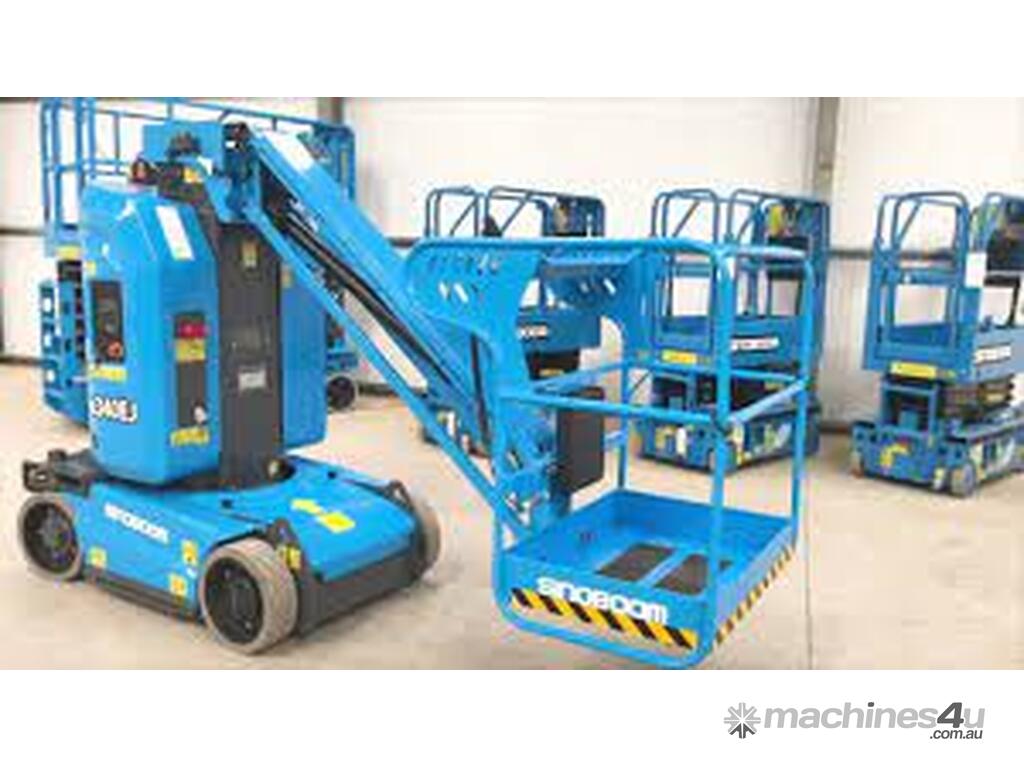

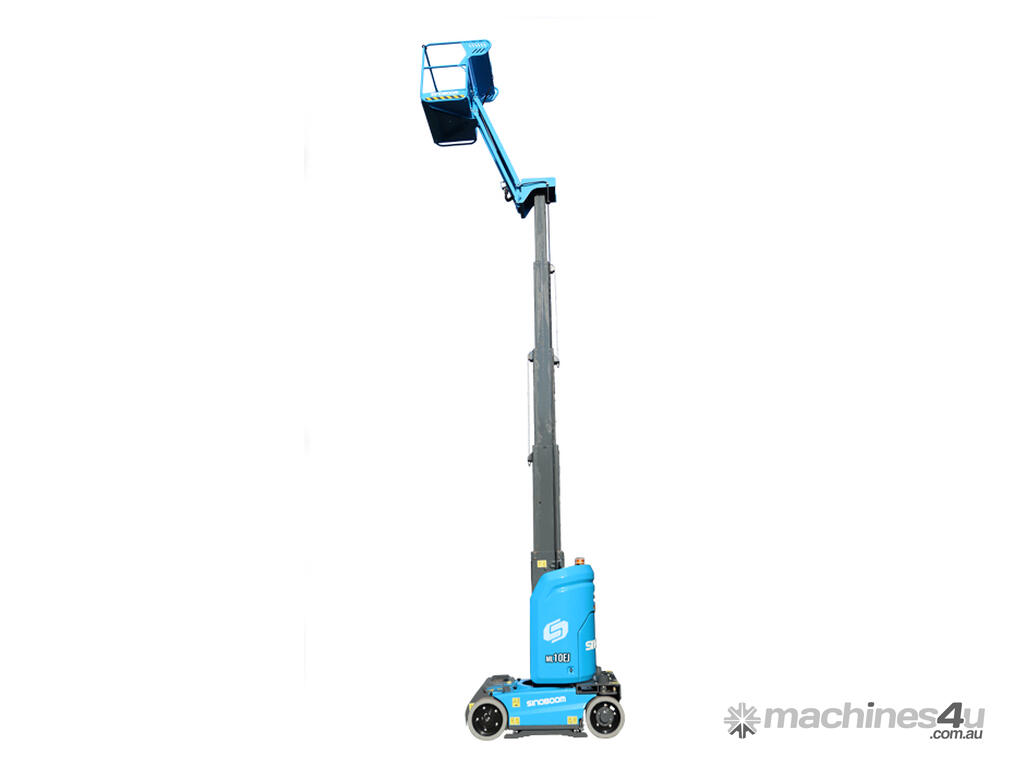

ML10EJ(ML270EJ) VERTICAL MAST LIFTS

Working height
10.3m
Platform Capacity
200kg
Gradeability
25%

PRODUCT HIGHLIGHTS
EASILY PASSES THROUGH MOST STANDARD DOORS
Easily passes through most standard doors, zero tail sweep and zero tailswing
UNIQUE DISASSEMBLY SYSTEM WITH INTEGRATED BOOM
- Unique disassembly system with integrated boom
UNIQUE MOVABLE POTHOLE PROTECTION SYSTEM
- Unique movable pothole protection system

DIMENSIONS
Max Platform Height
8.3m (27'3")
Max Working Height
10.3m (33'9.5")
Max Horizontal Reach
3.3m (10'10")
Turntable Rotation
345°
Turntable Tailswing
Vertical jib rotation
+70°/-50°
[A] Height-Stowed
1.99m (6'6")
[B] Width-Stowed
0.99m (3'3")
[C] Wheelbase
1.2m (3'11")
[D] Length-Stowed
2.97m (9'9")
Ground Clearance
(Pothole Guard Stowed)
0.06m (2.36")
Ground Clearance
(Pothole Guard Deployed)
0.02m (0.79")
Platform Dimensions(L×W×H)
0.99×0.7×1.1m (3'3''×2'3.6''×3'7.3'')
PERFORMANCE
Platform Allowable Occupants
(Indoor/ Outdoor)
2 persons/1 person
Platform Capacity
200kg (440lbs)
Drive Speed-Stowed
4km/h (2.5mph)
Drive Speed-Raised
0.6km/h (0.37mph)
Elevation Time
32~36s (unloaded)
Descent Time
32~37s (unloaded)
Gradeability
25%
Turning Radius
(Inside/Outside)
0/1.55m (0/5'1")
Tilt Rating
(Front to Back/Side to Side)
3°/3°
Tyre Spec/Type
406×127mm (16×5") solid
POWER
Batteries
24 V, 240 Ah
Power Source
24V DC / 4 kW
Drive Mode
2 WD×2 WS
Charger Input
100?240 V AC
Charger Output
30A
Brake
2 rear wheel
Hydraulic System Capacity
13L (2.9 UK gal / 3.4 US gal)

Weight
2,678kg (5,904lbs)
Standards Compliance
CE/AS/EAC/CSA/ANSI
