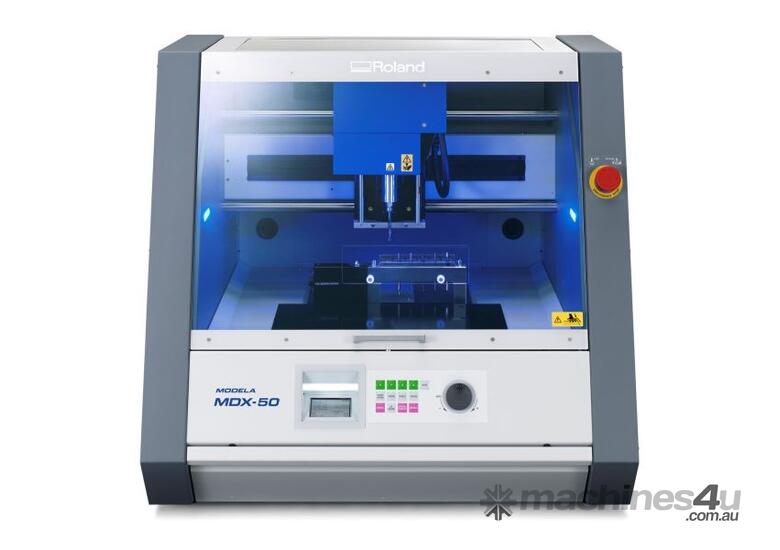

MODELA MDX-50 Benchtop Milling Machine

The MODELA MDX-50 combines precise, automated milling and unmatched ease-of-use. An ideal solution for short-runs and prototypes, the MDX-50 reduces operation time and simplifies production so users of all abilities can mill functional parts with incredible quality on a wide range of materials.

Distinguishing Features:
Advanced drive system supports dimensional stability
Large machining area plus enhanced machine rigidity and drive mechanics
Optional rotary axis rotates materials automatically from 0 to 360 degrees continuously or indexes for 2-sided, 4-sided and custom angles
Simple-to-load tools and automatic machine calibration
Requires no special electrical set-up and needs no additional air compressor
Colour-coded LED status lights allow current job status to be monitored from a distance
Built-in debris collection drawer with rail guided safety door for safe and clean production
Ideal for use in studio and educational environments

Operator-Friendly Control and Software
Become a 3D milling expert almost immediately with the MDX-50’s simple yet powerful built-in control panel and virtual control panel (VPanel), and bundled SRP Player CAM software that’s easy-to-use and simplifies operation.
With the control panel at the front of the unit, almost all operations can be completed from the unit itself without having to go back to a PC. The VPanel interface operates seamlessly with the MDX-50 and allows users to make changes to spindle rotation or speed during operation.

The following items are just some of the materials that can be milled with the MDX-50 benchtop CNC mill:
ABS
POM
Nylon Plastic Foam
Modeling Wax
PVC Plywood
Hardwood
Acetal

Mill Fine Details and Smooth Finishes

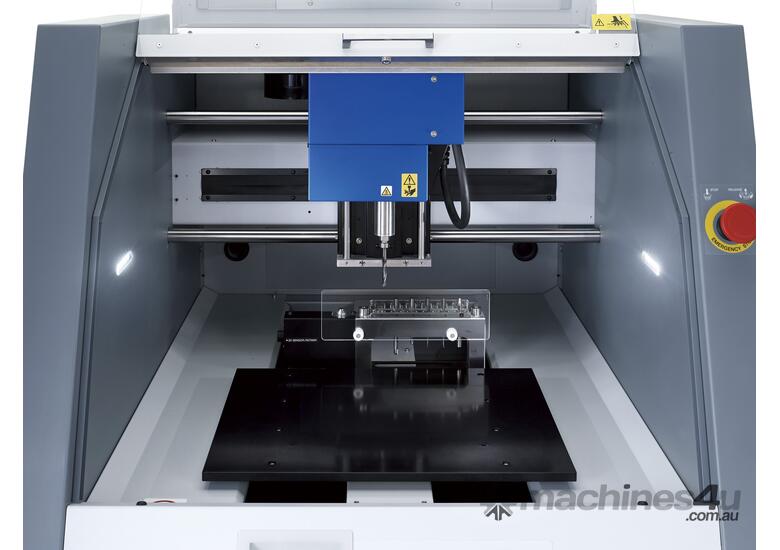

With an improved drive system, machine rigidity and enhanced drive mechanics, the MDX-50 mills incredibly smooth and accurate prototypes for testing structure, function, and assembly with other parts. A machining area of 400mm (X) x 305mm (Y) x 135mm (Z) supports production of large single objects or batch production of smaller multiple parts.

Free Your Time

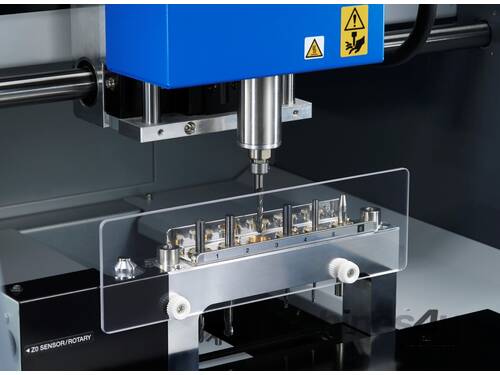

The automated features of the MDX-50 enables users to mill with speed and confidence. Combine the 5-station ATC and optional rotary axis unit for the most automated and precise operation:
Auto-sensing function corrects the tool length to ensure milling accuracy for every job

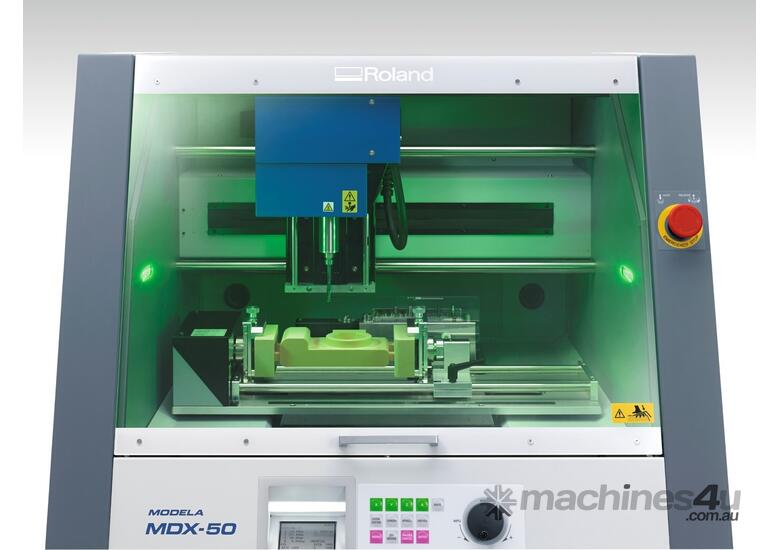

Optional rotary axis for effortless production of complex surfaces:
Includes a wide, self-centering headstock and tailstock workpiece clamps
Auto-rotates materials from 0-to-360 degrees
Indexes for 2-sided, 4-sided and custom angles

The Peace of Mind That Comes with Buying a Roland
Like all Roland products, the MDX-50 was designed and manufactured at a state-of-the-art, ISO-certified facility. With a 3 Year Parts ‘n All Warranty, you have the peace of mind knowing your device is backed by one of the most comprehensive warranty packages in the industry

Features
Included Software for Experts and Beginners
SRP Player CAM: The popular in Industry and Education software has been updated to match the advanced functions of the MDX-50.
ClickMill: ClickMill Software provides direct control of the MDX-50 for surfacing, drilling holes, cutting pockets and other finishing processes, all without having to access CAD or CAM software.
G Code Support: The MDX-50 supports G-code NC programming language, making it well suited for both professional and educational applications.

MODEL MDX-50
Acceptable materials* Resins such as chemical wood and modeling wax (metal not supported)
Operating range X: 400mm
Y: 305mm
Z: 135mm
Table size W: 400mm
D: 305mm
Loadable workpiece size
X: 400mm
Y: 305mm
Z: 100mm

Axis drive Stepper Motor
Feed rate XY: 7 to 3600mm/min
Z: 7 to 3000 mm/min
Software resolution RML-1: 0.001 mm/step NC code: 0.001 mm/step
Mechanical resolution 0.01 mm/step
(0.39 mil/step; half step)
Spindle motor Brushless DC motor
Spindle rotation speed 4500 ? 15000 rpm
Tool chuck Collet
Tool Change Method AutomaticTool Changer (ATC)
ATC Magazine Capacity 5 Tools + 1 Detection pin (6 Position Capacity)
Tool Shank Diameter 6.35, 3.175mm
Operating noise During operation
Dust box dimmensions 600 x 700 x 95mm
Interface USB
Power requirements (VAC/A) AC 100 to 240 V ±10%, 50/60 Hz, 1.2 A
(Overvoltage Category: II, IEC 60664-1)
Power consumption (W) ? 95W
Acoustic noise level (dB) No-load operation: 60 dB (A) or less
Standby: 45 dB (A) or less
External Dimensions Width X Depth x Height: 760 × 900 × 732 mm
Weight 122kg
Installation environment Indoor use at altitudes Up to 2000 m
Temperature 5 to 40°C
Humidity 35 to 80%RH (no condensation)
Ambient pollution degree 2 (as specified by IEC 60664-1)
Short-term temporary overvoltage 1440 V
Long-term temporary overvoltage 490 V
Included items Power cord, USB cable, manual, Roland DG Software Package CD, detection
pin, hexagonal screwdriver, hexagonal wrench, wrench, tool holder, tool
positioner, Z0 sensor
