MONTABERT HC 150 RP HYDRAULIC DRIFTER

MONTABERT DRIFTERS ARE THE RESULTS OF YEARS OF EXPERIENCE IN HYDRAULIC ROCK BREAKERS AND DRIFTERS DESIGN AND MANUFACTURING

Deep knowledge in shock wave transmission and percussion mechanism theory have allowed Montabert engineers to be the first to develop new concepts such as hydraulic dampening and progressive blow energy.

Close relationship between manufacturing and engineering, ultra modern machining tools, sophisticated heat treatment workshop in our Saint-Priest plant, are some of the key points allowing Montabert to ropose hydraulic drifters wich are recognized as a worldwide reference.

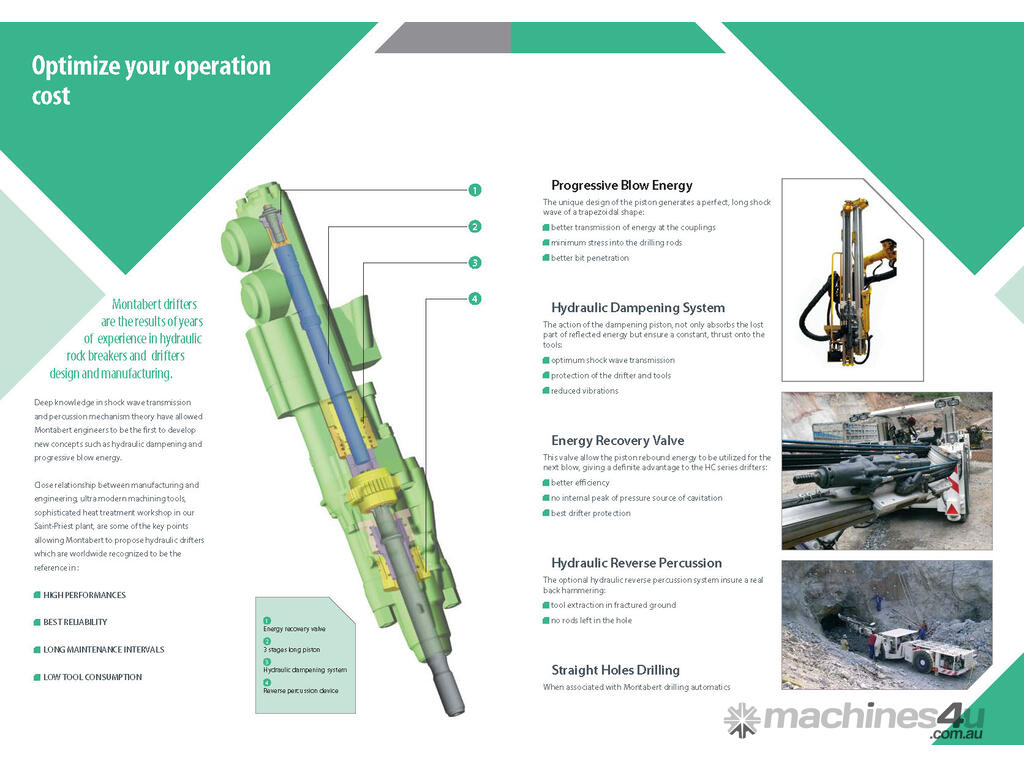

PROGRESSIVE BLOW ENERGY
* The unique design of our piston generates a perfect, long shock wave in a
trapezoidal shape:
* better transmission of energy at the couplings
minimum stress into the drilling rods
* better bit penetration

HYDRAULIC DAMPENING SYSTEM
* The action of the dampening piston, not only absorbs the lost part of reflected
energy but ensure a constant, thrust onto the tools:
* better efficiency
no internal peak of pressure source of cavitation
* ideal drifter protection

ENERGY RECOVERY VALVE
* This valve allows for the piston's rebound energy to be utilized for the next blow,
giving a definite advantage over the HC series drifters:
* optimum shockwave transmission
drifter protection and reduced tool vibration

HYDRAULIC REVERSE PERCUSSION
* The optional hydraulic reverse percussion system insures a real back hammering:
* tool extraction in fractured ground
no rods left in the hole

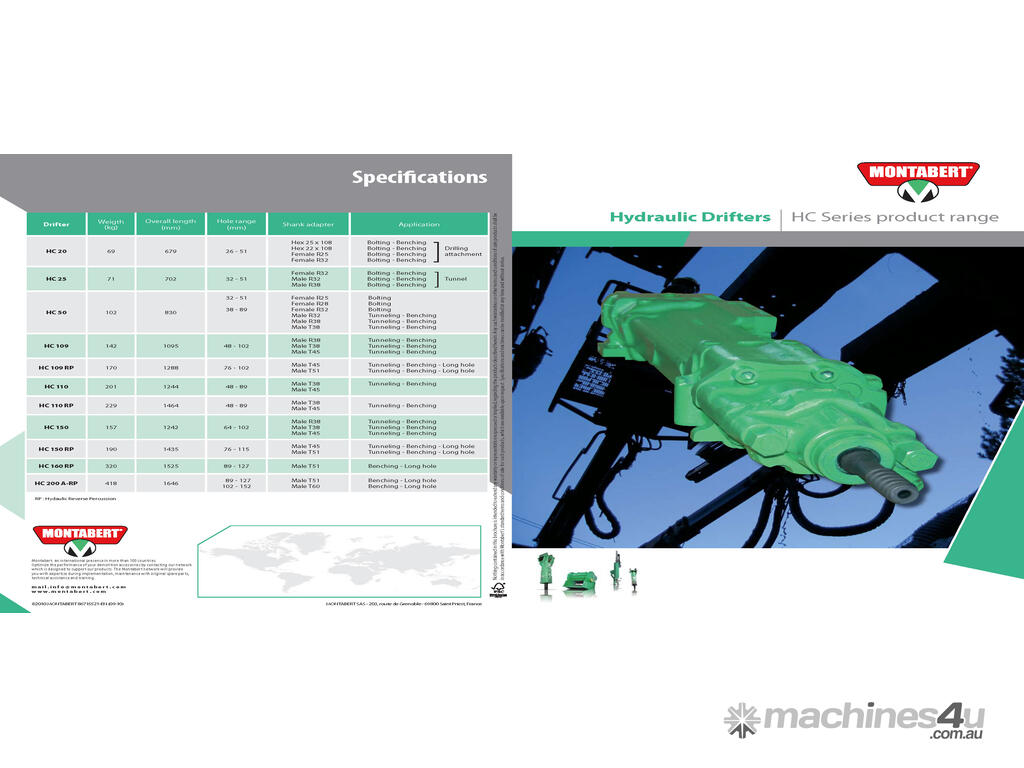

SPECIFICATIONS - HC 150 RP
Weight: 190 kg
Overall length: 1435 mm
Hole range: 76-115 mm
Shank adapter: Male T45, Male T51
Application: Tunnelling, Benching
