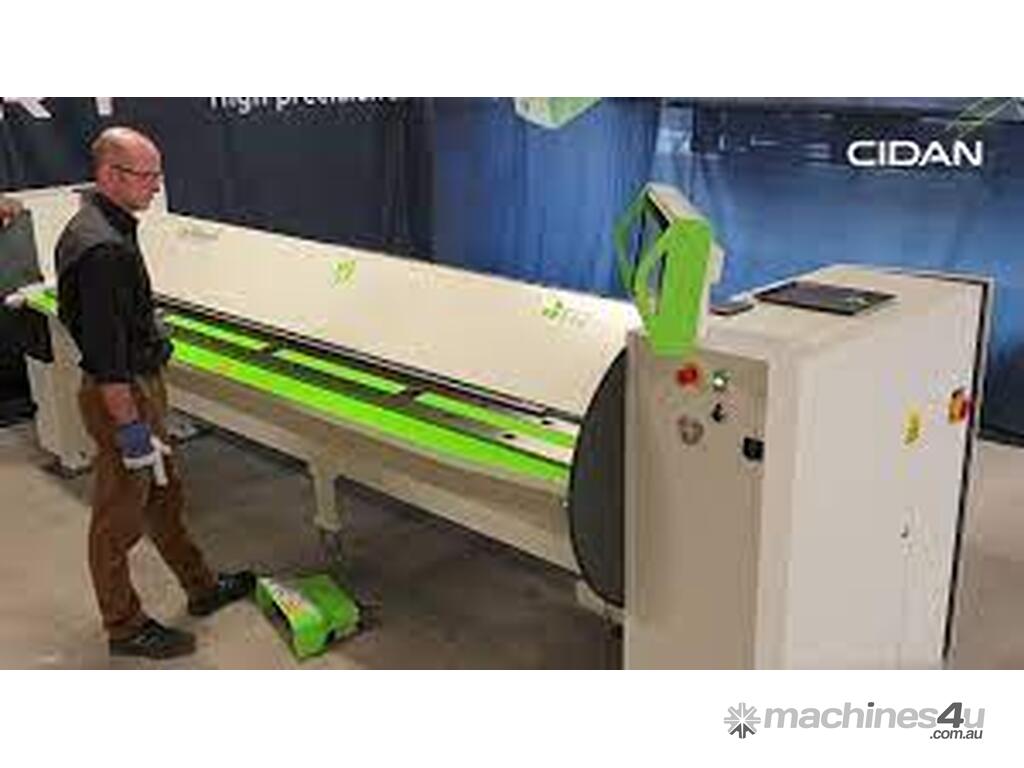

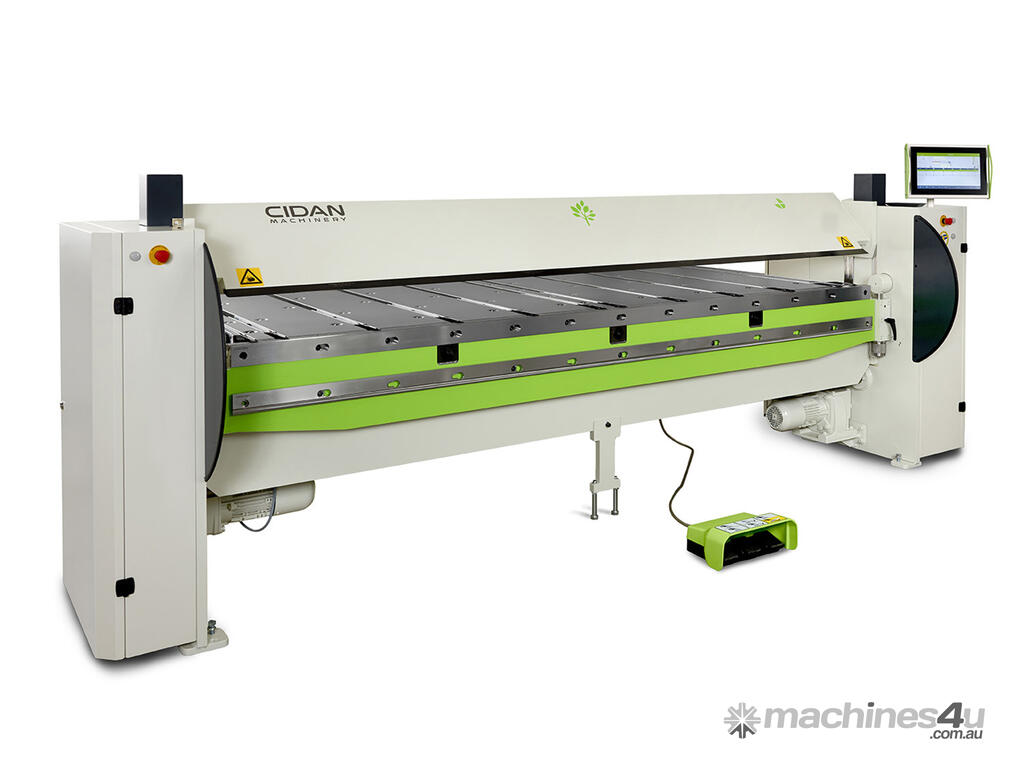

MOST POWERFUL FOLDER IN ITS CLASS - Cidan FS26

Easy to program, fast to run, and folds flawlessly, the Cidan FS26 is a folder that is built in a sturdy, all-welded construction.

It's made for continuous running under the most demanding conditions. If you’re looking for a reliable machine adapted for folding all types of thinner materials, look no further than the FS26.

The eccentric is finely-tuned to minimize wear and maximize the transfer of momentum. This results in best-possible clamping pressure and eliminates lag time in the process – saving power, time, and money.

UNIQUE FEATURES

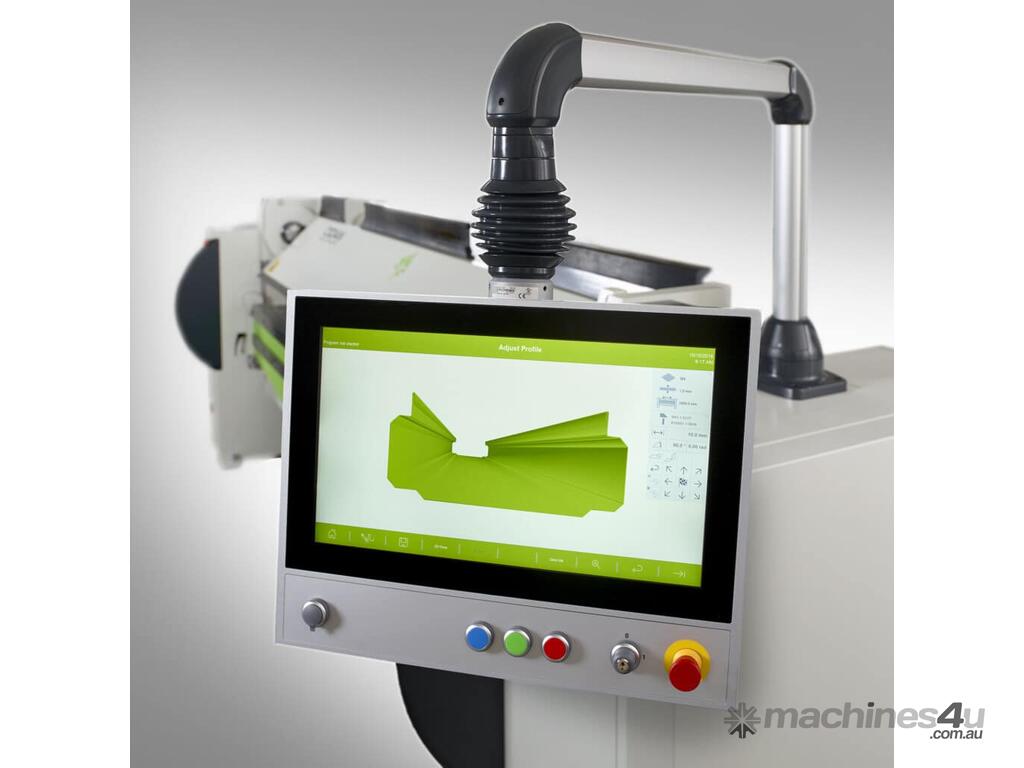

• ProLink control, with touch screen and graphic programming
• 40? backgauge with 3 rows of 14 gauging fingers

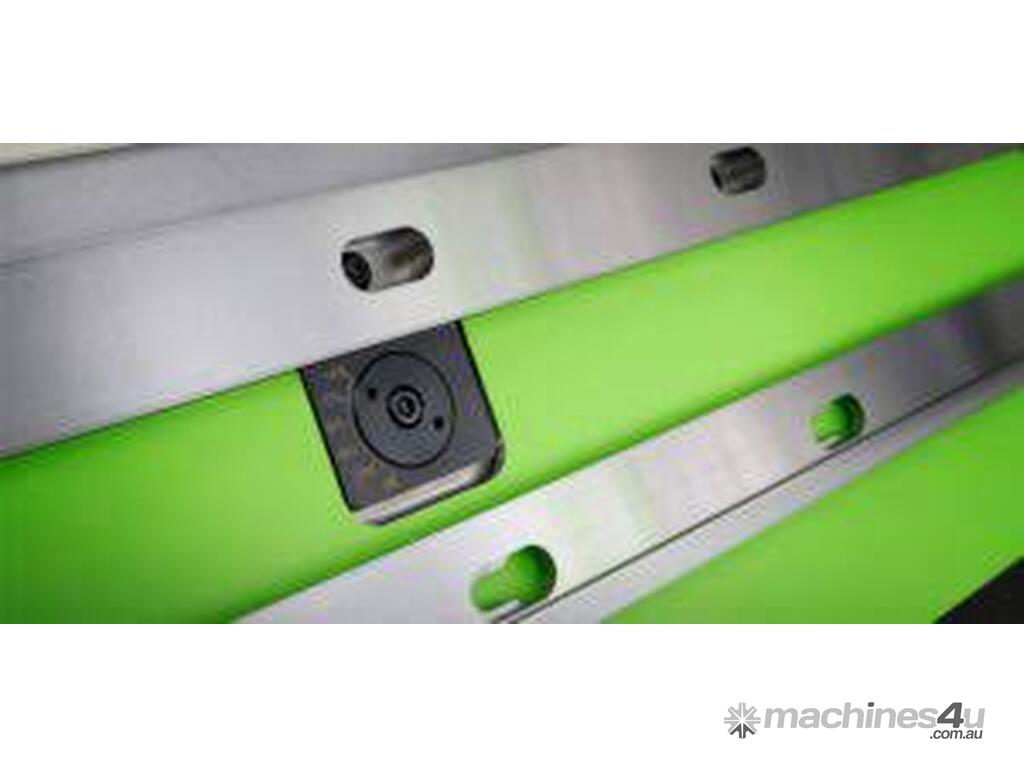

• Folding beam rails .275? (7mm), .396?(10mm) and .787? (20mm) equiped with bayonet quick change tooling
• Tooling is made from 42CrMo4 steel, and coated with black oxide to prevent rust
• Adjustable crowning of folding beam rail
• Material thickness sensing on clamping beam
• Eccentric clamping beam drive
• Speed optimization-when folding beam comes down to 80 degrees, upper beam starts to come up
• Solid lower beam, so when hemming you will not leave dimples on the part
• 2 year parts and labor warranty

SPECIFICATIONS

Working Length: 2600mm
Folding Capacity:
- Steel ga: 2.5mm
- Stainless ga: 1.6mm
- Aluminium: 3.7mm
Opening Height Clamping Beam: 5.9mm
Length: 3645m
Width: 2040m
Height: 1955m
Weight: 3180kg
Motor:
- Clamping Beam: 1.5kW
- Folding Beam: 1.5kW
