MOTIVE GROUP - EHR 15/30 BATTERY ENERGY STORAGE

Model || 50Hz
Nominal power kVA || 15
Storage capacity kWh || 28,4
Voltage (50Hz) VAC || 400V/3p+N
Lifespan (90% DoD) Cycles || 6000
Battery management system || LFP batteries with built-in BMS
Recharge time / Maintenance time*
• Recharge time h || 2,45
• Maintenance recharge (DoD%) h || 7,45
Dimensions (L x W x H) mm || 1650 x 1100 x 1500
Weight Kg || 554
/\/\/\
*Considering a total System efficiency of 0.829 (Inverter 0.95 | Battery 0.9 | Wiring 0.97)

Model || 50Hz
Nominal power kVA || 15
Storage capacity kWh || 28,4
Discharge autonomy*
• 100% of the rated power h || 1,31
• 75% of the rated power h || 1,75
• 50% of the rated power h || 2,62
• 25% of the rated power h || 5,24
/\/\/\
*Considering a total system efficiency of 0.829 (Inverter 0.95 | Battery 0.9 | Wiring 0.97). DoD90%.

EHR | Features and Benefits

1. Zero Emissions & Zero Noise: 100% clean solution. Reduces
your carbon footprint.

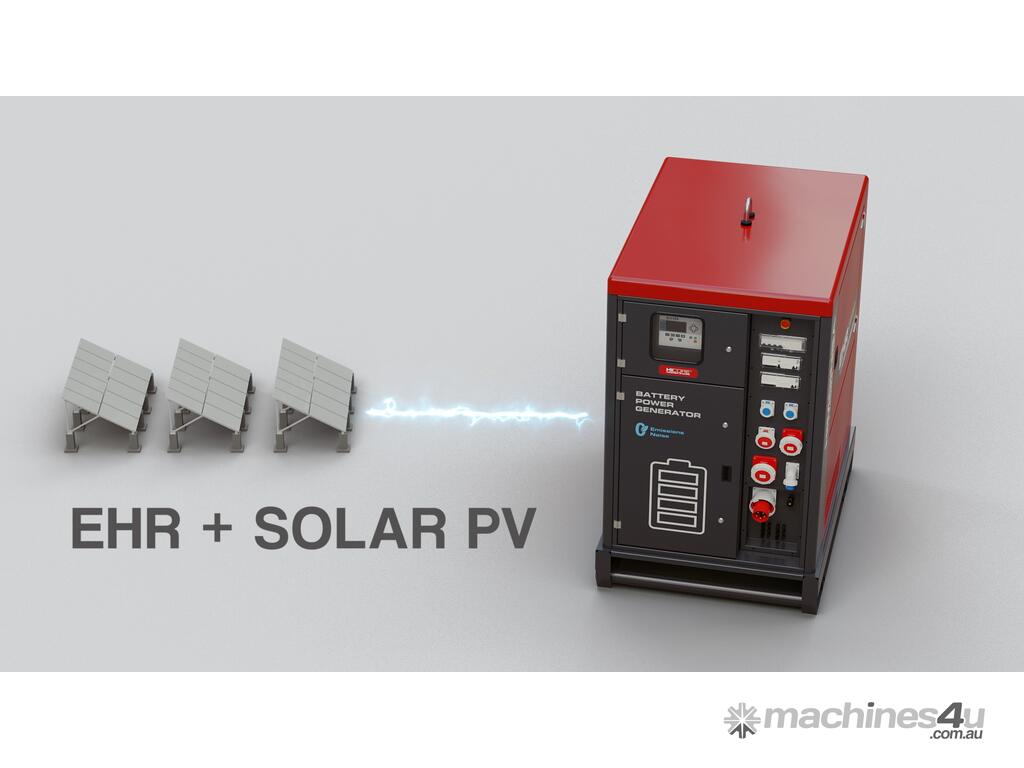

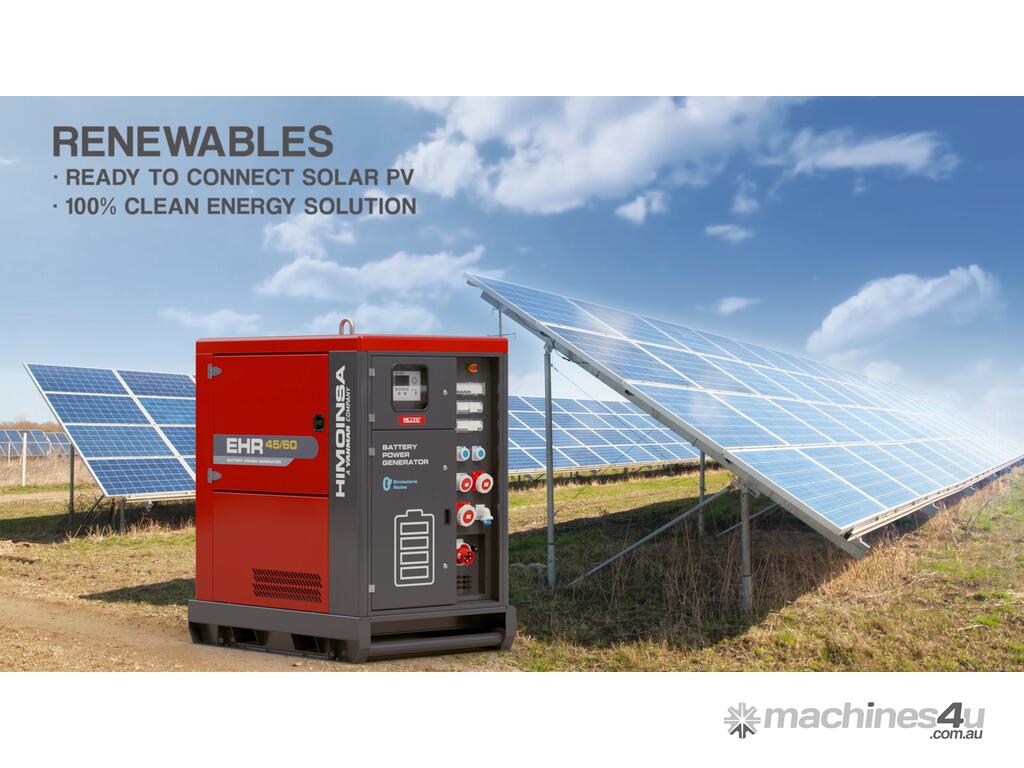

2. Renewable Energy: Ready to connect PlugPV panels
to the system. Including up to 8kW MPPT, we can integrate
renewable energies into any working mode, increasing
efficiency.

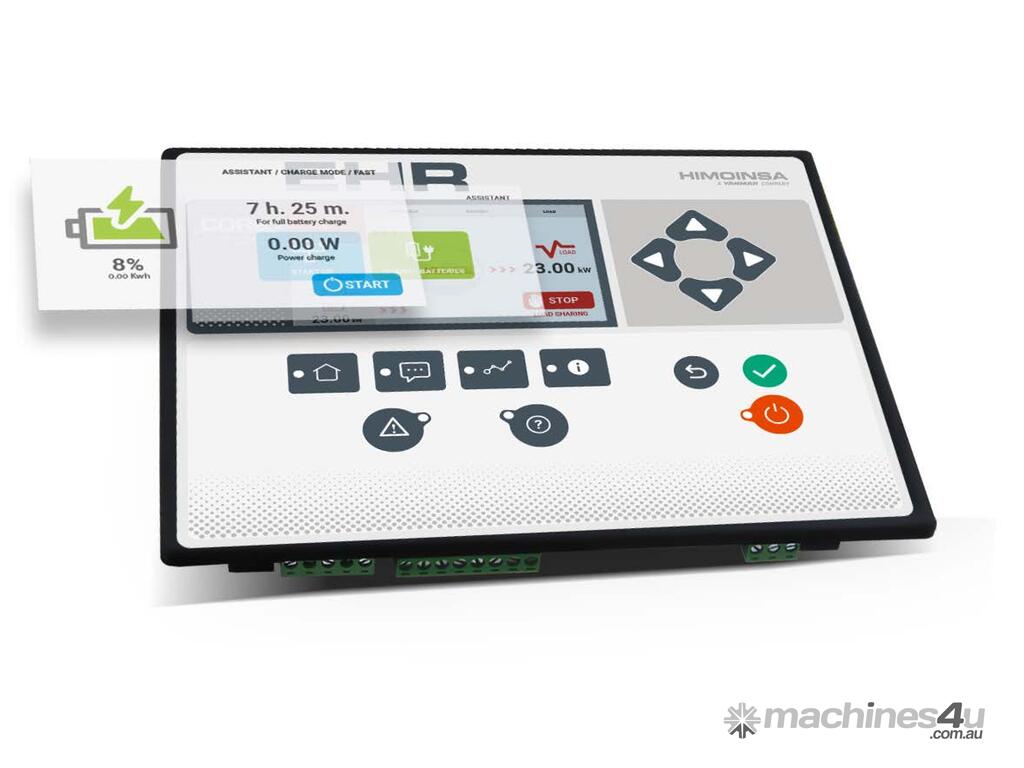

3. Ease of Use: (UX-UI) User-friendly interface designed by
HIMOINSA to simplify your day-to-day work. HICORE, smart
management system.

4. Connectivity: Smartphone APP (Remote configuration,
maintenance & diagnostics) / WEB Portal / 3G/4G Remote
Communication, Dual SIM Modem/Router.

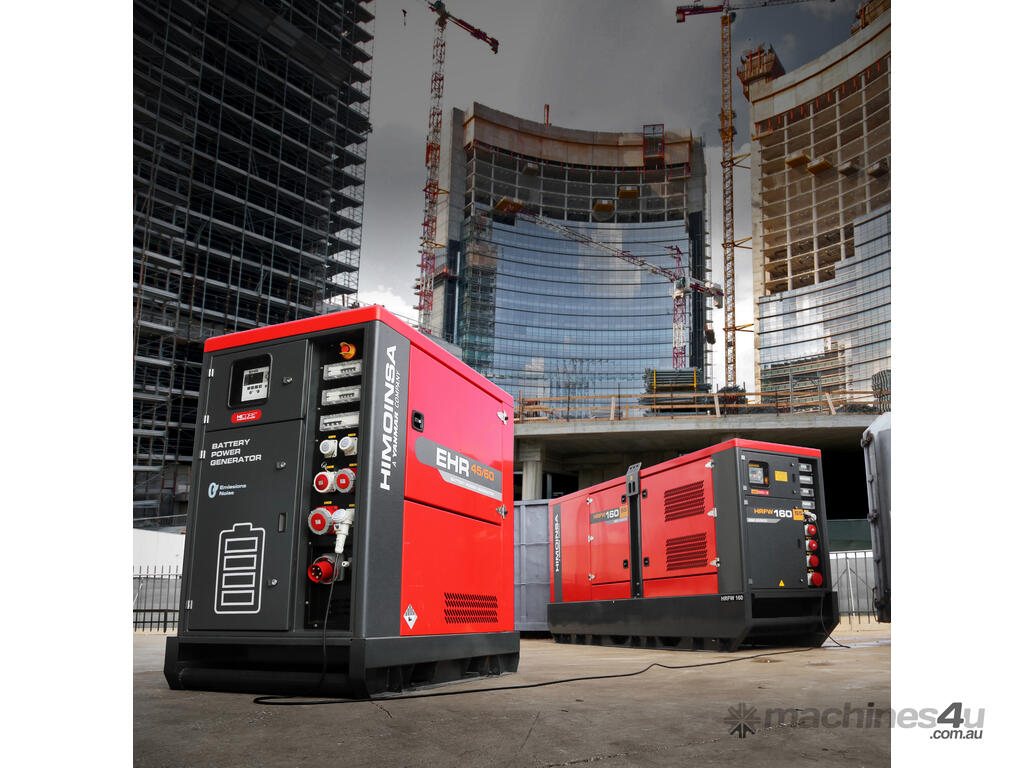

5. Robust Design: The mobile rental canopy withstands extreme
environmental conditions and temperatures from -15ºC to
45ºC. The canopy has best-in-class primer and powder coating.
Galvanised frame (optional).

6. Transport Efficiency: The design includes a lifting eye, skid
frame with forklift pockets, anti-theft features and first contact
point to avoid scratches on the canopy. Its compact design
makes it possible to transport up to 13 units by truck and 6 and
14 units in twenty-foot and forty-foot containers, respectively.

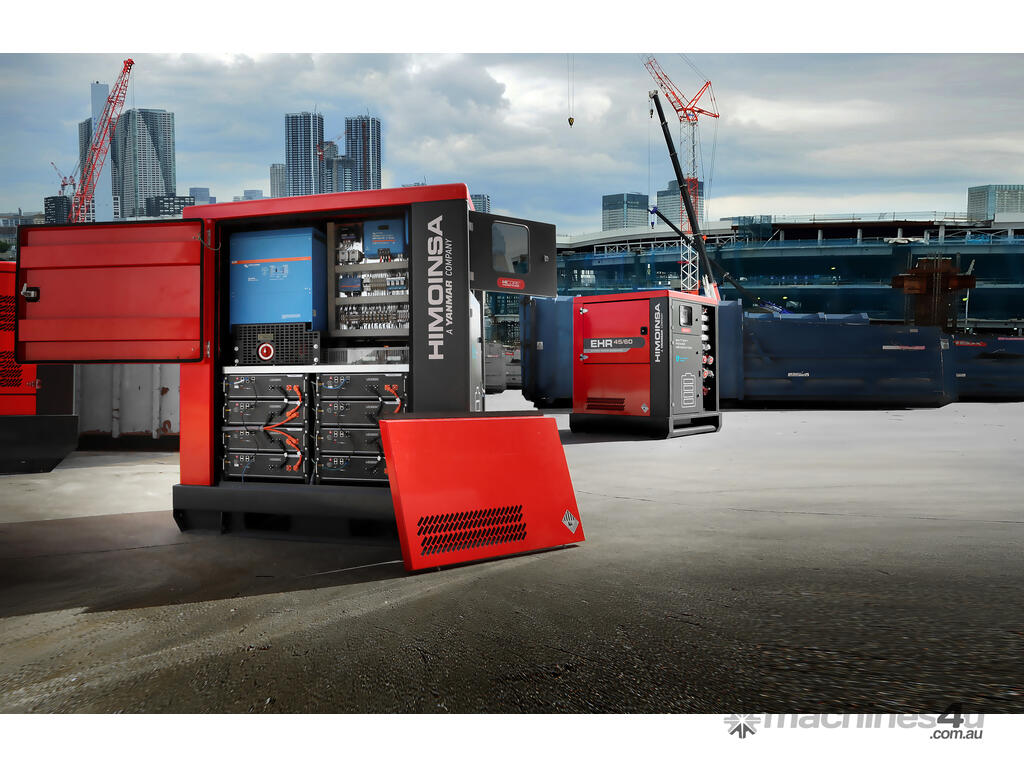

7. Accessibility & Maintenance: Removable side doors and a roof
door. Easy access to change air filters.

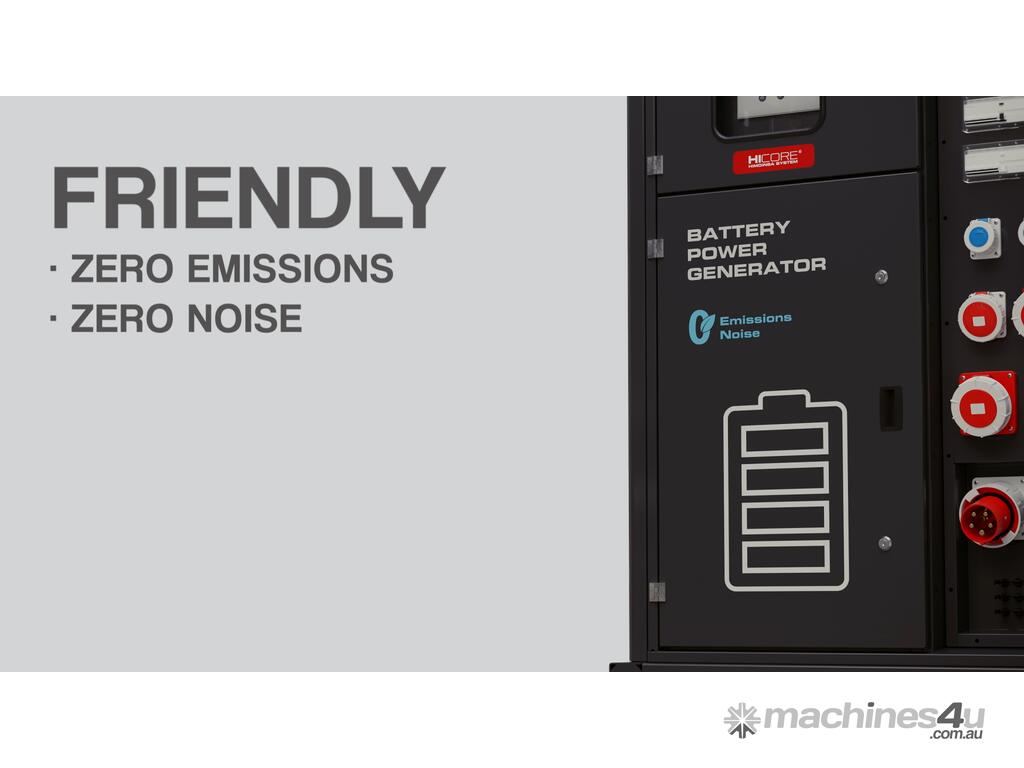

ZERO EMISSIONS AND ZERO NOISE

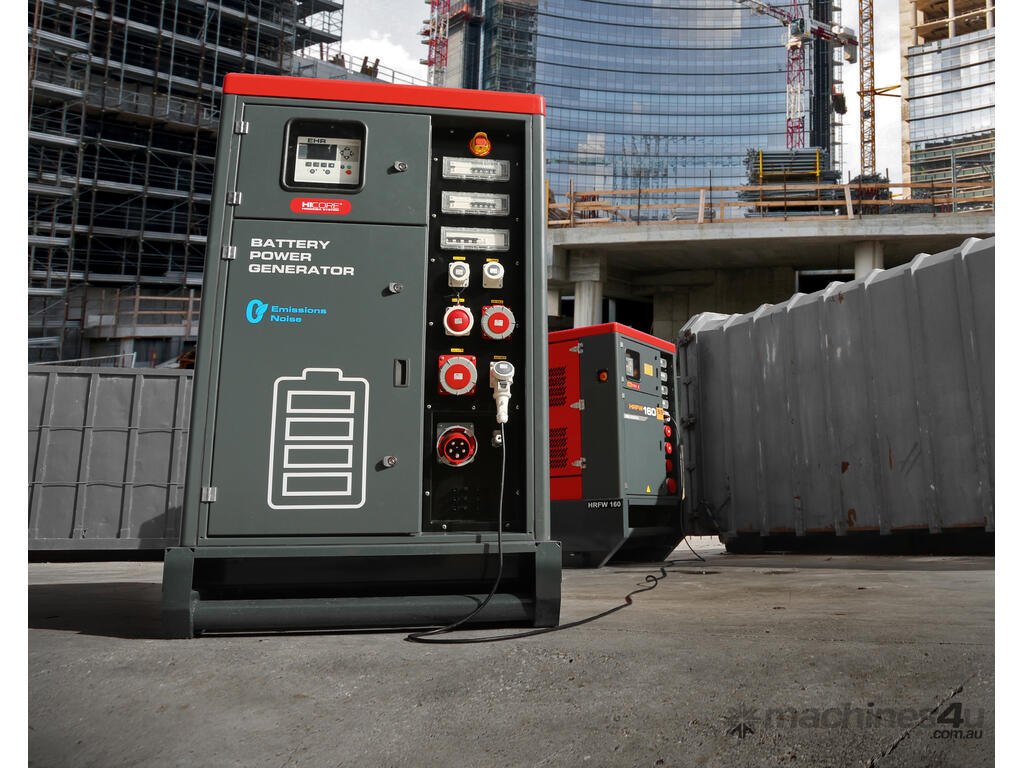

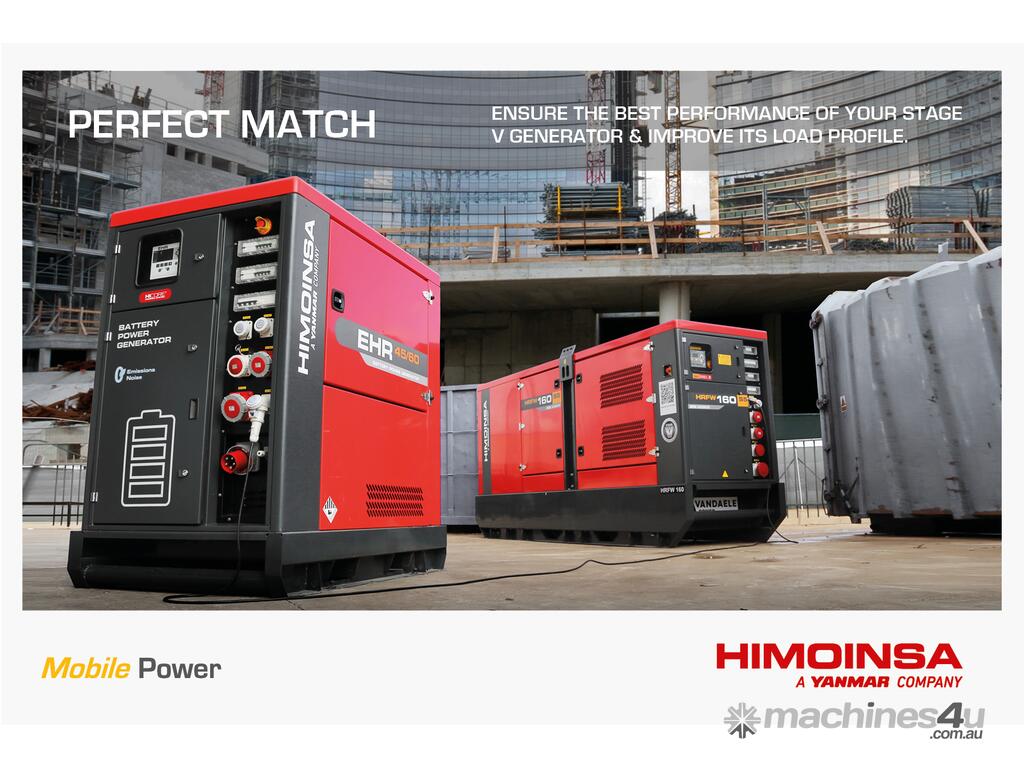

The EHR can operate as a main power source, reducing emissions and noise to zero, or it can be combined with a diesel or gas generator set to enable intelligent load management. Fuel consumption and CO2 emissions are reduced drastically in these combined working scenarios.

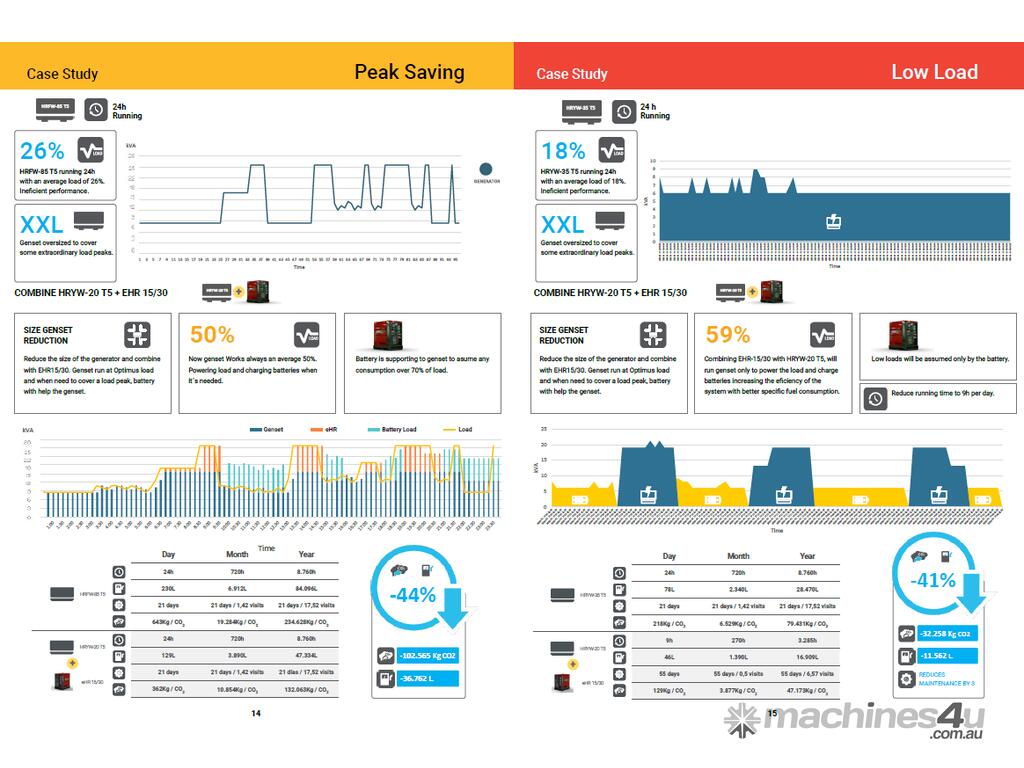

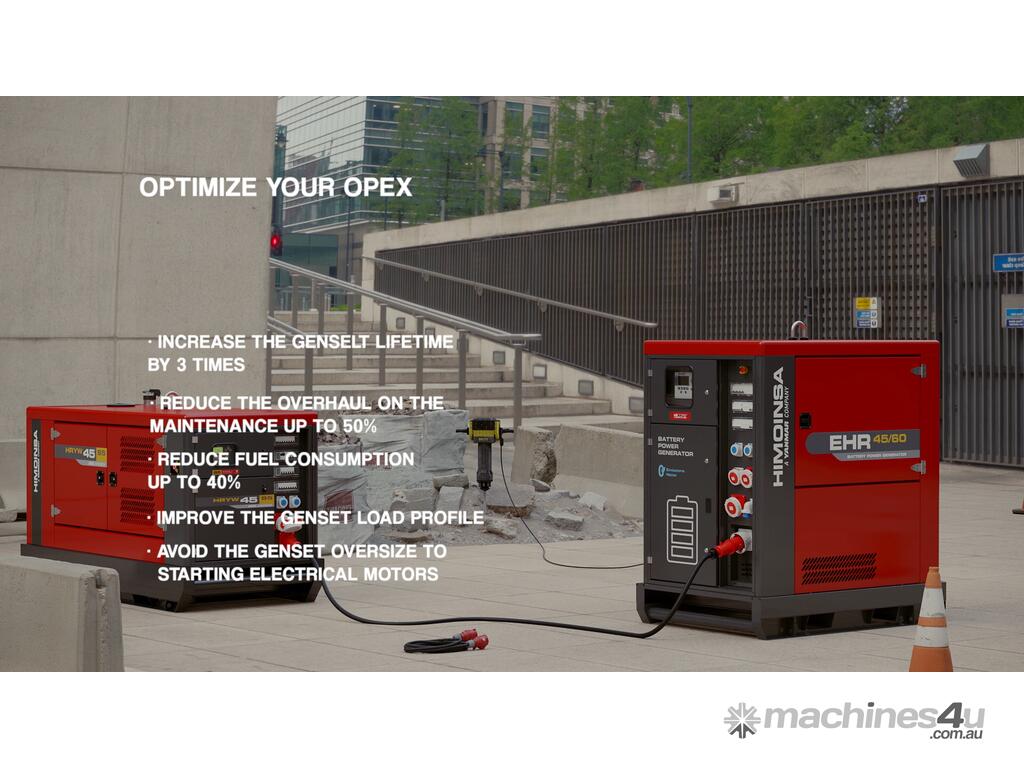

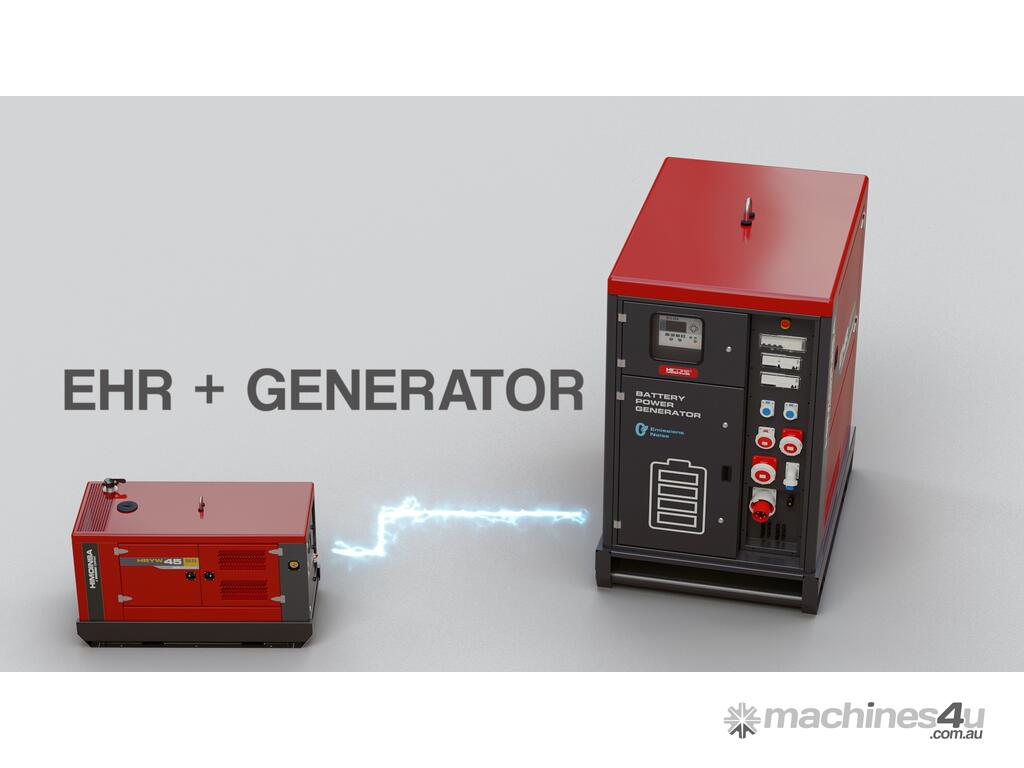

What are the advantages of hybridisation (EHR + Generator set)?

**Increase the genset lifetime by 3 times
**Reduce maintenance checks by up to 50%
**Reduce fuel consumption by up to 40%
**Improve the genset load profile
**Avoid oversizing the genset to start electrical motors

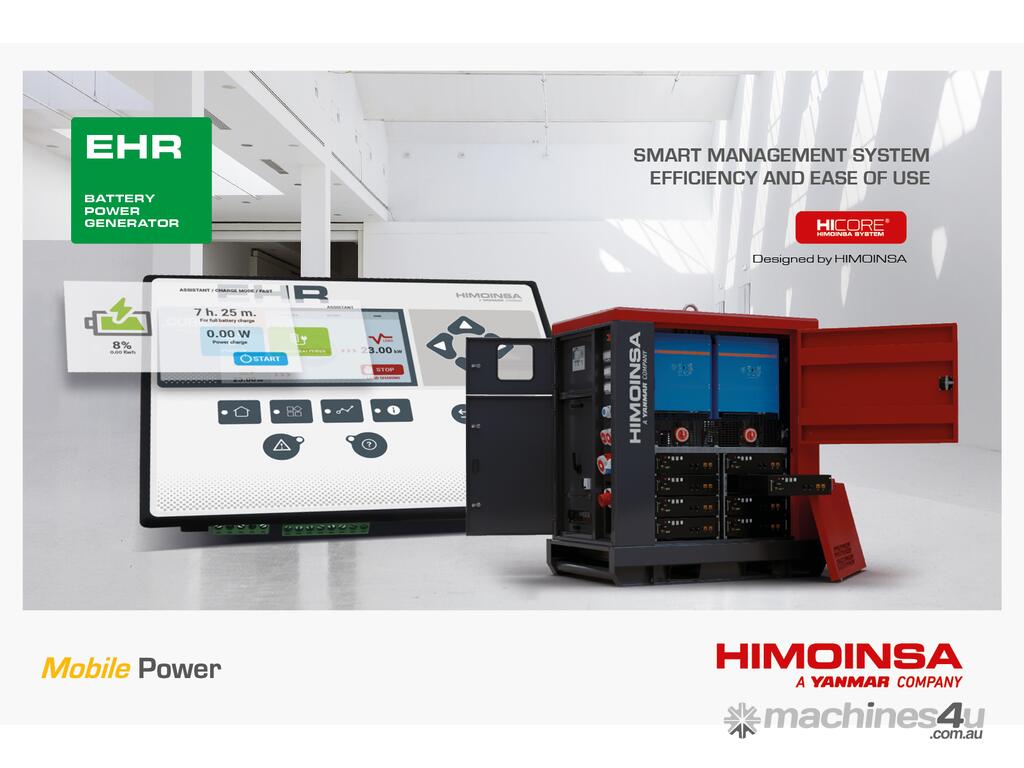

WHAT IS HICORE?
HICORE is the HIMOINSA-designed
management system that lets operators
select the most favourable power source
for a specific load condition at any given
time. It can be integrated with diesel and
gas generator sets or connected to public
electricity grids and renewable energy
sources.
With HICORE, our main objective is to
guarantee the optimisation of the different
power sources by means of an interface
that has been designed to provide a guided
and simple experience for any operator,
who will be able to choose the most
appropriate working mode at any given
moment. In addition, to ensure immediate
start-up, we offer a Plugmode which
allows the EHR to automatically decide
which is the best operational option at any
given moment based on a constant analysis
of the load profile and the connected
sources.
HIMOINSA has decided to design this
smart monitoring and management
system in such a way as to guarantee
that its product is 100% user-friendly. It
is in fact a bespoke development whose
primary objective is simplicity of use, with
the emphasis being placed on two main
principles during the development process:
User experience:
Easy system configuration
and handling. Smart guidance throughout
the start-up process with a wizard, making it
easy to operate the unit.
Always connected:
Get all the performance
info you need through C4CLOUD which
comes pre-installed on the unit. Monitor,
read and analyse all the performance and
load profile information locally or remotely to
optimise your site’s power solution.
