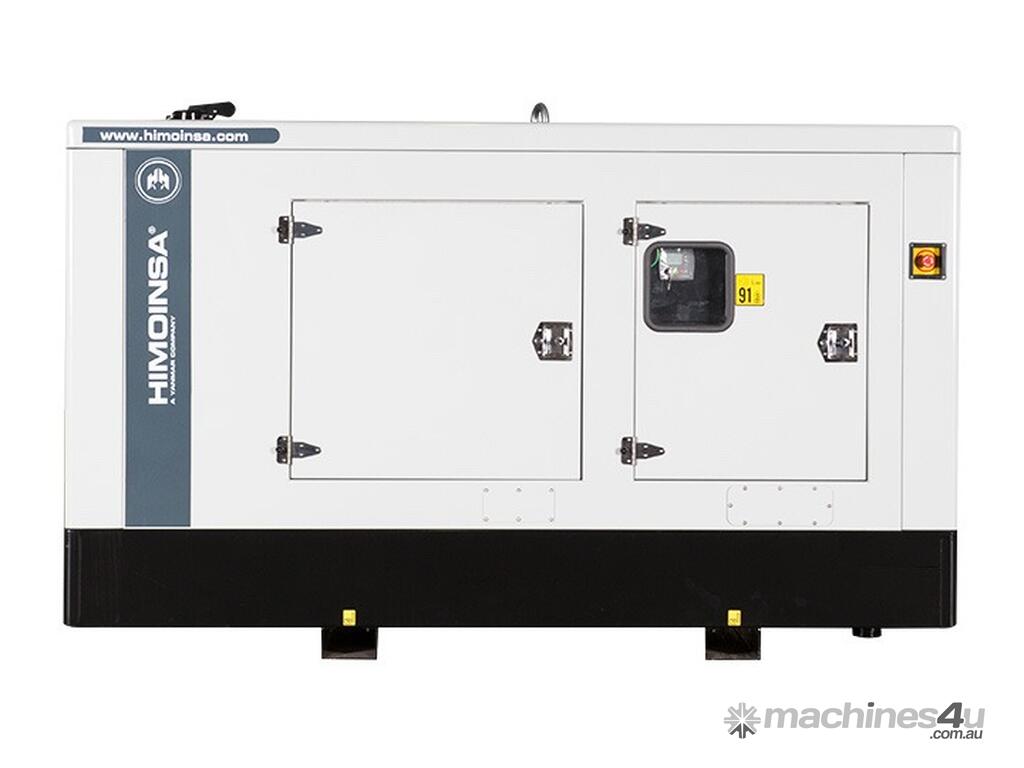

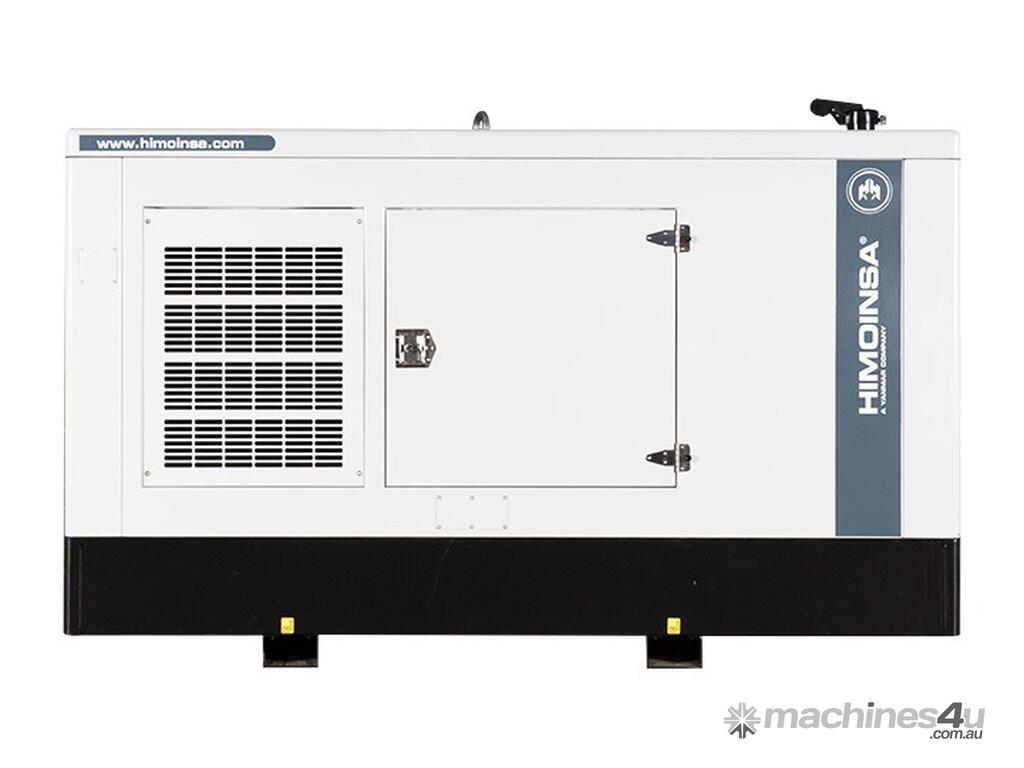

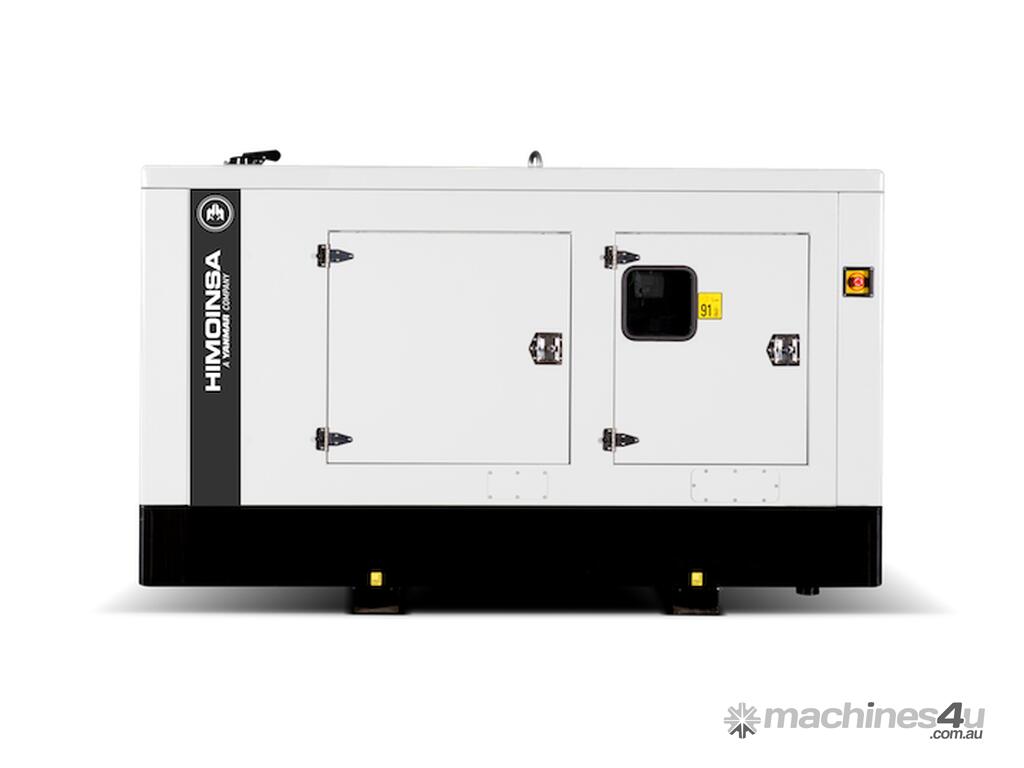

MOTIVE GROUP - HJW-100 T5 HIMOINSA Canopy

HJW-100 T5 HIMOINSA Canopy diesel generator is powered with John Deer’s economical & reliable 4045HF158 diesel engine coupled to a Stamford alternator.
HJW-100 T5 HIMOINSA Canopy diesel generator comes packed with the following features and is the ideal solution to integrate with your solar, battery and inverter system as well as for use in agriculture, mining, construction IT & telecommunication back-up applications.

Rated 100kVA prime, 110kVA standby, 50Hz, 240V / 415V, 0.8PF
John Deere durability and fuel economy, 4 pole 1,500RPM.
Quality 4 Pole AC alternator, single bearing closed coupled with voltage regulator with +/-1%
Super quiet enclosure, Sound Level: 68dB(A) 7m single point lifting frame.
Fork lift pockets, control panel viewing window & vertical air discharge with integral exhaust.
288 litre bunded fuel tank 17 hour run time (at 75% load).
Engine Alternator mounted to base frame via anti vibration mounts.
Set mounted control panel containing key start / remote start controller and circuit breaker.
The Himoinsa M7 generator controller provides a LCD display with comprehensive engine & alternator parameters display with shutdown protection.
Heavy duty battery, battery leads, isolator and hold down brackets.
Battery charger & engine coolant heater for standby operation, requires an external 240v power supply.
Engine oil extraction pump.
Backed by a full manufacturers warranty ensuring you peace of mind.

HIMOINSA  – A Leading Generator Manufacturer delivering superior quality generators ensuring a continuous efficient supply of energy.  Himoinsa Generators are low maintenance providing endurance and durability.
Ask about our Service and Maintenance plans to ensure you are getting the best life out of your generator, we pride ourselves on our expertise and experience.

Additional information:

Weight 1987 kg
Dimensions 275 × 176 × 110 cm
Brands
HIMOINSA – A Yanmar Company, John Deere

KVA
100

Phase Type
Three

Fuel Type
Diesel

Applications
Agriculture, Emergency Standby, Industrial, Mining & Construction, Rental & Hire, Residential Backup, Solar Backup, Telecommunications & IT

KVA Range
46-120

Enclosure
Canopy

Standby KVA
110
