RENTAL RANGE
Powered by YANMAR

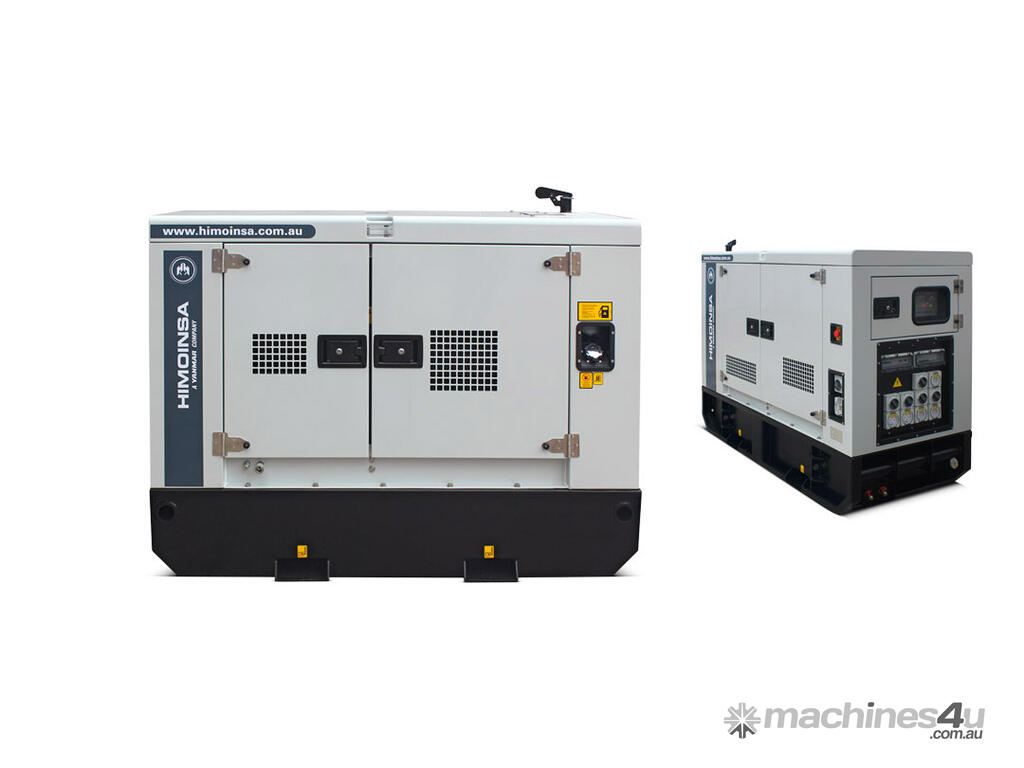

HRYW-17 T5 AU

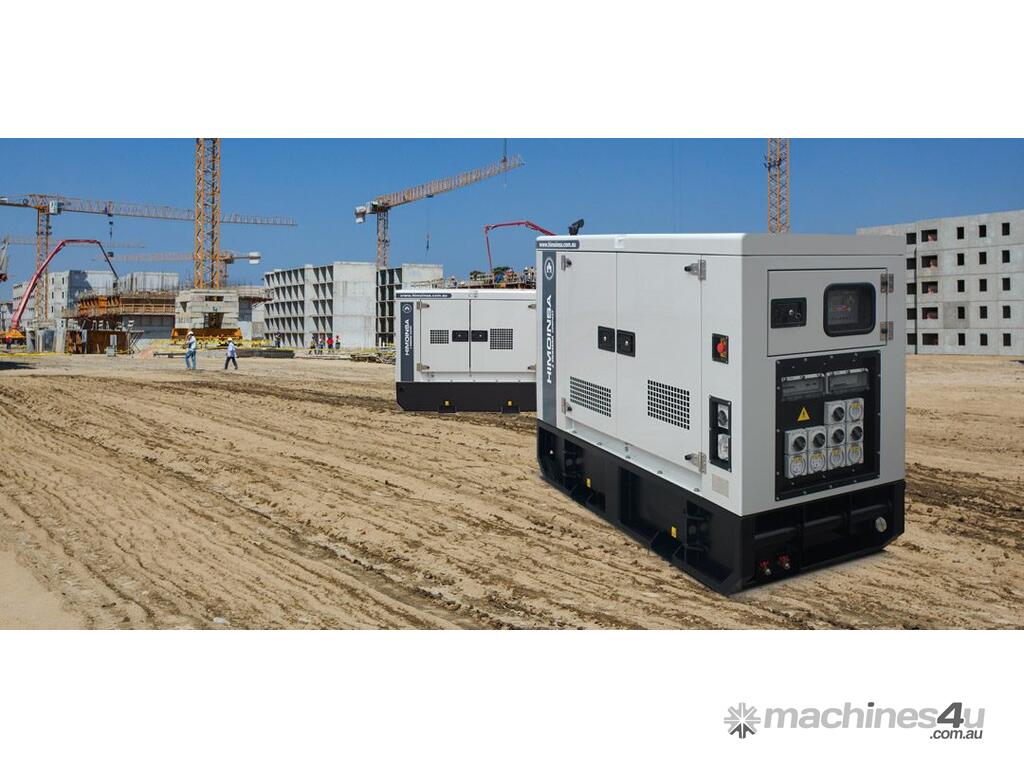

The new Contractor Series ranges from 10 to 60 kVA, combining robustness and versatility with reduced emissions, improved fuel economy and performance. The Contractor Series heavy-duty range of generators are designed to withstand the harshest Australian conditions. Special features include anti-corrosion canopies manufactured from galvanized steel, large-capacity fuel tanks, and multiple doors designed to provide easy cleaning and maintenance.
CONTRACTOR SERIES PACKED FULL OF FEATURES!
RANGING FROM 10 TO 60 KVA

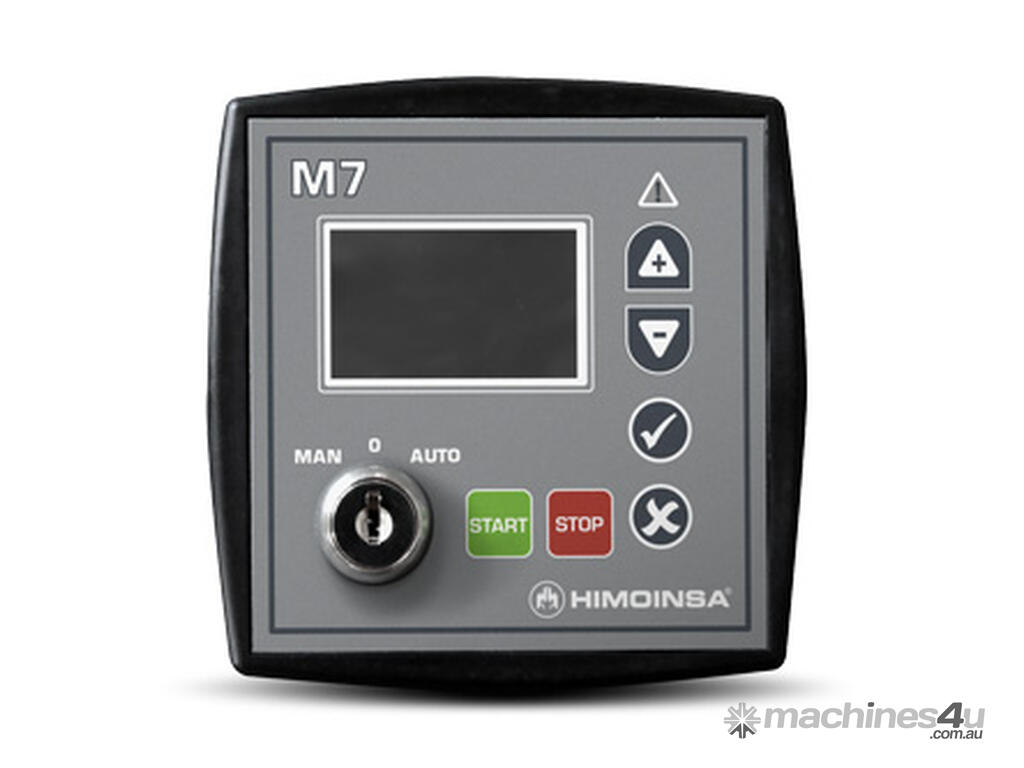

- HIMOINSA M7 CONTROLTHE LER

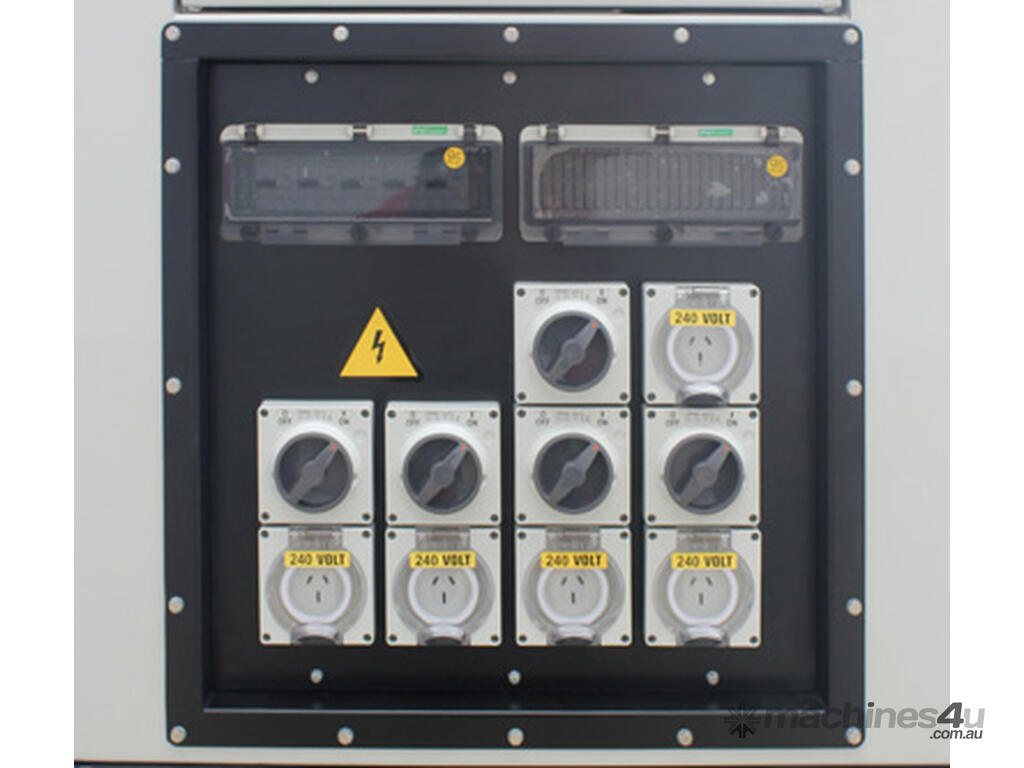

- DISTRIBUTION BOX CBR42R

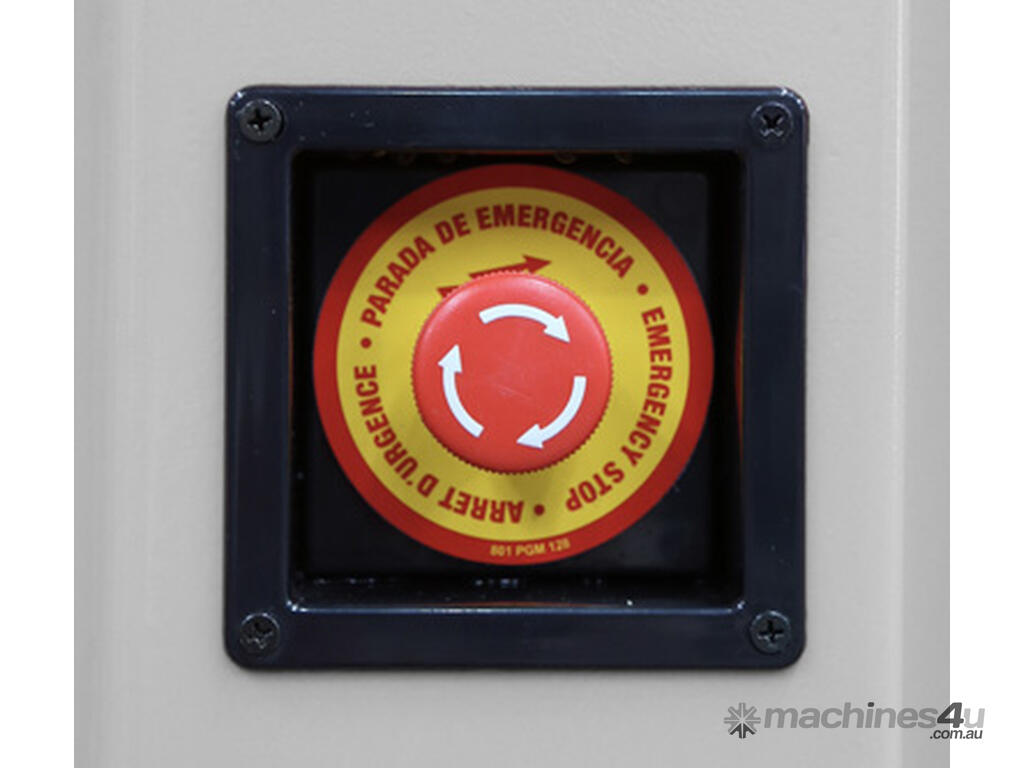

- EMERGENCY STOP

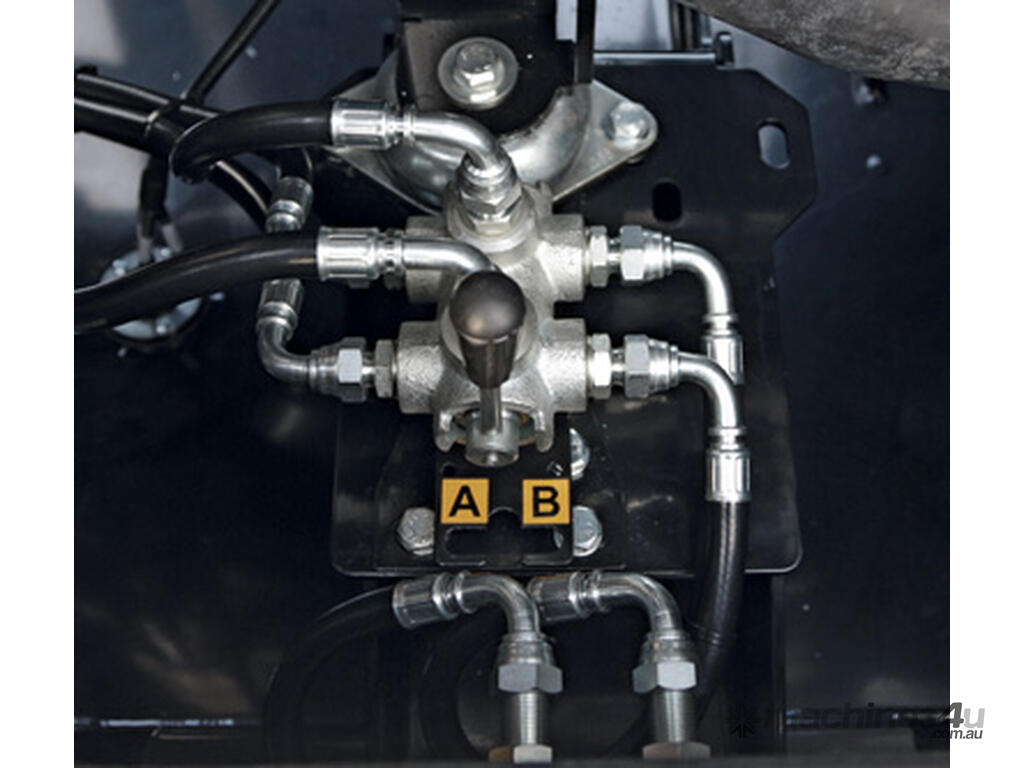

- FUEL 3 WAY VALVE

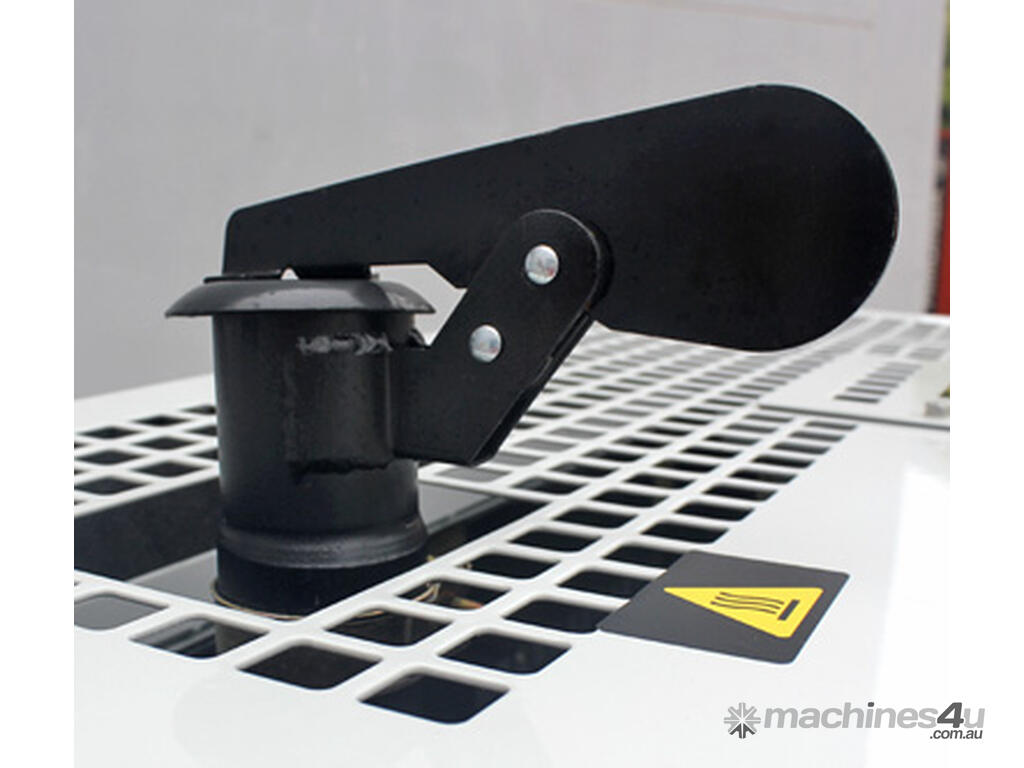

- EXHAUST OUTLET GUARD
Other standard features include:
- Heavy duty chassis d3-WAYed for the rough and tumble of mining & heavy-duty construction applications
- Long-range bunded fuel tank > 24 hours operation
- Radiator service access door
- Bus bar connection in addition to protected weatherproof outlets
- Supersilent acoustic enclosures
- Customised options, including mining compliance upgrades
- Wide Access
- Soundproof
- Fuel 3-way valve
- Battery Charger
- CBR42R Distribution Board
- Radiator
- Emergency Stop
- Chassis Drain Tray
- Exhaust Outlet Guard
- Waterproof lockable Door Handles
- Circuit Breaker
- Fuel and Water Drain Point
Engine | 1.500 r.p.m.
Rated Output: (PRP) kW 16.4
Rated Output: (ESP) kW 17.7
Manufacturer: YANMAR
Model: 4TNV88BGGEH
Engine Type: 4-stroke diesel
Generator | MECC ALTE
Manufacturer: MECC ALTE
Model: ECP28 2L/4 A

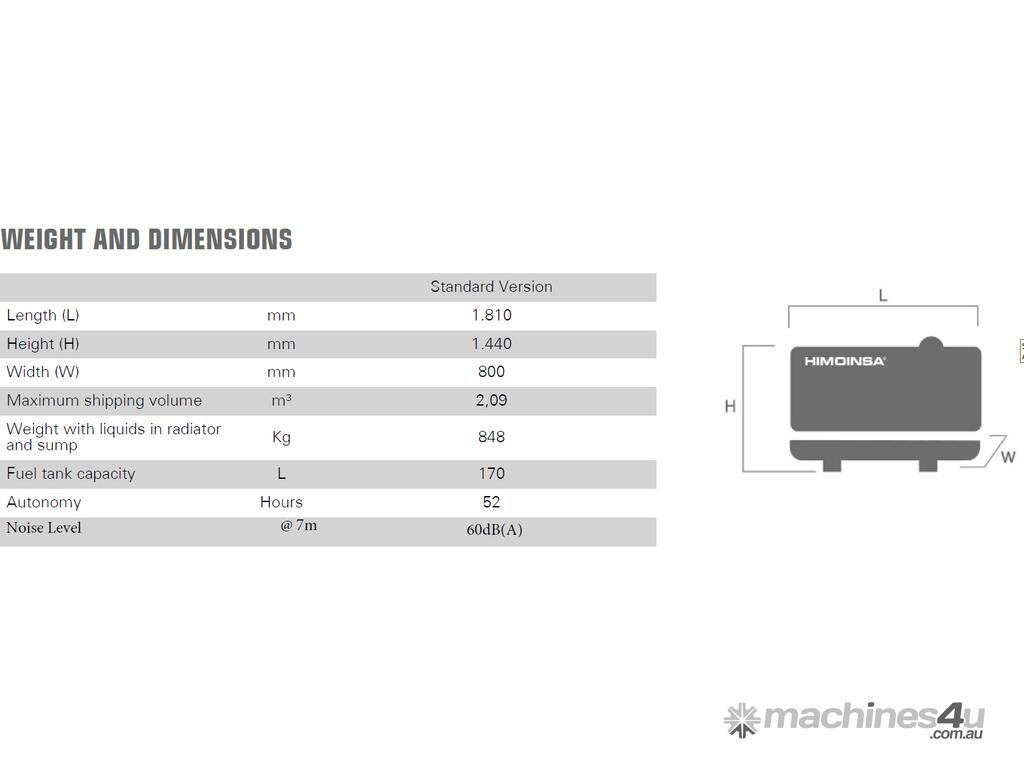

WEIGHT AND DIMENSIONS
Length (L) mm 1.810
Height (H) mm 1.440
Width (W) mm 800
Maximum shipping volume m³ 2.09
Noise Level 7m 60dB(A)

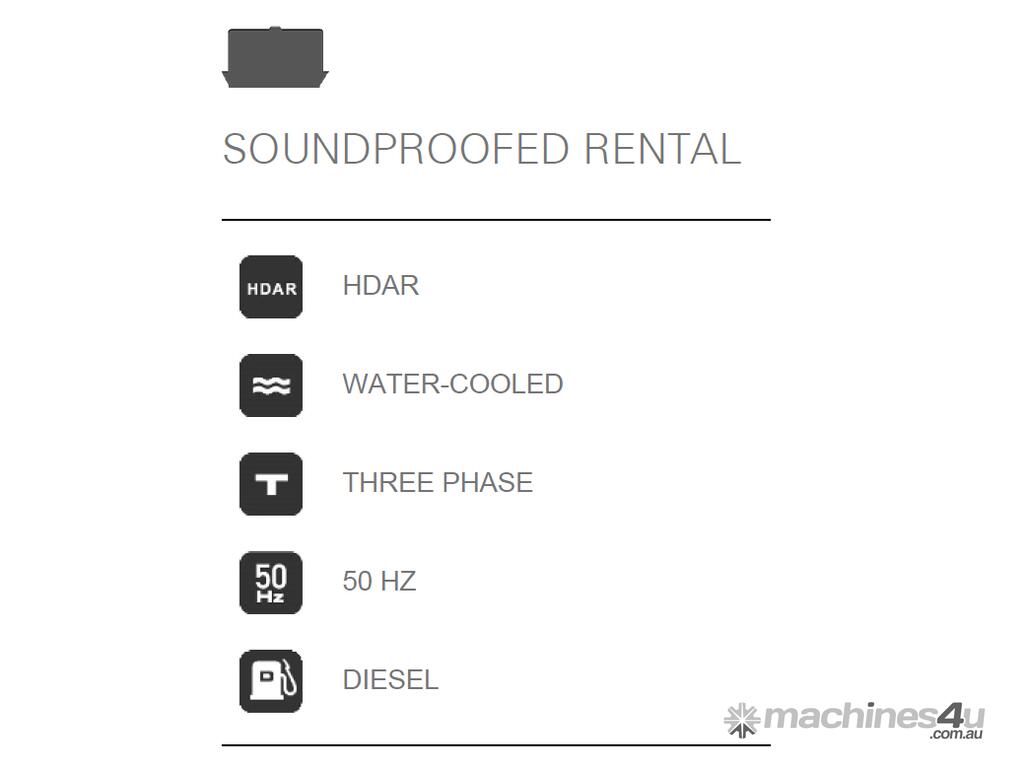

Soundproofed version
• Steel chassis
• Anti-vibration shock absorbers
• External emergency stop switch
• Bodywork made from high-quality steel plate
• High mechanical strength
• Low noise emissions level
• Soundproofing provided by high-density volcanic rock wool

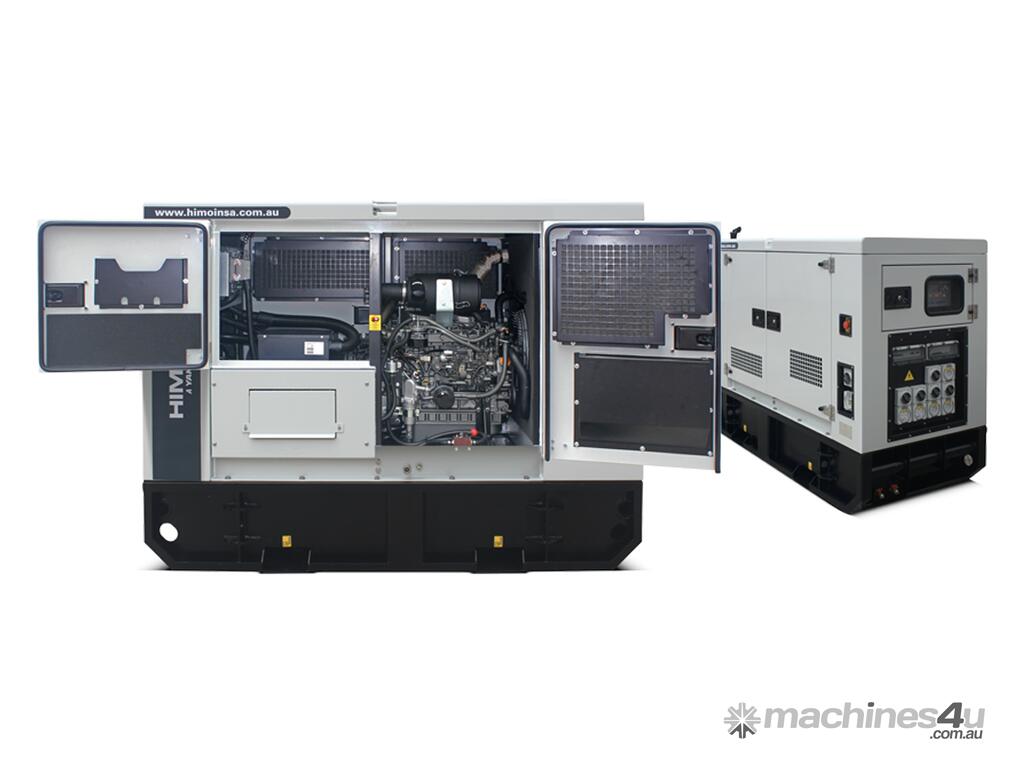

• Full access for maintenance (water, oil and filters, no need to remove the canopy)
• Reinforced lifting hooks for crane hoisting
• Watertight chassis (acts as a double barrier against liquid retention)
• Fuel tank drain plug
• Chassis drain plug
• Oil sump extraction kit
• Door with window to visualize control panel, alarms and measurements
• IP Protection according to ISO 8528-13:2016
Electrical system
• 4-pole thermal magnetic circuit breaker
• Battery charger alternator with ground connection
• Starter battery/ies installed (cables and bracket included)
• Ground connection electrical installation with connection ready for ground spike (not supplied)
• CBR42R socket boxes consisting of 3x15A (3Ph) and 2x32A (3Ph)
• Battery Switch (Optional).
