MOTIVE GROUP - YANMAR - HIMOINSA HSY-30 T5 3P Diesel Generator

HS | STATIONARY RANGE Powered by YANMAR

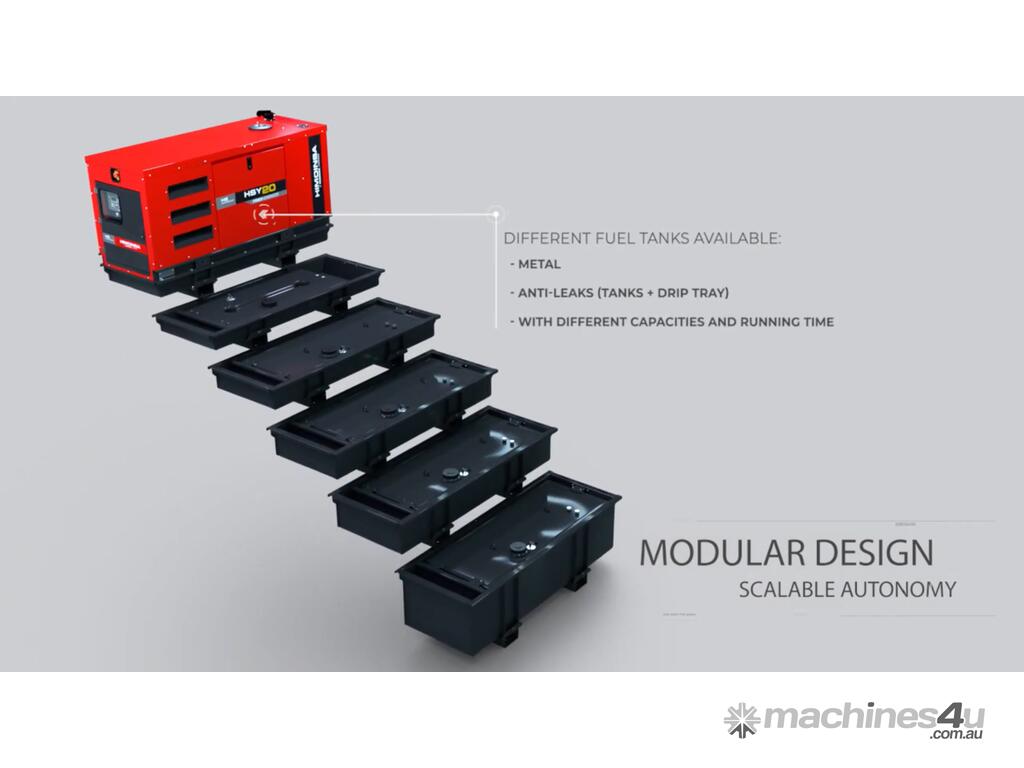

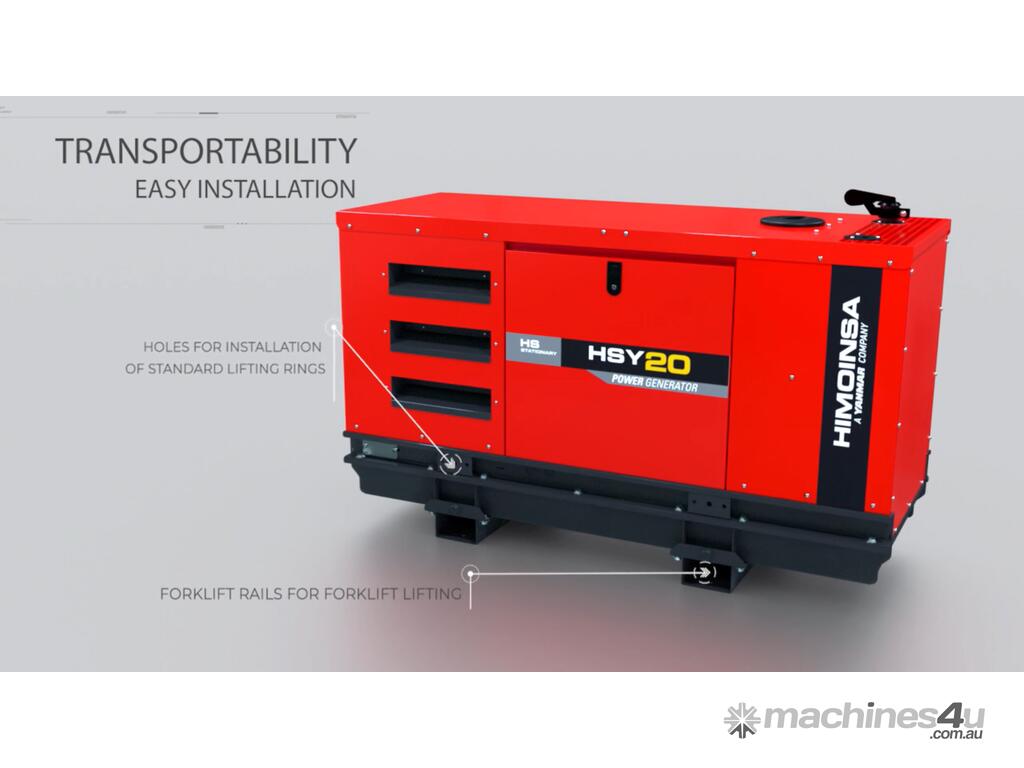

THE NEW MODULAR AND VERSATILE DESIGN GUARANTEES EASY INSTALLATION AND HANDLING
The new canopy concept, 100% suited to stationary applications, includes multiple accesses and removable doors to ease the tasks of cleaning and maintenance of the equipment.
Quality finish and details in line with HIMOINSA standards.

FEATURES

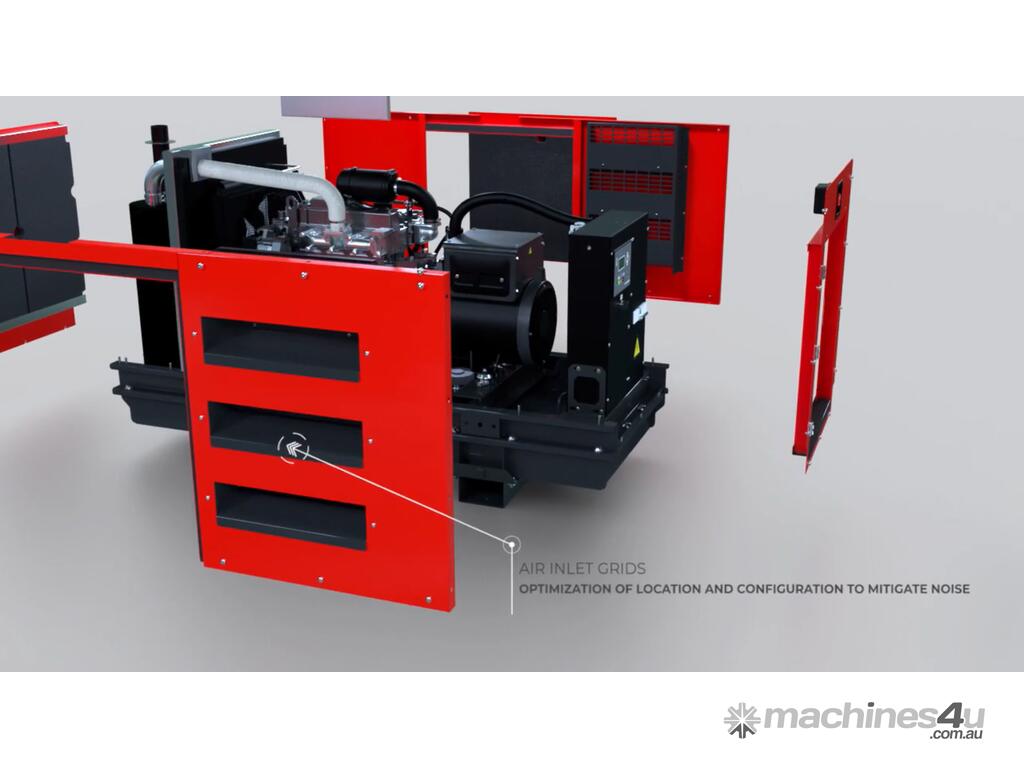

•Tubing - Optimized location and arrangement of air inlet vents to mitigate noise.

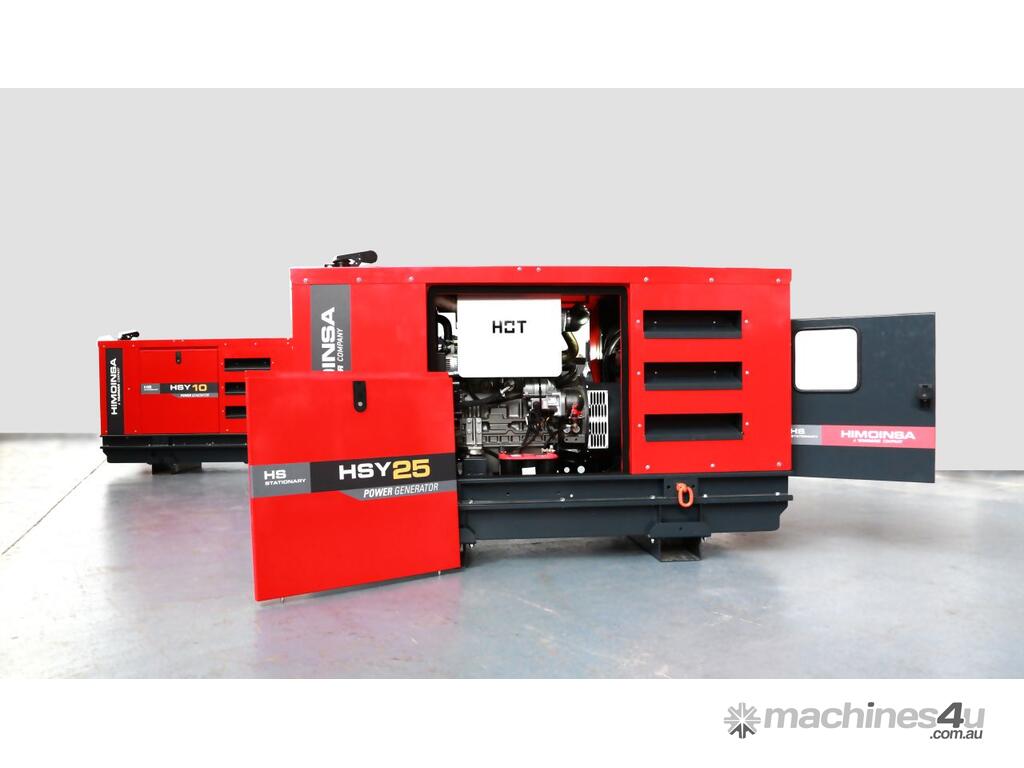

•Access - Wide accesses, strategically located, which ease access for maintenance.

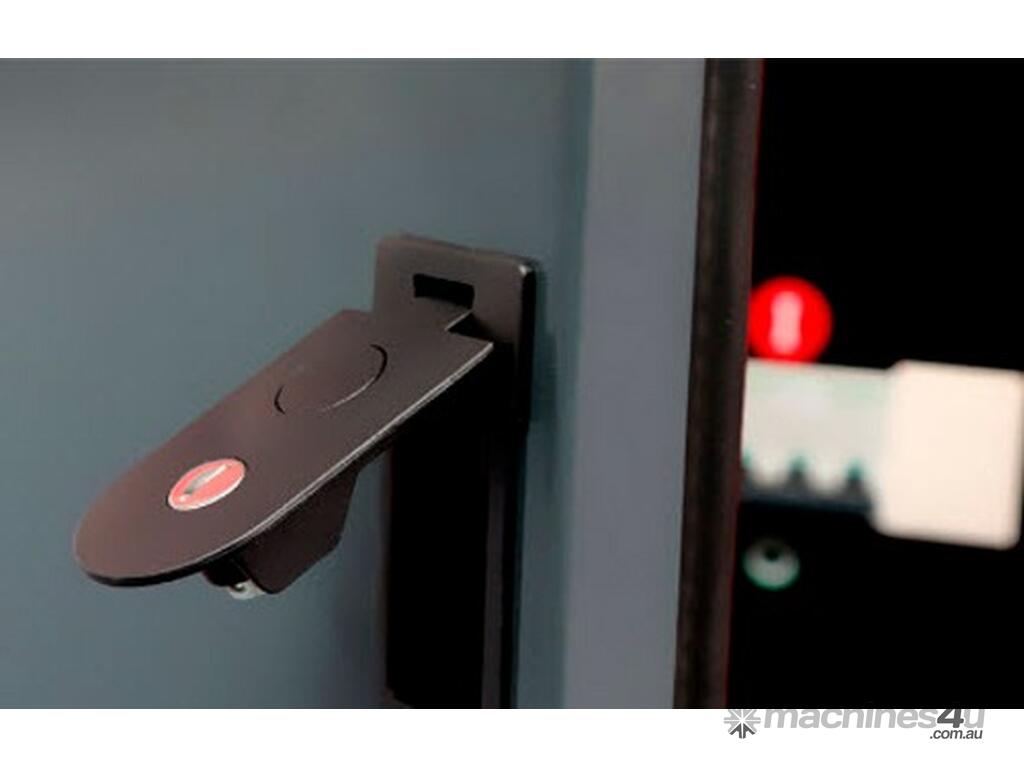

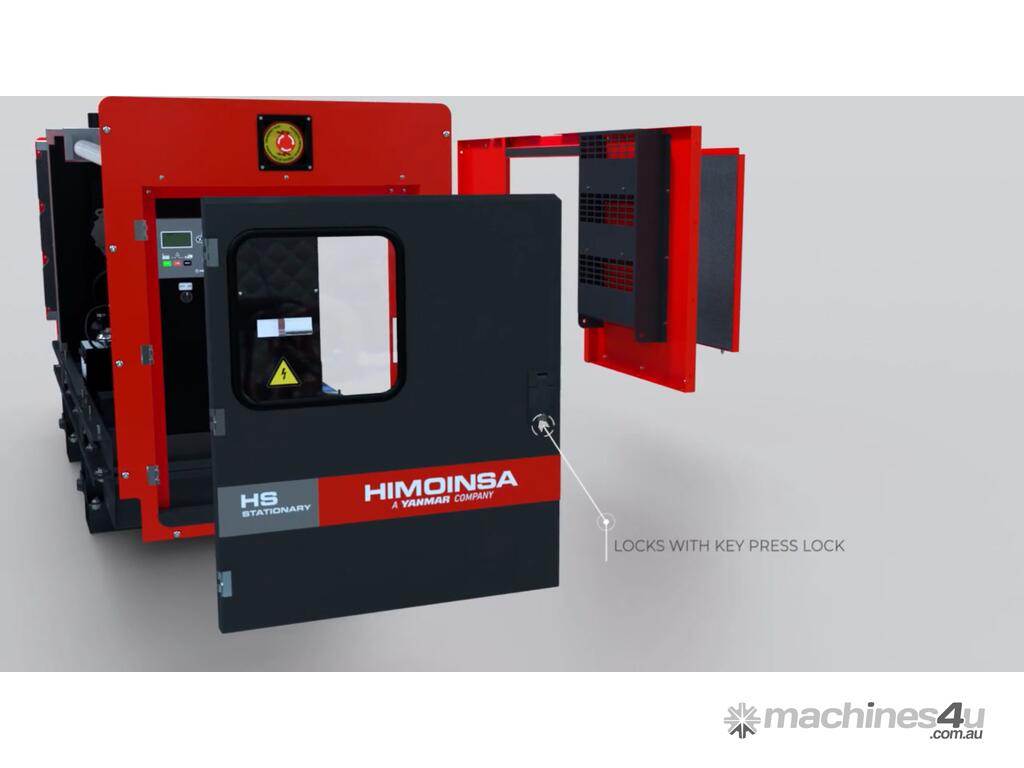

•Locks - Anti-vandalism locks of high hardness and tensile strength with snap lock with key.

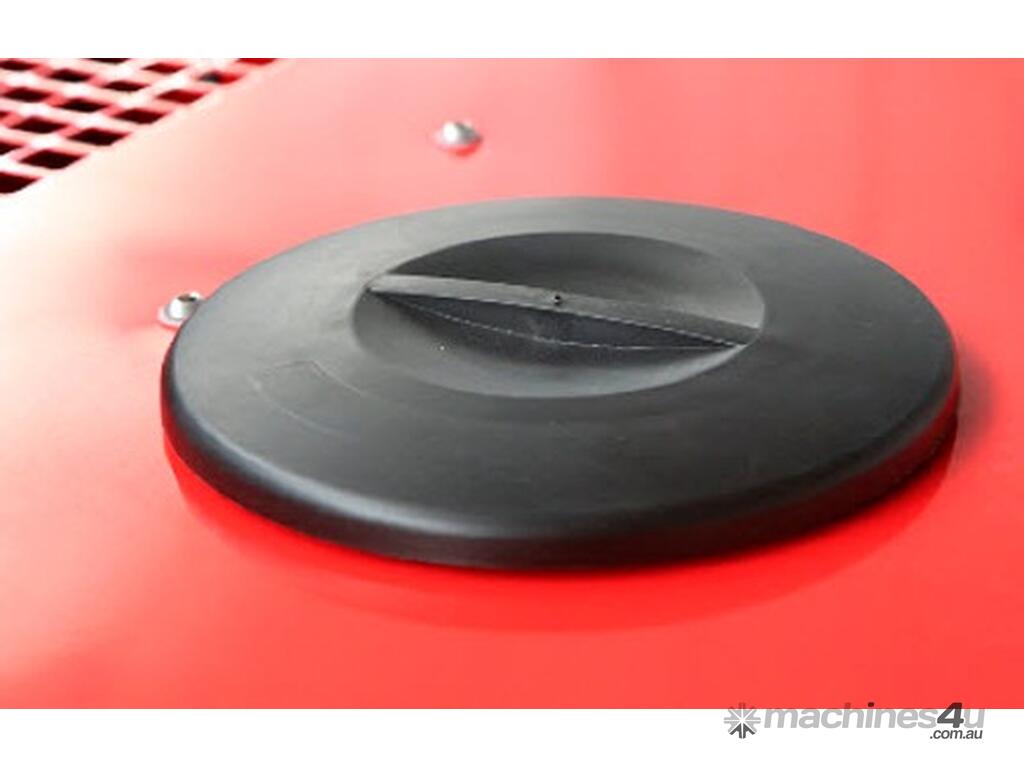

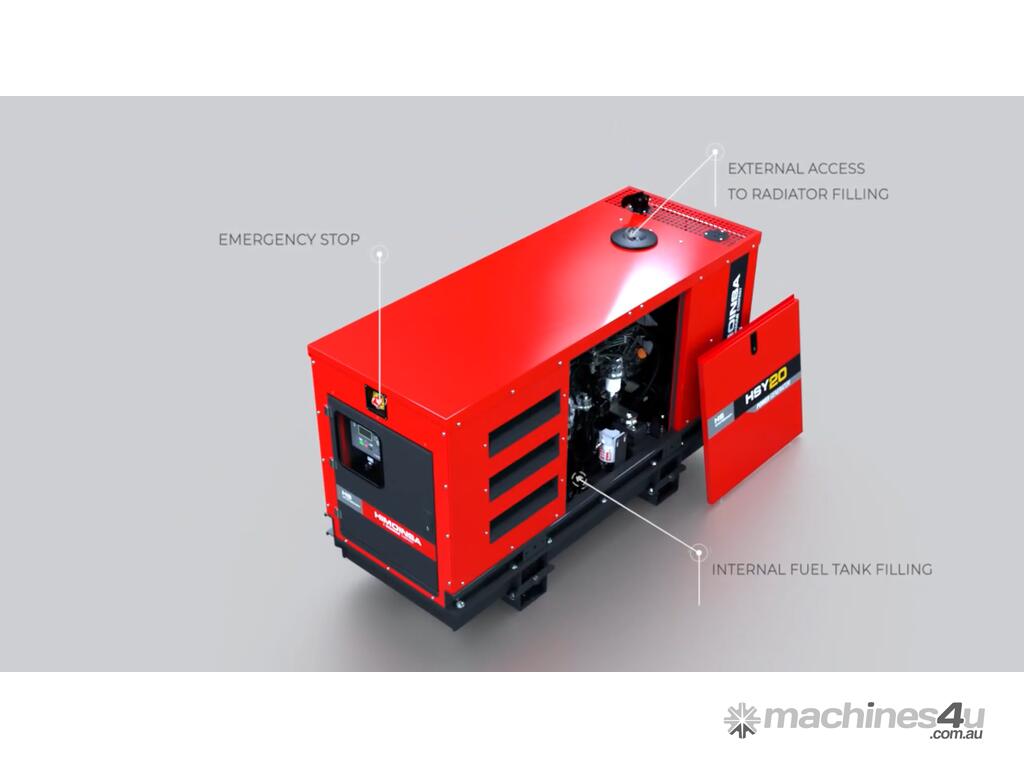

•Radiator Filling - External access for radiator cooling filling.

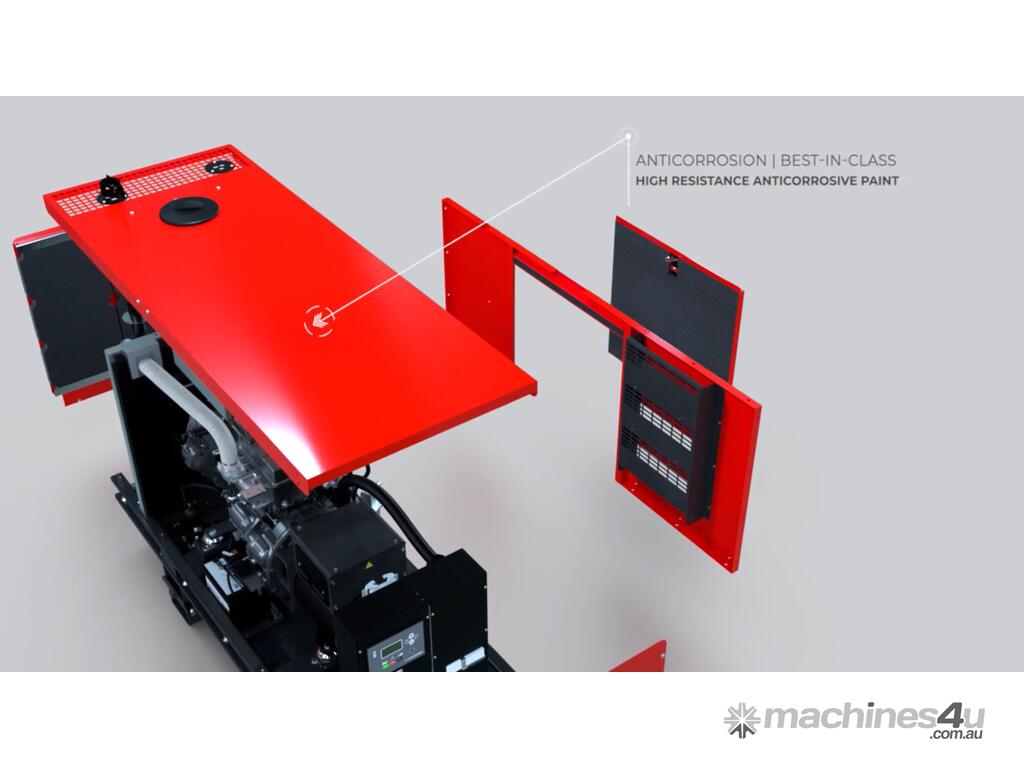

•Anticorrosion Painting - Treatment of steel sheets before the painting process to improve corrosion resistance.
•Removable Doors - Large removable doors. A pivot system has been incorporated in the lower part of the doors, which, when fitted inside the set-back punching, performs the exact pressure for sealing with the weatherstrip.

HSY -30 T5

SERVICE PRP ESP
POWER kVA 30 33
POWER kW 24 26
RATED SPEED r.p.m. 1.500
STANDARD VOLTAGE V 400/230
AVAILABLE VOLTAGES V 230/115 · 380/220 ·415/240
RATED AT POWER FACTOR Cos Phi 0.8

Length (L) mm 2.200
Height (H) mm 1.360
Width (W) mm 910
Maximum shipping volume m³ 2.7

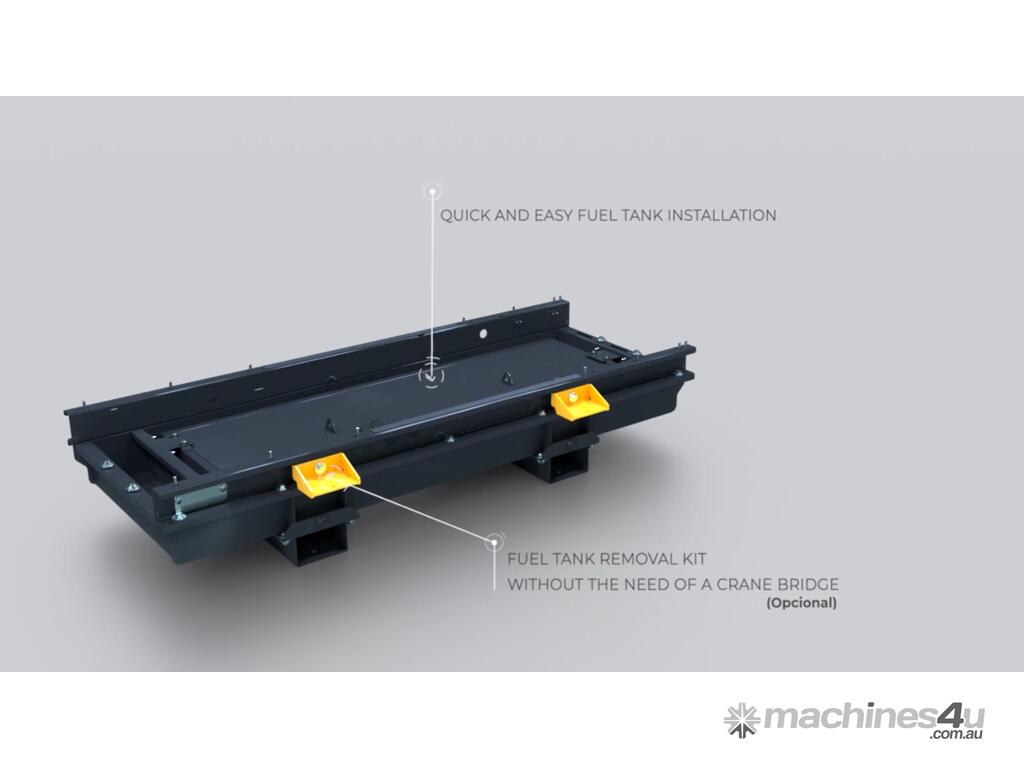

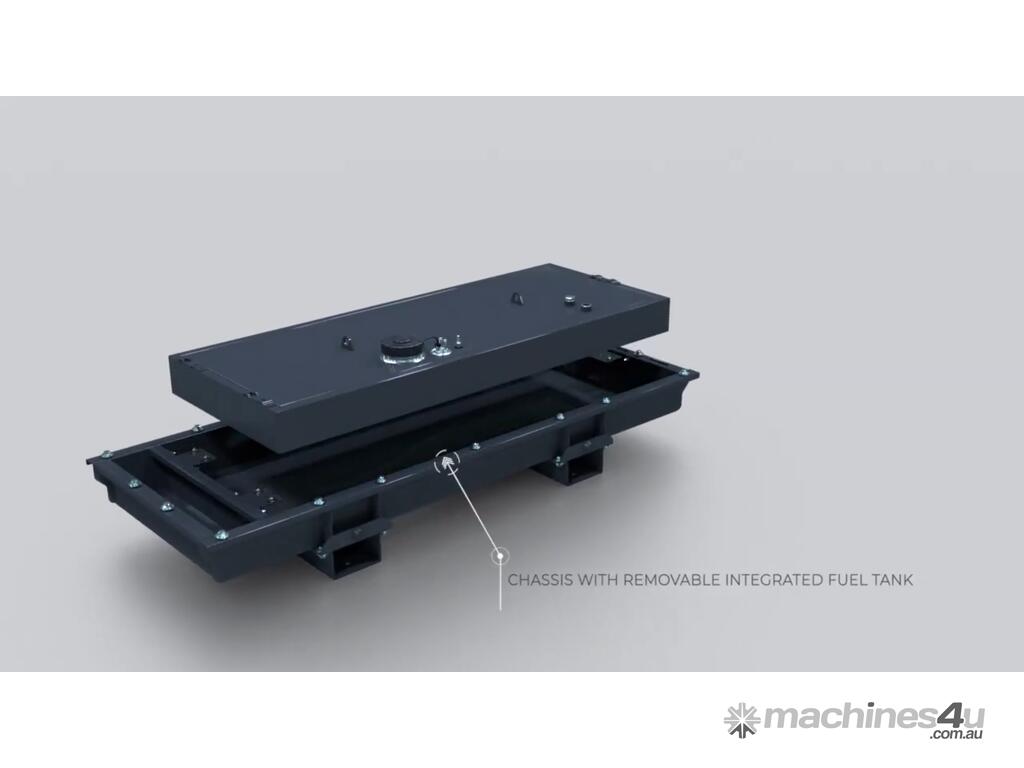

Fuel tank capacity L 170
Autonomy Hours 30

Engine Specifications | 1.500 r.p.m.
Rated Output (PRP) kW 30.7
Rated Output (ESP) kW 34.1
Manufacturer YANMAR
Model 4TNV98GGEH
Engine Type 4-stroke diesel
• Diesel engine
• 4-stroke cycle
• Water-cooled
• 12V electrical system
• Dry air filter
• Radiator with pusher fan
• Mechanical governor

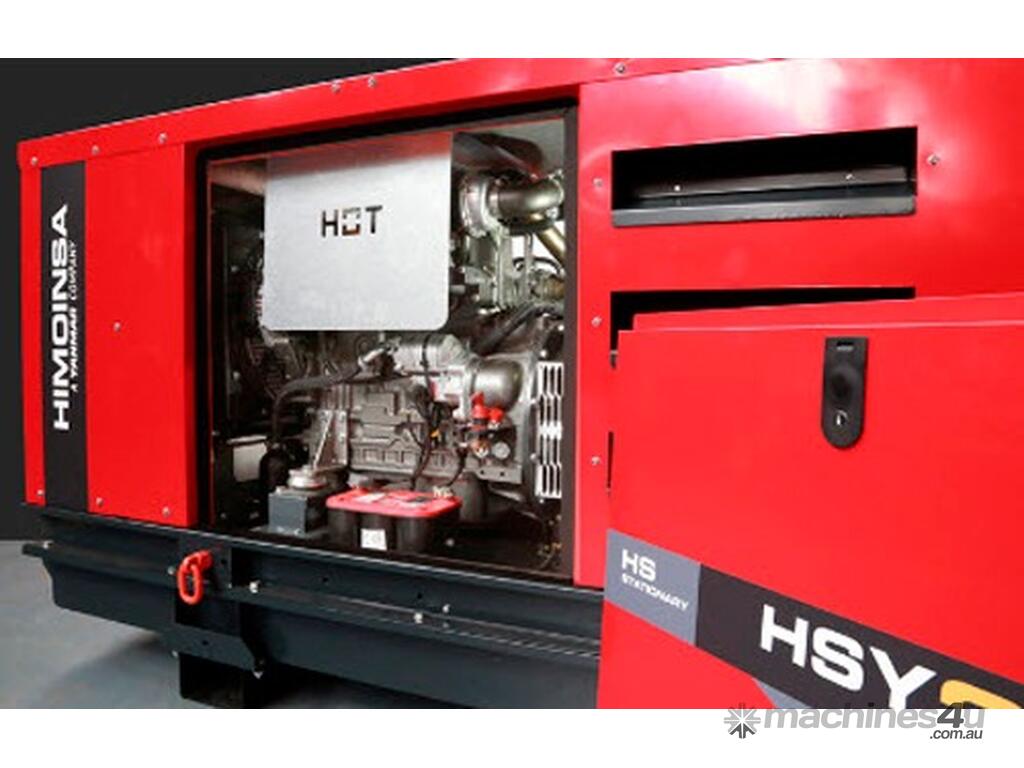

• Hot parts protection
• Moving parts protection

Generator Specifications | STAMFORD
Manufacturer STAMFORD
Model S0L2.P1
Poles No. 4
Connection type (standard) Star-series
Mounting type S-3 11``1/2
Insulation Class H class
Enclosure (according IEC-34-5) IP23
Exciter system Self-excited, brushless
Voltage regulator A.V.R. (Electronic)
Bracket type Single bearing
Coupling system Flexible disc
Coating type Standard (Vacuum impregnation)
• Self-excited and self-regulated
• IP23 protection
• H class insulation
