MOTIVE GROUP - YANMAR - HIMOINSA HSY-65 T5 3P Diesel Generator

HS | STATIONARY RANGE Powered by YANMAR

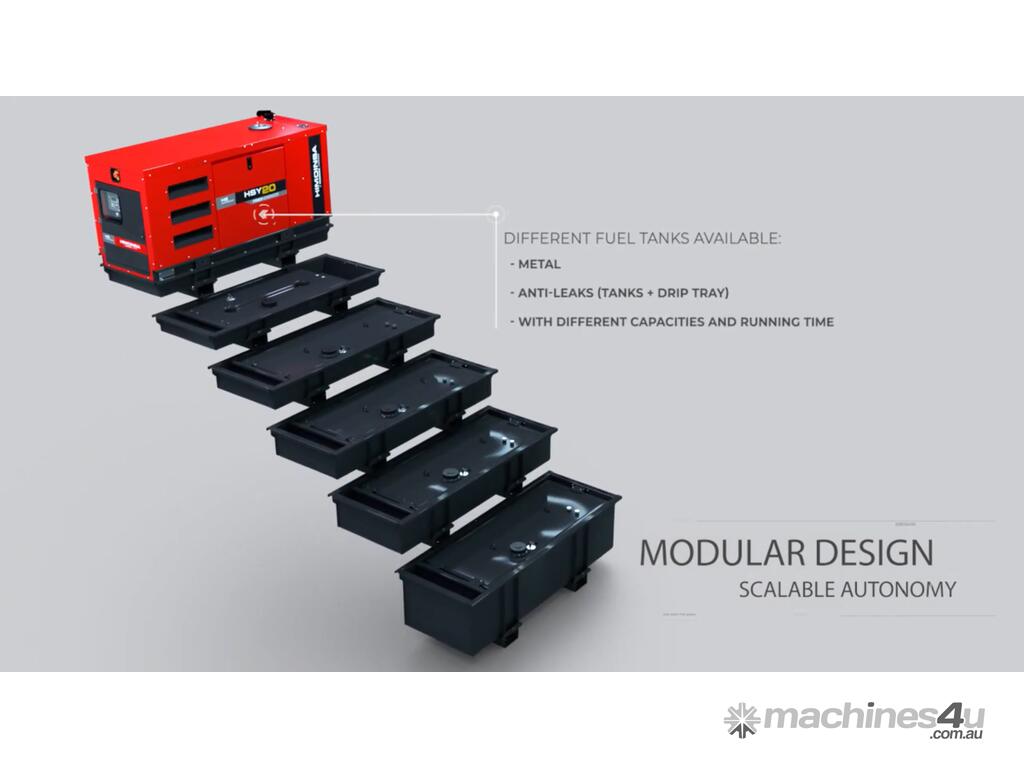

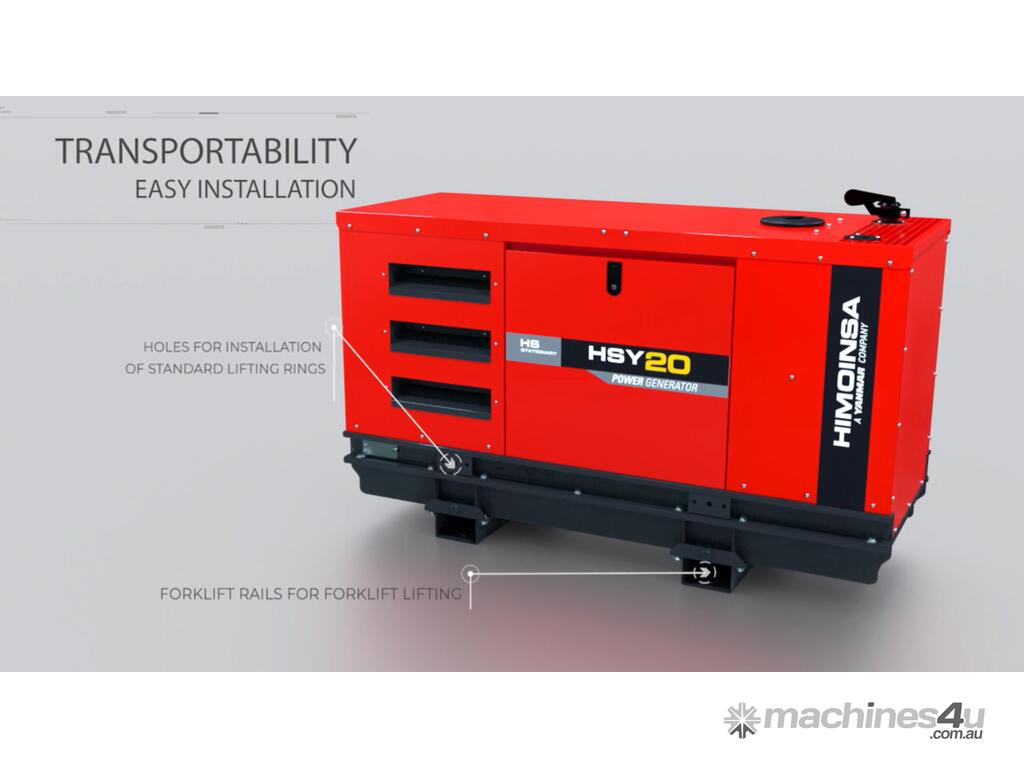

THE NEW MODULAR AND VERSATILE DESIGN GUARANTEES EASY INSTALLATION AND HANDLING

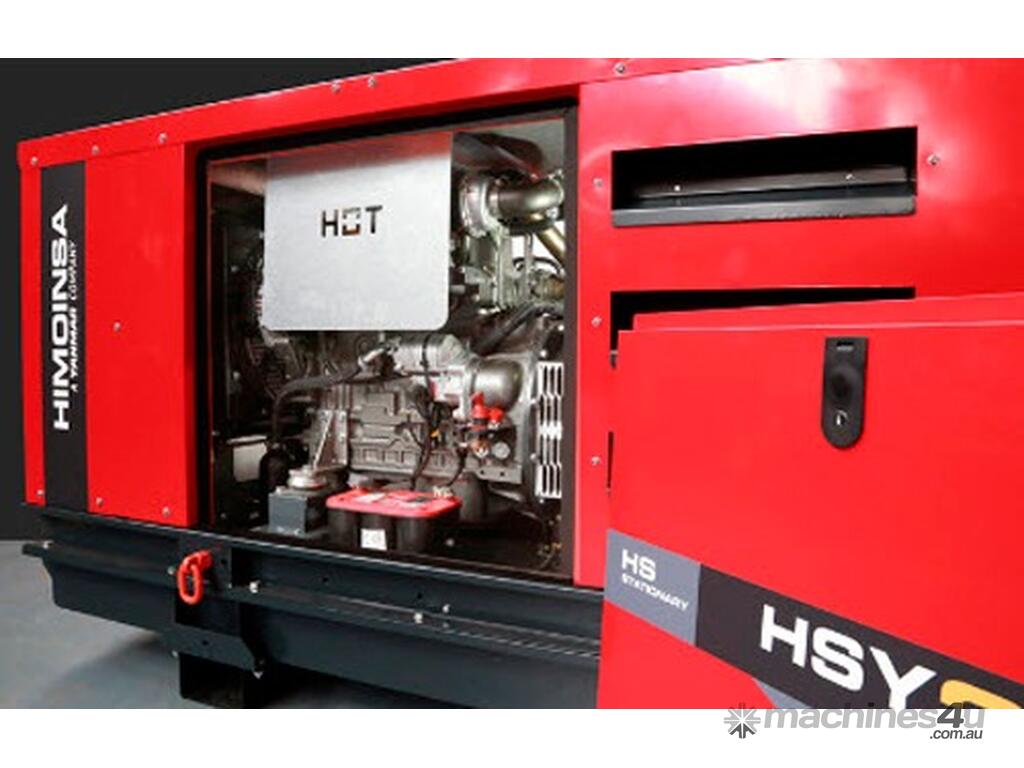

The new canopy concept, 100% suited to stationary applications, includes multiple accesses and removable doors to ease the tasks of cleaning and maintenance of the equipment.
Quality finish and details in line with HIMOINSA standards.

FEATURES

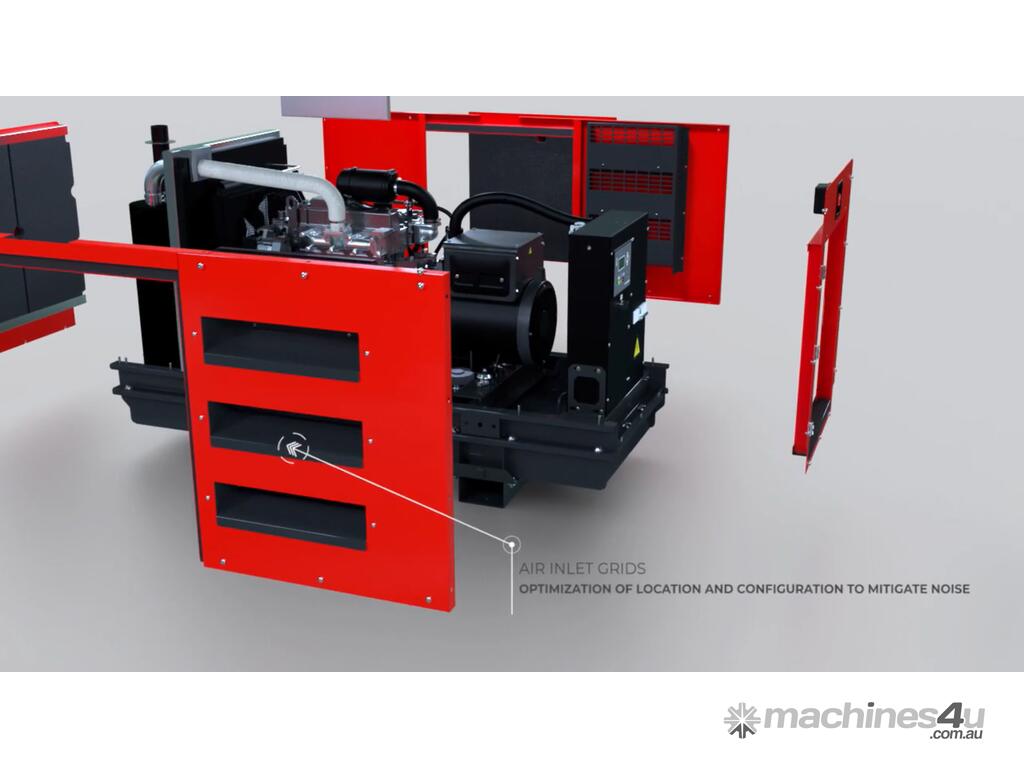

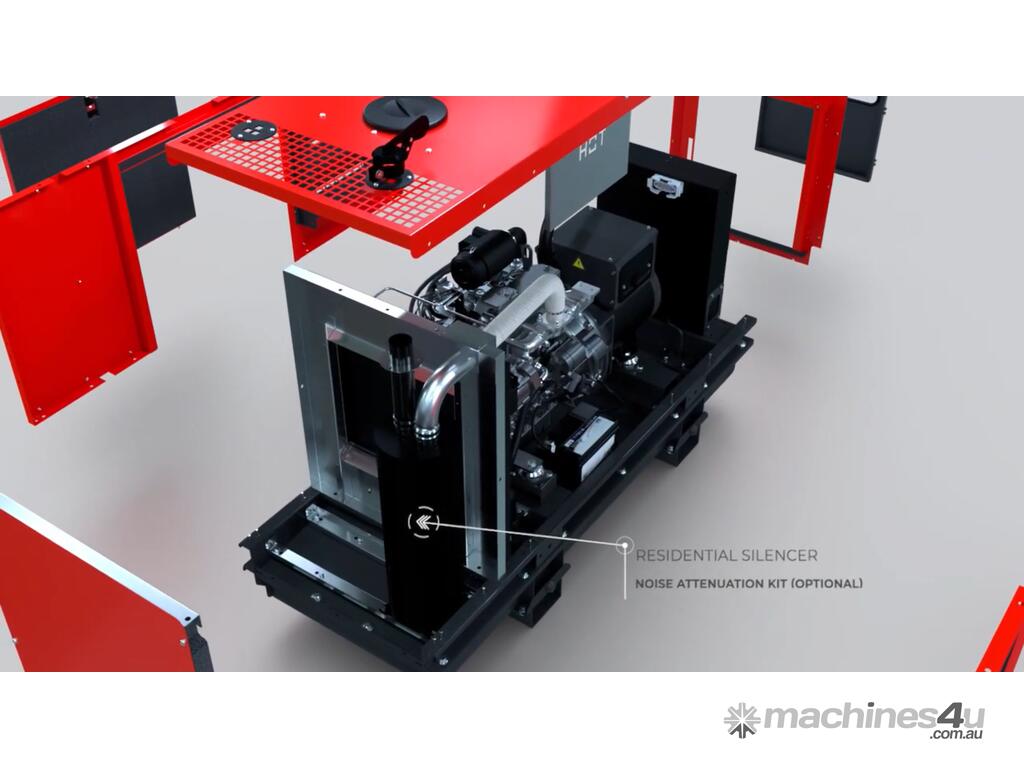

•Tubing - Optimized location and arrangement of air inlet vents to mitigate noise.
•Access - Wide accesses, strategically located, which ease access for maintenance.

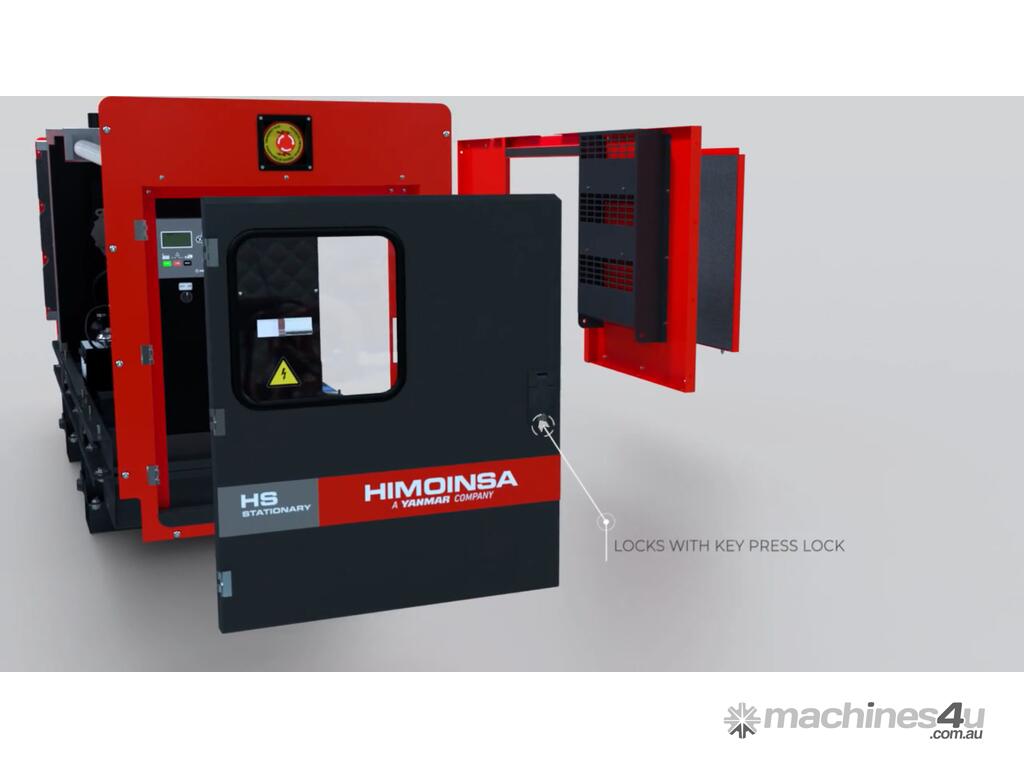

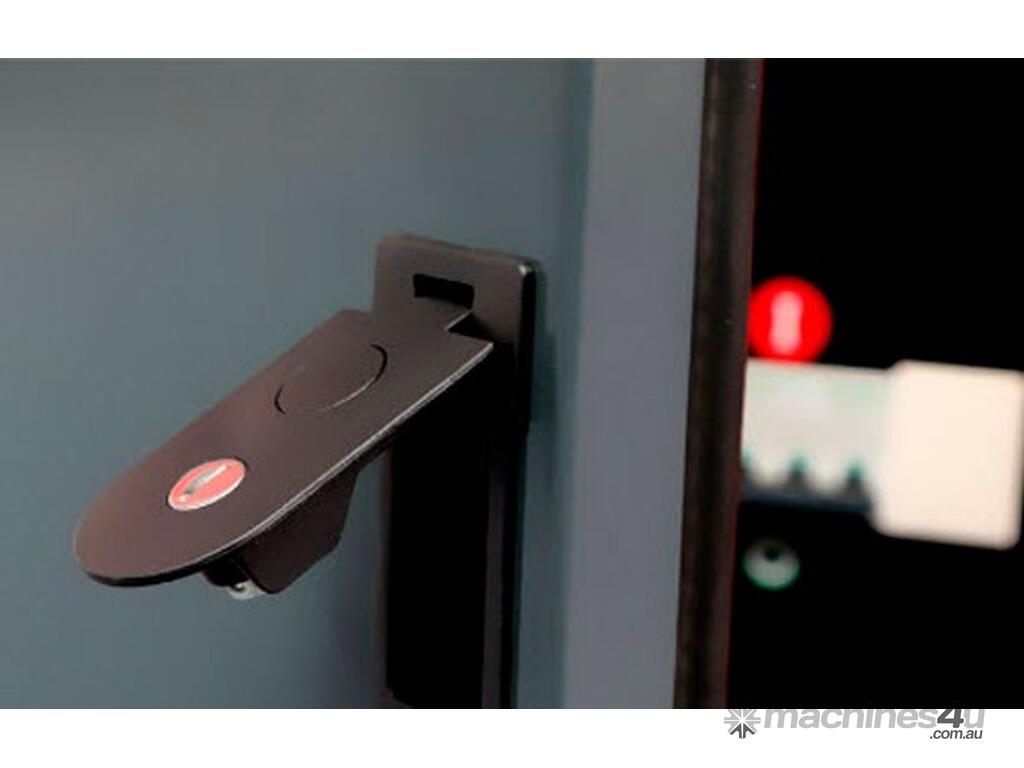

•Locks - Anti-vandalism locks of high hardness and tensile strength with snap lock with key.

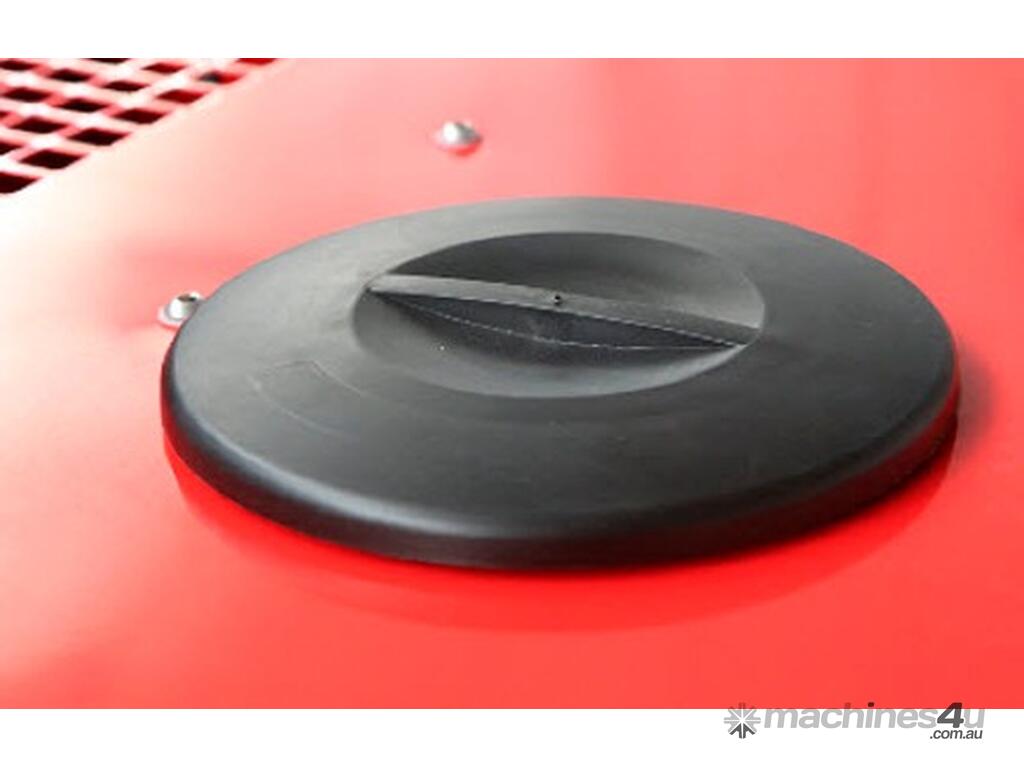

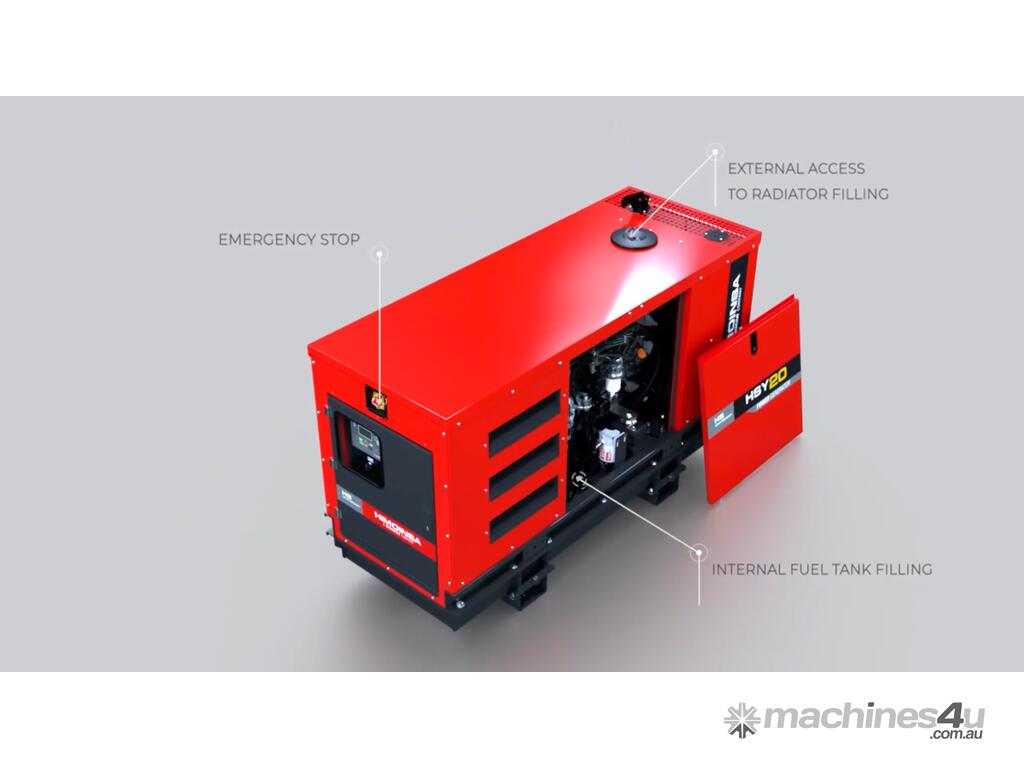

•Radiator Filling - External access for radiator cooling filling.

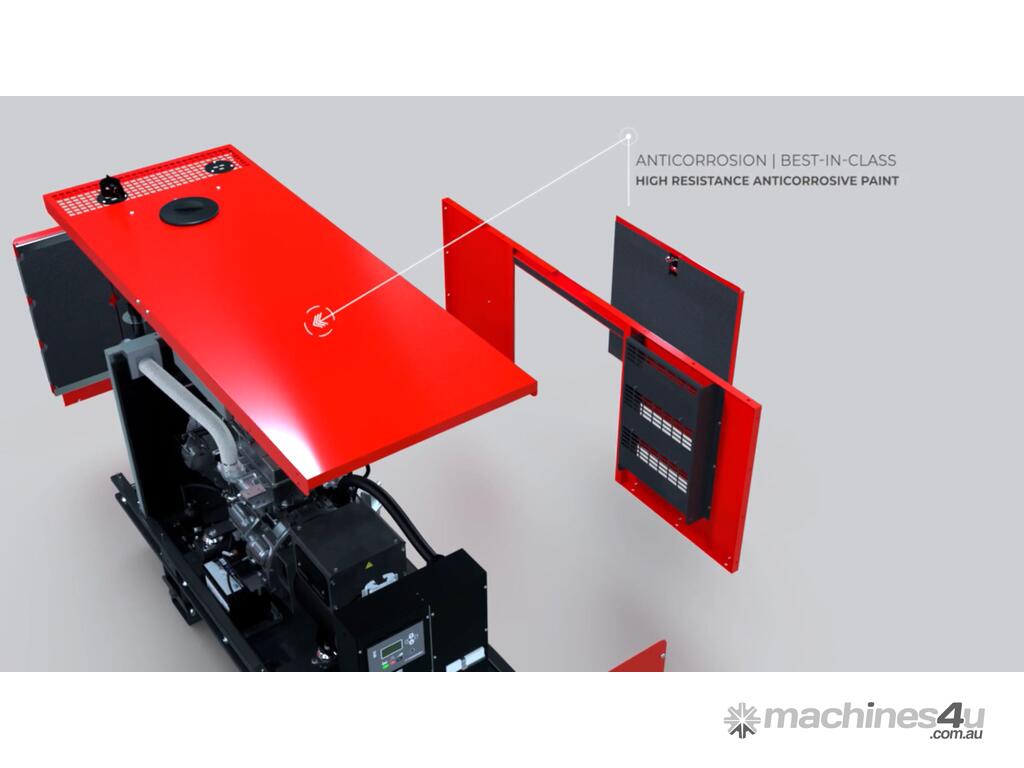

•Anticorrosion Painting - Treatment of steel sheets before the painting process to improve corrosion resistance.

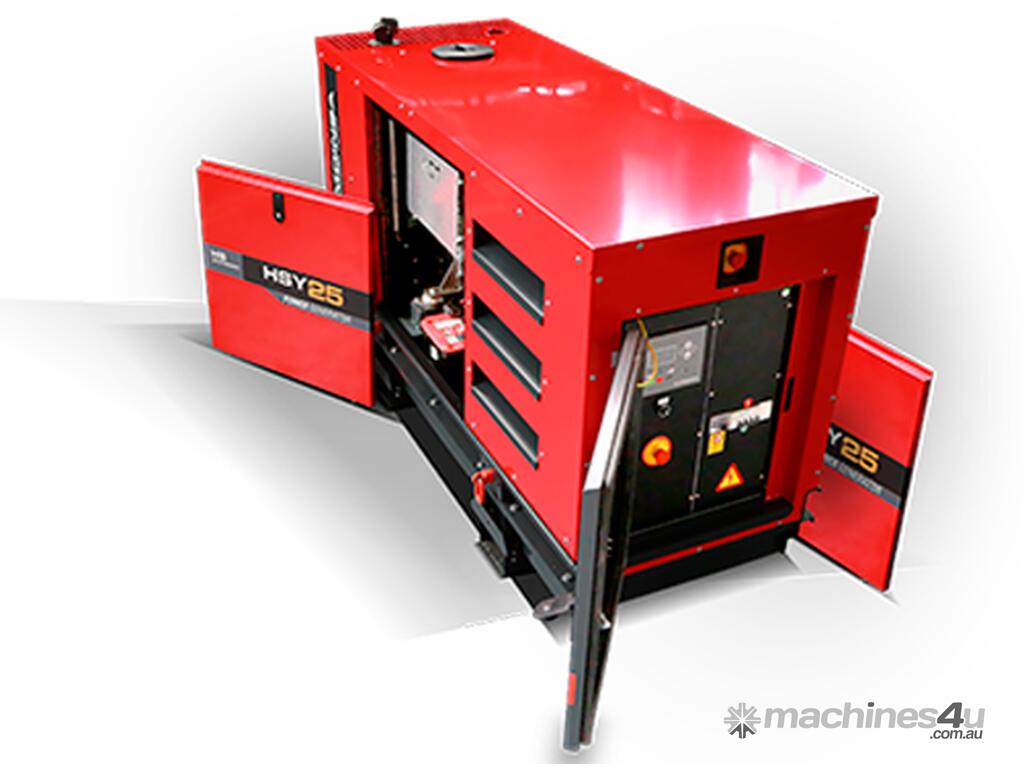

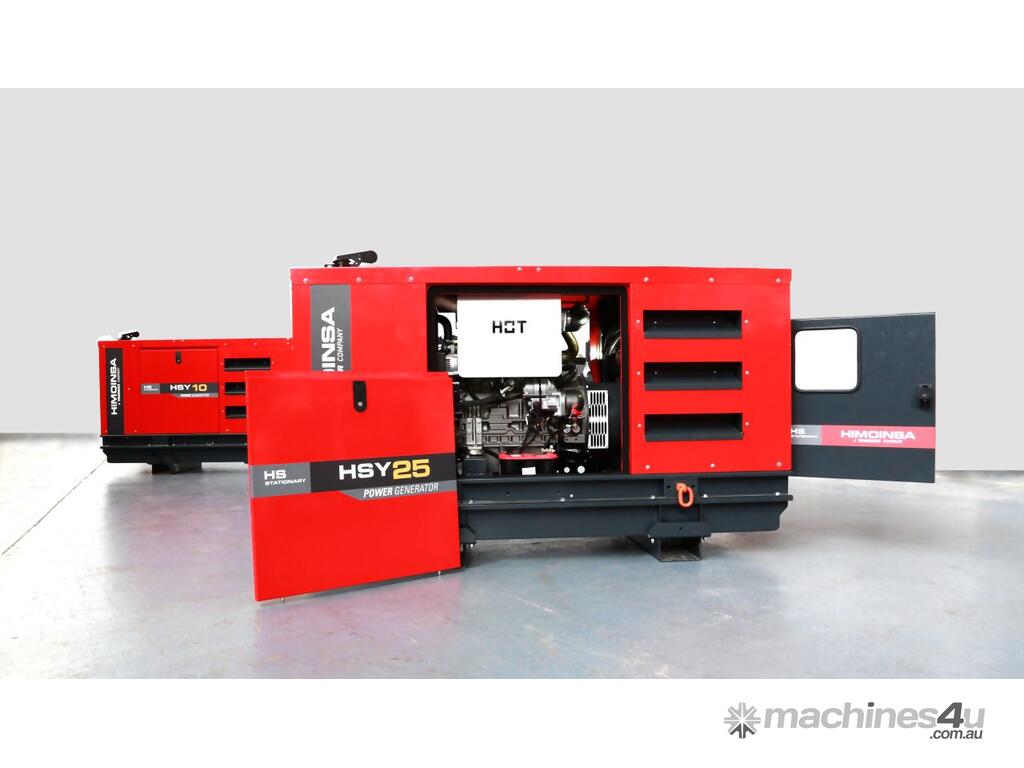

•Removable Doors - Large removable doors. A pivot system has been incorporated in the lower part of the doors, which, when fitted inside the set-back punching, performs the exact pressure for sealing with the weatherstrip.

HSY -65 T5 - STAMFORD

SERVICE PRP ESP
POWER kVA 60 63
POWER kW 48 50
RATED SPEED r.p.m. 1.500
STANDARD VOLTAGE V 400/230
AVAILABLE VOLTAGES V 230/115 · 380/220 ·415/240

Length (L) mm 2.600
Height (H) mm 1.500
Width (W) mm 910
Maximum shipping volume m³ 3.55

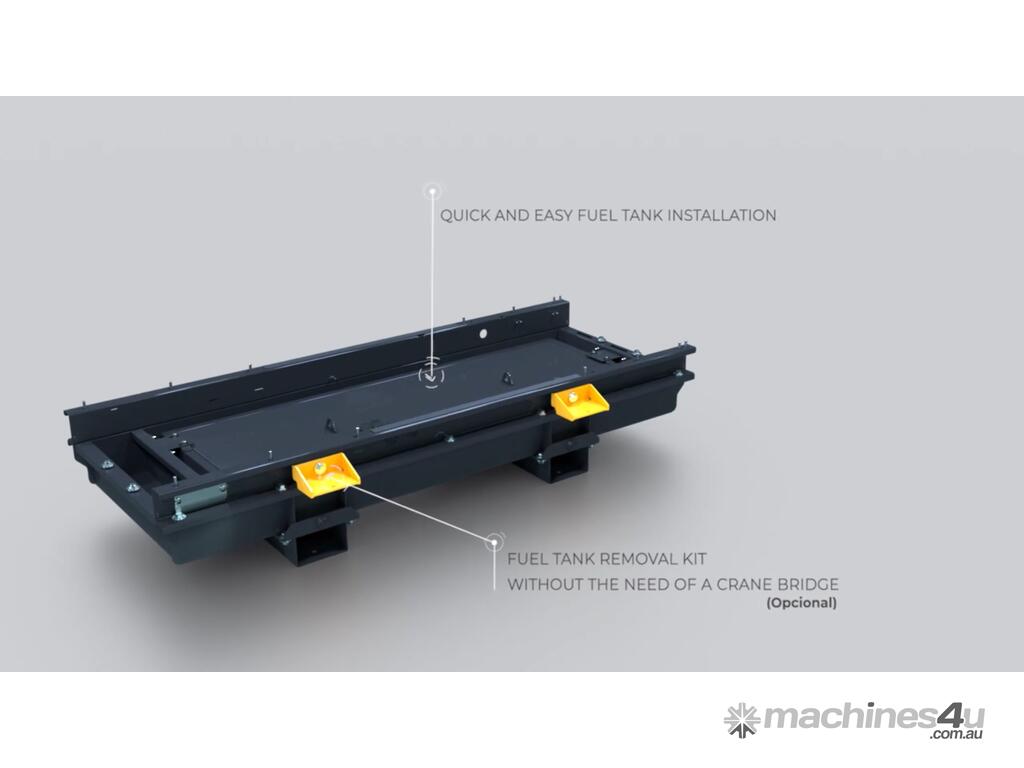

Fuel tank capacity L 195
Autonomy Hours 13

Engine Specifications | 1.500 r.p.m.
Rated Output kW (PRP) 73.3 (ESP) 80.7
Manufacturer YANMAR
Model 4F104SM3.GL
Engine Type 4-stroke diesel
• Diesel engine
• 4-stroke cycle
• Water-cooled
• 12V electrical system
• Dry air filter
• Radiator with pusher fan
• Mechanical governor
• Hot parts protection
• Moving parts protection

Generator Specifications | STAMFORD
Manufacturer STAMFORD
Poles No. 4
Connection type (standard) Star-series
Mounting type S-3 11``1/2
Insulation Class H class
Enclosure (according IEC-34-5) IP23
Exciter system Self-excited, brushless
Voltage regulator A.V.R. (Electronic)
Bracket type Single bearing
Coupling system Flexible disc
Coating type Standard (Vacuum impregnation)
• Self-excited and self-regulated
• IP23 protection
• H class insulation
