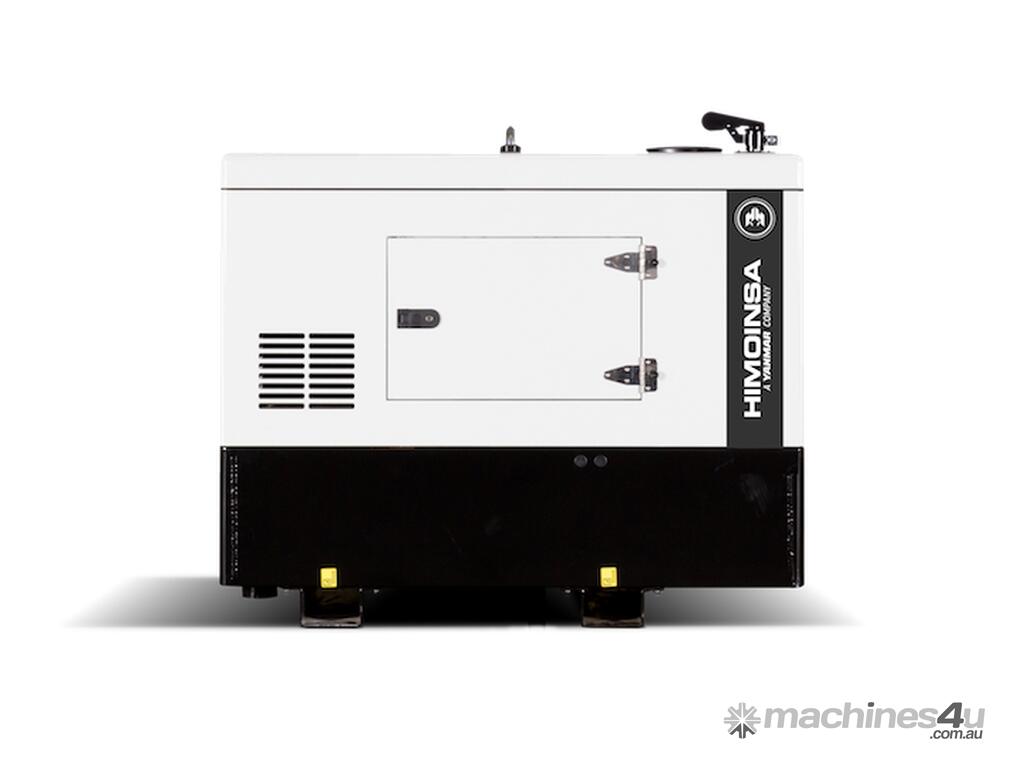

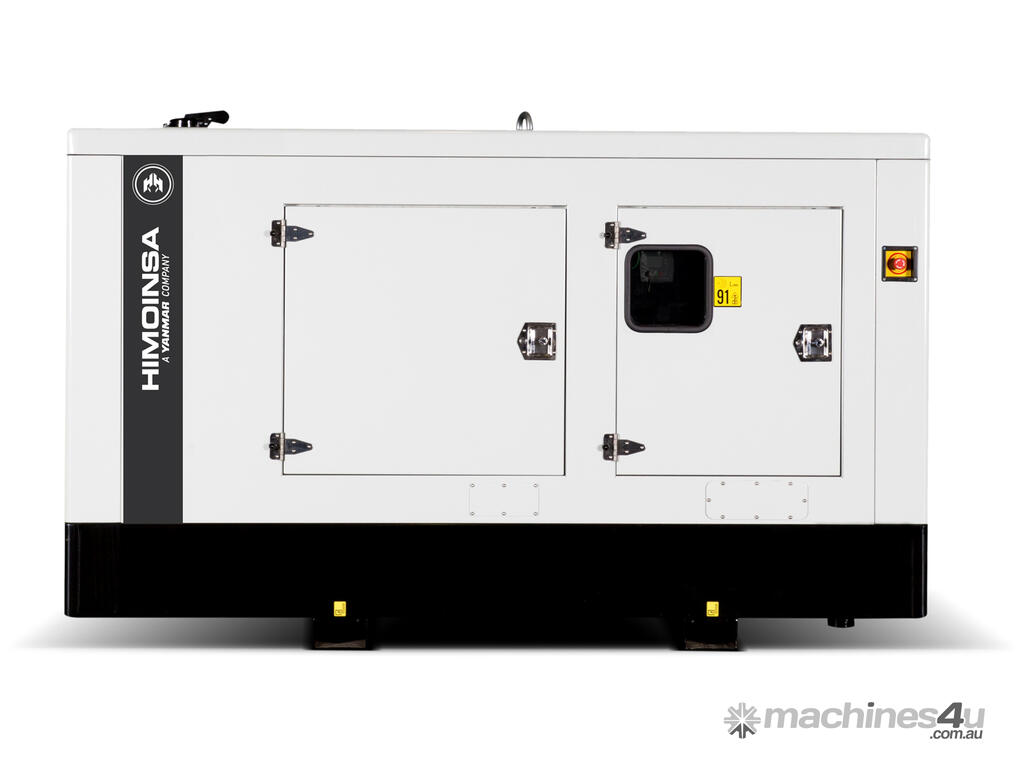

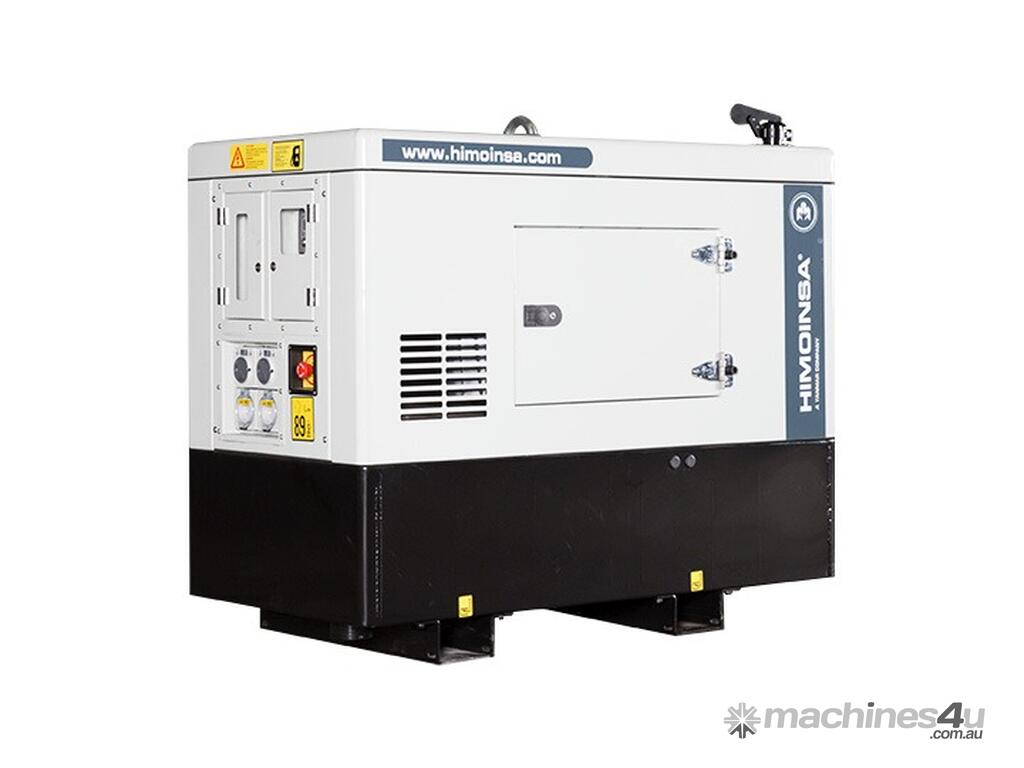

MOTIVE GROUP - YANMAR – HIMOINSA HYW-13 M5 Canopy Industrial Range

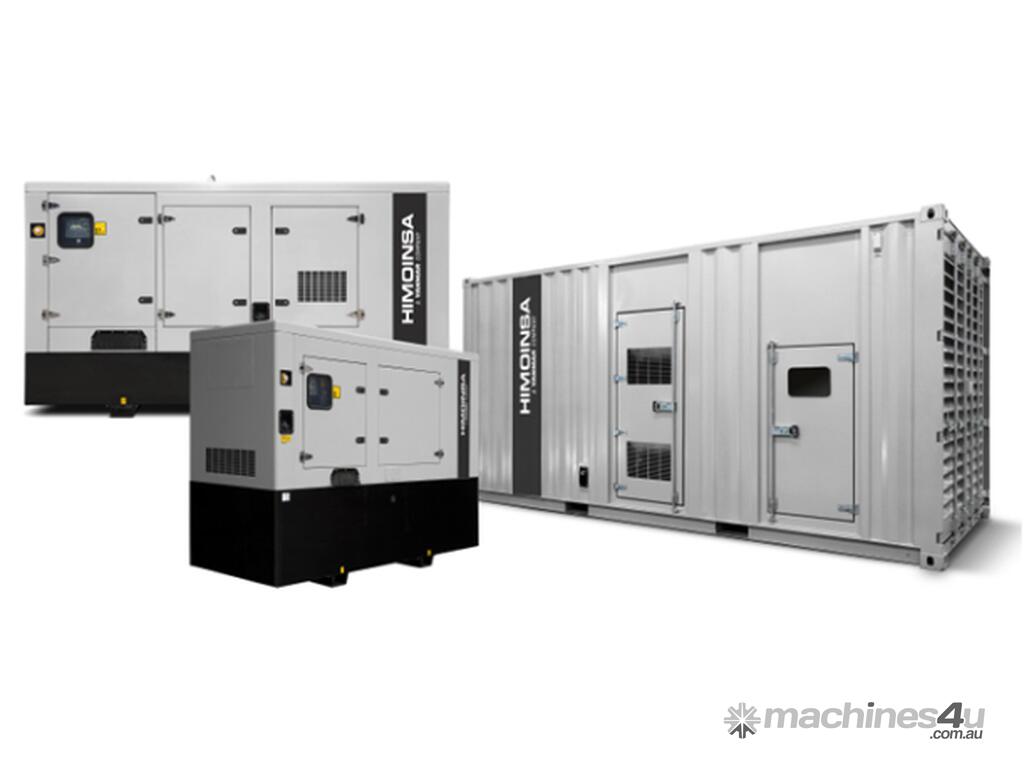

HYW INDUSTRIAL GENERATOR SERIES
It was developed to satisfy the most demanding markets and stringent customer requirements.

New generator sets powered by YANMAR engines, to its Industrial Range portfolio, with a power range from 9.3 to 600 kVA.

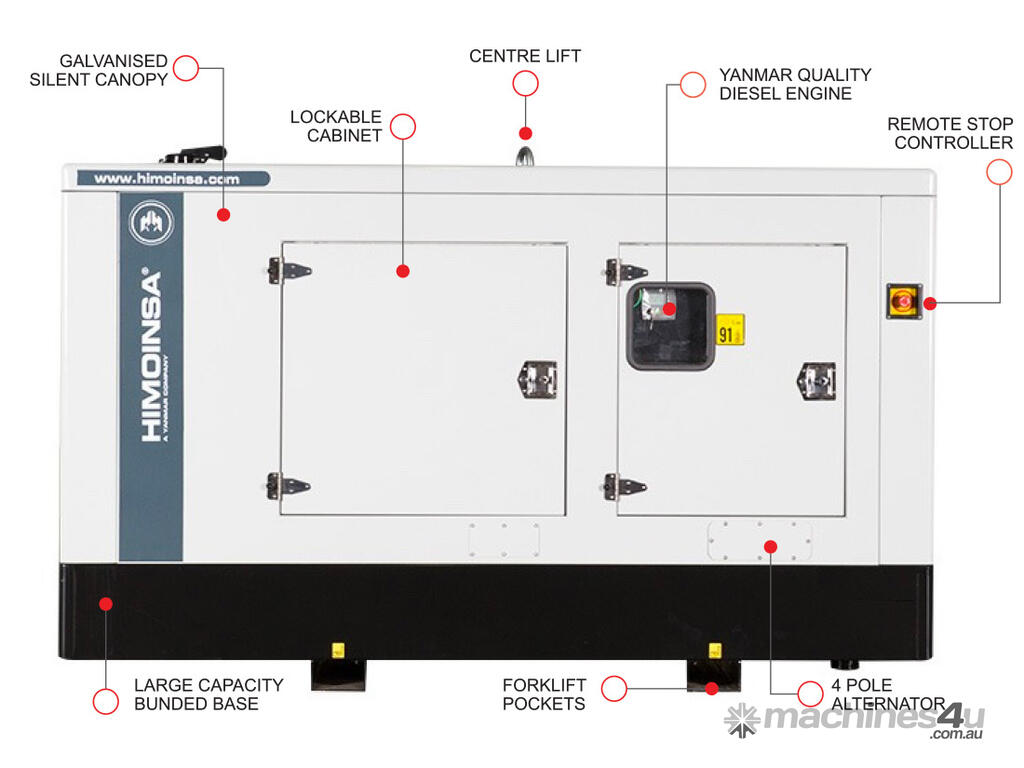

STANDARD FEATURES - BEST IN CLASS RELIABILITY AND EFFICIENCY
- Heavy-duty 1500 rpm engines
- 4 pole oversized alternators
- HIMOINSA M7 controller with full shutdown protection
- Remote start capability
- Full electrical protection
- External Emergency stop
- Low fuel level alarm

Generating Rates
SERVICE PRP STANDBY
Power kVA 9.3 10
Power kW 9.3 10
Rated Speed r.p.m. 1.500
Standard Voltage V 240
Rated at power factor Cos Phi 1

Engine | 1.500 r.p.m.
Rated Output: kW (PRP) 12.2 (STANDBY) 13.2
Manufacturer: YANMAR
Model: 3TNV88BGGEH
Engine Type: 4-stroke diesel
Fuel Tank: L 100

GENERATOR
Manufacturer: STAMFORD

WEIGHT AND DIMENSIONS
Length: mm 1.475
Height: mm 1.275
Width: mm 750
Maximum shipping volume: m3 1.41
Sound pressure level: dB(A)7m 59 ± 2.3

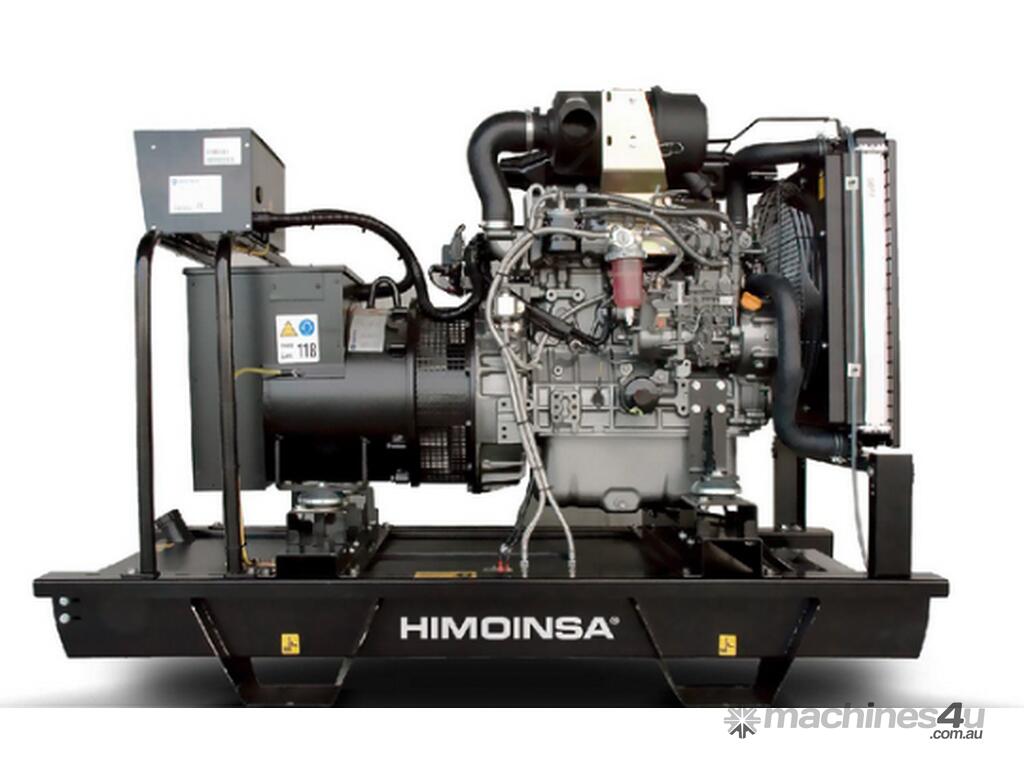

Generator set features
Engine
· Diesel engine
· 4-stroke cycle
· Water-cooled
· 12V electrical system
· Radiator with blower fan
· Water separator filter (visible level)
· Mechanical governor
· Dry air filter
· Hot parts protection
· Moving parts protection

Electrical system
· Electric control and power panel with measurements devices and control unit (according to necessity and configuration)
· Battery charger
· 2-pole thermal magnetic circuit breaker
· Battery charger (standard on gensets with automatic control panels)
· Battery charger alternator with ground connection
· Starter battery/ies installed (cables and bracket included)
· Ground connection electrical installation with connection ready for ground spike (not supplied)
Optional : · Battery isolator
· Heating resistor

**Australia has the right to modify any feature without prior notice.
Weights and dimensions are based on standard products. Illustrations may include optional equipment. Technical data described in this catalogue correspond to the available information at the moment of printing industrial design under patent.
