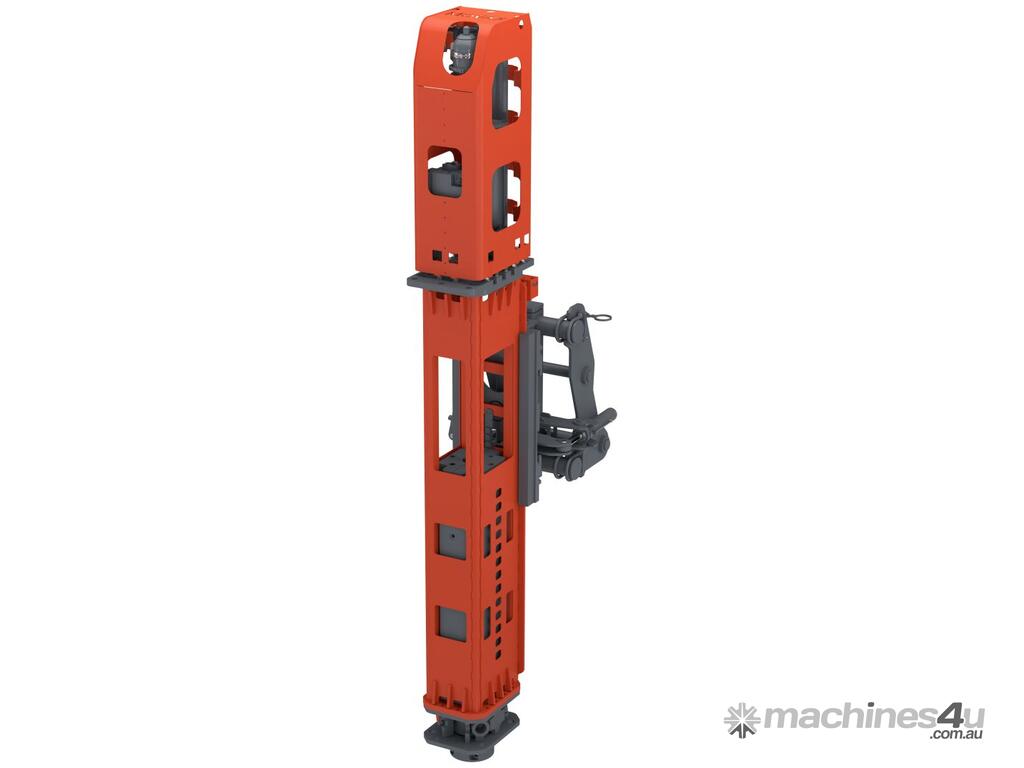

MOVAX DH-20 EXCAVATOR MOUNTED PILING HAMMER

EFFICIENT, FLEXIBLE AND ACCURATE PILE DRIVING
MOVAX piling hammers are the optimum solution for a wide range of piling requirements and a variety of site conditions including difficult soil conditions. The same unit can flexibly be utilised either ecavator- or excavator-leader mast-mounted.

MOVAX piling hammers can also, for instance, be utilized to complete a pile installation after reaching refusal with a side grip pile driver or when load testing is required.

FEATURES - DH-20

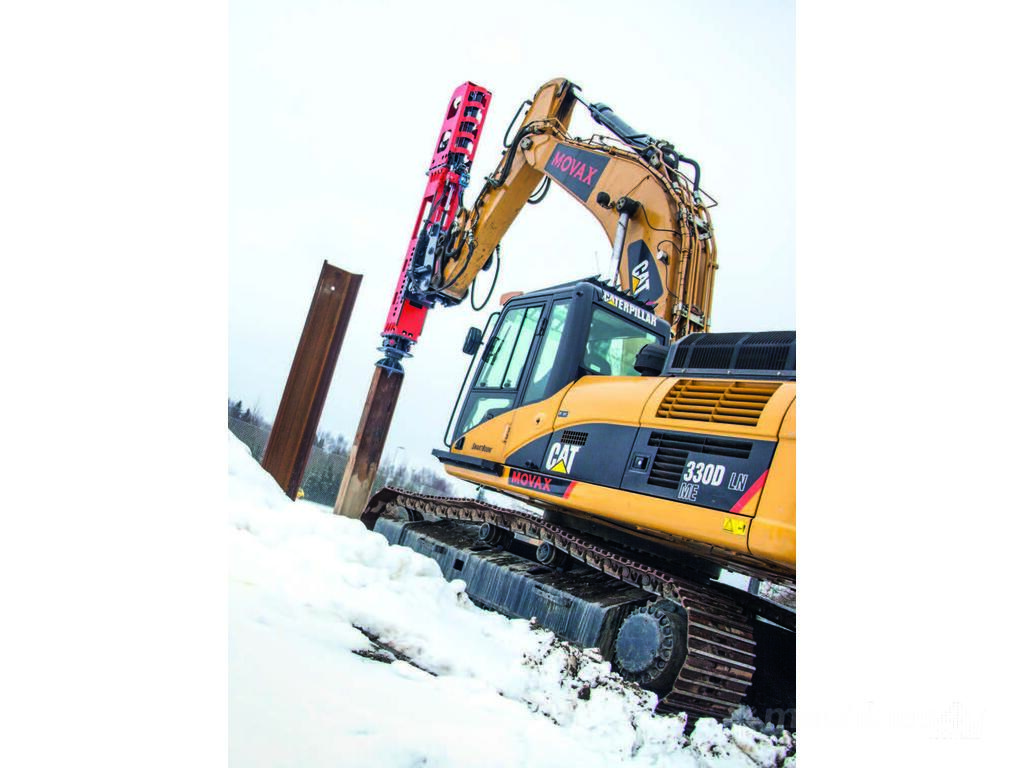

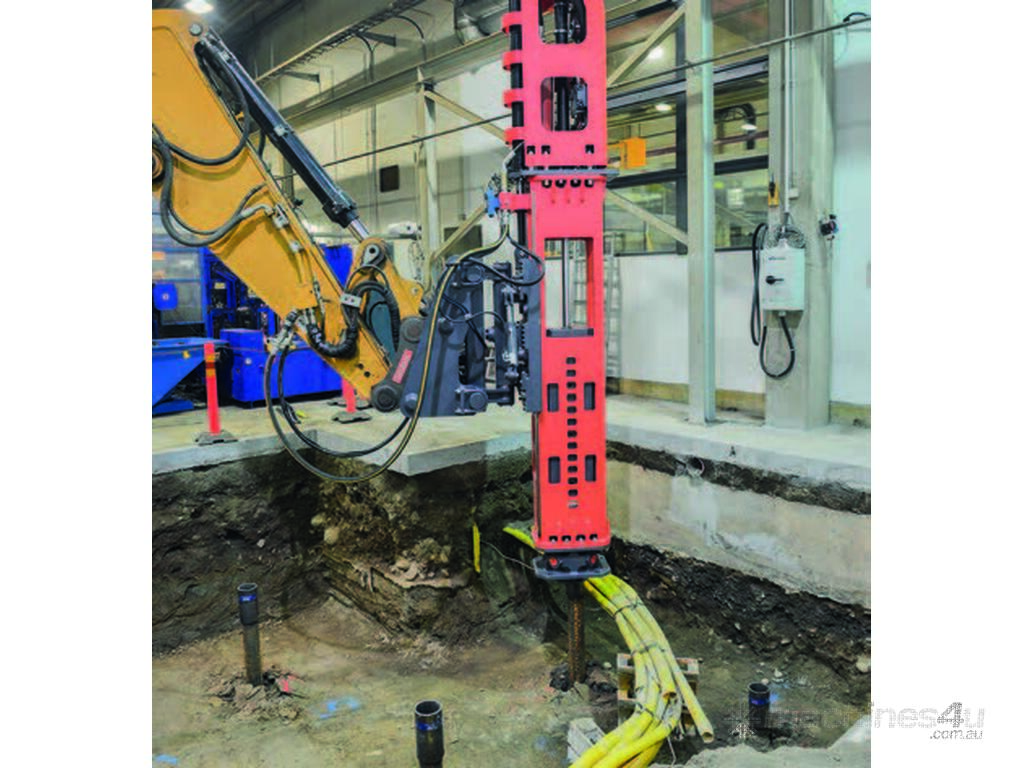

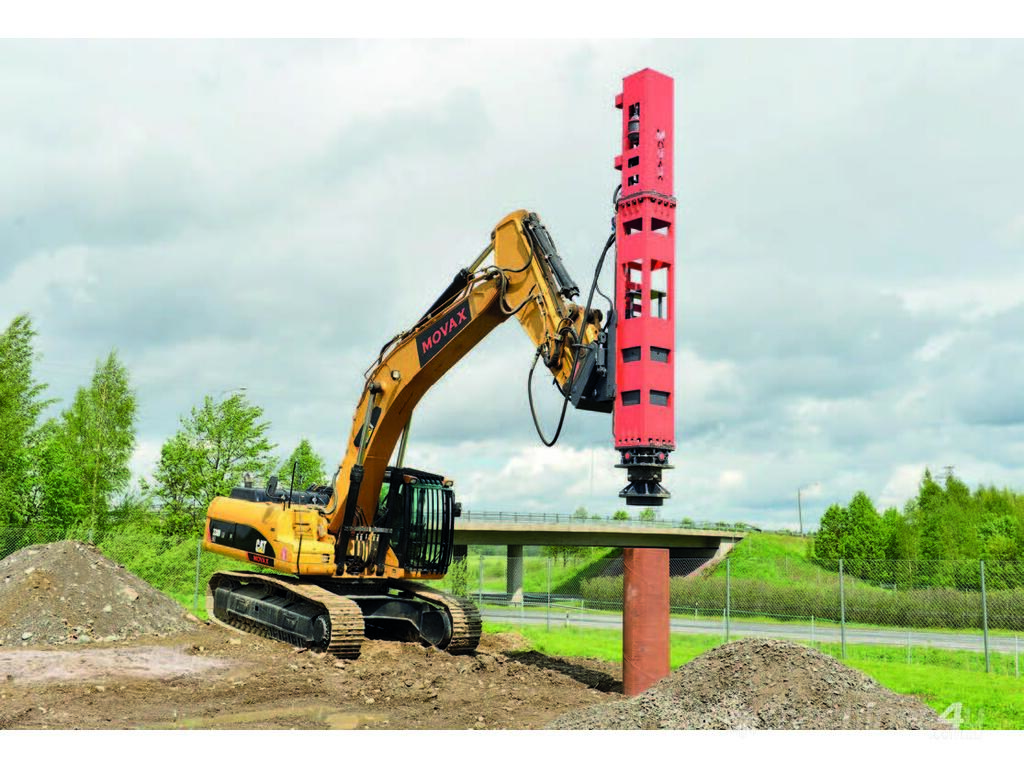

• Excavator-mounted, hydraulic, impact-type piling hammer. Utilized to drive load-bearing tubular steel piles, H-piles and timber piles or assiting in sheet pile driving even in the most difficult soil conditions. Also used in conjunction with side grip pile drivers to complete a pile installation after reaching refusal or when load testing is required.
• The excavator mounting incorporates a 1.3 m leader. The piling hammer can also be mounted on an excavator-mounted leader mast.
• Standard mounting with pin adapter (tilt +/-15º, no rotation). Available with bolt-on-plate mounted rotation device
(tilt +/-15º, rotation +/- 60º).
• Available with drive caps for a range of different pile sections.
• Operated with the Movax Control System (MCS™) which allows the operator to control all MOVAX operations and commands the auxiliary hydraulics of the excavator and provides information related to for instance the ram energy. The MCS is available in two versions: MCS Pro and MCS Lite.
• Reporting and documentation of piling works with M-logbook™ (requires MCS Pro).

TECHNICAL DATA - DH-20
Excavator size class: 25-45 tons
Weight (excl. adapter): 4390 kg
Blows per minute: /min
Drop height: 0 - 1200 mm
Frame width: 500 mm
Height: 5200 mm
Impact energy: 0 - 22 kNm
Oil flow rate: 120 l/min
Operating pressure: 120 bar
Pressure relief set max: 350 bar
Ram weight: 2000 kg
Tilt angle: +/- 15 degrees
Rotation angle: +/- 60 degrees
Transport depth: 1870 mm
Transport width: 1200 mm

ABOUT PREMIER ROCK MACHINERY
Premier Rock Machinery selects only the very best manufacturing brands from companies that design and build world-class excavator attachments to the most exacting standards using high quality materials suitable for the rugged Australian environment.

Premier Rock Machinery partner with the following world class manufacturers: MOVAX, MONTABERT, REMU, ROTAR and LEHNHOFF.

With a state-of-the-art workshop facilities and a fleet of dedicated service vehicles, Premier Rock Machinery is able to assist customers on or off their site whether they are engaged in the smallest of earthwork projects or the most demanding construction and civil engineering challenges.

Contact us today for more information this product.
