MOVAX SG-50 EXCAVATOR MOUNT PILE DRIVER (23-28T)

FAST, EFFICIENT, FLEXIBLE, ACCURATE AND SAFE PILE DRIVING

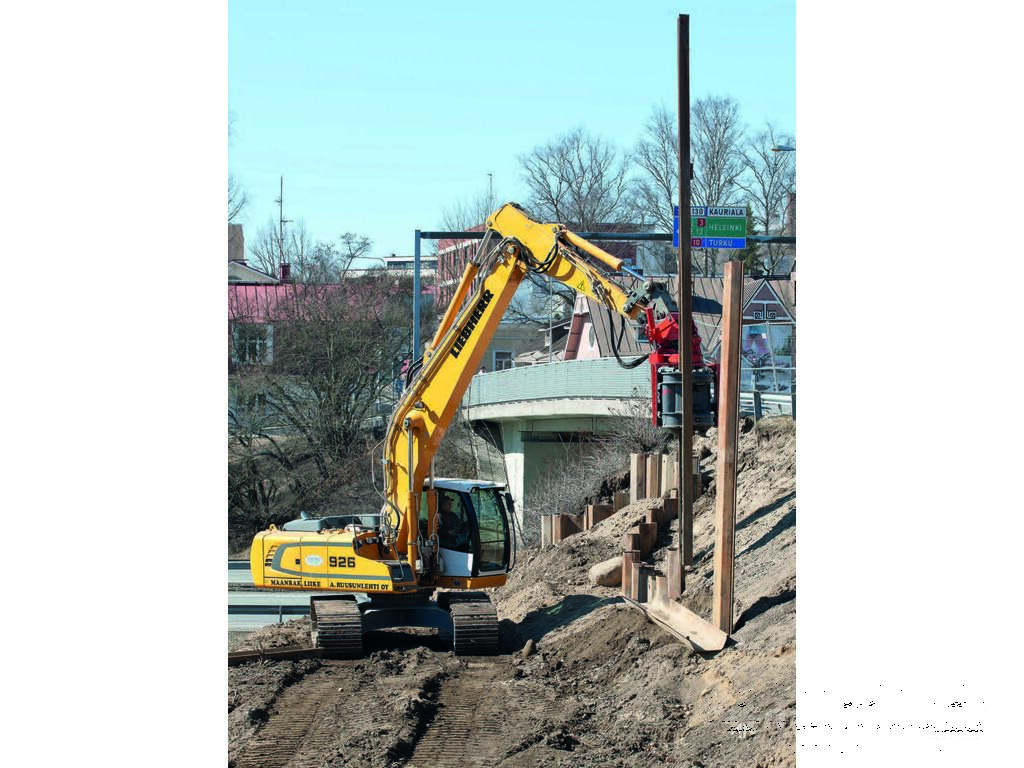

MOVAX side-grip pile drivers are the optimum solution for a wide range of piling requirements and a variety of site and soil conditions ranging from the largest construction sites to small landscaping jobs.

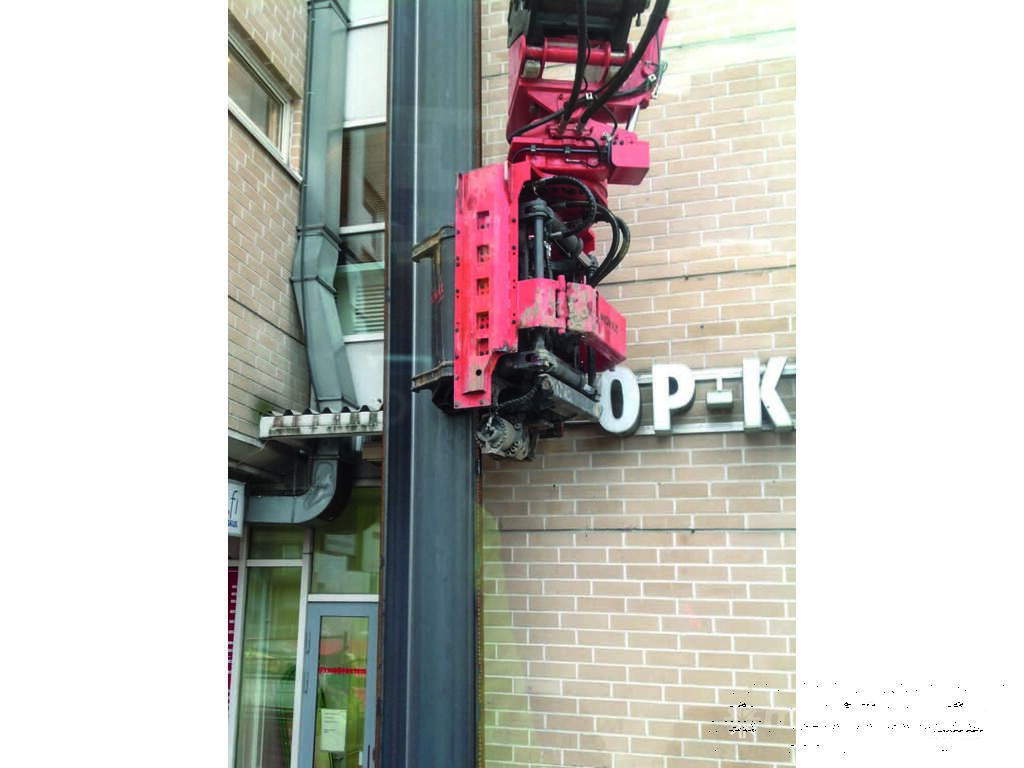

MOVAX side-grip pile drivers are the perfect choice when a high-degree of precision is required when, for instance, laying the foundations for solar panels. MOVAX side-grip pile drivers are especially suitable for piling in sensitive environments and when limited space or access is available.

The MOVAX Modular System (MMSTM) ensures that the same side grip pile driver can be used for different type of piles. Same unit can handle, pitch and drive piles and is capable accomplishing the whole process without the need of manual handling or assisting machinery.

BENEFITS

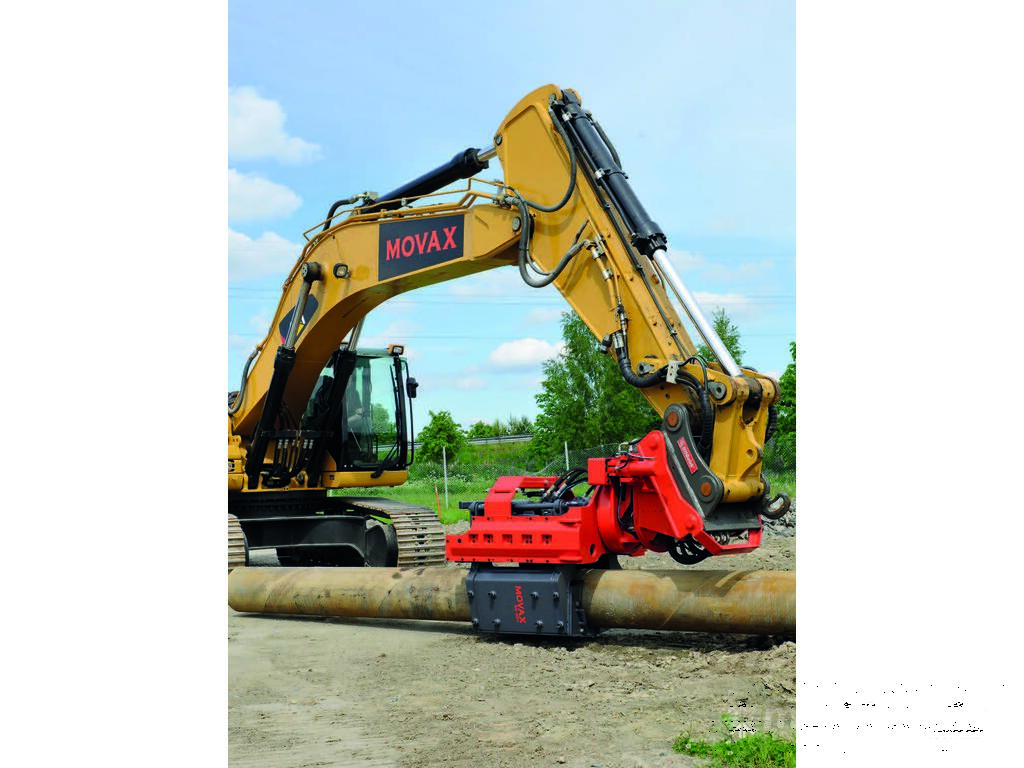

MOVAX side grip pile drivers are the optimum solution to handle, pitch, drive and extracting piles without the need of manual handling or assisting machinery. The use of MOVAX’s side-grip technology leads to higher productivity and significant cost savings.

• Suitable for a wide range of piles and a wide variety of site and soil conditions - especially suitable when limited space or access is available

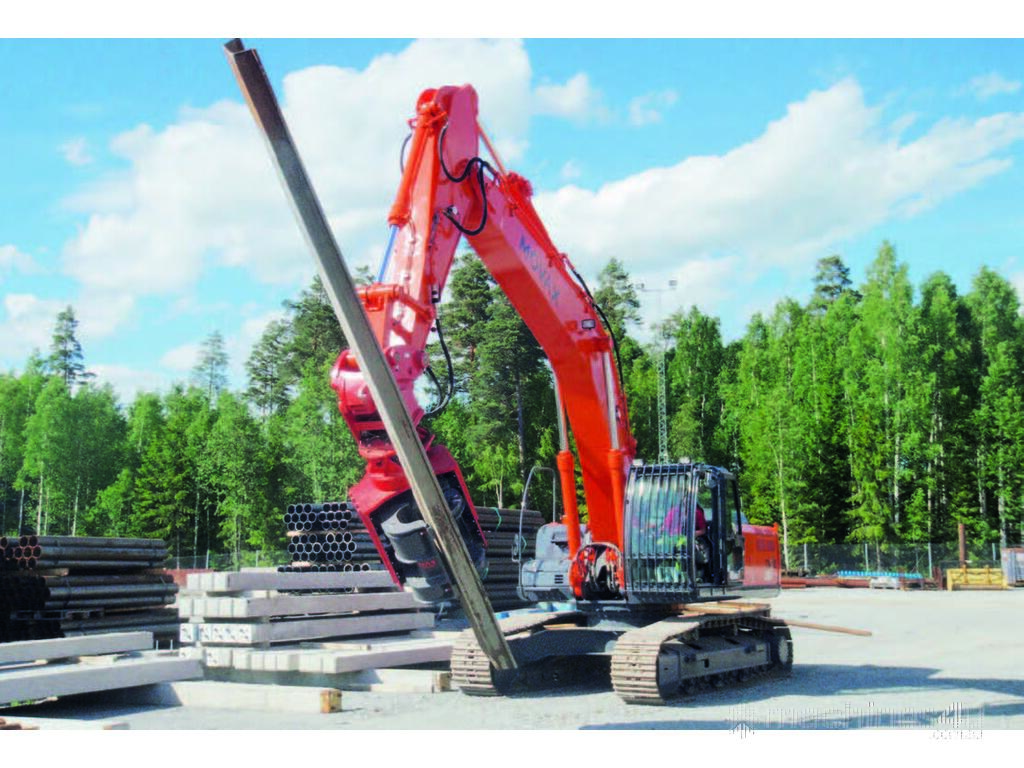

• Fast and efficient - handling, pitching, driving and extraction of piles
• Flexible - due to Movax modular system (MMSTM). The same unit can be utilized for multiple tasks and different type of piles
• Easy-to-operate - with Movax Control System (MCSTM)
• Precise and accurate pile driving
• Safe-to-operate
• Easy-to-maintain
• Durable – designed for long continuous operation, constructed using quality materials and parts

FEATURES - SG-50
• Designed to match the capabilities of larger excavators and to combine a robust structure with excellent pile handling characteristics.

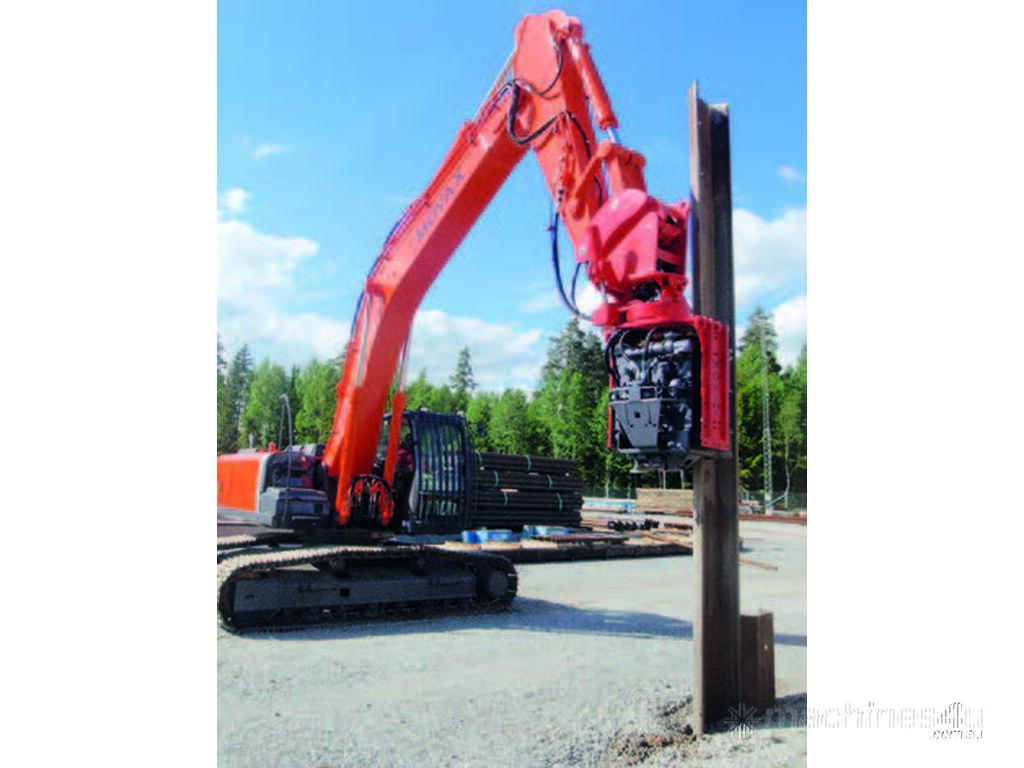

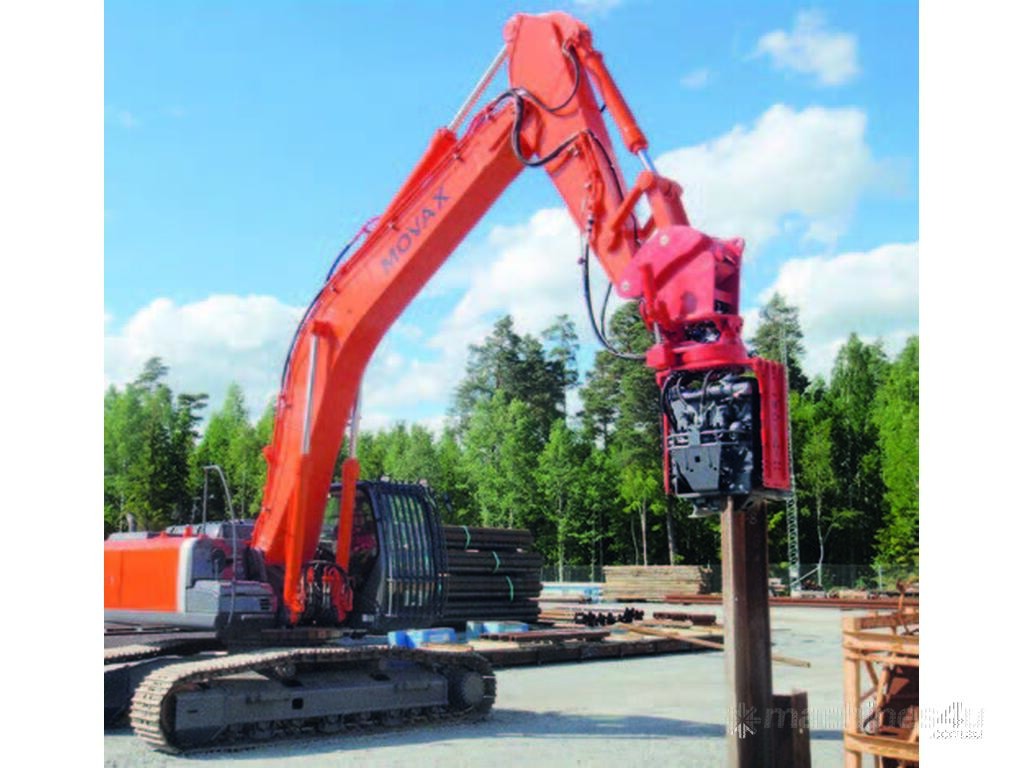

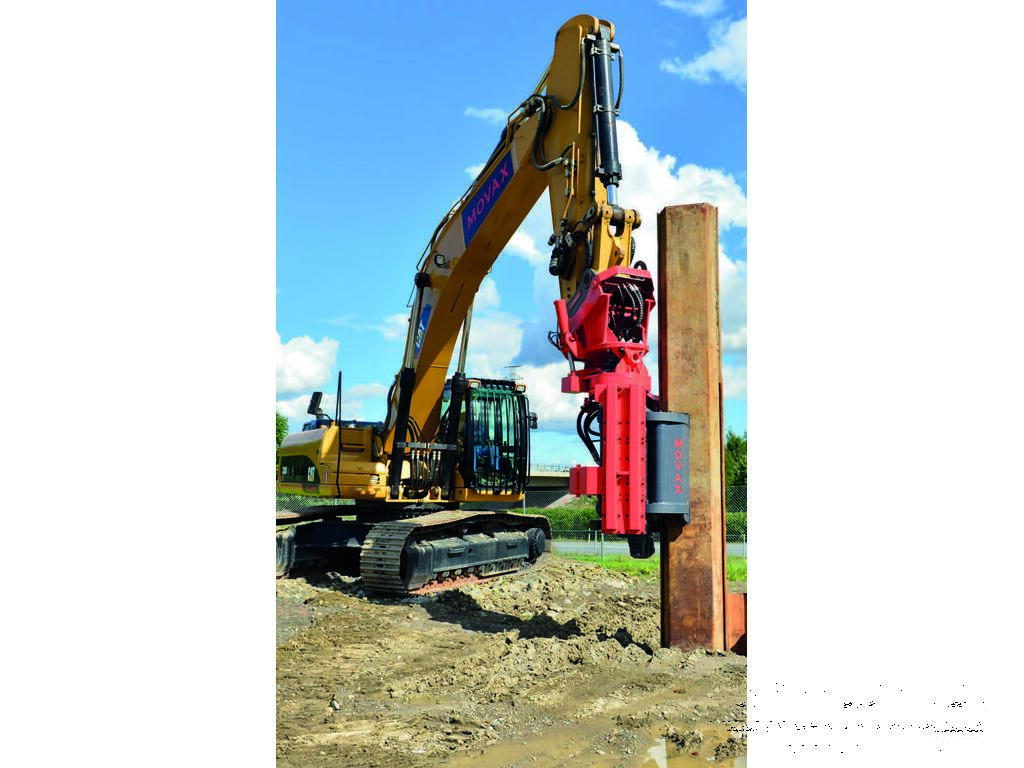

• Fitted with heavy-duty arms/clamps capable of driving a wide range of piles including sheet piles, H-piles, tubular steel piles and other pile sections.
• High frequency pile driver with fixed eccentric moment.
• Based on the Movax Modular System (MMS™). The unit is always equipped with one of the standard arm/clamp systems and the bottom clamp. Customised arms and clamps are available upon special request.
• Operated with the Movax Control System (MCS™) which allows the operator to control all MOVAX operations and commands the auxiliary hydraulics of the excavator. The MCS is available in two versions: MCS Pro and MCS Lite.
• Reporting and documentation of piling works with M-logbook™ (requires MCS Pro).

TECHNICAL DATA - SG-50
Excavator size class: 23-28 tons
Weight (excl. adapter): 2327 - 2558 kg
Centrifugal force, max: 500 kN
Depth: 1180 - 1436 mm
Driving method: Vibration
Eccentric moment: 5.1 kgm
Engine power, min: 125 kgm
Frequency: /min
Ground vibration: Normal
Height: 2478 mm
Pressure setting: 350 bar
Return pressure, max: 5 bar
Swing angle: +/- 360 degrees
Tilt angle: +/- 30 degrees

SUITABLE PILES - SG-50
Sheet pile width: 400-1200 mm
Sheet pile depth: 265 mm
H-beam: H180-H500 size
Timber pile: Ø 160-420 mm
Tubular pile, tubes: Up to 762 mm

LENGTH & WEIGHT - SG-50
8m / 2300kg
12m / 1600kg
16m / 1200kg

ABOUT PREMIER ROCK MACHINERY
Premier Rock Machinery selects only the very best manufacturing brands from companies that design and build world-class excavator attachments to the most exacting standards using high quality materials suitable for the rugged Australian environment.

Premier Rock Machinery partner with the following world class manufacturers: MOVAX, MONTABERT, REMU, ROTAR and LEHNHOFF.

With a state-of-the-art workshop facilities and a fleet of dedicated service vehicles, Premier Rock Machinery is able to assist customers on or off their site whether they are engaged in the smallest of earthwork projects or the most demanding construction and civil engineering challenges.

Contact us today for more information this product.
