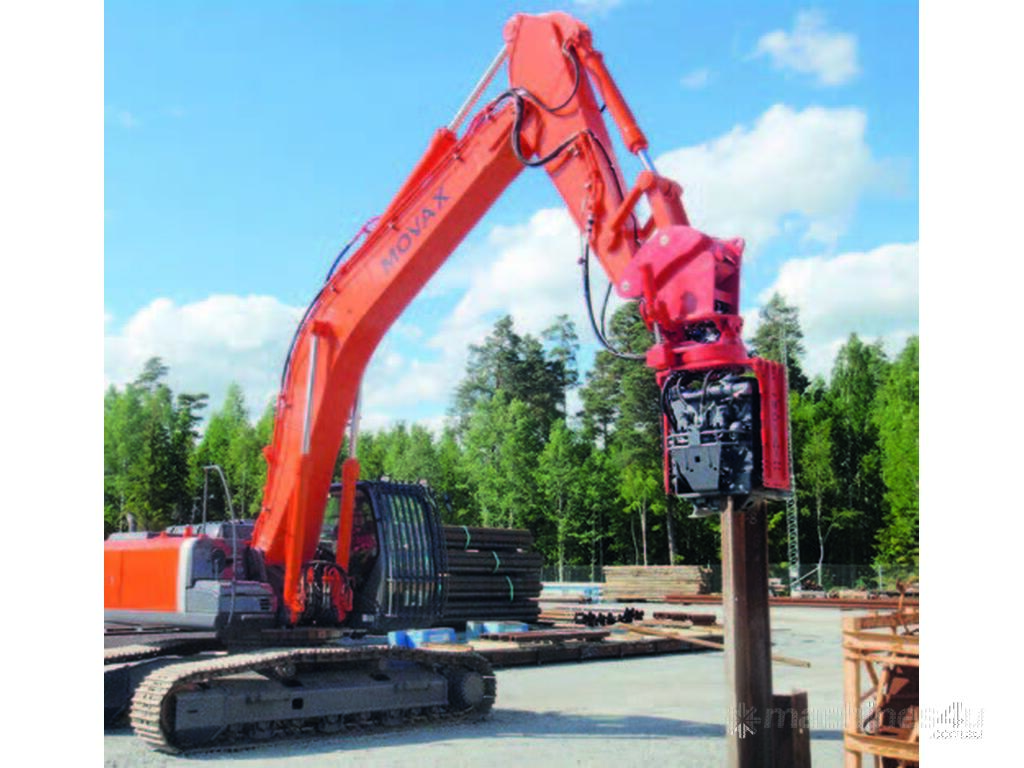

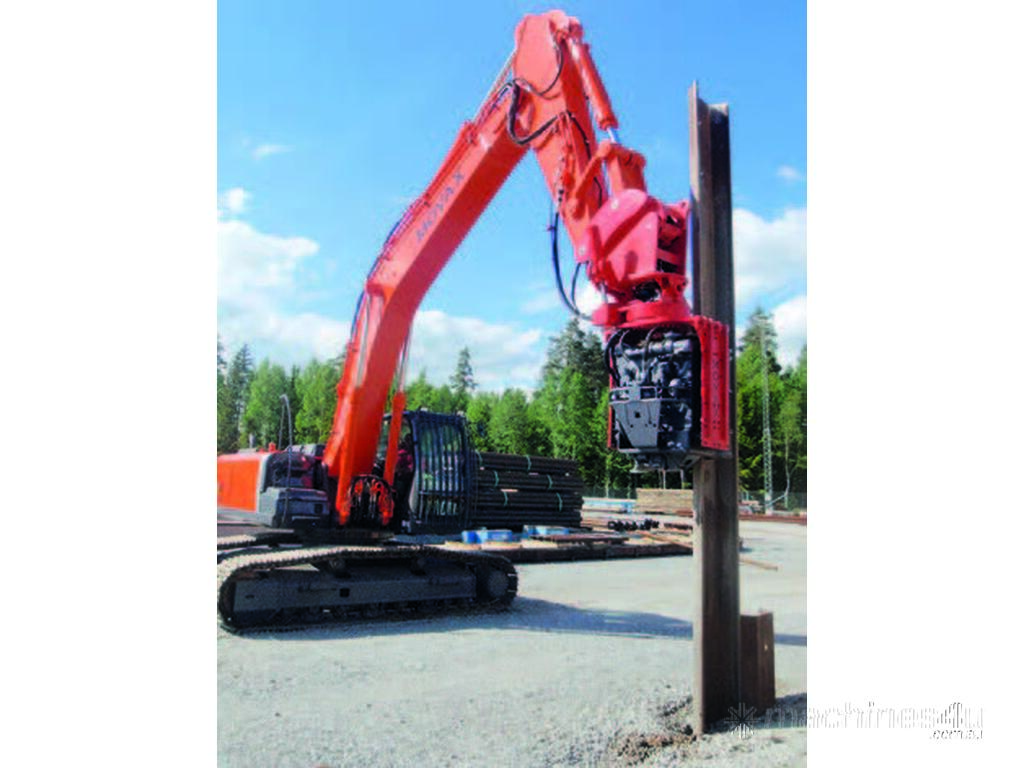

MOVAX SG-60V EXCAVATOR MOUNT PILE DRIVER (28-32T)

FAST, EFFICIENT, FLEXIBLE, ACCURATE AND SAFE PILE DRIVING

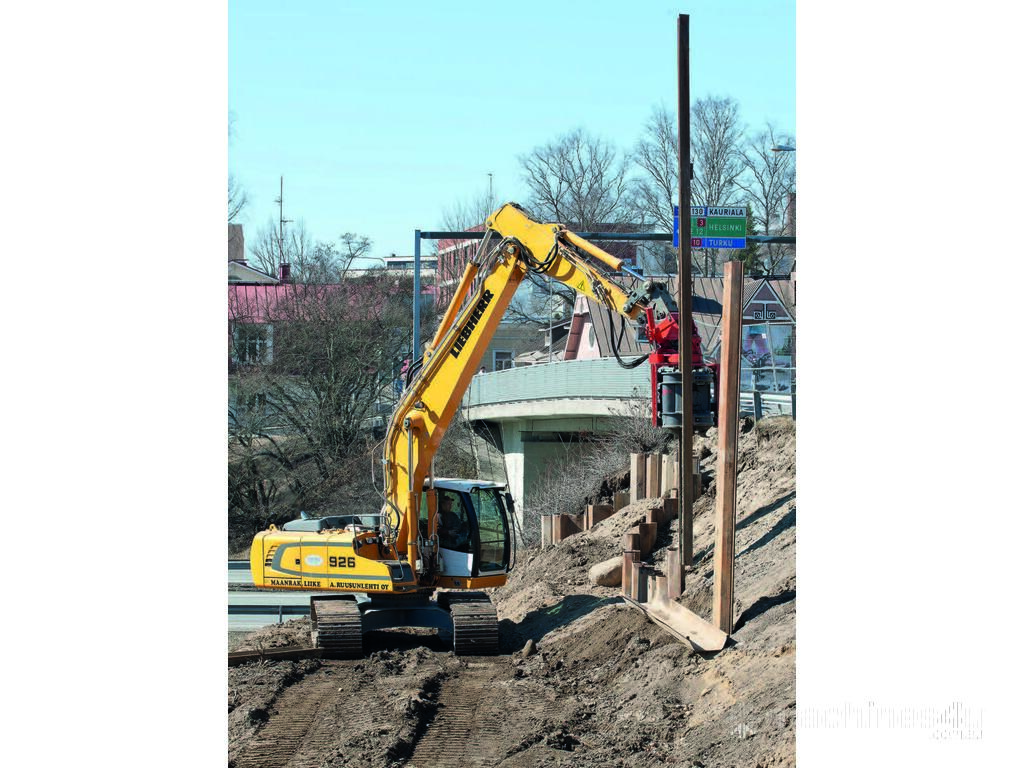

MOVAX side-grip pile drivers are the optimum solution for a wide range of piling requirements and a variety of site and soil conditions ranging from the largest construction sites to small landscaping jobs.

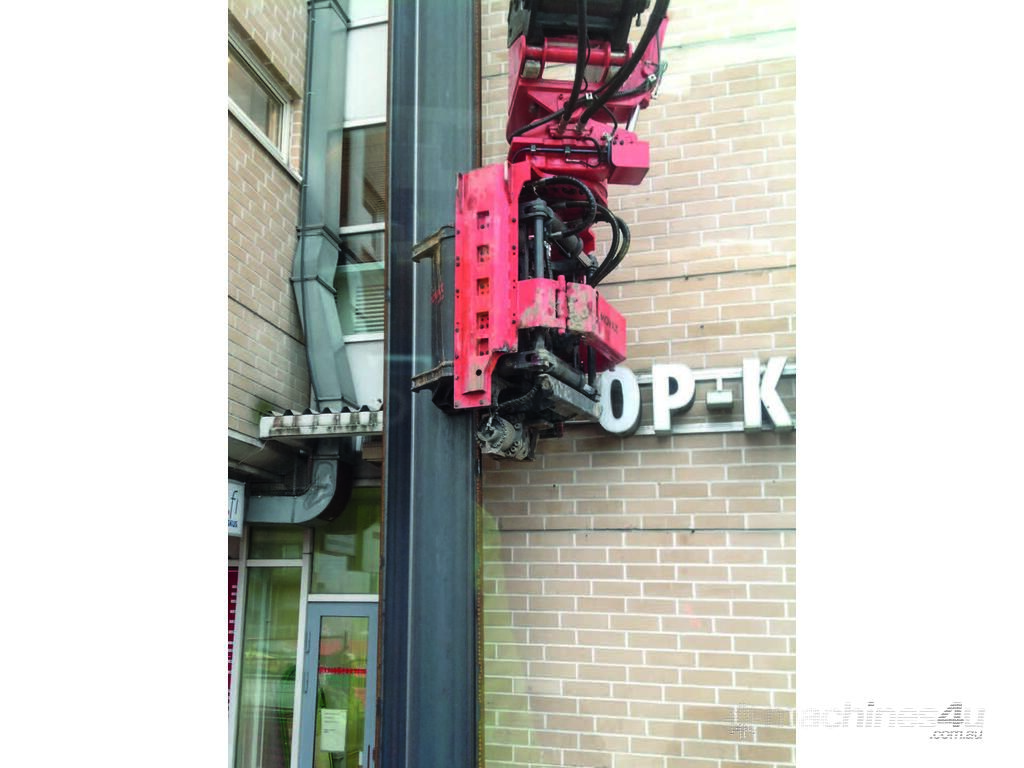

MOVAX side-grip pile drivers are the perfect choice when a high-degree of precision is required when, for instance, laying the foundations for solar panels. MOVAX side-grip pile drivers are especially suitable for piling in sensitive environments and when limited space or access is available.

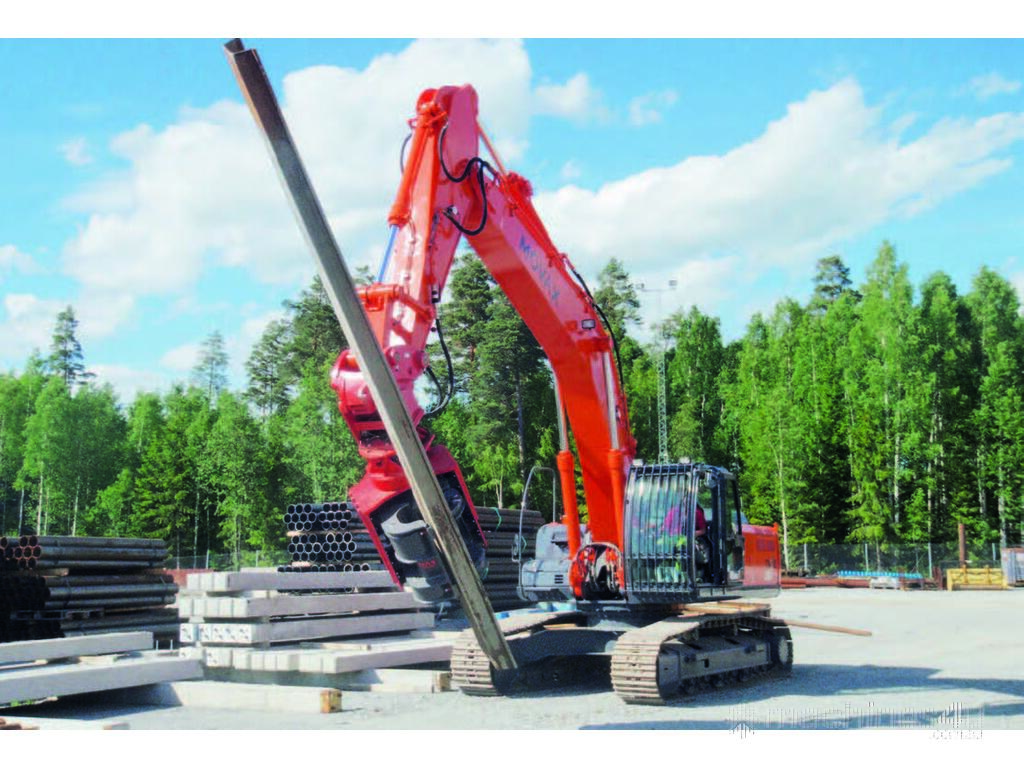

The MOVAX Modular System (MMSTM) ensures that the same side grip pile driver can be used for different type of piles. Same unit can handle, pitch and drive piles and is capable accomplishing the whole process without the need of manual handling or assisting machinery.

BENEFITS

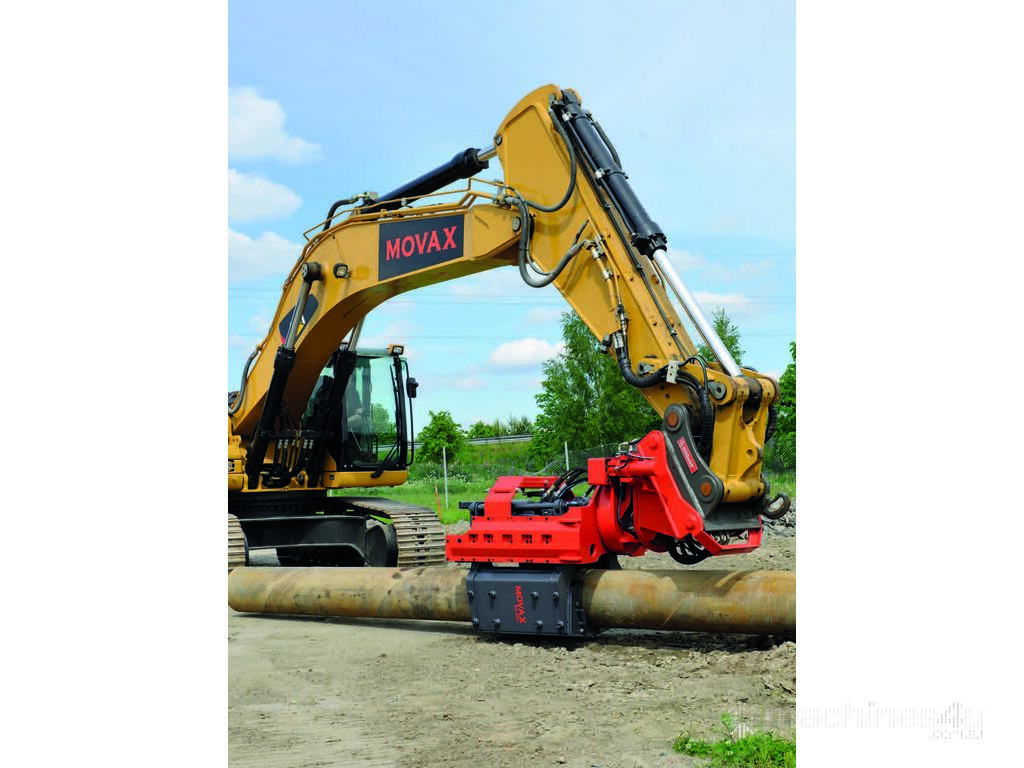

MOVAX side grip pile drivers are the optimum solution to handle, pitch, drive and extracting piles without the need of manual handling or assisting machinery. The use of MOVAX’s side-grip technology leads to higher productivity and significant cost savings.

• Suitable for a wide range of piles and a wide variety of site and soil conditions - especially suitable when limited space or access is available
• Fast and efficient - handling, pitching, driving and extraction of piles
• Flexible - due to Movax modular system (MMSTM). The same unit can be utilized for multiple tasks and different type of piles
• Easy-to-operate - with Movax Control System (MCSTM)
• Precise and accurate pile driving
• Safe-to-operate
• Easy-to-maintain
• Durable – designed for long continuous operation, constructed using quality materials and parts

FEATURES - SG-75V

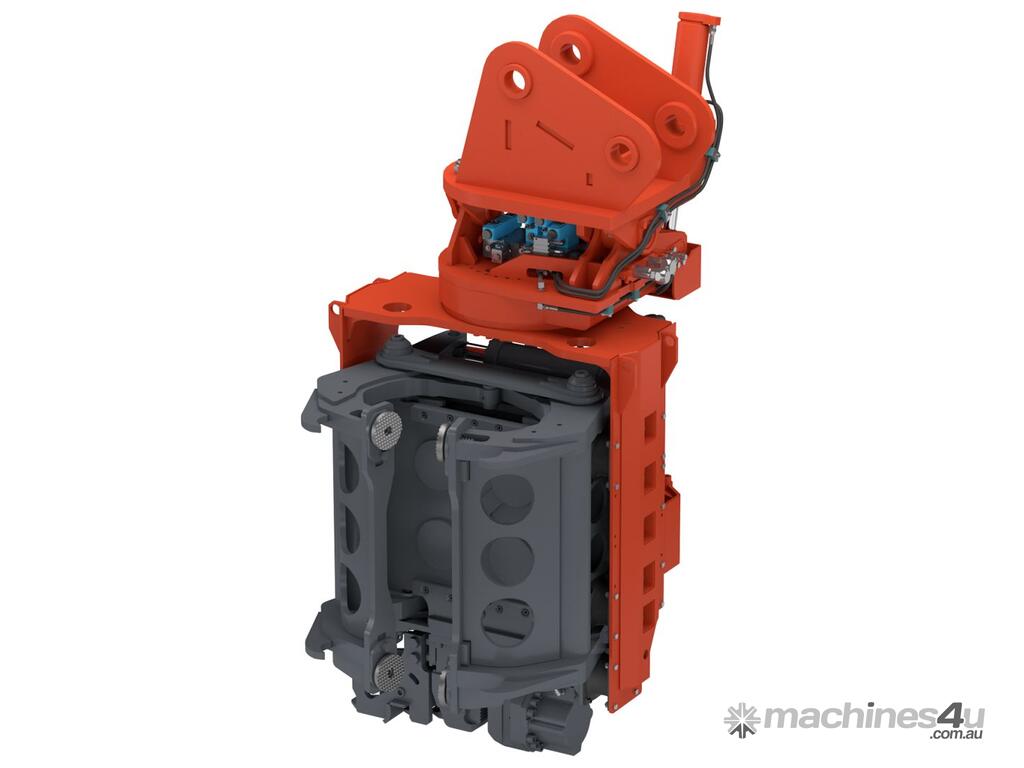

• Designed to match the capabilities of larger excavators and to combine a robust structure with excellent pile handling characteristics.

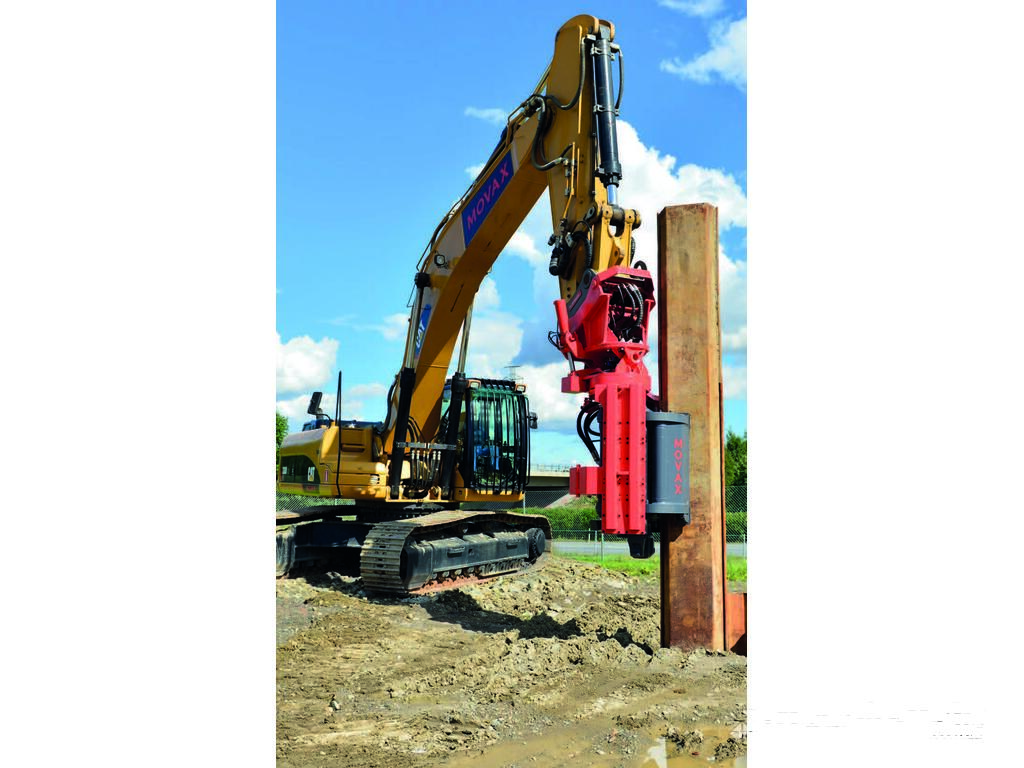

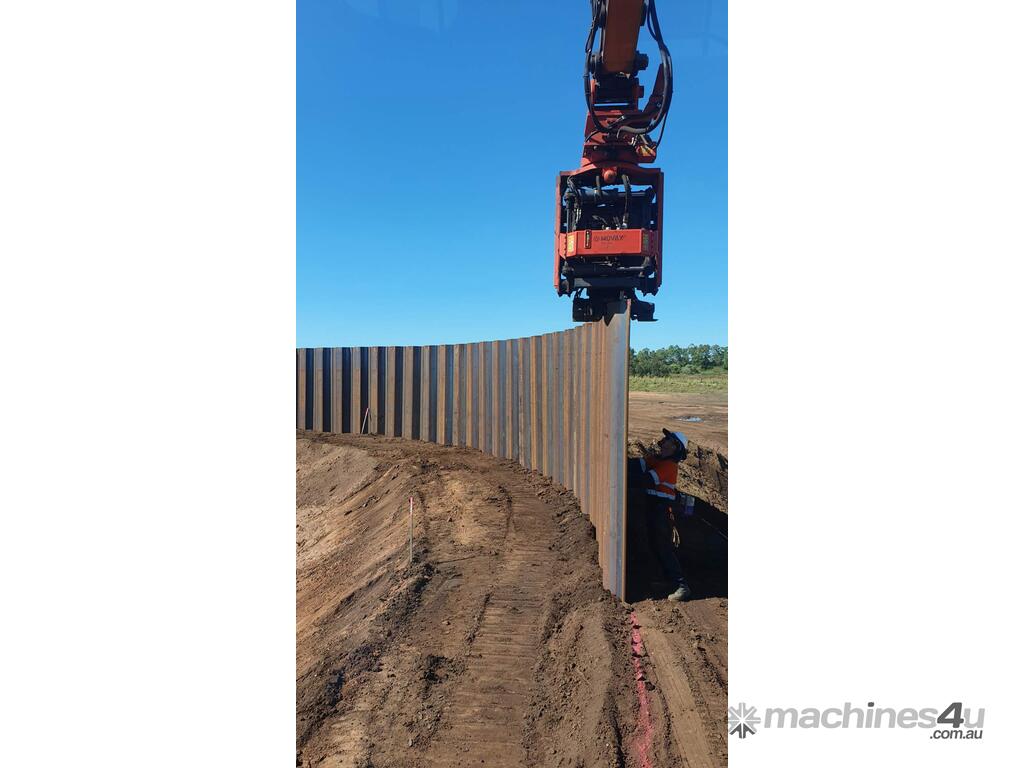

• Fitted with heavy-duty arms/clamps capable of driving a wide range of piles including sheet piles, H-piles, tubular steel piles and other pile sections.
• High frequency pile driver with variable eccentric moment. Disturbance of surrounding environment is minimized by operating at a high frequency and by avoiding an oscillation at natural frequencies of the soil and the surrounding structures.
• Based on the Movax Modular System (MMS™). The unit is always equipped with one of the standard arm/clamp systems and the bottom clamp. Customised arms and clamps are available upon special request.
• Operated with the Movax Control System (MCS™) which allows the operator to control all MOVAX operations and commands the auxiliary hydraulics of the excavator. The MCS is available in two versions: MCS Pro and MCS Lite.
• Reporting and documentation of piling works with M-logbook™ (requires MCS Pro).

TECHNICAL DATA - SG-60V
Excavator size class: 28-32 tons
Weight (excl. adapter): 2560 - 2791 kg
Width: 1193 mm
Centrifugal force, max: 600 kN
Depth: 1180 - 1436 mm
Driving method: Vibration
Eccentric moment: 6.1 kgm
Engine power, min: 134 kgm
Frequency: /min
Ground vibration: Low
Height: 2478 mm
Pressure setting: 350 bar
Resonance-free start/stop: Yes
Return pressure, max: 5 bar
Side tilt angle: +/- 0 degrees
Swing angle: +/- 360 degrees
Tilt angle: +/- 30 degrees

SUITABLE PILES - SG-60V

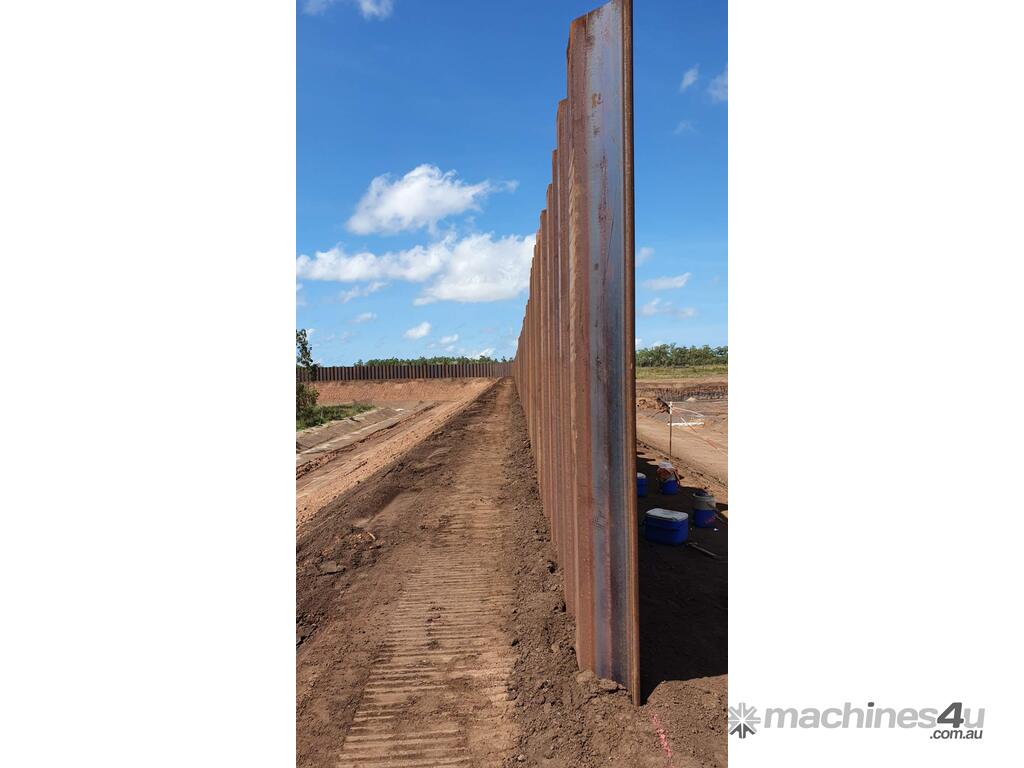

Sheet pile width: 400-1200 mm
Sheet pile depth: 265 mm
H-beam: H180-H500 size
Timber pile: Ø 160-420 mm
Tubular pile, tubes: Up to 762 mm

LENGTH & WEIGHT - SG-60V
8m / 2300kg
12m / 1600kg
16m / 1200kg
