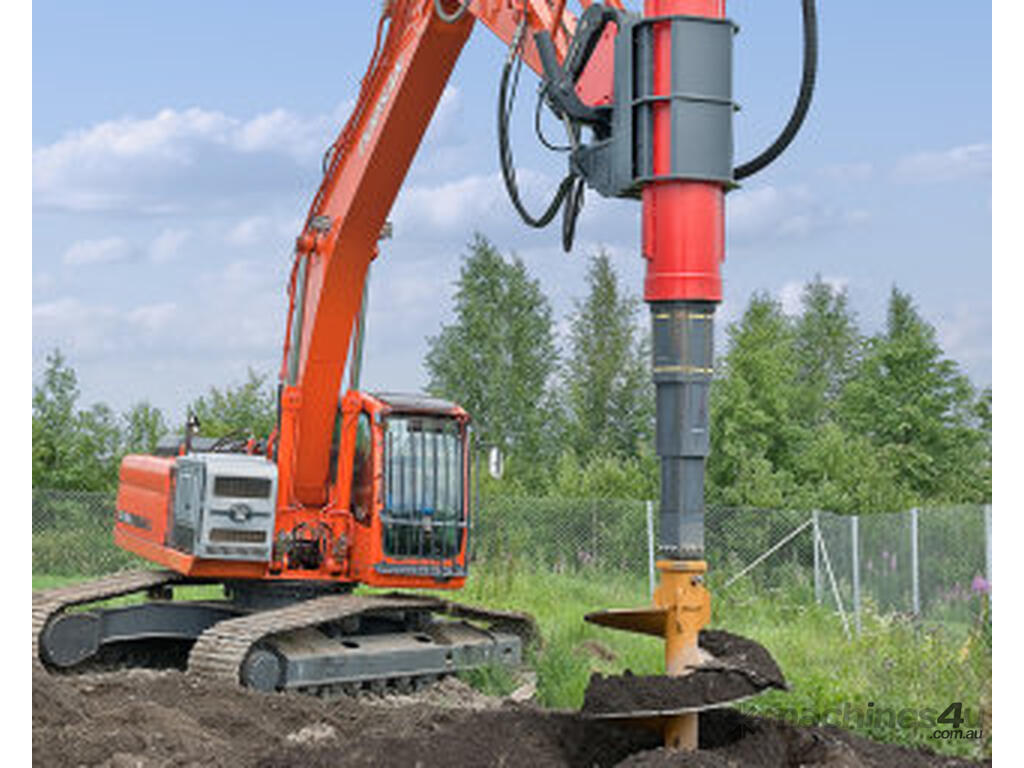

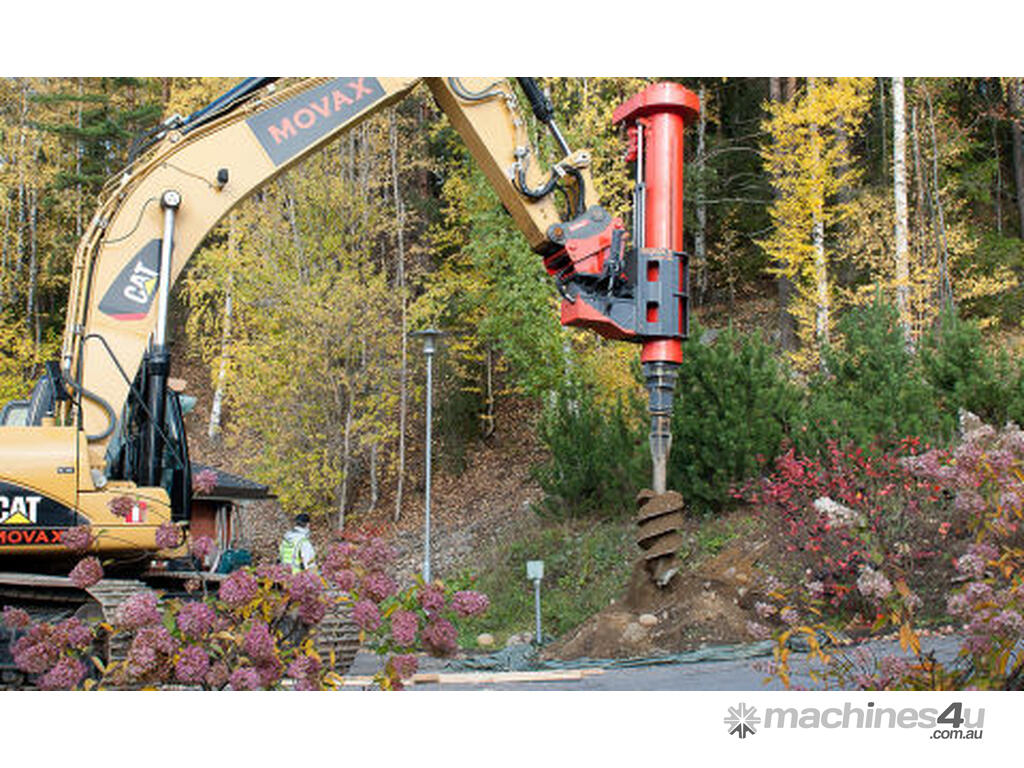

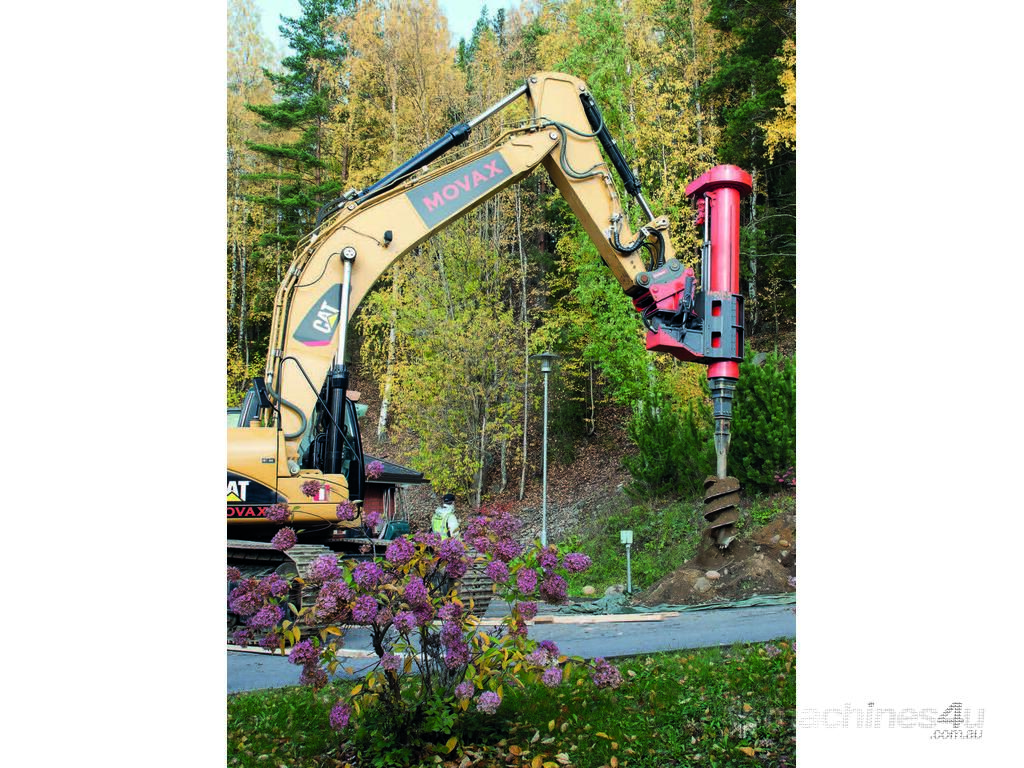

MOVAX TAD-51 EXCAVATOR MOUNTED PILING DRILL

FAST, EFFICIENT, FLEXIBLE AND ACCURATE PILE DRILLING

MOVAX piling drills are the optimum solution for cast-in situ piling and other drilling requirements.

MOVAX excavator-mounted piling drills are the perfect solution for sites with confined spaces and when limited space or headroom is available.

MOVAX piling drills can be utilised flexibly together with MOVAX’s excavator-mounted side grip pile drivers and piling hammers – all controlled with the same MOVAX Controls System for ease-of-operation.

FEATURES - TAD-51
• Excavator-mounted auger drive attachments for cast in-situ piling and other earth drilling work. Especially suitable for work in confined spaces while still being good at reaching over obstacles. The telescopic design keeps the machine low and allows working on sites with limited headroom without compromising on drilling depth.
• Hydraulically operated telescopic kelly bar with two extension.
• Available with different type of augers for normal soil conditions, hard clay, hard soil etc.
• Operated with the Movax Control System (MCS™) which allows the operator to control all MOVAX operations and commands the auxiliary hydraulics of the excavator. The MCS is available in two versions: MCS Pro and MCS Lite.
• Reporting and documentation of piling works with M-logbook™ (requires MCS Pro).

TECHNICAL DATA - TAD-51
Weight w/o adapter and auger: 3200 kg
Width: 1013 mm
Auger pressing force: 15,000 N
Auger pulling force: 60,000 N
Depth: 1673 mm
Drill speed: 11 - 74 rpm
Height w/o auger: 3855 mm
Hole depth: 6 m
Hole diameter(*): 400 - 1200 mm
Max return pressure: 5 bar
Oil flow rate: 75 - 250 l/min
Return pressure, max: 5 bar
Side tilt angle: +/- 30 degrees
Torque: 50,000 nm

(*) depending on soil conditions and tooling

ABOUT PREMIER ROCK MACHINERY
Premier Rock Machinery selects only the very best manufacturing brands from companies that design and build world-class excavator attachments to the most exacting standards using high quality materials suitable for the rugged Australian environment.

Premier Rock Machinery partner with the following world class manufacturers: MOVAX, MONTABERT, REMU, ROTAR and LEHNHOFF.

With a state-of-the-art workshop facilities and a fleet of dedicated service vehicles, Premier Rock Machinery is able to assist customers on or off their site whether they are engaged in the smallest of earthwork projects or the most demanding construction and civil engineering challenges.

Contact us today for more information this product.
