MPB Engineering Automatic Timber Moulder Infeed Table – Precision Feeding for Optimal Efficiency!

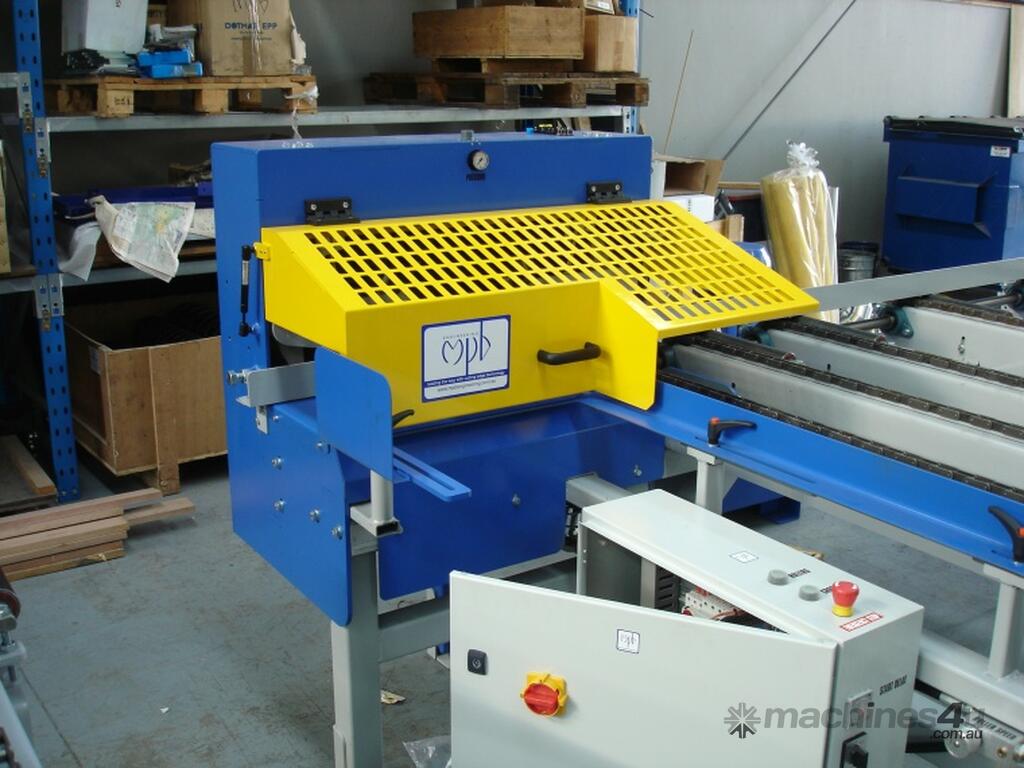

AUTOMATIC TIMBER MOULDER INFEED TABLE

Designed to load timber on any moulder, this Infeed Table is a must for any efficient, productive, and above all, safe operation.
The Infeed Table takes the back breaking hard work out of loading a moulder. Not only does it improve Operator Health and Safety, but the heavy duty construction and smart design features ensures the boards will be feed butted up continuously all day.

ADVANTAGES:
- With smart design features the Infeed Table is a low cost alternative for loading a moulder.
- Keeping the design simplistic ensures the machines speed, accuracy and longevity with minimal maintenance required.
- Heavy duty chains, bearings, steel, and legs are used to withstand the most rugged of conditions.

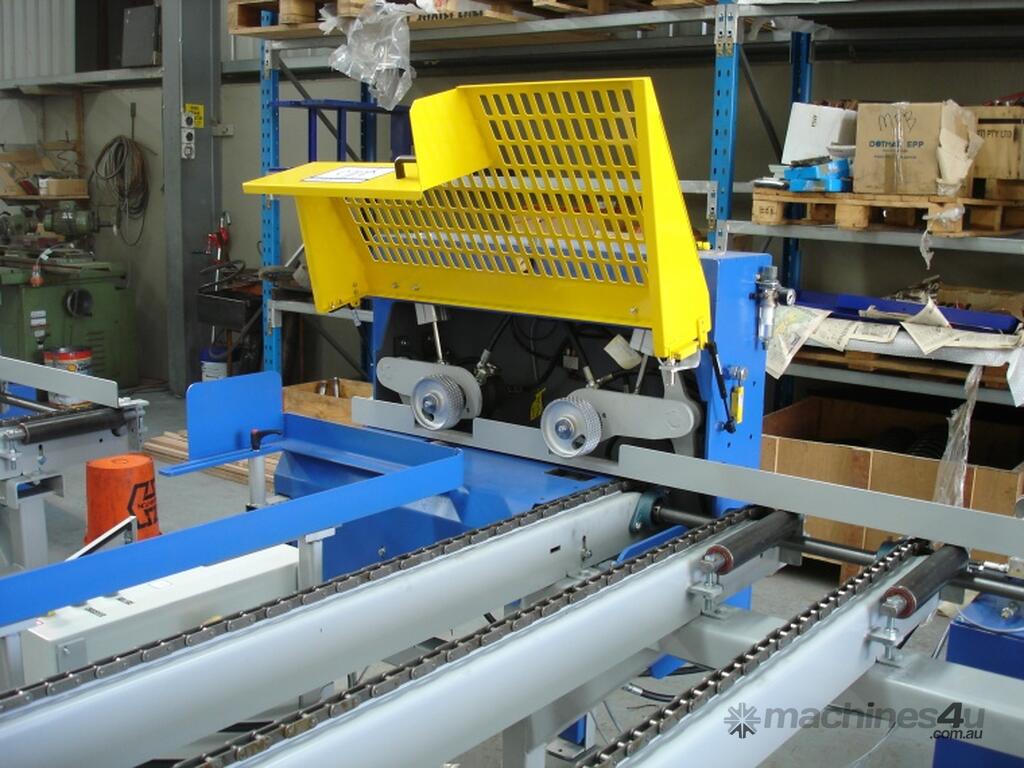

- The unique dual driven roller setup - both top and bottom rollers are driven - generates an unrivalled positive drive on each and every board, no matter what the size.
- Helps reduce OH&S concerns and eliminate operator back complaints. Operator safety is of the up most importance and any responsible employer should provide a safe working environment for all their workers.
- Only high quality components such as; Norgren, Sick, Lenze have been used and are available worldwide.
- Machine comes assembled; put in position, connect up air and electricity.......machine is ready to go!

CAPACITY:
SPEED ................. MAX. 60m/min.
BOARD WIDTH ........... 40-300mm
BOARD HEIGHT .......... 10-150mm
BOARD LENGTH .......... 600mm+
BED SIZE .......................4500L x 1750W x 900H (Larger Optional)
