Comes with 1 x 18" TCT saw blade.
- 455mm (18”) diameter TCT 120 teeth saw blade (1"Bore x 18"Dia x 3.4mm thick), travelling up vertically to cut timber, from rest position below work table.
- Cast iron work table on fabricated steel base.

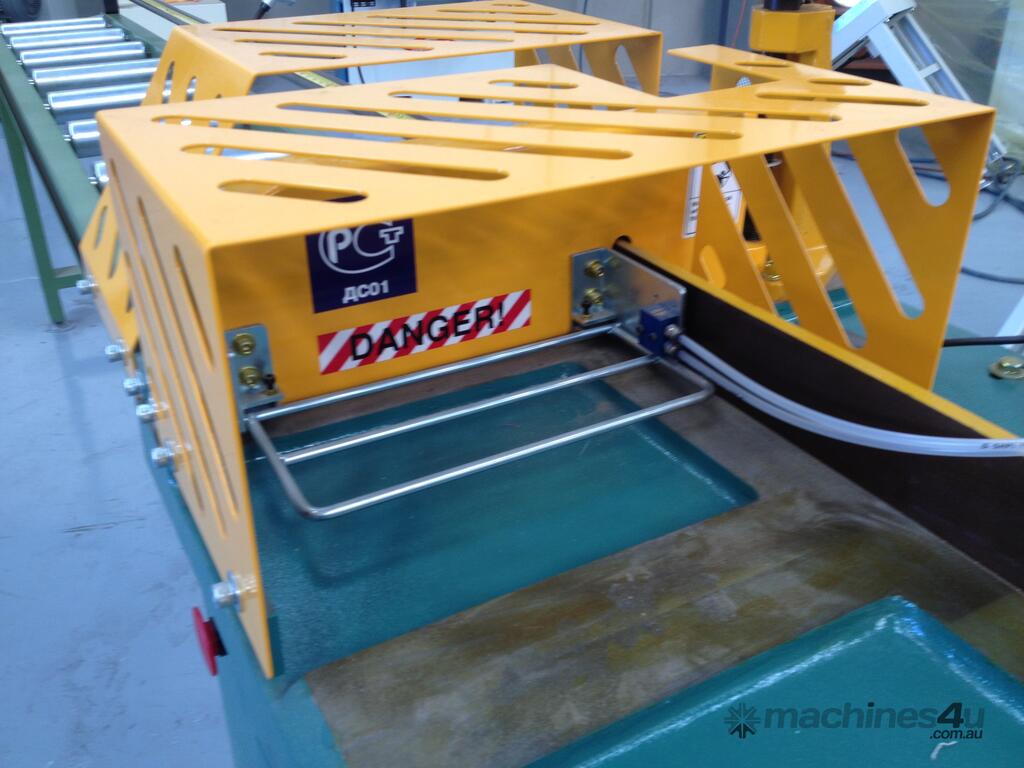

- Heavy moving safety guard to strongly clamp the timber to be cut by pneumatic pressure.

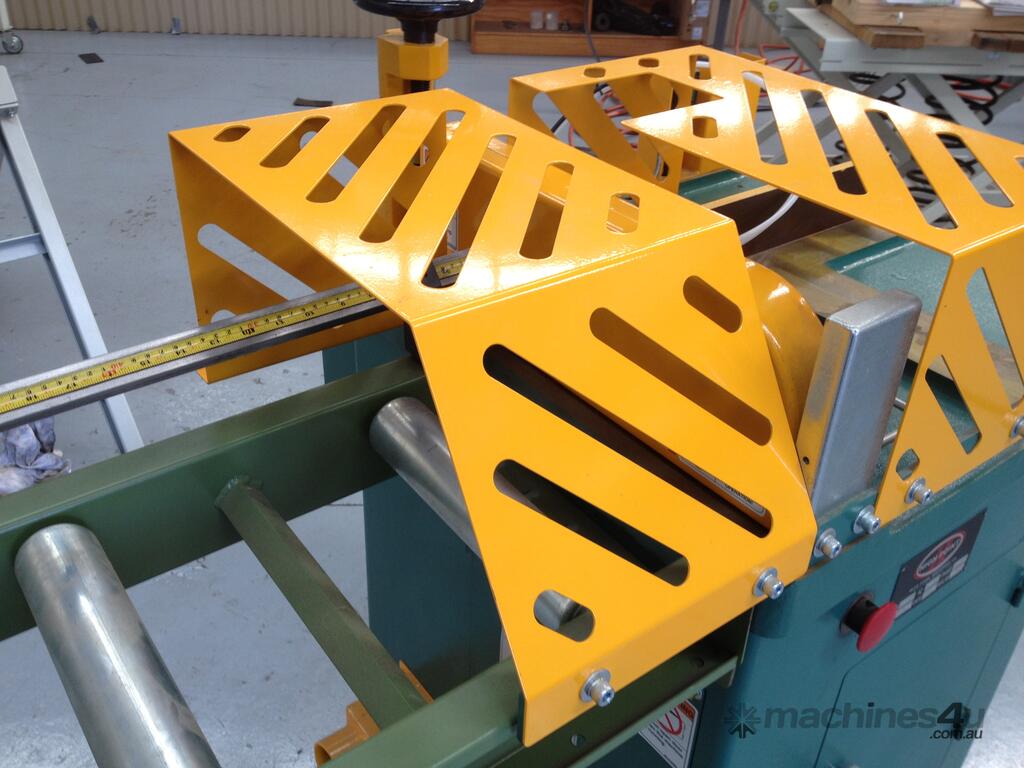

- Overhead safety guards 300mm on each side of saw blade.
- Two push button switches on front of machine to commence cutting operation.

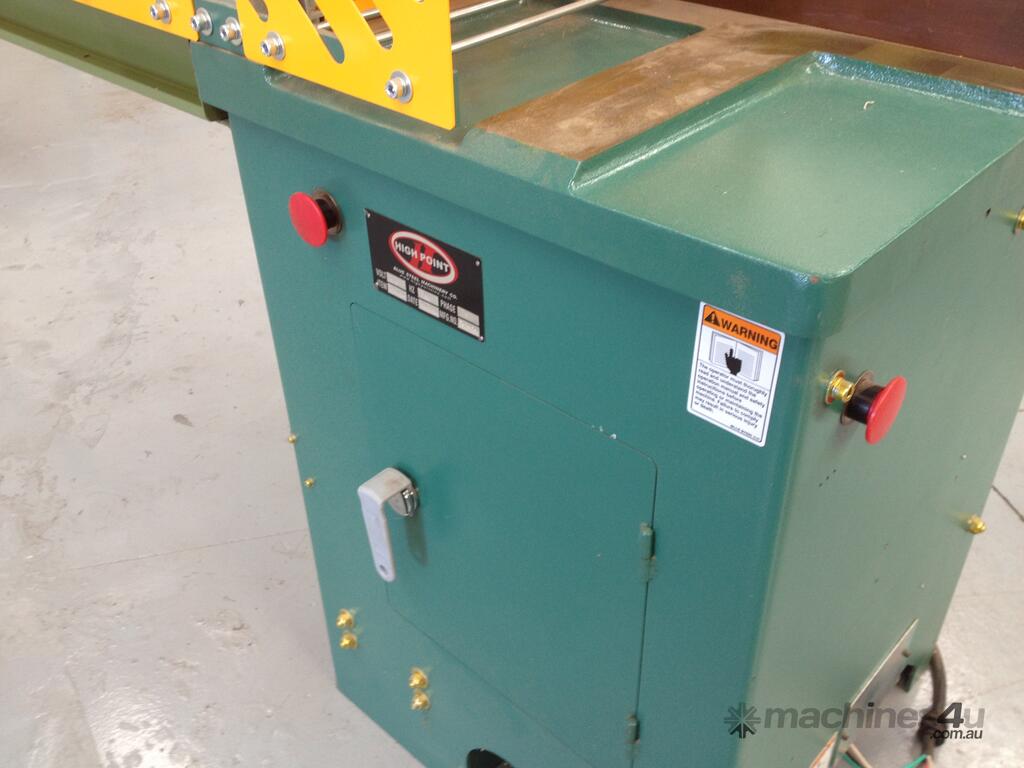

- Hinged door on front of machine for easy access to working parts.
- TCT saw blade included, with 120 teeth.
- A well finished, fast and reliable docking saw.
Technical Data:
- Max width of cut: 300mm
- Max height of cut: 125mm
- Motor: 10 Hp (7.5kW) 3 Phase
- Compressed air consumption 11.5 cfm 90 psi (for 45 cycles/minute)
- Dust extraction outlet on rear 100mm diam (4”)
